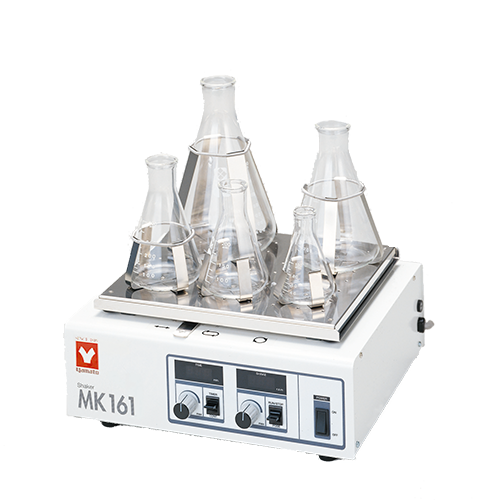

Yamato MK161 Compact Shaker Rotary, Elliptical & Reciprocate 20-200 rpm Overview
The Yamato MK-161 compact shaker offers three shaking motions — rotary, elliptical, and reciprocate — selectable on a single benchtop unit, running from 20–200 rpm with a 30 mm throw. A stable, high-torque DC brushless motor drives the W290 × D250 mm shaking stage, making one instrument flexible enough for mixing, staining, extraction, and gentle cell work.
A digital timer covers 0.1 min (6 seconds) to 99.9 hours plus continuous operation. At W350 × D300 × H150 mm and about 15 kg it fits crowded benches — and inside the Yamato IN-604W incubator for temperature-controlled shaking incubation. Made in Japan; available in 115 V and 220 V.
How to Choose the Right Shaker
- Shaking motion: the MK-161 selects rotary, elliptical, or reciprocate motion — one unit for several applications.
- Speed & throw: 20–200 rpm with a 30 mm throw for gentle to vigorous agitation.
- Footprint & incubation: benchtop size fits the IN-604W incubator when temperature control is needed.
- Voltage: choose 115 V or 220 V to match your lab supply.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 115V |
| Type | Compact shaker — rotary, elliptical, and reciprocate motion (manual selection) |
| Shaking Modes | Rotary, elliptical, reciprocate |
| Shaking Range | Rotary 30 mm / Reciprocate 30 mm |
| Shaking Frequency | 20–200 rpm |
| Motor | DC brushless — stable, high-torque shaking |
| Timer | Digital, 0.1 min (6 sec) to 99.9 hr; timer or continuous operation |
| Shaking Stage | W290 × D250 mm |
| External Dimensions | W350 × D300 × H150 mm |
| Power Supply | 115V, 0.5A, 50/60 Hz |
| Net Weight | ~15 kg |
| Note | Fits inside the IN-604W incubator for shaking incubation |
| Material | Steel sheet iron, melamine resin baking finish (chassis) Polyethylene (PET) resin film (nameplates) Stainless steel plate with melamine resin coating (shaking table) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059931668 |
| Shipping Weight | 40 lbs |
| Dimensions (L × W × H) | 18 × 15 × 12 in |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| MK-161-115V | 115V | EA |
| MK-161-220V | 220V | EA |
Documentation
More in This Series
- Laboratory Shaker Horizontal/Vertical 20-300 rpm
- Laboratory Shaker Rotary & Horizontal/Rotary & Vertical 20-210 rpm
- Sa-300 With Adjustable Erlenmeyer Flask Holder (Part No. 232097)
- Sa-300 With 4 Pcs. Of Separating Funnel Holder (Part No. 232096)
- Sa-320 With Adjustable Erlenmeyer Flask Holder (Part No. 232097)
- Sa-320 With 4 Pcs. Of Separating Funnel Holder (Part No. 232096)
Ordering
Authorized dealer, ships from USA inventory. Serving academic, government, and research laboratories nationwide.
Frequently Asked Questions
What three shaking motions does the MK-161 offer?
The MK-161 provides rotary, elliptical, and reciprocate motion, each manually selectable, at 20–200 rpm with a 30 mm throw — letting one compact unit cover several agitation applications.
Can the MK-161 be used inside an incubator?
Yes. Its benchtop dimensions (W350 × D300 × H150 mm) allow it to fit inside the Yamato IN-604W incubator for temperature-controlled shaking incubation.
What is the timer range?
The digital timer runs from 0.1 min (6 seconds) up to 99.9 hours, and the unit can also run continuously.
