Laboratory Glassware Washer (Process Monitorable) Overview

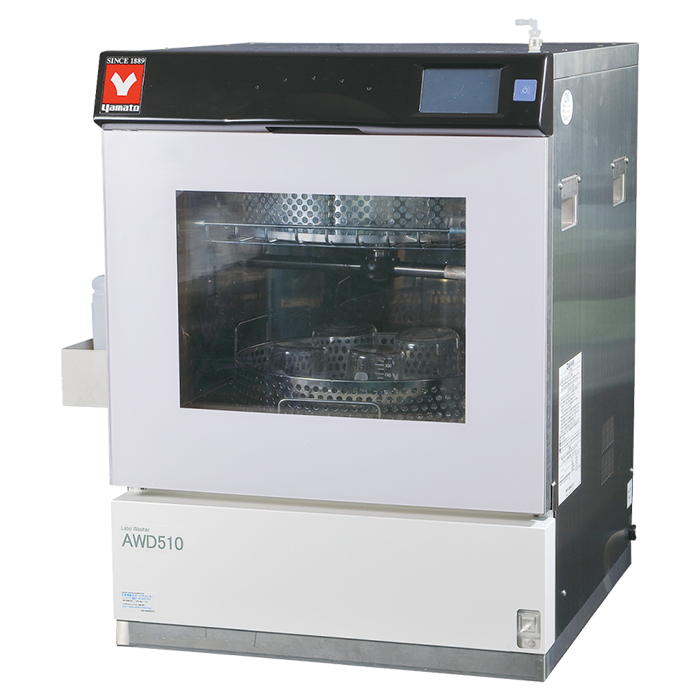

The Laboratory Glassware Washer (Process Monitorable) (model AWD510) from Yamato Scientific is a benchtop glassware washer built for high-throughput cleaning of test tubes, flasks, and beakers. Color-coded interior lighting tracks each wash stage, while temperatures reach 45–93°C across the rinse and final-wash cycles. LabSupplies.com supplies this unit as an authorized dealer.
Stainless steel SUS304 forms the washing tank, sized W500 × D480 × H480 mm. Upper, middle, and lower rotary jet nozzles deliver even spray coverage across a two-tier sliding rack. A large double-glazed window stays cool during hot-water disinfection and keeps the interior visible throughout the run. Electronic door locking prevents accidental opening mid-cycle.
Operation runs on a 220V supply through a 4.3-inch touch LCD that stores nine programs. Effluent cools to 60°C or below before discharge, removing the need for heat-resistant piping. Manufactured in Japan, the washer weighs 280 lbs and measures 36 × 36 × 62 in. Yamato Scientific holds ISO 9001:2015 and ISO 14001:2015 certification.
Key Features

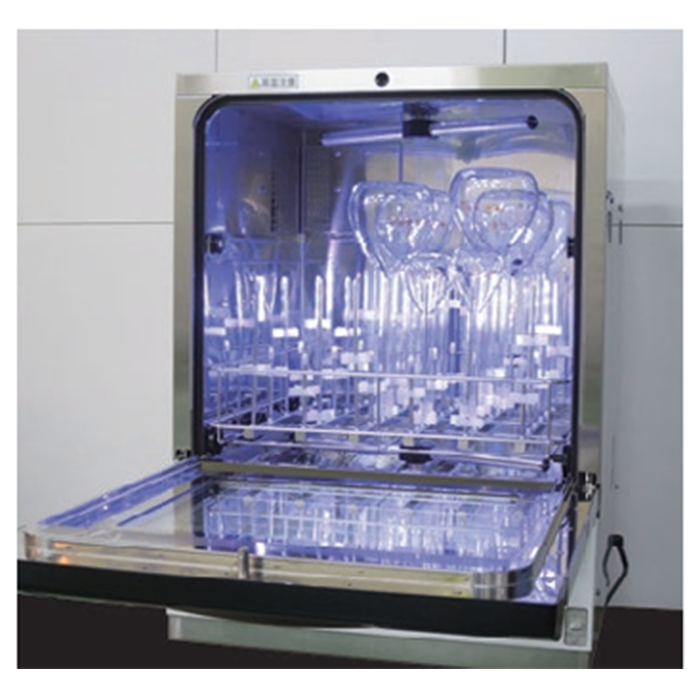

- Process monitoring: color-coded interior lighting and a front-panel LED signal each stage — pre-wash (green), wash (yellow), rinse (blue), final wash (light blue).
- Rotary jet nozzles: upper, middle, and lower showers rotate for even, thorough cleaning across loaded glassware.
- Two-tier sliding rack: handles a maximum washing volume of 10 kg upper plus 15 kg lower, or 15 kg single-stage with the optional rack.
- 4.3-inch touch LCD: stores nine programs and runs the full pre-wash, wash, rinse, and final-wash sequence with adjustable 1–60 minute cycles.
- Cool double-glazed window: stays cool during hot-water disinfection while keeping the interior in clear view.
- Electronic door lock: prevents accidental opening during the cleaning cycle.
How to Choose the Right Glassware Washer
Match the washer to your throughput, the items you clean, and your site power before specifying a unit. Each axis below changes the purchase decision for a lab.
- Capacity: the two-stage configuration holds 10 kg upper plus 15 kg lower, so confirm your daily glassware volume against rack capacity.
- Temperature range: pre-wash and wash run 45–80°C while rinse and final wash reach 45–93°C — verify the range covers your disinfection protocol.
- Control type: a 4.3-inch touch LCD with nine storable programs suits labs that repeat validated cycles and need process monitoring.
- Voltage: this unit requires a 220V supply, so check available circuits before installation.
- Footprint: benchtop dimensions of 36 × 36 × 62 in and 280 lbs determine bench or floor placement and access for service.
- Safety: electronic door locking and effluent cooled to 60°C or below protect operators and simplify drain requirements.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 220V |
| Washing Program | Pre-wash → wash → rinse → final wash |
| Type | Laboratory washer (process-monitorable) — upper/middle/lower-stage rotary jet nozzle |
| Objects to Be Washed | Glassware including test tubes, flasks, and beakers (excluding pipettes) |
| Operation Panel | 4.3-inch touch LCD |
| Washing Temperature | Pre-wash and wash 45–80°C; rinse and final wash 45–93°C |
| Washing Time | 1–60 minutes (≤10 min at 90°C or above); repeat count 1–10 |
| Programs | Nine programs storable |
| Process Monitoring | Color-coded interior lighting and front-panel LED — pre-wash (green), wash (yellow), rinse (blue), final wash (light blue) |
| Maximum Washing Volume | Two-stage: upper 10 kg + lower 15 kg; one-stage: 15 kg (optional rack) |
| Detergent | Liquid (automatically dispensed) or powder (manually supplied) |
| Viewing Window | Large double-glazed window — stays cool during hot-water disinfection |
| Door | Electronic lock prevents accidental opening during cleaning |
| Effluent | Hot water cooled to ≤60°C before discharge — no heat-resistant piping required |
| Washing Tank | W500 × D480 × H480 mm |
| Country of Origin | Japan |
| Material | Stainless steel SUS304 (washing tank) |
| GTIN (Barcode) | 797059933006 |
| Shipping Weight | 280 lbs |
| Dimensions (L × W × H) | 36 × 36 × 62 in |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| AWD-510 | EA | EA |
Documentation
More in This Series
- Laboratory Glassware Washer (Process Monitorable) Optional Pre-Drying
- Semi-Automatic Benchtop Laboratory Glassware Washer
View all Laboratory Glassware Washers →
Why Buy From LabSupplies.com
Order the AWD510 directly from LabSupplies.com and receive a genuine Yamato Scientific unit backed by the manufacturer warranty. Our lab-equipment specialists answer spec questions before you commit to a purchase.
- Authorized Yamato Scientific dealer: every unit is genuine and carries the full manufacturer warranty.
- In stock: ready to ship without backorder delays.
- Ships from USA inventory: domestic fulfillment shortens lead times.
- Lab-equipment specialists: direct support for configuration and specification questions.
Frequently Asked Questions
What temperature range does the AWD510 reach?
The AWD510 runs 45–80°C during pre-wash and wash, then 45–93°C during rinse and final wash. Cycles at 90°C or above are limited to 10 minutes, and washing time is adjustable from 1 to 60 minutes.
What is the maximum washing capacity?
Capacity is 10 kg on the upper tier plus 15 kg on the lower tier in the two-stage setup. A single-stage configuration with the optional rack holds 15 kg. The washing tank measures W500 × D480 × H480 mm.
What voltage and power supply does the unit require?
The AWD510 operates on a 220V supply. Confirm an available 220V circuit at the installation site before delivery.
What is the washing tank made of?
The washing tank is stainless steel SUS304. Upper, middle, and lower rotary jet nozzles distribute spray evenly across the two-tier sliding rack.
Does the AWD510 need heat-resistant drain piping?
No. Effluent is cooled to 60°C or below before discharge, so heat-resistant piping is not required for the drain connection.
Can the washer clean pipettes?
No. The AWD510 is designed for glassware such as test tubes, flasks, and beakers, but pipettes are excluded. Liquid detergent dispenses automatically, or powder detergent can be supplied manually.
