708383SS Stainless Steel Combination Shower and Eyewash Features

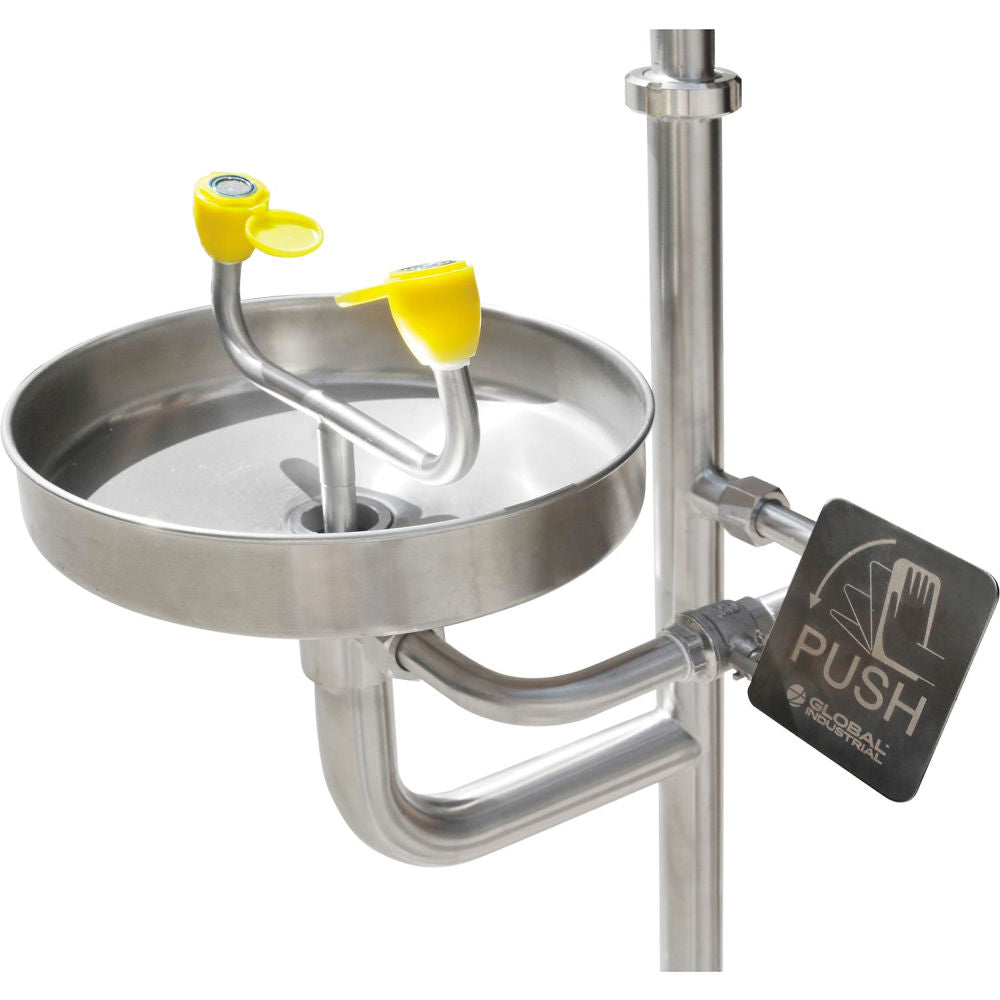

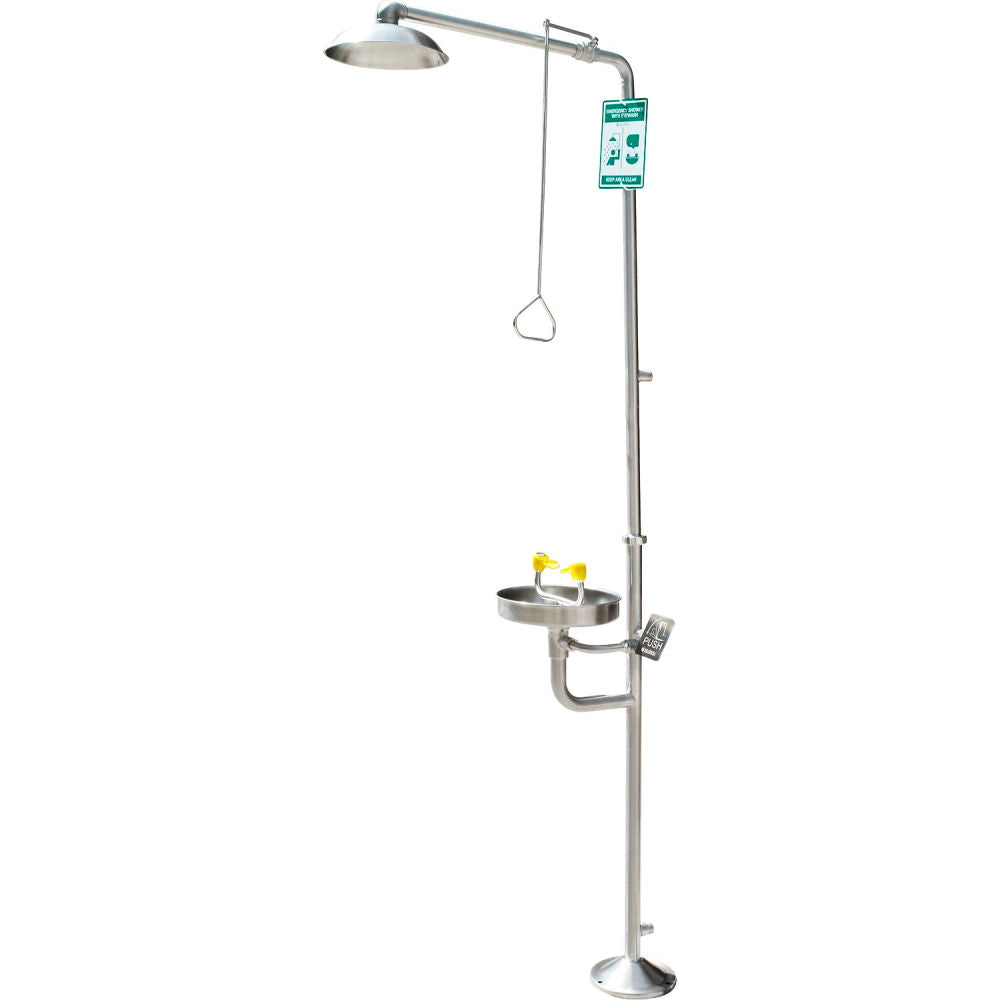

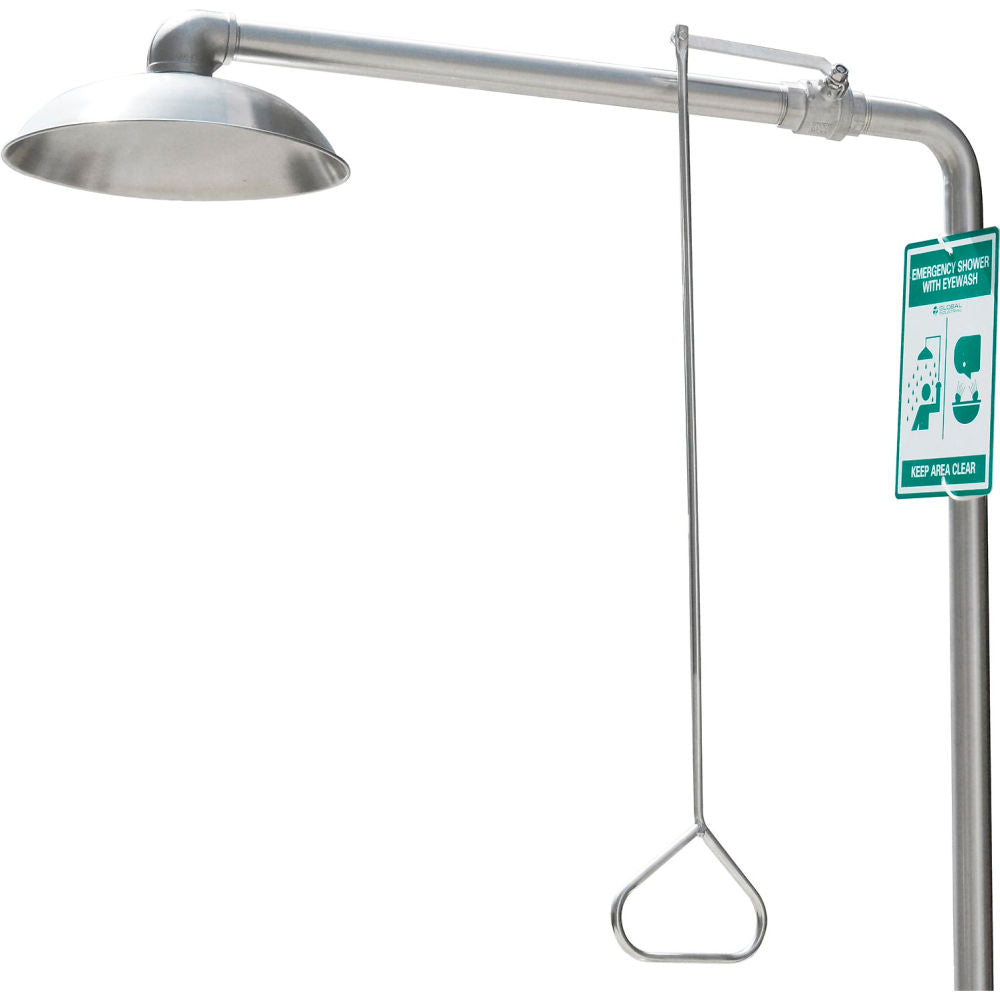

The Global Industrial 708383SS combines an overhead emergency drench shower and an eyewash station on one floor-mounted, all-stainless assembly. A 10 inch stainless shower head is pulled on with a large pull rod; the 11-3/8 inch stainless eyewash bowl is pushed on with a handle. Both run on stainless stay-open ball valves, so they keep flowing hands-free and can operate together for full-body and eye decontamination where strong acids, caustics or solvents are handled.
Stainless pipe and fittings suit corrosive chemical storage, plating lines, battery charging rooms and lab wash-down areas. Meets ANSI Z358.1-2014. Includes an eyewash gauge and plumber's tape; 1-year limited warranty.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Global Industrial |
| Item # | 708383SS |
| Mounting | Floor |
| Material | Stainless steel pipe, fittings, shower head and bowl |
| Shower head | 10 in stainless, pull-rod activation |
| Eyewash bowl | 11-3/8 in stainless, push-handle activation |
| Spray heads | 2, with flip-top dust covers |
| Eyewash flow rate | 5.15 gal/min |
| Flowing pressure | 30 psi |
| Valves | Stainless steel stay-open ball valves |
| Approx. dimensions | 29.1 x 10 x 94.1 in |
| Weight | 27.3 lb |
| Includes | Eyewash gauge, plumber's tape |
| Standard | ANSI Z358.1-2014 |
| Warranty | 1-year limited |
Pair with the B3186064 emergency mixing valve to deliver tepid flushing water from a hot and cold supply. For eye-only coverage in the same finish, see the 708381SS wall and 708382SS pedestal eyewash stations.
Documents
Frequently Asked Questions
Can the shower and eyewash on the 708383SS run at the same time?
Yes. The shower is pull-rod activated and the eyewash is push-handle activated through separate stay-open ball valves, so a worker can drench the body and flush the eyes together, as ANSI Z358.1-2014 requires of combination units.
How tall is the 708383SS and how much does it weigh?
The assembled unit stands about 94 inches tall with a 10 inch stainless shower head and an 11-3/8 inch stainless eyewash bowl, and weighs 27.3 pounds. Check ceiling clearance before ordering.
Stainless or galvanized combination shower?
The 708383SS is stainless throughout — pipe, fittings, shower head, bowl and valves — for corrosive and wash-down areas. The galvanized 708383 uses an ABS bowl and galvanized pipe and is ETL listed.
