B3186064 Emergency Mixing Valve Features

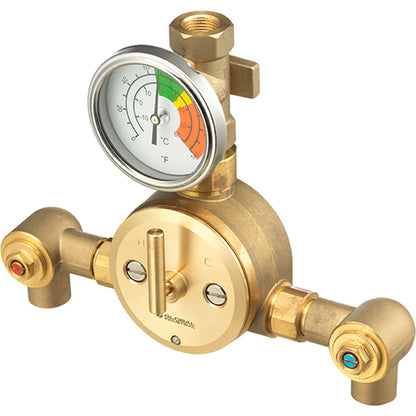

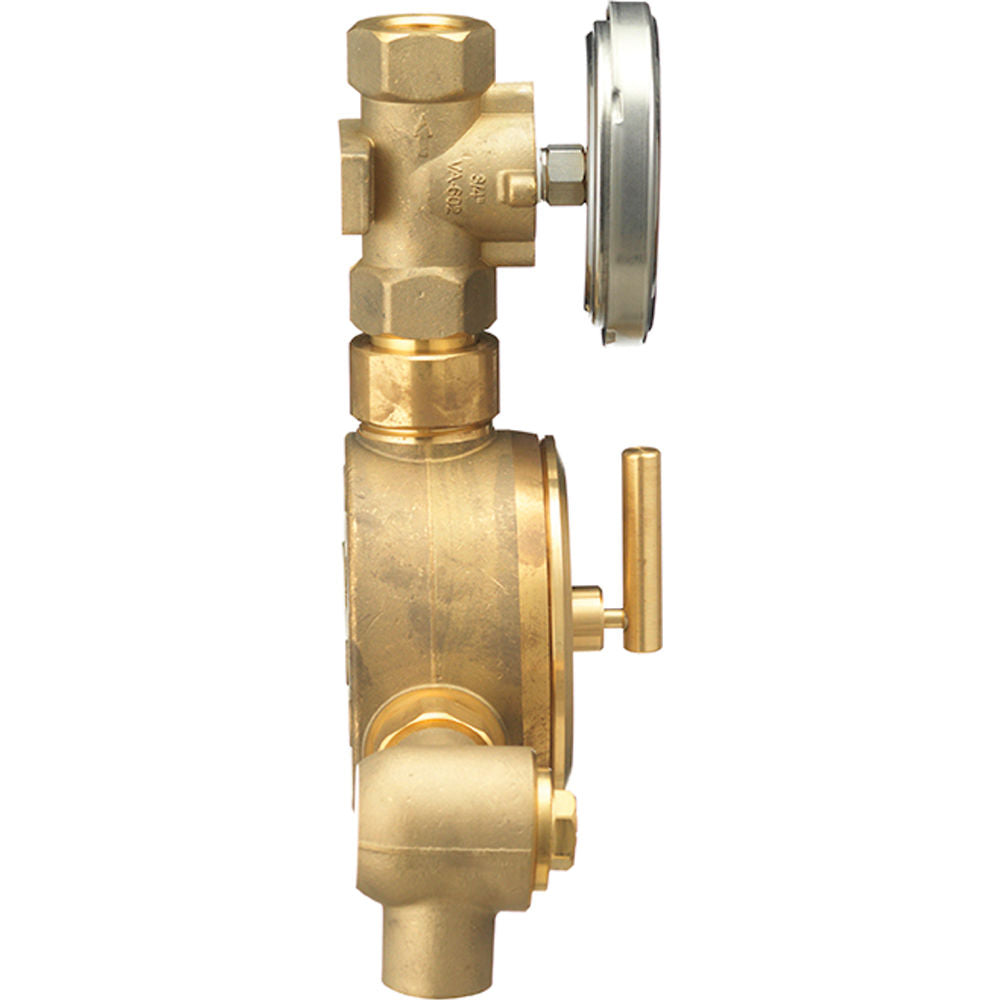

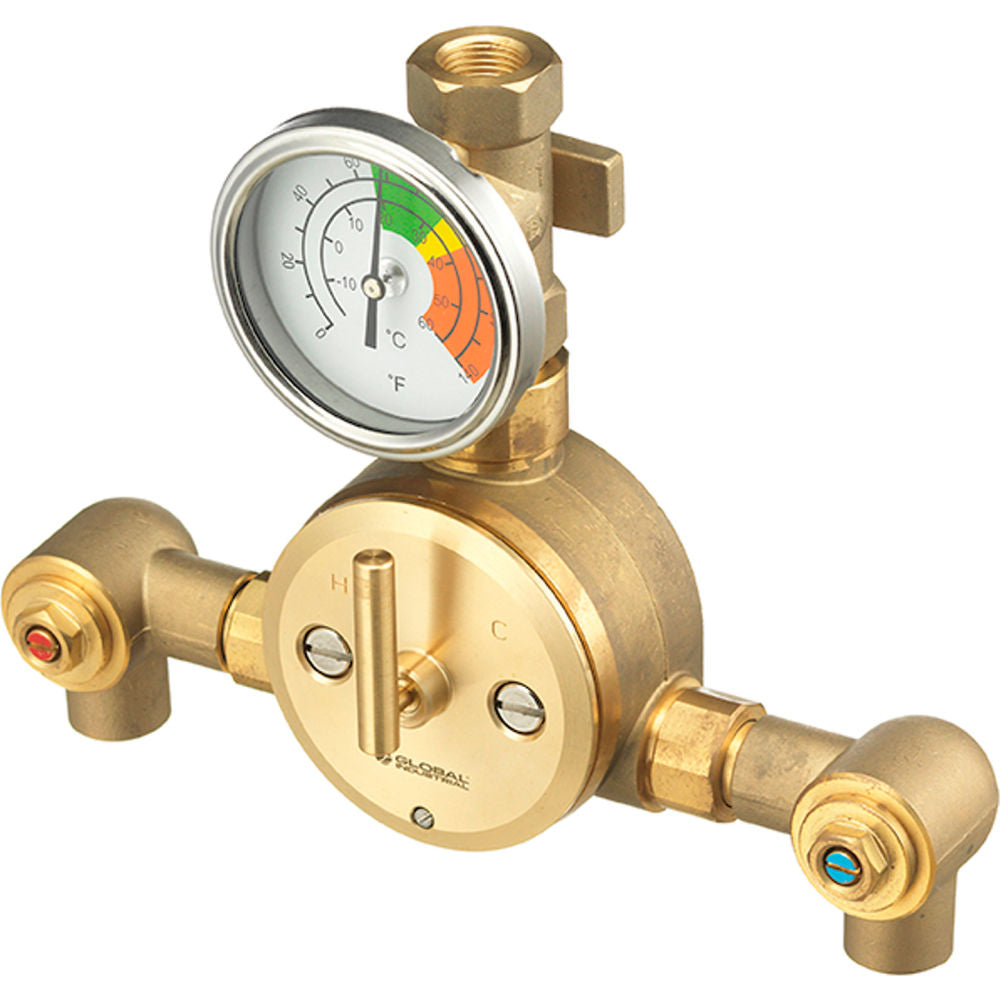

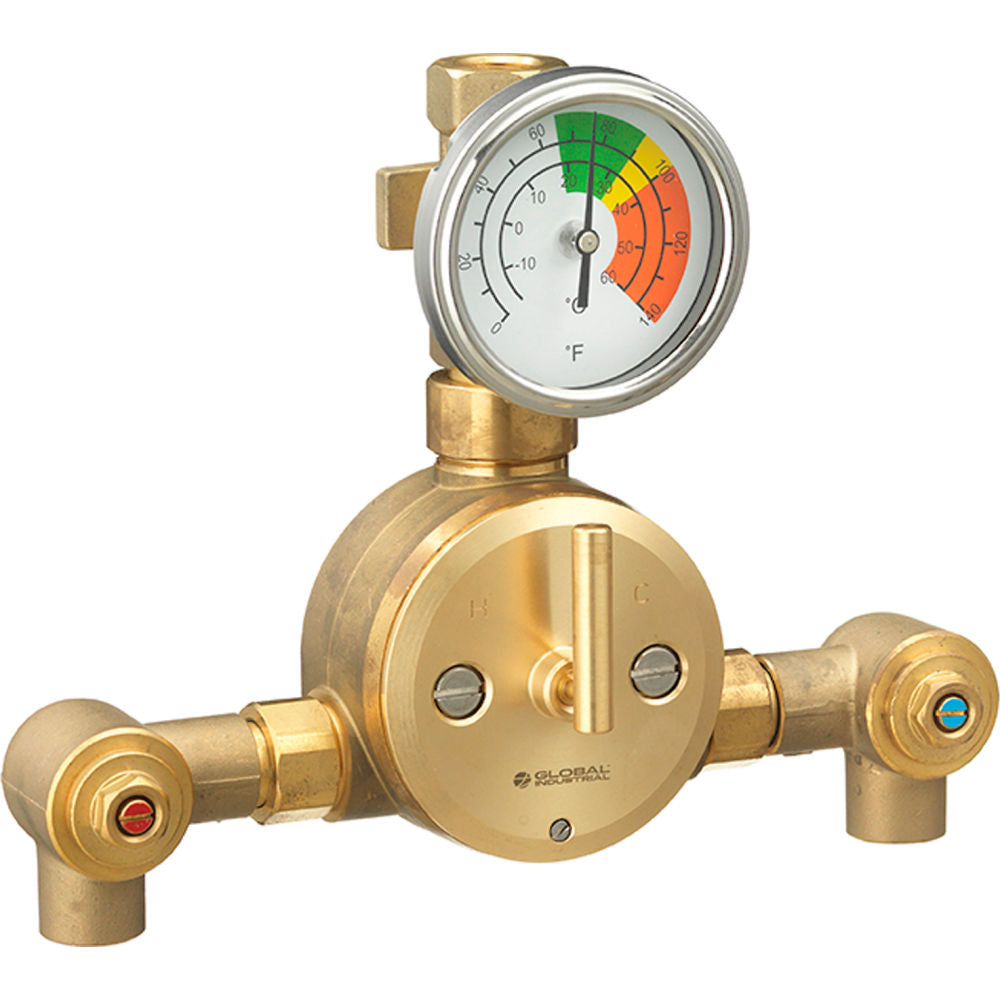

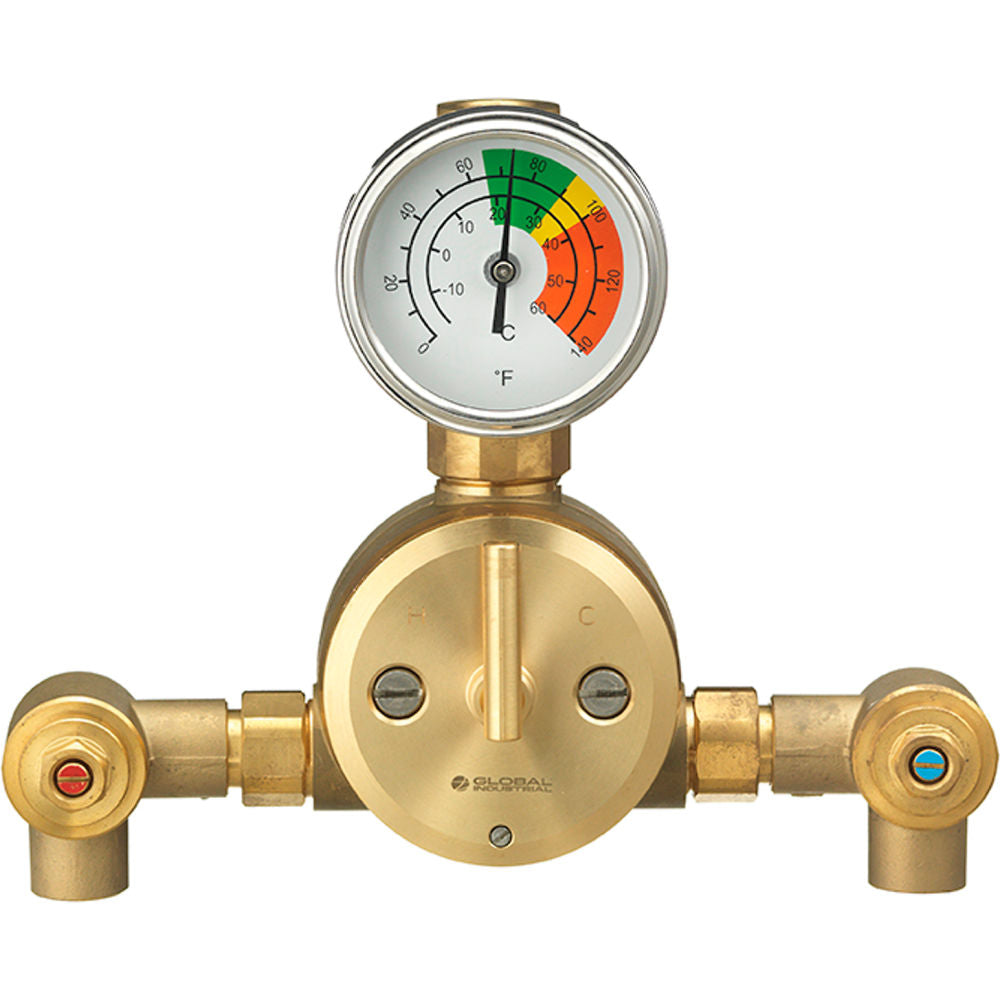

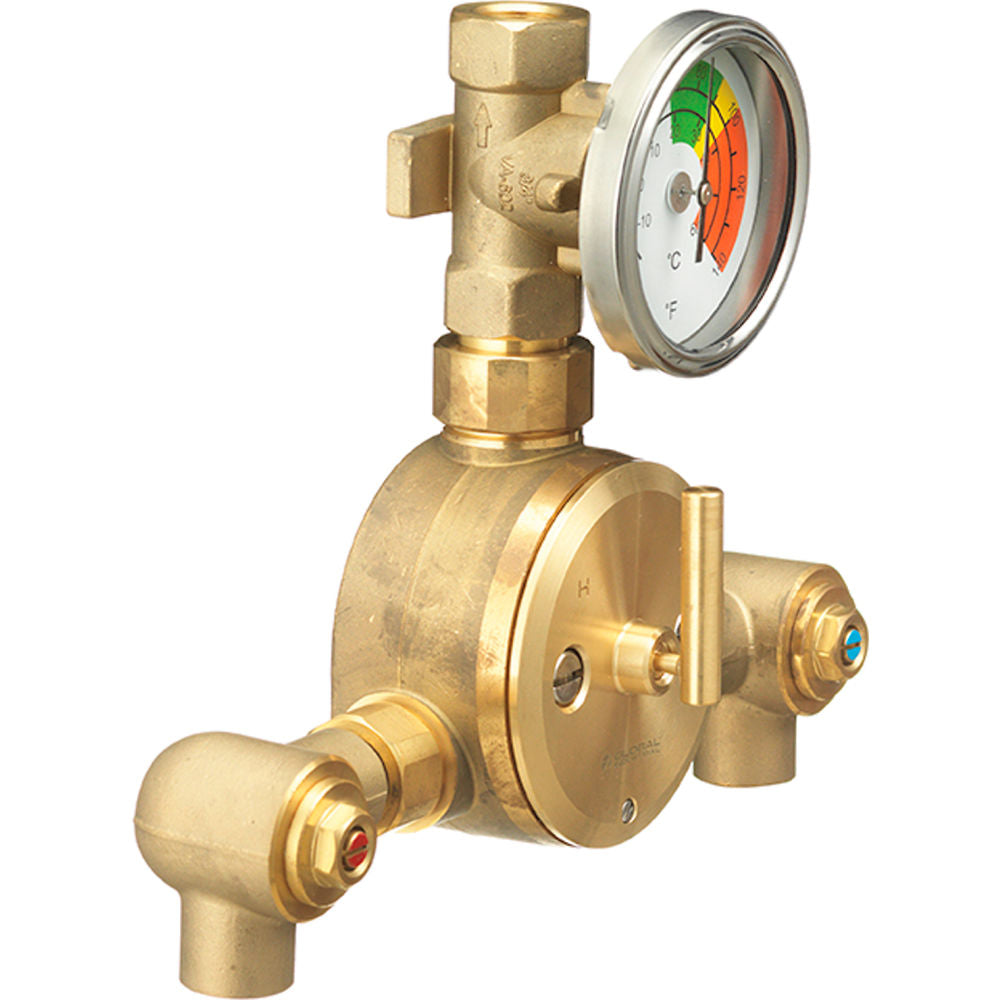

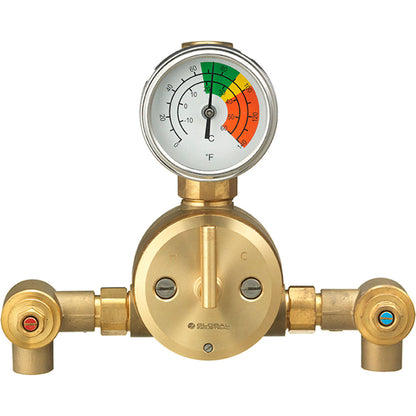

The Global Industrial B3186064 is a brass thermostatic emergency mixing valve that blends hot and cold water into tepid flushing water for eyewash stations, drench showers and combination units. ANSI Z358.1-2014 calls for tepid water at emergency fixtures; this valve delivers 65°F to 95°F at up to 28 gallons per minute in both normal and bypass modes.
If the hot supply fails, flow continues in bypass. If the cold supply is lost, the valve shuts off completely to prevent scalding. Rated to 125 psi with 1/2 inch x 14 NPT inlet and outlet connections.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Global Industrial |
| Item # | B3186064 |
| Material | Brass |
| Flow rate | 28 gal/min |
| Outlet temperature range | 65°F – 95°F |
| Inlet / outlet | 1/2 in x 14 NPT |
| Max pressure | 125 psi |
| Hot supply failure | Continues flow in bypass mode |
| Cold supply failure | Full shut-off |
| Quantity | 1 valve |
Use it with the 708383 combination shower, 708383SS stainless combination shower or 708384 drench shower.
Frequently Asked Questions
What temperature does the B3186064 deliver?
It blends hot and cold supply to a tepid outlet in the 65°F to 95°F range used for emergency flushing, at up to 28 gallons per minute.
What happens if the hot or cold supply fails?
Flow continues in bypass mode if the hot water supply fails, and the valve shuts off completely if the cold supply is lost, to prevent scalding.
Which fixtures can one valve supply?
Eyewash stations, drench showers and eyewash/drench hose units, up to a combined 28 gallons per minute. Inlet and outlet are 1/2 inch x 14 NPT and the valve is rated to 125 psi.
