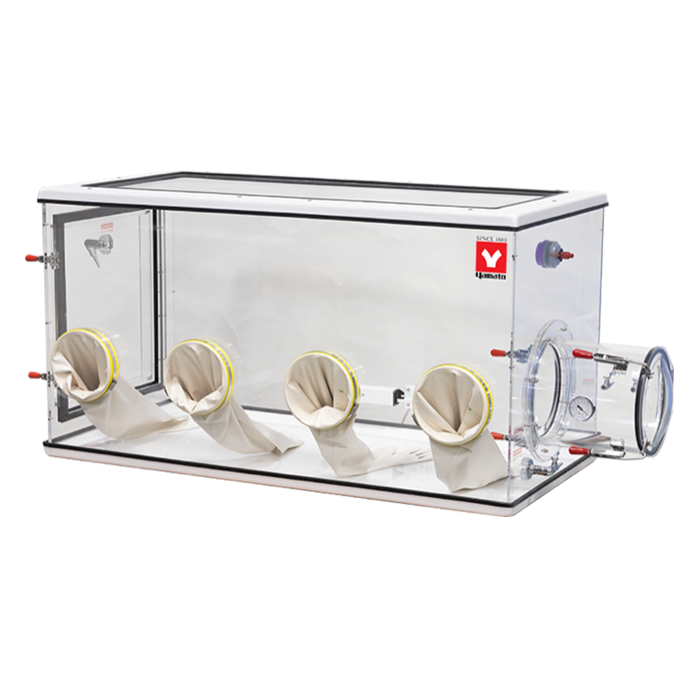

60" Four Glove Compact Glove Boxes Overview
The 60" Four Glove Compact Glove Boxes (model SG860) from Yamato Scientific deliver completely sealed isolation and containment in a single Glove Box. This unit pairs a 60" × 29" × 32" interior working chamber with an integrated 12" transfer chamber for product and personnel protection. LabSupplies.com, an authorized dealer, supplies the genuine unit.
Thick clear cast acrylic forms the main working chamber, an optically clear material developed for isolation and containment. Four white ambidextrous Hypalon gloves allow manipulation inside the sealed enclosure. A flat side access door measuring 21.5" × 24" eases introduction of larger equipment, while four key-cock purging valves and a vacuum gauge manage chamber atmosphere.
Operators can run nitrogen, argon, or other inert gases to lower oxygen and humidity inside the chamber. A hospital-grade multiple-outlet strip powers equipment within the box, and a pressure-relief valve with a small HEPA filter guards against overpressure. Built in the United States and CE certified, the unit weighs 475 lbs.
Key Features
- Four-glove configuration: white ambidextrous Hypalon gloves provide flexible access across the 60" working chamber.
- Integrated transfer chamber: a 12" transfer chamber with purging valves and vacuum gauge supports loading without breaking containment.
- Flat side access door: a 21.5" × 24" opening allows easy introduction of larger equipment into the chamber.
- Key-cock purging valves: four valves (two on the main chamber, two on the transfer chamber) control inert-gas purging.
- Pressure management: main chamber rated to +6"/−6" water column and transfer chamber to −26" Hg, with a pressure-relief valve and small HEPA filter.
- Integrated electrical: a hospital-grade multiple-outlet strip powers instruments inside the sealed enclosure.
How to Choose the Right Glove Box
Selecting a glove box comes down to chamber size, atmosphere control, and the containment level your workflow demands. Match the unit to your sample volume, the equipment you must place inside, and the gases you intend to use.
- Chamber capacity and footprint: confirm the 60" × 29" × 32" interior accommodates your apparatus and that the 76" × 32" × 35" exterior fits the bench space.
- Glove configuration: a four-glove layout suits wider work zones and multi-operator or two-handed reach across a long chamber.
- Transfer chamber: an integrated transfer chamber with purging valves lets you move materials in and out while maintaining the inert atmosphere.
- Atmosphere and gas compatibility: verify the box accepts nitrogen, argon, or other inert gases to lower oxygen and humidity for sensitive work.
- Pressure and safety control: review the operating pressure range and the pressure-relief valve with HEPA filter for containment of toxic substances and vapors.
- Material compatibility: cast acrylic construction balances optical clarity with the chemical exposure your application involves.
Specifications
| Specification | Detail |
|---|---|
| Gloves Configuration | Four (4) gloves |
| Interior Dimensions (W × D × H) | 60" × 29" × 32" (1524 × 740 × 810 mm) |
| Exterior Dimensions (incl. 12" transfer chamber) | 76" × 32" × 35" (1930 × 812 × 890 mm) |
| Access Door Opening | 21.5" × 24" H (546 × 610 mm) |
| Type | Compact sealed glove box for product and personnel protection |
| Construction | Optically clear material developed for isolation and containment |
| Transfer Chamber | Integrated transfer chamber with purging valves and vacuum gauge |
| Access Door | Flat side access door for easy introduction of larger equipment |
| Purging Valves | Four key-cock valves (2 on main chamber, 2 on transfer chamber) |
| Gloves | White ambidextrous Hypalon gloves |
| Electrical | Hospital-grade multiple-outlet strip |
| Pressure Relief | Pressure-relief valve with small HEPA filter |
| Operating Pressure | ±0.5" water column (0.93 torr) for containment / isolation |
| Main Chamber Pressure | Max +6" / vacuum −6" water column (11.2 torr) |
| Transfer Chamber Vacuum | Max −26" Hg (660 torr) |
| Atmosphere | For nitrogen, argon, or other inert gases (lowers oxygen and humidity) |
| Applications | Toxic substances, asbestos, fibers, sewage residue, and harmful liquid vapors |
| Country of Origin | United States |
| Material | Thick clear cast acrylic (main working chamber) |
| GTIN (Barcode) | 797059932283 |
| Shipping Weight | 475 lbs |
| Dimensions (L × W × H) | 94 × 44 × 47 in |
| Component Size | 60 In |
| CE Certification | CE Certification |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| SG-860 | EA | EA |
Documentation
More in This Series
- 48" Three Glove Compact Glove Boxes
- 35" Two Glove Compact Glove Boxes
- 28" Two Glove Compact Glove Boxes
View all Compact Glove Boxes →
Why Buy From LabSupplies.com
Order the SG860 directly from LabSupplies.com and receive a genuine, factory-fresh unit ready for installation. We support procurement teams from quote-free ordering through delivery, with specialists available for technical questions.
- Authorized Yamato Scientific dealer: every unit is genuine and backed by the manufacturer warranty.
- In stock: available now and ready to process for shipment.
- Ships from USA inventory: built in the United States and dispatched from domestic stock.
- Lab-equipment specialists: our team answers spec and compatibility questions before you order.
Frequently Asked Questions
What are the interior and exterior dimensions of the SG860 glove box?
The interior working chamber measures 60" × 29" × 32" (1524 × 740 × 810 mm). Exterior dimensions, including the 12" transfer chamber, are 76" × 32" × 35" (1930 × 812 × 890 mm).
How many gloves does the SG860 have and what material are they?
The SG860 is configured with four gloves. They are white ambidextrous Hypalon gloves mounted to the sealed working chamber.
What inert gases can be used inside this glove box?
The chamber is designed for nitrogen, argon, or other inert gases. Purging with these gases lowers oxygen and humidity inside the enclosure.
What pressure ratings does the SG860 support?
The main chamber is rated to a maximum +6" water column pressure and −6" water column vacuum (11.2 torr). The transfer chamber reaches a maximum vacuum of −26" Hg (660 torr), and the operating pressure for containment is ±0.5" water column (0.93 torr).
What is the working chamber made of?
The main working chamber is thick clear cast acrylic, an optically clear material developed for isolation and containment.
Where is the SG860 manufactured and is it certified?
The SG860 is manufactured in the United States and carries CE certification. It ships from USA inventory through LabSupplies.com as an authorized Yamato Scientific dealer.
