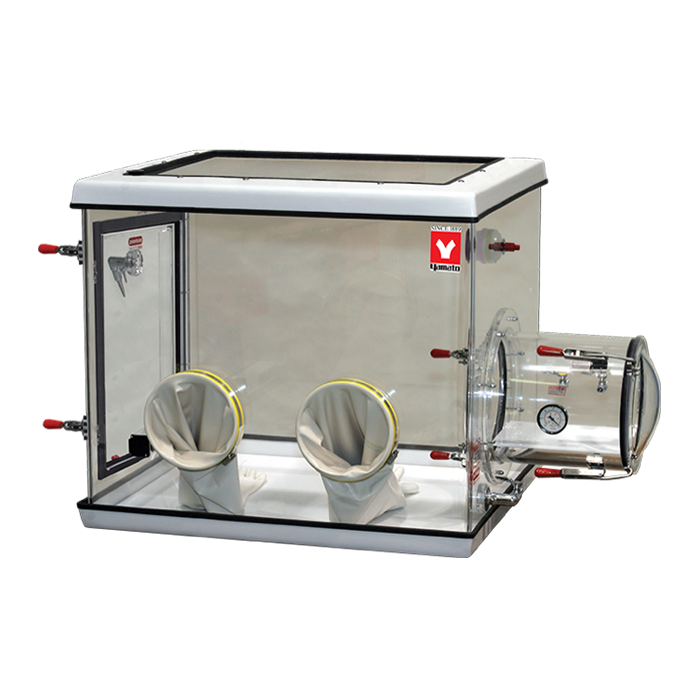

35" Two Glove Compact Glove Boxes Overview
The 35" Two Glove Compact Glove Boxes (model SG835) is a completely sealed isolation glove box from Yamato Scientific, supplied through LabSupplies.com, an authorized dealer. Two Hypalon gloves paired with a 35" × 29" × 30" interior chamber give technicians direct hands-on access for product protection and containment of hazardous materials.
Key Features
- Two-glove access: white ambidextrous Hypalon gloves for hands-on work inside a sealed environment.
- Integrated transfer chamber: 12" chamber with purging valves and a vacuum gauge, supporting up to −26" Hg vacuum for material introduction without breaking atmosphere.
- Flat side access door: 21.5" × 22" opening eases introduction of larger equipment into the working chamber.
- Four key-cock purging valves: two on the main chamber and two on the transfer chamber for controlled gas exchange.
- Inert-atmosphere ready: compatible with nitrogen, argon, or other inert gases to lower oxygen and humidity.
- Pressure-relief safety: relief valve with small HEPA filter and a hospital-grade multiple-outlet strip for in-chamber instruments.
Specifications
| Specification | Detail |
|---|---|
| Gloves Configuration | Two (2) gloves |
| Interior Dimensions (W × D × H) | 35" × 29" × 30" (890 × 740 × 760 mm) |
| Exterior Dimensions (incl. 12" transfer chamber) | 49" × 30" × 31" (1250 × 760 × 790 mm) |
| Access Door Opening | 21.5" × 22" H (546 × 560 mm) |
| Type | Compact sealed glove box for product and personnel protection |
| Construction | Optically clear material developed for isolation and containment |
| Transfer Chamber | Integrated transfer chamber with purging valves and vacuum gauge |
| Access Door | Flat side access door for easy introduction of larger equipment |
| Purging Valves | Four key-cock valves (2 on main chamber, 2 on transfer chamber) |
| Gloves | White ambidextrous Hypalon gloves |
| Electrical | Hospital-grade multiple-outlet strip |
| Pressure Relief | Pressure-relief valve with small HEPA filter |
| Operating Pressure | ±0.5" water column (0.93 torr) for containment / isolation |
| Main Chamber Pressure | Max +6" / vacuum −6" water column (11.2 torr) |
| Transfer Chamber Vacuum | Max −26" Hg (660 torr) |
| Atmosphere | For nitrogen, argon, or other inert gases (lowers oxygen and humidity) |
| Applications | Toxic substances, asbestos, fibers, sewage residue, and harmful liquid vapors |
| Country of Origin | United States |
| GTIN (Barcode) | 797059932269 |
| Shipping Weight | 270 lbs |
| Shipping Dimensions (L × W × H) | 67 × 48 × 50 in |
| Component Size | 35 In |
| CE Certification | CE Certification |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare SG Series Models
| Model | Shipping weight |
|---|---|
| SG828 | 210 lbs |
| SG835 (this model) | 270 lbs |
| SG848 | 440 lbs |
| SG860 | 475 lbs |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| SG-835 | 797059932269 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | SG-835 |
| UNSPSC | 41103406 — Isolation glove boxes |
| HTS code | 3926.90.3500 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
More in This Series
- Yamato SG848 48" Three Glove Compact Glove Boxes
- Yamato SG828 28" Two Glove Compact Glove Boxes
- Yamato SG860 60" Four Glove Compact Glove Boxes
View all Compact Glove Boxes →
Frequently Asked Questions
What are the interior dimensions of the SG835 glove box?
The interior working chamber measures 35" × 29" × 30" (890 × 740 × 760 mm). Exterior dimensions, including the 12" transfer chamber, are 49" × 30" × 31" (1250 × 760 × 790 mm).
Does the SG835 include a transfer chamber?
Yes, the SG835 has an integrated 12" transfer chamber with purging valves and a vacuum gauge. The transfer chamber supports a maximum vacuum of −26" Hg (660 torr) for material introduction without breaking the main atmosphere.
Can the SG835 be used with inert gases?
Yes, the SG835 is designed for nitrogen, argon, or other inert gases to lower oxygen and humidity. Four key-cock purging valves manage gas exchange, and a pressure-relief valve with a small HEPA filter protects the enclosure.
What is the UNSPSC code for the Yamato SG835?
The Yamato SG835 is classified under UNSPSC 41103406 (isolation glove boxes).
Is there a spec sheet or brochure for the Yamato SG835?
Yes. The Yamato SG Series Glove Box brochure (402 KB PDF) is linked under Documents & Downloads on this page.
What are the shipping dimensions and weight of the Yamato SG835?
Yamato's shipping data lists the SG835 at 67 × 48 × 50 in and 270 lb packed.
