Why order the SG828 from LabSupplies.com

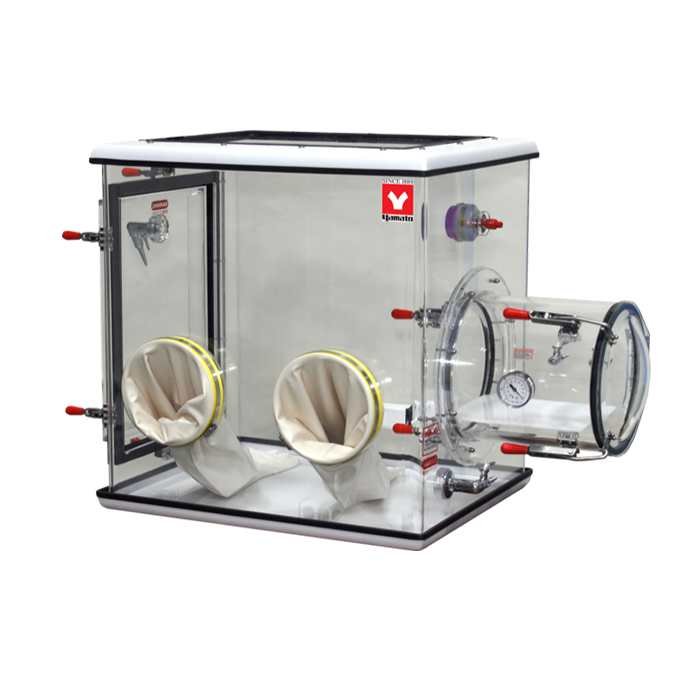

28" Two Glove Compact Glove Boxes Overview
The 28" Two Glove Compact Glove Boxes (model SG828) from Yamato Scientific is a fully sealed glove box built for basic isolation and containment work in a 28" × 23" × 29" interior. LabSupplies.com, authorized dealer, supplies this unit for labs that need to handle toxic substances, asbestos, fibers, and harmful vapors inside a controlled enclosure.
Key Features
- Integrated transfer chamber: 12" chamber with purging valves and vacuum gauge moves materials without breaking containment.
- Flat side access door: 15.5" × 22" opening admits larger equipment into the working chamber.
- Four key-cock purging valves: two on the main chamber and two on the transfer chamber for atmosphere exchange.
- Hypalon gloves: two white ambidextrous gloves for ambidextrous handling.
- Pressure-relief and power: relief valve with small HEPA filter plus a hospital-grade multiple-outlet strip for interior instruments.
Specifications
| Specification | Detail |
|---|---|
| Gloves Configuration | Two (2) gloves |
| Interior Dimensions (W × D × H) | 28" × 23" × 29" (710 × 580 × 740 mm) |
| Exterior Dimensions (incl. 12" transfer chamber) | 43" × 24" × 31" (1100 × 610 × 790 mm) |
| Access Door Opening | 15.5" × 22" H (400 × 560 mm) |
| Type | Compact sealed glove box for product and personnel protection |
| Construction | Optically clear material developed for isolation and containment |
| Transfer Chamber | Integrated transfer chamber with purging valves and vacuum gauge |
| Access Door | Flat side access door for easy introduction of larger equipment |
| Purging Valves | Four key-cock valves (2 on main chamber, 2 on transfer chamber) |
| Gloves | White ambidextrous Hypalon gloves |
| Electrical | Hospital-grade multiple-outlet strip |
| Pressure Relief | Pressure-relief valve with small HEPA filter |
| Operating Pressure | ±0.5" water column (0.93 torr) for containment / isolation |
| Main Chamber Pressure | Max +6" / vacuum −6" water column (11.2 torr) |
| Transfer Chamber Vacuum | Max −26" Hg (660 torr) |
| Atmosphere | For nitrogen, argon, or other inert gases (lowers oxygen and humidity) |
| Applications | Toxic substances, asbestos, fibers, sewage residue, and harmful liquid vapors |
| Country of Origin | United States |
| GTIN (Barcode) | 797059932252 |
| Shipping Weight | 210 lbs |
| Shipping Dimensions (L × W × H) | 56 × 39 × 47 in |
| Component Size | 28 In |
| CE Certification | CE Certification |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare SG Series Models
| Model | Shipping weight |
|---|---|
| SG828 (this model) | 210 lbs |
| SG835 | 270 lbs |
| SG848 | 440 lbs |
| SG860 | 475 lbs |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| SG-828 | 797059932252 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | SG-828 |
| UNSPSC | 41103406 — Isolation glove boxes |
| HTS code | 3926.90.3500 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
More in This Series
- Yamato SG835 35" Two Glove Compact Glove Boxes
- Yamato SG848 48" Three Glove Compact Glove Boxes
- Yamato SG860 60" Four Glove Compact Glove Boxes
View all Compact Glove Boxes →
Frequently Asked Questions
What are the interior working dimensions of the SG828 glove box?
The interior working chamber measures 28" × 23" × 29" (710 × 580 × 740 mm). Exterior dimensions, including the 12" transfer chamber, are 43" × 24" × 31" (1100 × 610 × 790 mm).
How are materials moved in and out without breaking containment?
An integrated 12" transfer chamber with purging valves and a vacuum gauge handles material transfer. The transfer chamber reaches a maximum vacuum of −26" Hg (660 torr), and a flat side access door (15.5" × 22") admits larger equipment.
What gases can the SG828 run inside the chamber?
The unit accepts nitrogen, argon, or other inert gases to lower oxygen and humidity. Four key-cock purging valves — two on the main chamber and two on the transfer chamber — manage atmosphere exchange.
What is the operating pressure range of the main chamber?
The unit operates at ±0.5" water column (0.93 torr) for containment and isolation. Main chamber limits are a maximum +6" pressure and −6" water column vacuum (11.2 torr).
What is the UNSPSC code for the Yamato SG828?
The Yamato SG828 is classified under UNSPSC 41103406 (isolation glove boxes).
Is there a spec sheet or brochure for the Yamato SG828?
Yes. The Yamato SG Series Glove Box brochure (402 KB PDF) is linked under Documents & Downloads on this page.
What are the shipping dimensions and weight of the Yamato SG828?
Yamato's shipping data lists the SG828 at 56 × 39 × 47 in and 210 lb packed.
