Choosing and Protecting a Lab Vacuum Pump
A laboratory vacuum pump is bought on one number and killed by another. At LabSupplies.com, the pump questions we get are almost never about which model has the deepest ultimate vacuum — they are from labs whose pump no longer reaches the vacuum it did a year ago, because nothing was ever put between the chamber and the pump. The two decisions that matter are which pump technology suits the application, and what protects it from whatever your sample gives off.
Two Numbers, Two Different Applications
Ultimate vacuum is how deep the pump can pull. Pumping speed is how fast it moves gas. Applications divide cleanly on which one limits them, and picking on the wrong number is the most common sizing error.
| Application | Limited by | Why |
|---|---|---|
| Vacuum drying oven | Ultimate vacuum | The chamber holds a deep static vacuum for hours |
| Freeze drying | Both | Deep vacuum, but against a continuous water-vapour load |
| Rotary evaporation | Speed early, control later | Bulk solvent first, then a held setpoint |
| Vacuum filtration | Pumping speed | Shallow vacuum, high volume of air moved |
Three Technologies

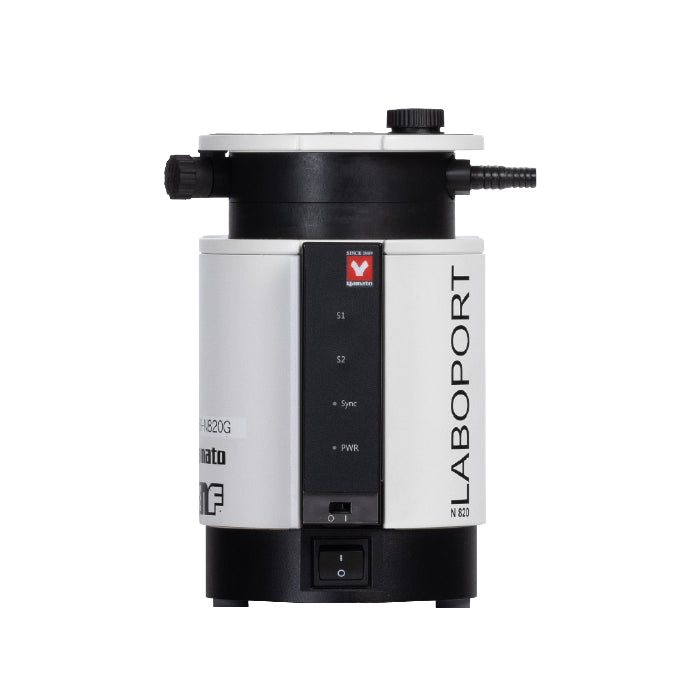

- Oil-free diaphragm. No oil for solvent to dissolve into and nothing to change out. Moderate ultimate vacuum. The Yamato N820G ships with its hose kit, and is the sensible default for solvent-heavy work that does not need a deep vacuum.
- Oil-sealed rotary vane. The deepest ultimate vacuum of the three, which is why these pair with vacuum ovens and freeze dryers. The oil is both the reason they work and the thing that fails: the GLD202BB and GLD137CC are sold in kits matched to specific ovens.
- Dry pump. Deep vacuum without the oil, at a higher purchase price. The NeoDry15G2 and NeoDry60E2 kits are the answer where oil contamination is unacceptable or oil changes are impractical.
Buy the Kit That Names Your Instrument
The same pump appears several times over with different hose and fitting kits — ADP, SDP, DP43C, DP83C, DC401 — and the instrument named in the listing is not decoration. It tells you which connection kit is in the box, and whether the hose is rubber or stainless steel. Stainless is the choice where solvent vapour or heat would attack rubber over time; rubber is fine for routine aqueous work. Ordering the pump without the matching kit means sourcing fittings afterwards, which is how a two-day install becomes a two-week one. The full range sits in vacuum pumps and kits, with hoses, adapters and control parts in vacuum and connection accessories.
What Actually Kills Pumps
Whatever leaves your sample travels toward the pump. Solvent vapour reaching an oil-sealed pump dissolves into the oil, raises the oil's vapour pressure, and destroys the ultimate vacuum you paid for — slowly enough that nobody connects the two events. Three things prevent it.
| Protection | Sits | Catches |
|---|---|---|
| Refrigerated cold trap (CA301, 4 L, −45 °C) | Between chamber and pump | Solvent and water vapour before it reaches the oil |
| Exhaust trap kit | On the pump outlet | Oil mist leaving the pump into the room |
| Solenoid valve and control unit | In the vacuum line | Suckback and uncontrolled venting |
The cold trap is the one worth arguing for. It costs a fraction of the pump it protects, and on solvent work it is the difference between an oil change every few months and an oil change every few weeks. If you are pulling anything flammable through the line, the storage and handling duties in OSHA 1910.106 apply to what ends up in the trap as much as to what started in the flask.
Maintenance by Condition, Not by Calendar
Oil that has gone cloudy, darkened or thinned has taken up condensate and is no longer sealing. Change it on what it looks like, not on a date. The symptom to watch is a pump that no longer reaches the vacuum it used to on a system that has not otherwise changed — that is nearly always the oil, and nearly always means something upstream is not being trapped.
Two habits extend pump life more than anything else: run the gas ballast when you know you are pulling condensable vapour, and do not leave a rotary vane idling under load after the job is finished. A pump left running on a wet system overnight does more damage than a month of normal use.
One Pump, Several Instruments?
It rarely works. Sharing means the deepest-vacuum application sets the specification, the dirtiest application sets the maintenance burden, and two instruments running together compete for pumping speed. If the plan is to share, size to the hardest job and trap for the dirtiest one — and expect to buy the second pump eventually anyway.
Which Guide You Actually Need
The pump is one part of a system, and each of those systems has its own decision. Our vacuum drying ovens guide covers when low pressure beats convection, the rotary evaporator setup guide covers the bath-and-condenser side, and the vacuum filtration guide covers the shallow-vacuum, high-flow end. For model selection on the instruments themselves, see the rotary evaporator, freeze dryer and water circulator and cold trap buying guides.
Frequently Asked Questions
What is the difference between ultimate vacuum and pumping speed?
Ultimate vacuum is how deep the pump can pull; pumping speed is how fast it moves gas. Applications that hold a deep static vacuum, such as vacuum drying, are limited by ultimate vacuum. Applications that must keep pulling against a continuous vapour load, such as filtration or the early stage of a rotary evaporation, are limited by pumping speed. A pump that wins on one number can be the wrong choice on the other.
Do I need an oil-free pump or an oil-sealed rotary vane?
Oil-sealed rotary vane pumps reach a deeper ultimate vacuum, which is why they pair with vacuum ovens and freeze dryers. Oil-free diaphragm pumps do not reach as deep, but they have no oil for solvent vapour to dissolve into and no oil to change, which makes them the low-maintenance choice for solvent-heavy work at moderate vacuum. Dry pumps aim to give deep vacuum without the oil.
Why does a vacuum pump need a cold trap?
Because whatever leaves your sample travels toward the pump. Solvent vapour that reaches an oil-sealed pump dissolves into the oil, which raises the oil's vapour pressure and ruins the ultimate vacuum the pump was bought for. A refrigerated cold trap between chamber and pump condenses that vapour first. It is cheaper than the pump it protects.
Can I use one vacuum pump for several instruments?
Usually not well. Sharing a pump means the deepest-vacuum application sets the specification, the dirtiest application sets the maintenance burden, and any two instruments running together fight for pumping speed. Where a manufacturer sells the pump as a kit named for a specific instrument, the hoses and fittings in that kit are part of the answer.
How do I know when to change rotary vane pump oil?
By condition, not only by calendar. Oil that has gone cloudy, darkened or thinned has taken up condensate or solvent and is no longer sealing properly. The symptom to watch for is a pump that no longer reaches the ultimate vacuum it used to, on a system that has not otherwise changed.
