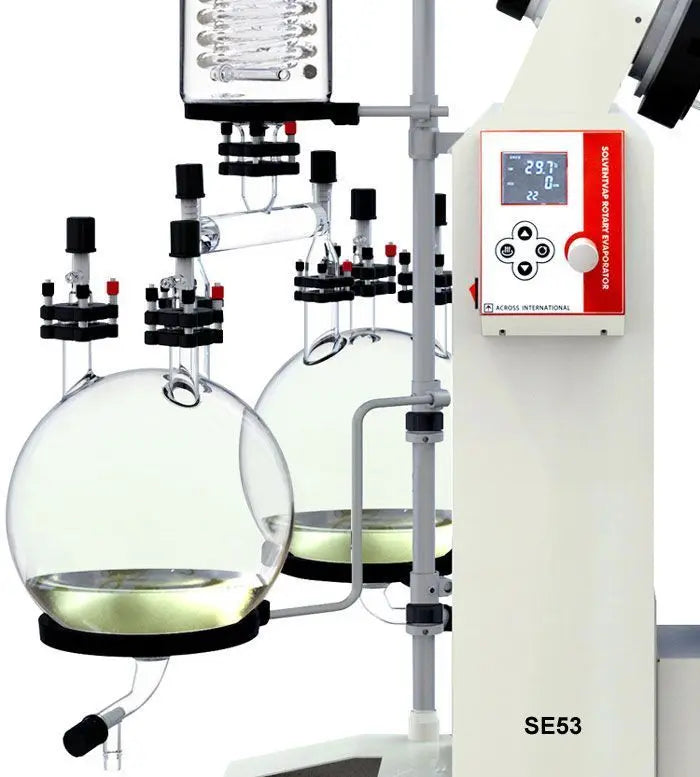

Rotary Evaporator Setup and Operation Guide

Rotary evaporator setup is where most failed runs begin — not in the chemistry, but in the assembly. A loose Keck clip, a warm condenser, an under-pulled vacuum, or a flask filled past 50% will either ruin your sample or create a genuine safety incident. In our experience working with synthesis, extraction, and concentration labs, the difference between a researcher who gets clean, efficient runs and one who constantly loses sample to bumping or contamination almost always comes down to 3 things: proper glassware assembly, matched vacuum-to-solvent settings, and understanding what the bump trap is actually doing. This guide covers all of it.

How a Rotary Evaporator Works

A rotary evaporator removes solvent from a sample by combining 3 simultaneous effects:

1. Reduced pressure (vacuum) — Lowers the boiling point of the solvent so it evaporates at a safe, controlled temperature instead of its atmospheric boiling point.
2. Controlled heat (water bath) — Supplies energy to drive evaporation without decomposing heat-sensitive compounds.
3. Rotation — Spinning the evaporating flask creates a thin, constantly renewed liquid film on the inner glass surface, dramatically increasing the surface area available for evaporation.

The evaporated solvent travels up through the vapor tube, hits the cold condenser surface, condenses back into liquid, and drips into the receiving flask. Your sample stays in the evaporating flask — concentrated, recovered, and intact.

Every rotovap run is a 3-variable optimization: vacuum pressure + bath temperature + rotation speed. Getting all 3 right for your specific solvent is the skill this guide builds.

Components of a Rotary Evaporator System

Component	Function
Evaporating flask	Holds your sample; round-bottom, 24/40 joint standard
Bump trap	Prevents sample from being sucked into the condenser if boiling surges; always required
Vapor tube / rotating joint	Connects evaporating flask to condenser; maintains vacuum seal while rotating
Condenser	Chills solvent vapor back to liquid; requires coolant circulation or cold water supply
Receiving flask	Collects condensed solvent; round-bottom, positioned below condenser
Water bath	Heats evaporating flask; temperature-controlled; typically 20–95°C range
Vacuum pump	Creates and maintains reduced pressure; diaphragm pump for standard solvents
Vacuum controller	Regulates and displays vacuum level; critical for reproducible results

The Heidolph Hei-VAP series available at LabSupplies.com integrates the vacuum controller, heating bath, motor lift, and rotation drive into a single system with a 7″ LCD color display — eliminating the patchwork of separate controllers that creates calibration headaches in lower-cost setups.

Setting Up Your Rotary Evaporator: Step-by-Step

Follow this sequence every time. Skipping steps in the wrong order is how glassware gets broken and samples get lost.

Step 1: Prepare the condenser
Fill or connect your coolant supply before starting. For most organic solvents, condenser coolant at −5°C to 10°C is sufficient. For low-boiling solvents (diethyl ether, methylene chloride, bp <40°C) or aqueous evaporation, use dry ice/isopropanol slurry in the cold trap or a recirculating chiller set to −10°C to −20°C. A warm condenser is the single most common cause of poor solvent recovery and vacuum pump contamination.

Step 2: Check all glassware seals
Apply vacuum grease to all ground-glass joints — the bump trap connection, vapor tube joint, and receiving flask connection. A single ungreased joint leaks to atmosphere, destroys your vacuum, and stalls evaporation. Inspect all O-rings in the rotating joint; replace any that are cracked, compressed, or chemically swollen.

Step 3: Load the evaporating flask
Fill the evaporating flask to no more than 50% of its volume. Overfilling is the primary cause of bumping — the sudden surge of boiling liquid that fires sample up into the bump trap. For a 1L flask, that means no more than 500mL of solution. For viscous or foam-prone solutions, fill to 30–40%.

Step 4: Assemble the glassware train
Attach the evaporating flask to the bump trap using a Keck clip (color-coded by joint size: yellow = 14/20, blue = 24/40, green = 29/42). Keck clips hold joints together but do not seal them — the grease seals, the clip prevents the joint from pulling apart under vacuum.

Step 5: Connect the vacuum
With the evaporating flask NOT yet submerged in the bath, turn on the vacuum pump and close the vacuum valve to begin pulling vacuum. Confirm the system holds vacuum before proceeding — if the vacuum reading drifts toward atmospheric pressure, you have a leak. Find it before heating.

Step 6: Start rotation
Set rotation speed to 40–100 rpm to start. Rotation must be running before the flask enters the bath — a stationary flask in a hot bath creates localized hotspots that crack the glass.

Step 7: Lower the flask into the bath
Once rotation is confirmed and vacuum is stable, lower the evaporating flask into the heated bath. You should see condensate forming on the condenser within 1–3 minutes for volatile solvents. If nothing appears within 5 minutes, increase bath temperature or deepen the vacuum before adding more heat.

Step 8: Shutdown sequence
When evaporation is complete: (1) raise the flask out of the bath, (2) stop rotation, (3) slowly vent the system to atmosphere via the bleed valve, (4) turn off the vacuum pump, (5) remove flask. Never disconnect glassware while the system is under vacuum.

Vacuum and Temperature Settings by Solvent

Solvent	Boiling Point (°C at 760 mmHg)	Recommended Bath Temp (°C)	Vacuum Pressure (mmHg)
Diethyl ether	34.6	15–25	120–140
Methylene chloride (DCM)	39.6	20–30	100–120
Acetone	56	30–40	80–100
Methanol	64.7	30–40	70–90
n-Hexane	69	35–45	50–70
Ethyl acetate	77.1	35–45	60–80
Ethanol	78.4	35–45	45–65
Toluene	110.6	50–60	15–30
Acetic acid	118	55–65	10–25
Pyridine	115.2	50–65	20–35
DMSO	189	70–90	1–15
Water	100	40–60	20–40

A useful starting point is the 20-degree rule: set your bath temperature ~20°C above the boiling point of your solvent at your target vacuum. The condenser temperature should be at least 20°C below that boiling point. For labs running multiple solvents, a vacuum controller with programmable ramp profiles — like the Heidolph Hei-VAP Ultimate Control’s Dynamic AUTOaccurate vacuum programming — automatically adjusts vacuum throughout the run without manual adjustments.

The Heidolph Hei-VAP Series: What Separates It from Standard Rotovaps

Heidolph Hei-VAP rotary evaporators are the reference-class instrument in lab-scale evaporation. As an authorized dealer for Heidolph, we work directly with their engineering teams and can help you spec the right configuration for your application. Reach out at support@labsupplies.com.

Key specifications for the Hei-VAP Ultimate Control (motor lift model):

• Rotation speed: 10–280 rpm, digitally controlled via 7″ LCD color display
• Bath temperature range: 20–180°C with electronic/digital control
• Overheat protection: Cuts off at 5°C over set temperature via independent PT1000 sensor
• Heating capacity: 1,300W
• Max evaporating flask size: 5L
• Condensing surface: 1,400 cm² standard; 2,200 cm² with XL condenser
• Integrated vacuum controller: Yes — Dynamic AUTOaccurate vacuum programming with programmable ramps
• Integrated Hei-CHILL controller: Yes — direct chiller integration without additional hardware
• Timer: Yes — programmable run duration

The Hei-VAP Industrial scales up for process work with 6–160 rpm rotation, 4,000W heating capacity, 7″ touchpanel, and a high-impact PMMA safety door — required for labs running continuous production or large-volume solvent recovery.

Browse our full rotary evaporators collection and Heidolph collection to compare models and configurations →

Vacuum Pump Selection: Diaphragm vs Oil Rotary Vane

Feature	Diaphragm Pump	Oil Rotary Vane Pump
Vacuum depth	1–10 mbar (sufficient for most organic solvents)	0.001–0.01 mbar (deep vacuum)
Solvent resistance	High — no oil contamination risk	Oil must be changed if solvent backstreams
Maintenance	Low — diaphragm replacement every 1–3 years	Regular oil changes; oil disposal required
Cost	Moderate	Higher (plus ongoing oil cost)
Best for	Standard organic solvents, aqueous work	High-boiling solvents (DMSO, DMF), deep vacuum distillation

For the majority of rotovap applications — ethanol, ethyl acetate, methanol, DCM, acetone — a diaphragm pump is the correct and lower-maintenance choice. The Heidolph Rotavac Vario Control diaphragm pump integrates directly with Hei-VAP systems for closed-loop pressure regulation. See the essential lab equipment guide for full vacuum pump selection coverage.

Common Rotary Evaporator Problems and Fixes

Slow or no evaporation:

• Vacuum leak — grease all joints, inspect O-rings, verify Keck clips are seated
• Condenser too warm — increase coolant flow or lower chiller temperature
• Bath temperature too low for target solvent — cross-reference the solvent chart above
• Flask not submerged enough — lower the evaporating flask deeper into the bath

Sample bumping into bump trap:

• Flask overfilled (>50%) — reduce volume
• Vacuum pulled too fast — apply vacuum gradually rather than full-open
• Bath temperature too high — reduce temperature and use a more conservative vacuum profile

Poor solvent recovery:

• Condenser not cold enough — increase coolant, add dry ice cold trap before vacuum pump
• Rotation speed too high — turbulent vapor passes through condenser; reduce to 40–60 rpm for volatile solvents
• Condenser surface area insufficient — upgrade to XL condenser for large-volume runs

Vacuum won’t hold:

• Cracked O-ring in rotating joint — replace
• Worn Keck clip not seating — replace clip
• Chipped glass joint — inspect with backlighting; replace chipped glassware
• Vacuum pump oil contaminated (oil pump) — change oil

Safety Requirements for Rotary Evaporation

• Always use a bump trap. No exceptions, regardless of sample volume or run speed.
• Never evaporate peroxide-forming solvents to complete dryness — diethyl ether, THF, dioxane. Concentrated peroxides are shock-sensitive. Test for peroxides before evaporating any stored ether-class solvent.
• Keep a cold trap between the condenser and pump. Any solvent passing through the condenser will contaminate or damage the vacuum pump without it.
• Work in a fume hood for any volatile or toxic solvent.
• Vent to atmosphere slowly when stopping. Rapid venting can crack warm glassware and aspirate receiving flask contents into the condenser.
• Hei-VAP units meet DIN EN 61010-1 and DIN EN 61010-2-010 overtemperature safety standards with an independent PT1000 cut-off sensor.

Frequently Asked Questions

What vacuum level should I use for rotary evaporation?

Match the vacuum to your solvent using the chart in this guide. The goal is to lower the solvent’s boiling point to a bath temperature of 30–60°C for most organic solvents. For a programmable vacuum controller like the Heidolph Hei-VAP’s AUTOaccurate system, set your target bath temperature and let the controller optimize pressure automatically throughout the run.

How full should the evaporating flask be?

Never fill the evaporating flask above 50% of its volume. For foam-prone or viscous samples, fill to 30–40%. Overfilling is the primary cause of bumping. If you have more volume than a single flask can hold, evaporate in batches — never stack flasks or overfill to save time.

Why is my rotary evaporator not evaporating?

The 3 most likely causes: (1) a vacuum leak at a glass joint — check all Keck clips and grease all joints, (2) a condenser that’s too warm — verify coolant is flowing, (3) bath temperature too low for the target vacuum level. Fix the vacuum system first before adjusting temperatures.

Do I need a cold trap between the condenser and vacuum pump?

Yes, for most applications. A cold trap at −78°C (dry ice/isopropanol) or a recirculating chiller trap catches solvent vapor that passes through the condenser before it reaches the pump. Without it, volatile solvents contaminate diaphragm pump membranes or dilute rotary vane pump oil, shortening service life significantly.

What is the bump trap for on a rotary evaporator?

The bump trap is a secondary round-bottom flask positioned between the evaporating flask and the vapor tube. If the boiling solution surges, the bump trap intercepts the liquid before it reaches the condenser and contaminates the solvent recovery flask. Without a bump trap, a single bumping event can ruin your solvent recovery and damage the rotary joint. Always use one, no exceptions.

---
