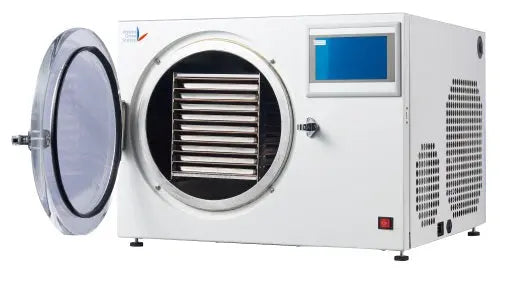

Freeze Dryer Buying Guide: Benchtop vs. Floor Models
Share
At LabSupplies.com, as an authorized dealer for Across International freeze dryers and lyophilization equipment, we help research teams, pharmaceutical labs, food scientists, and industrial processors select the right freeze dryer for their specific application and throughput requirements. The most common buying mistake is selecting a freeze dryer based on price or footprint before confirming that the condenser capacity, cold trap temperature, and vacuum depth actually match the product being dried. This guide walks through every specification that matters in a freeze dryer purchase decision — from the fundamental science of lyophilization to the practical differences between benchtop and floor model systems.
How Freeze Drying Works: The Science Behind the Selection
Freeze drying — formally called lyophilization — is a dehydration process that removes water from a product by first freezing it, then reducing the surrounding pressure and applying controlled heat so that the frozen water sublimes directly from solid ice to water vapor without passing through a liquid phase. The water vapor is captured on a refrigerated condenser (cold trap) inside the freeze dryer, preventing it from re-entering the product chamber.
Lyophilization preserves biological activity, chemical structure, and product morphology better than heat drying because the low-temperature, low-pressure process avoids the thermal degradation that destroys heat-sensitive materials. It is the preservation method of choice for vaccines, proteins, enzymes, antibodies, cultures, pharmaceuticals, nutraceuticals, and food products where shelf life extension without refrigeration is required.
The three phases of freeze drying:
- Freezing — the product is frozen to below its eutectic point (for crystalline materials) or collapse temperature (for amorphous materials); the rate of freezing affects ice crystal size and final product structure
- Primary drying (sublimation) — vacuum is applied and the shelf or chamber temperature is raised to provide sublimation energy; the majority of free water is removed during this phase, which accounts for 70–95% of total drying time
- Secondary drying (desorption) — shelf temperature is raised further to remove bound water adsorbed to the product surface; residual moisture content is driven to the target specification (typically <1% for pharmaceutical applications)
Every freeze dryer selection decision flows from the requirements of these three phases for the specific product being dried.
The Five Specification Variables That Drive Selection
| Specification | What It Determines | Typical Range |
|---|---|---|
| Cold trap temperature | Minimum product eutectic/collapse temperature the system can handle; vapor capture efficiency | −45°C to −80°C or colder |
| Condenser capacity | Maximum ice mass the cold trap captures per cycle before saturation | 1 kg to 100+ kg |
| Vacuum depth | Minimum achievable chamber pressure; drives sublimation rate and secondary drying efficiency | 10 mTorr to 300 mTorr |
| Shelf / surface area | Total product load capacity; determines batch size | 0.1 m² to 10+ m² |
| Shelf temperature control | Whether the system can control product temperature during all three drying phases | Passive (manifold/tray) vs. active controlled shelf |
Cold Trap Temperature: The Most Critical Specification
The cold trap temperature — also called condenser temperature — is the single most important specification in freeze dryer selection because it must be cold enough to capture water vapor efficiently throughout the entire drying cycle. The rule: the cold trap must be at least 15–20°C colder than the product’s eutectic point or collapse temperature.
If the cold trap is not cold enough, water vapor migrates past the condenser and reaches the vacuum pump, where it contaminates pump oil, degrades pump performance, and eventually causes pump failure. Insufficient cold trap temperature is the most common cause of premature vacuum pump failure in lab freeze dryers.
Cold trap temperature requirements by application:
| Application | Typical Eutectic / Collapse Temp | Minimum Cold Trap Required |
|---|---|---|
| Aqueous buffers, saline solutions | −20°C to −30°C | −45°C to −50°C |
| Cell culture media, serum | −25°C to −35°C | −50°C to −55°C |
| Proteins, enzymes, antibodies | −30°C to −40°C | −55°C to −60°C |
| Pharmaceutical formulations | −30°C to −45°C | −55°C to −65°C |
| DMSO-containing solutions, acetonitrile | −40°C to −50°C | −60°C to −80°C |
| Food products, nutraceuticals | −15°C to −30°C | −40°C to −55°C |
| Cannabis extracts | −30°C to −45°C | −55°C to −80°C |
If your application involves any DMSO, organic co-solvents, or complex pharmaceutical excipients, specify a −80°C cold trap freeze dryer. Selecting a −50°C unit to save cost on a product requiring −65°C cold trap performance will result in incomplete drying, pump contamination, and eventual product loss.
Condenser Capacity: Matching the Trap to the Batch
Condenser capacity is the maximum mass of ice the cold trap coils can capture before ice buildup begins to insulate the coils and the system loses vacuum and temperature performance. It is expressed in kilograms (e.g., 2 kg, 6 kg, 18 kg) and represents the total water content the freeze dryer can process per cycle — not the total product weight.
Calculating required condenser capacity:
Estimate the total water content of your batch by multiplying the total product mass by the approximate water fraction. A batch of 2 kg of cell culture media at 95% water content contains approximately 1.9 kg of water that the condenser must capture. Apply a 20% safety margin: select a condenser with capacity of at least 2.3 kg for this batch. Running a condenser at or beyond its rated capacity risks incomplete drying in the same cycle and accelerated wear on the refrigeration system.
Benchtop Freeze Dryers: Specifications and Best Applications
Benchtop freeze dryers are compact, self-contained lyophilization units designed for laboratory R&D, small-batch processing, and sample preparation workflows where bench space is limited and batch sizes are measured in grams to low kilograms.
Typical benchtop freeze dryer specifications:
- Condenser capacity: 1–6 kg
- Cold trap temperature: −45°C to −80°C depending on model
- Vacuum depth: 10–200 mTorr with a two-stage rotary vane pump
- Shelf/manifold configuration: manifold with flask ports, or small tray format
- Shelf temperature control: passive (no active shelf temperature control) in most manifold-style benchtop units; active shelf temperature control available in higher-specification benchtop models
- Footprint: typically 45–70 cm wide; benchtop or small cart-mounted
Best applications for benchtop freeze dryers:
- R&D and method development — small-scale lyophilization cycle development before scale-up
- Protein and enzyme preservation — small batch lyophilization for long-term storage
- Bacterial and yeast culture preservation — small vial lots
- Sample preparation for analytical chemistry — concentration and matrix removal
- Academic and university research labs with low throughput requirements
- Nutraceutical and botanical sample preparation in small lots
Limitation of standard manifold benchtop freeze dryers:
Most manifold-style benchtop freeze dryers do not provide active shelf temperature control during primary and secondary drying. The product temperature is influenced by the chamber environment but not precisely controlled. For pharmaceutical applications or any application requiring a validated, reproducible temperature ramp protocol, a benchtop unit with active shelf temperature control — or a floor model with full shelf control — is required.
Floor Model Freeze Dryers: Specifications and Best Applications
Floor model freeze dryers — also called production freeze dryers or pilot-scale lyophilizers — provide significantly greater condenser capacity, larger shelf area, and in most configurations, full active shelf temperature control. They are the correct choice for production-scale lyophilization, pharmaceutical and biotech applications requiring validated cycles, and any application processing batches above the capacity of a benchtop unit.
Typical floor model freeze dryer specifications:
- Condenser capacity: 6 kg to 100+ kg
- Cold trap temperature: −55°C to −85°C
- Vacuum depth: 10–100 mTorr with two-stage rotary vane pump
- Shelf configuration: multiple heated/cooled shelves with active temperature control; stoppering capability available on pharmaceutical models
- Shelf area: 0.5 m² to 10+ m² depending on configuration
- Control system: programmable multi-step cycle controller; data logging; some models with 21 CFR Part 11 compliant audit trail for GMP environments
Best applications for floor model freeze dryers:
- Pharmaceutical API and drug product lyophilization requiring validated, reproducible cycles
- Biologics — vaccines, antibodies, and protein therapeutics requiring precise shelf temperature control during freezing and drying phases
- Pilot-scale process development — scaling up from benchtop method development to production-representative batch sizes
- Food science and nutraceutical production — bulk tray drying of food products, extracts, and botanical materials
- Cannabis and hemp extract processing — large-batch water hash and live resin lyophilization
- Industrial and contract manufacturing environments — high-throughput processing with full cycle documentation
Across International Freeze Dryers at LabSupplies.com
Across International is a U.S.-based manufacturer and distributor of laboratory and industrial equipment including benchtop and floor model freeze dryers, vacuum ovens, and related lyophilization accessories. LabSupplies.com is an authorized Across International dealer, providing the full freeze dryer line with authorized warranty, technical support, and accessories including replacement vacuum pumps, manifold port assemblies, and cold trap accessories.
Across International freeze dryers are available in cold trap temperature configurations from −50°C to −80°C, with condenser capacities from 2 kg benchtop models through large-capacity floor units. For pharmaceutical and regulated applications, Across International floor model systems include programmable cycle controllers with data logging capability. Browse the full Across International collection and the complete freeze dryers collection at LabSupplies.com.
Vacuum Pump Selection for Freeze Dryers
The vacuum pump is the second most important hardware decision in a freeze dryer system. The pump must achieve and sustain the vacuum depth required for the application, and it must be protected from water vapor and solvent vapor that passes the cold trap during the drying cycle.
Two-stage rotary vane pump:
The standard vacuum pump for laboratory freeze dryers. Two-stage rotary vane pumps achieve ultimate vacuum levels of 1–5 mTorr, which is well below the 100–200 mTorr operating range of most freeze drying applications. They require regular oil changes because water vapor and chemical vapor that reaches the pump oil degrades it over time. A gas ballast valve should be opened periodically during drying cycles to purge accumulated moisture from the pump oil. For freeze dryers used with solvents or aqueous samples with high vapor loads, more frequent oil changes are required.
Pump protection best practices:
- Ensure the cold trap is fully at target temperature before starting the vacuum pump — starting the pump before the trap is cold allows water vapor to reach the pump oil directly
- Open the gas ballast valve for 15–30 minutes during each drying cycle to purge moisture from pump oil
- Change pump oil at the manufacturer’s recommended interval or whenever oil appears milky or discolored — milky oil indicates water contamination
- Install a vacuum pump oil mist filter on the exhaust to capture oil aerosol before it enters lab air
Benchtop vs. Floor Model: Selection Summary
| Criteria | Benchtop | Floor Model |
|---|---|---|
| Condenser capacity | 1–6 kg | 6–100+ kg |
| Cold trap temperature | −45°C to −80°C | −55°C to −85°C |
| Shelf temperature control | Passive (most models); active available | Active controlled standard |
| Batch size | Grams to ~3 kg water content | Kilograms to hundreds of kg |
| Validated cycle capability | Limited without active shelf control | Full validated cycle capability |
| Pharmaceutical / GMP use | R&D and method development only | Pilot and production scale |
| Footprint | Benchtop or small cart | Floor-standing; dedicated lab space |
| Price range | Lower | Higher |
Where Freeze Dryers Are Used
- Pharmaceutical and biotech labs — lyophilization of APIs, biologics, vaccines, and protein therapeutics; GMP-validated cycles with full data logging and 21 CFR Part 11 audit trail on production systems
- Academic and university research labs — protein and enzyme preservation, culture archiving, sample preparation for analytical chemistry; benchtop manifold units typically sufficient
- Food science and nutraceutical labs — freeze drying of food products, botanical extracts, probiotics, and nutritional ingredients for shelf-stable formulation
- Cannabis and hemp processing — live resin and water hash lyophilization for terpene and cannabinoid preservation; requires −55°C or colder cold trap
- Clinical and diagnostic labs — preservation of diagnostic reagents, reference standards, and biological controls
- Industrial and contract manufacturing — high-throughput lyophilization of specialty chemicals, materials, and biological products
Browse our full freeze dryers collection and the complete Across International product line at LabSupplies.com — authorized dealer pricing, full warranty, ships from the USA.
See the lab inventory management guide for equipment documentation and lot tracking in regulated environments, the Made in USA lab supplies guide for domestic sourcing and Buy American compliance, and the new lab setup guide for equipment planning in a new lab buildout.
Frequently Asked Questions
What is the difference between a benchtop and floor model freeze dryer?
Benchtop freeze dryers are compact units with 1–6 kg condenser capacity suited for R&D, small batch processing, and labs with limited space. Floor model freeze dryers have larger condenser capacity, greater shelf area, and active shelf temperature control suited for production-scale lyophilization, pharmaceutical validated cycles, and bulk processing. The correct choice depends on batch size, whether the application requires controlled shelf temperature ramp protocols, and throughput volume.
What cold trap temperature do I need for my freeze dryer?
The cold trap must be at least 15–20°C colder than the product’s eutectic point or collapse temperature. For most aqueous biological samples, −50°C is the minimum; −80°C is required for DMSO-containing solutions, acetonitrile, and applications requiring deep secondary drying. Selecting a cold trap that is insufficiently cold for the product causes incomplete drying, water vapor breakthrough to the vacuum pump, and pump oil contamination.
What is condenser capacity in a freeze dryer?
Condenser capacity is the maximum mass of ice the cold trap can capture per cycle before becoming saturated — expressed in kilograms. Once the condenser reaches capacity, ice buildup insulates the coils, vacuum and temperature performance degrade, and the drying cycle cannot complete. Condenser capacity must exceed the total water content of the batch with a minimum 20% safety margin.
What vacuum level does a freeze dryer need?
Most laboratory freeze drying applications operate in the 100–200 mTorr range during primary drying. Secondary drying and high-performance pharmaceutical applications may require below 100 mTorr. A two-stage rotary vane vacuum pump achieving ultimate vacuum of 1–5 mTorr is the standard pump specification for laboratory freeze dryers. The cold trap must be at target temperature before the pump is started to prevent water vapor from contaminating pump oil.
Can freeze dryers be used for organic solvents?
Standard freeze dryers are not designed for organic solvent lyophilization without additional protection. Organic solvent vapors that reach the rotary vane pump oil cause rapid oil degradation, pump damage, and a flammable vapor hazard at the pump exhaust. A solvent-compatible cold trap must capture all solvent vapor before it reaches the pump. Consult the Across International specifications for the specific model before using any organic solvent in a freeze drying application.
