Lab Thermometers: Immersion Depth, Armored vs FEP, and When to Go Serialized
Choosing a lab thermometer at LabSupplies.com starts with two questions most catalogues bury: how deep the thermometer will sit in the liquid, and what happens when it breaks. Answer those and the choice between bare glass, armored, FEP-encapsulated and dial or digital types narrows to one or two part numbers. Range comes third, not first.
Immersion Depth Decides Accuracy Before Anything Else
A liquid-in-glass thermometer is calibrated for a specific immersion condition, and using it any other way builds in an error that no amount of careful reading removes.
- Total immersion thermometers are calibrated with the bulb and the whole liquid column in the medium being measured, up to the reading point. They suit baths and vessels where the stem can go in that far.
- Partial immersion thermometers are calibrated immersed only to the line etched on the stem. They suit flasks, beakers and anything where most of the stem stays in room air.
Put a total-immersion thermometer into a beaker at partial depth and the exposed column sits at room temperature, so the reading drifts from the true value — the further the bath is from ambient, the larger the error. This is the emergent-stem correction that NIST's guidance on liquid-in-glass thermometers works through. The simple fix is to buy the immersion type that matches how the thermometer will be used. The VEE GEE glass thermometers we stock are offered in both configurations at the same ranges: the blue liquid glass thermometer in °C pairs 80706 (total) with 80906 (partial) for -35 to 50°C, and 80707 with 80907 for -20 to 110°C.
Glass Protection: Bare, Armored, FEP or Both
Breakage is the most common way a glass thermometer leaves service. The four constructions below are the same thermometer with different protection, and the right one depends on where it lives.
| Construction | What it adds | Where it fits | Example part numbers |
|---|---|---|---|
| Bare glass | Nothing — lowest cost, slimmest profile | Bench work, teaching labs, thermometer wells | 80701, 80901 (°F) |
| Armored | Nickel-plated brass armor absorbs knocks | Production floors, field work, busy shared benches | 80706-A, 80906-A (°C) |
| FEP-encapsulated | FEP sleeve contains glass and fill if it breaks | Food processing, wet benches, sample areas where glass in product is unacceptable | 80706E, 80906E (°C) |
| FEP + armored | Both barriers in one instrument | Process vessels and shared areas where breakage is both likely and costly | 80701E-A, 80901E-A (°F) |
Armor and FEP solve different problems. Armor reduces the chance of breakage; FEP limits the damage when breakage happens anyway. A food or beverage QC area usually cares most about the second, and that is where FEP earns its cost. If you already own bare thermometers in 12 in or 15.5 in lengths, a separate 83025 nickel-plated brass armor case (83025A / 83025N) retrofits protection without replacing the instrument.
Mercury-Free Fill and What It Asks of You
Every glass thermometer above uses VEE GEE's mercury-free Safety Blue organic fill, so breakage is a cleanup job rather than a hazardous spill. EPA's mercury thermometer guidance points labs toward non-mercury alternatives for most routine measurements. Organic-filled thermometers ask for one habit in return: check the liquid column before use. A column that has separated during shipping or storage reads wrong until it is rejoined, and inspecting for separation is part of routine verification under ASTM E77.
Serialized Thermometers and Your Records
The VEE GEE glass range is individually serialized. That matters more than it sounds: a serial number lets a verification result, an ice-point check or a calibration certificate belong to one specific instrument, which is what an auditor follows when they trace a recorded temperature back to the device that produced it. If your quality system asks which thermometer took a reading, buy serialized and log the number against the location.
A practical routine many labs use: verify each thermometer at the ice point when it enters service and at a set interval afterwards, record the result against the serial number, and retire any instrument whose ice-point reading shifts beyond your tolerance.
When Dial or Digital Is the Better Choice
Glass is not always the answer. Two situations push toward other types:

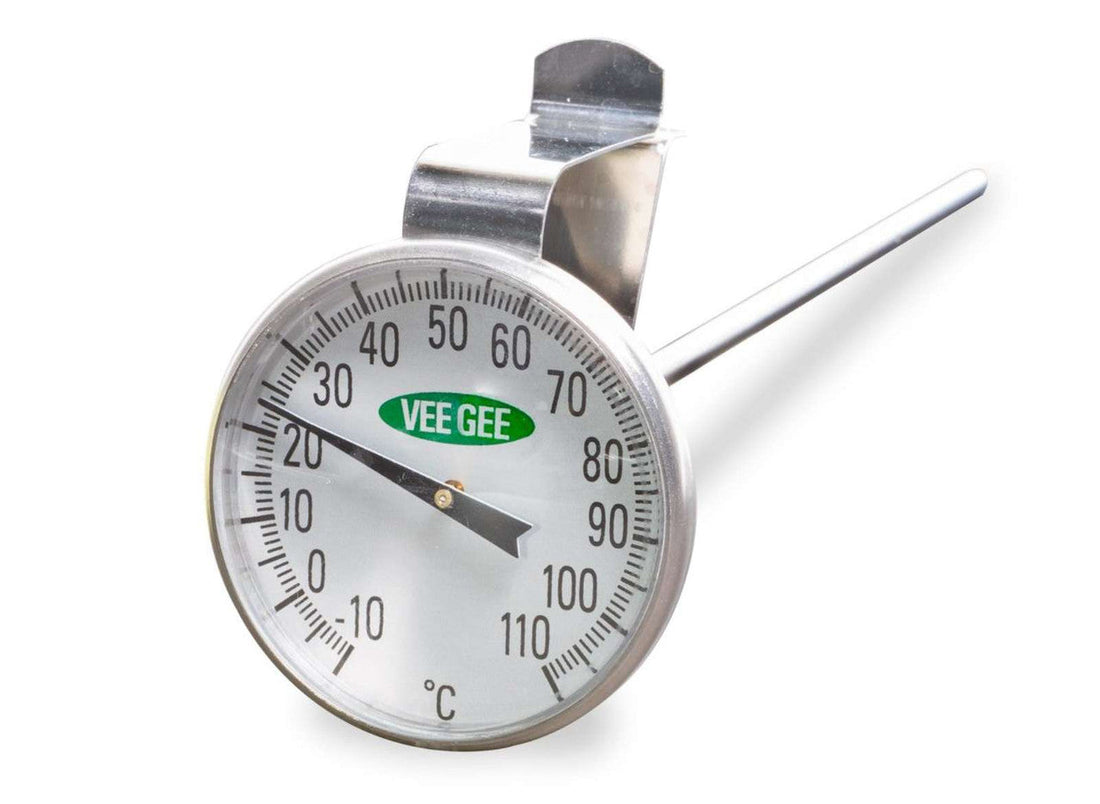

- No glass allowed, or no batteries wanted. Bimetal dial thermometers move the pointer mechanically. The 1 in pocket dial (81070, 81110) clips to a coat, the 1.75 in dial (82110, 82125) suits panels and ports, the 3 in dial (82160-6, 82160-12) reads from across a cold room, and the 36 in and 48 in long-stem dials (82200-36, 82200-48) reach into drums, tanks and compost.
- Fast reads in small volumes. The digital stem thermometers update every second from a 3.5 mm stainless thermistor stem: the 83110 reads -10 to 100°C at ±0.5°C on a 5 in stem, and the 83210-12 reads -50 to 150°C at ±1.0°C on a 12 in stem.
Selecting the Right Lab Thermometer
| If your situation is | Choose | Starting part number |
|---|---|---|
| Water bath or deep vessel, steady temperature | Total-immersion glass | 80707 (-20 to 110°C) |
| Beaker or flask, stem mostly in air | Partial-immersion glass | 80907 (-20 to 110°C) |
| Shared bench or production floor | Armored glass | 80707-A / 80907-A |
| Food, beverage or sample-contact area | FEP or FEP + armored | 80706E / 80701E-A |
| Freezer, cold room or walk-in | Bimetal dial | 82160-6 (-40 to 71°C) |
| Small volumes, quick spot checks | Digital stem | 83110 |
For a lab buying in volume, the useful discipline is to standardise: pick one range and one immersion type per application, keep a spare of each on the shelf because glass does break, and order matched instruments so readings from different benches are comparable. The full range is in lab thermometers, with the VEE GEE line also grouped under Heathrow Scientific thermometers. For continuous records rather than spot readings, our data logger buying guide covers logged monitoring.
Frequently Asked Questions
What is the difference between total and partial immersion thermometers?
A total-immersion thermometer is calibrated with the bulb and the whole liquid column immersed up to the reading point. A partial-immersion thermometer is calibrated immersed only to the line etched on its stem. Using one in the other condition introduces an emergent-stem error, so buy the type that matches how deep the thermometer will sit.
Are mercury-free lab thermometers accurate?
Yes, for routine laboratory work. Organic-filled thermometers such as VEE GEE Safety Blue cover the common laboratory ranges and are calibrated like any liquid-in-glass instrument. The one extra step is checking that the liquid column has not separated before use, since a separated column reads incorrectly until it is rejoined.
When should I buy an armored or FEP thermometer instead of bare glass?
Choose armored where knocks and drops are likely, such as production floors and shared benches. Choose FEP where broken glass or fill reaching a sample or product is the bigger concern, as in food and beverage QC. FEP plus armored combines both, which suits process vessels and busy shared spaces.
Why does a serialized thermometer matter?
A serial number ties each verification, ice-point check or calibration certificate to one physical instrument. When an auditor traces a recorded temperature back to the device that produced it, the serial number is what makes that link possible, so serialized thermometers suit any lab working under a documented quality system.
Is a dial or digital thermometer better than glass?
It depends on the job. Bimetal dial thermometers need no batteries and contain no glass column, which suits cold rooms, panels and tanks. Digital stem thermometers give one-second reads from a small stainless probe, which suits small volumes and quick checks. Glass remains the reference choice for baths and documented bench measurements.
Setting up a new lab? Our LaunchLab program gives you 15% off everything for 12 months, thermometers and instruments included. See if you qualify →
Standardising thermometers across benches? Compare glass, armored, FEP, dial and digital in one place. Browse lab thermometers →
Tell us the medium, the depth and the range you need at support@labsupplies.com and we will match the immersion type and part number before you order.
