Lab Freezer Temperature Monitoring: Probes, Alarms and Records
Lab freezer temperature monitoring exists to protect the contents, not the cabinet. At LabSupplies.com, the freezers we sell are among the most expensive equipment in the catalogue — and in almost every failure story we hear, the freezer was the cheap part of the loss. The answer to “how do I monitor this properly” comes down to three decisions: where the probe sits and what it sits in, what triggers an alarm and who it reaches, and whether the record you keep would stand up if someone asked what happened at 3 a.m. on a Saturday.
The Probe Is Not Measuring What You Think
A bare probe hanging in the airspace measures air. Air in a freezer swings the moment the door opens and recovers within minutes, while the vials on the shelf barely move. Monitor the air and you will get alarms every time someone pulls a box — and you will train the lab to ignore them.
Buffer the probe instead: seat it in a sealed vial of glycol or a solid buffer block so it follows the thermal mass of the samples rather than the air around them. Then place it where the mapping said the unit runs warmest, which in most upright cabinets is the top shelf nearest the door, and record that location so the next person does not quietly move it.

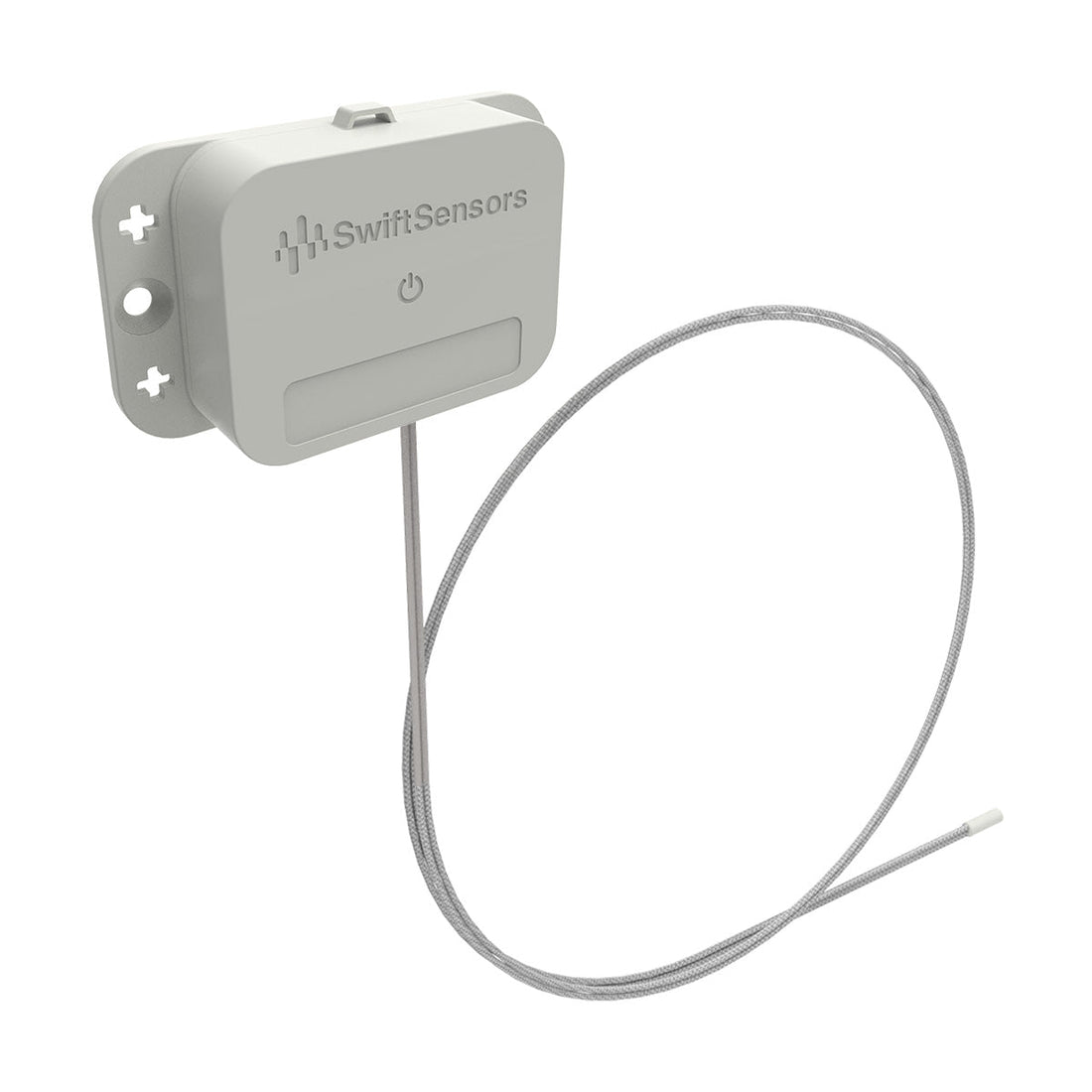

For ultra-low work the sensor itself has to be rated for it. The Swift Sensors SS3-110 sub-zero probe is built for that range and comes in a 10 m lead version as well, which matters more than it sounds: the lead length decides whether the transmitter can live outside the cabinet at room temperature with only the probe passing through the access port. For 4 °C refrigerators and −20 °C freezers, a remote probe sensor or the stainless-probe version is the usual fit, with 10 m and 15 m leads available for awkward runs.
What to Monitor Besides Temperature
Temperature is the outcome. The things that cause the outcome are worth watching in their own right, and they give you warning while there is still time to act.
| Signal | What it catches | Sensor |
|---|---|---|
| Door state | A door left ajar, before the chamber warms | Door sensor SS3-301 |
| Room ambient and humidity | A failing room HVAC loading every compressor in it | Ambient temp and humidity SS3-101 |
| Compressor current | A duty cycle climbing week over week | RMS current meter SS3-617-30 |
| Supply voltage | Power loss and brownouts at the outlet | 0–500 VAC meter SS3-610 |
| Water on the floor | Defrost and condensate failures | Water presence SS3-108 |
| Compressor vibration | Mechanical wear ahead of failure | Predictive vibration SS3-203 |
Of these, the door sensor earns its place fastest. A −80 unit with the door not quite latched does not alarm on temperature for a long time, and by the time it does the frost has already reached the gasket.
The Alert Path Has to Survive the Event
A monitoring system that reports over building Wi-Fi fails in precisely the scenario it was bought for: the power or network event that also threatens the freezer. Design the path out of the building deliberately.
- Gateway. The SG3-1010 connects by Wi-Fi, Ethernet or PoE. PoE is the quiet winner in a room with a UPS on the switch.
- Range. If sensors sit in a cold room or behind steel, the extended-range SG3-1010-XR saves a repeater.
- Independent path. A cellular network module gives the gateway a route out when the building network is the thing that failed.
- Harsh siting. Gateways are also stocked pre-built into NEMA enclosures for cold rooms and utility spaces.
- Local audible. An alarm kit matters when the person who can act is in the building rather than on their phone.
Then set the alarm so it is worth answering. A single threshold with no delay produces noise; a threshold with a short delay before escalation, plus a separate door alarm, produces signal. Escalate to a second person if the first does not acknowledge, and decide in advance what the response actually is — because an alert nobody can act on at 3 a.m. is a record of a loss, not a prevention of one.
Keep an Independent Check
Every monitored unit should still carry something that does not depend on the network, a battery or a firmware update. A serialized glass thermometer in a buffered vial gives you a reading you can walk up and take during an outage, and a reference point when a sensor reads oddly. The lab thermometers collection covers serialized borosilicate, armored and FEP-encapsulated bodies; the encapsulated versions are the sensible choice anywhere breakage would contaminate stored material.
Keep the calibration story straight as well. Sensors drift, and a monitoring record is only as good as the traceability behind it — NIST calibration services are the reference point for what traceable means.
Records: What “Continuous” Buys You
| Approach | What it captures | Where it fails |
|---|---|---|
| Twice-daily log sheet | Two points per unit per day | Overnight and weekend excursions entirely |
| Min/max thermometer | The extreme reached | When it happened and how long it lasted |
| Standalone data logger | A full trace, downloaded later | Nobody is alerted while it is happening |
| Networked wireless sensors | Continuous trace plus live alerting | Only if the alert path was designed to survive |
If your records sit inside a regulated quality system, the electronic-records requirements in 21 CFR Part 11 shape what your system has to do about audit trails and access control. Decide that before you choose a platform, not after.
Browse the Swift Sensors wireless monitoring range, and see our multi-channel data logger buying guide if a wired logger suits the application better.
Sizing Monitoring to the Unit You Are Protecting
The monitoring spend should track the value of what is inside. A −80 freezer holding irreplaceable material justifies a buffered sub-zero probe, a door sensor, a current meter on the compressor and a cellular fallback. A general-purpose 4 °C refrigerator holding reagents that can be reordered justifies a probe and an alarm, and not much more. Our ULT freezer buying guide covers the cabinet side of that decision, and the lab refrigerator and freezer buying guide walks the model selection.
Frequently Asked Questions
Where should the temperature probe go inside a lab freezer?
In the sample space, not the airspace by the door, and buffered rather than bare. A probe sitting in air reports every door opening as an excursion; a probe in a sealed buffer follows the thermal mass of what you are actually protecting. Place it in the warmest part of the unit found during mapping, which is usually the top shelf nearest the door.
Do I need a special sensor for a −80 °C freezer?
Yes. A general-purpose ambient sensor is not rated to ultra-low temperature. Use a sub-zero probe such as the Swift Sensors SS3-110, available with a 1 m or 10 m lead so the transmitter body stays outside the cabinet at room temperature while only the probe goes through the port.
How do I stop door openings from triggering false alarms?
Buffer the probe and add a delay before an alarm escalates, so a brief warm excursion during sample retrieval does not page anyone. Then monitor the door separately with a door sensor. A door left ajar is one of the most common causes of a real freezer loss, and it shows up on a door sensor long before the chamber temperature does.
What happens to alerts if the building network goes down?
Nothing, unless you planned for it. A gateway that reaches the internet only over building Wi-Fi or Ethernet goes silent in exactly the power or network event most likely to threaten a freezer. Adding a cellular network module gives the gateway an independent path out.
Is a continuous electronic record better than a twice-daily log sheet?
For anything you have to defend, yes. A log sheet captures two points a day and misses an overnight excursion entirely. A continuous record shows when a deviation started, how far it went and when it recovered, which is the evidence you need to decide whether the material is still usable.
Setting up a new lab? Our LaunchLab program gives you 15% off everything for 12 months, monitoring hardware included. See if you qualify →
Ready to monitor your cold storage? Shop wireless sensors and gateways at LabSupplies.com. Browse the collection →
If you tell us how many units you need to cover and how they are laid out, we can work out the sensor and gateway count with you before you order. Reach us at support@labsupplies.com.
