Heating and Cooling Equipment: Modern Lab Guide
Choosing the right heating and cooling equipment dictates the reproducibility of your temperature-dependent reactions. You must match your application's required temperature range, cooling capacity, and fluid compatibility directly to the specific circulator or chiller specifications.
In our experience working with labs scaling up from bench to pilot plant, undersizing cooling capacity is the number one reason for process failure. Buying a unit based solely on its minimum temperature rating ignores the actual thermal load of your reaction. We fix this daily. Here is how you specify the correct system for your lab.
Core Technologies in Precise Temperature Control
You have 4 primary options for managing temperature in the lab. Open heating baths handle basic liquid warming tasks. For static, fluid-free warming, standard incubators manage gentle, uniform heat. Refrigerated circulators manage tight temperature bands for external systems. Dynamic temperature control systems execute rapid, extreme temperature shifts.

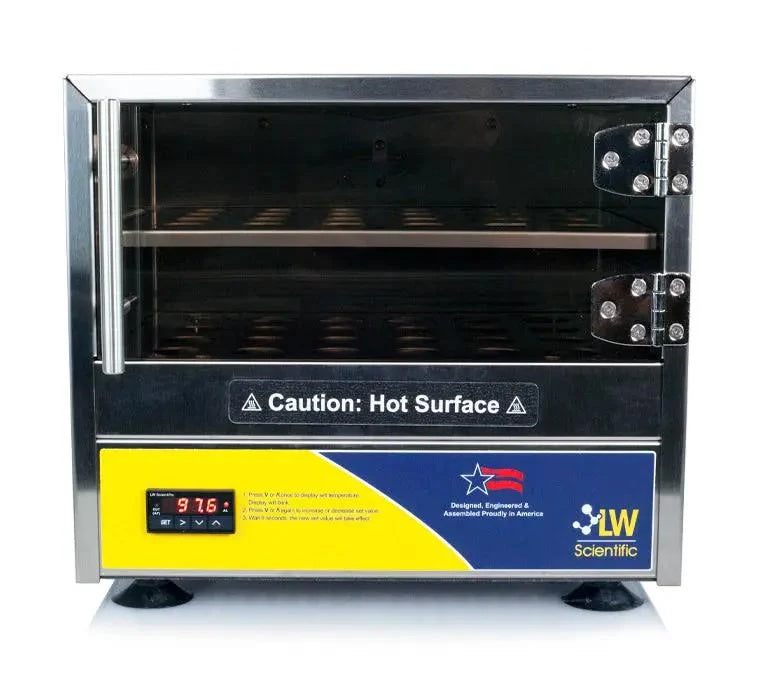

Your choice depends entirely on your application's thermal dynamics. Maintaining a steady 37°C environment inside a USA Lab 10L Incubator (proudly Made in the USA) requires drastically different hardware than crashing a jacketed reactor to -40°C.
Understanding the mechanics behind these systems prevents costly misapplications. A standard PID controller adjusts heating and cooling output based on sensor feedback. High-end units utilize adaptive control algorithms to anticipate thermal lag.
Evaluating Refrigerated and Heating Circulators
Refrigerated and heating circulators provide the backbone of general laboratory temperature control. These units pump temperature-controlled fluid to external targets like essential lab equipment and analytical instruments.
When evaluating these systems, look at the pump curves. A unit might boast high flow rates at 0 bar, but fail to push fluid through restrictive tubing. You need sustained pressure.
JULABO manufactures excellent systems for this category. The JULABO MAGIO series offers exceptional pump pressure and heating capacity. The trade-off is footprint. These are substantial machines requiring dedicated bench space and proper ventilation.
Browse our heating and cooling equipment to compare options → labsupplies.com/collections/heating-cooling
Dynamic Temperature Control for Scale-Up
When you attach jacketed lab glassware to a temperature system, traditional open-bath circulators struggle. They suffer from thermal lag and moisture absorption. Dynamic temperature control systems solve this.
Huber Unistats represent the standard for dynamic control. These operate as completely closed systems. Because the internal fluid volume is exceptionally small, they execute temperature changes incredibly fast.
The closed loop also isolates your heat transfer fluid from the atmosphere. This prevents ice buildup at low temperatures and eliminates toxic vapors at high temperatures. The primary weakness of a Unistat is the initial capital investment, but the performance and reduced fluid replacement costs justify the expense.
Laboratory Chillers for Routine Cooling
If you simply need to remove heat from rotary evaporators or condenser coils, you need a basic laboratory chiller. These units focus purely on cooling capacity rather than micro-degree precision.
PolyScience builds robust, straightforward chillers. The PolyScience LS Series Chiller is a workhorse for routine extraction labs. Made in the USA, it provides reliable cooling with a surprisingly compact footprint.
Air-cooled chillers exhaust heat directly into your lab space. If you install 4 chillers in a small room, your facility HVAC must handle the extra load. If your lab lacks sufficient AC, you must specify water-cooled chillers that connect to your building's chilled water loop.
Sizing Your System: Calculating Thermal Load
Never guess your required cooling capacity. You must calculate the actual thermal load of your process. If you undersize the system, your reaction will run away.
The fundamental thermodynamics equation for sizing a chiller relies on the mass of your fluid, its specific heat capacity, and the desired change in temperature over time. You calculate the required power in Watts.
Q = (m · cp · ΔT) / t
In this formula, Q represents the required cooling capacity in Watts. You must also factor in ambient heat gain through uninsulated tubing. Always over-specify your cooling capacity by 20% to 30% to handle ambient fluctuations and system degradation over time.
Fluid Selection and Safety Standards
Your hardware is useless without the correct heat transfer fluid. Water works perfectly from 5°C to 90°C. Outside that band, you must use specialized fluids like 50/50 ethylene glycol mixtures or synthetic silicone oils.
Never use automotive antifreeze. It contains silicate rust inhibitors that will coat your internal heat exchangers and permanently degrade your cooling efficiency. Use only laboratory-grade thermal fluids.
When working with silicone oils at high temperatures, you must mitigate fire and slip risks. Refer strictly to OSHA 29 CFR 1910.1450 for handling hazardous chemicals in laboratories. A spilled silicone oil bath creates a severe hazard that requires immediate remediation with specific absorbents.
Equipment Decision Matrix
Use this matrix to align your required application with the appropriate equipment class and manufacturer.
| Equipment Class | Best Application | Top Brand Recommendation | Trade-Off |
|---|---|---|---|
| Basic Chiller | Rotary evaporators, condensers | PolyScience | Low precision, cooling only |
| Refrigerated Circulator | Analytical instruments, small reactors | JULABO | Slower temperature changes |
| Dynamic Closed System | Jacketed reactors, pilot plants | Huber | High initial capital cost |
| Lab Incubator | Biological samples, static uniform heat | USA Lab | Heating only, no fluid circulation |
As an authorized dealer for JULABO, Huber, and PolyScience, we work directly with their engineering teams and can help you spec the right product for your application. Reach out at support@labsupplies.com.
Routine Maintenance and ISO Calibration
Temperature equipment requires routine maintenance to maintain its specified tolerances. You must clean the condenser fins on air-cooled units every 3 months. Blocked condensers drastically reduce cooling capacity and destroy compressors.
Change your bath fluids regularly. Water baths grow algae within weeks. Silicone oils oxidize and break down at high temperatures, drastically altering their specific heat capacity.
If your lab operates under strict quality systems, you must verify your internal temperature sensors. Calibrate your equipment against certified reference thermometers per ISO 9001 standards to guarantee reproducible process data.
Frequently Asked Questions
Why is my chiller not reaching the set temperature?
Your system is likely suffering from an undersized cooling capacity for your current thermal load. Alternatively, your condenser fins are blocked with dust, preventing the compressor from rejecting heat into the room.
Can I run a Huber Unistat with regular water?
No. Unistats require specific DW-Therm or similar engineered thermal fluids to operate efficiently and protect the internal hydraulics. Pumping water through these systems can cause catastrophic damage.
How often should I change my heat transfer fluid?
Change water baths weekly to prevent biological growth. Change synthetic silicone oils every 6 to 12 months, or immediately if the fluid darkens, becomes viscous, or emits an odor.
What is the difference between pumping capacity and pressure?
Pumping capacity measures total flow rate in liters per minute without restriction. Pumping pressure determines the pump's ability to push fluid through narrow restrictive tubing and complex reactor jackets.
