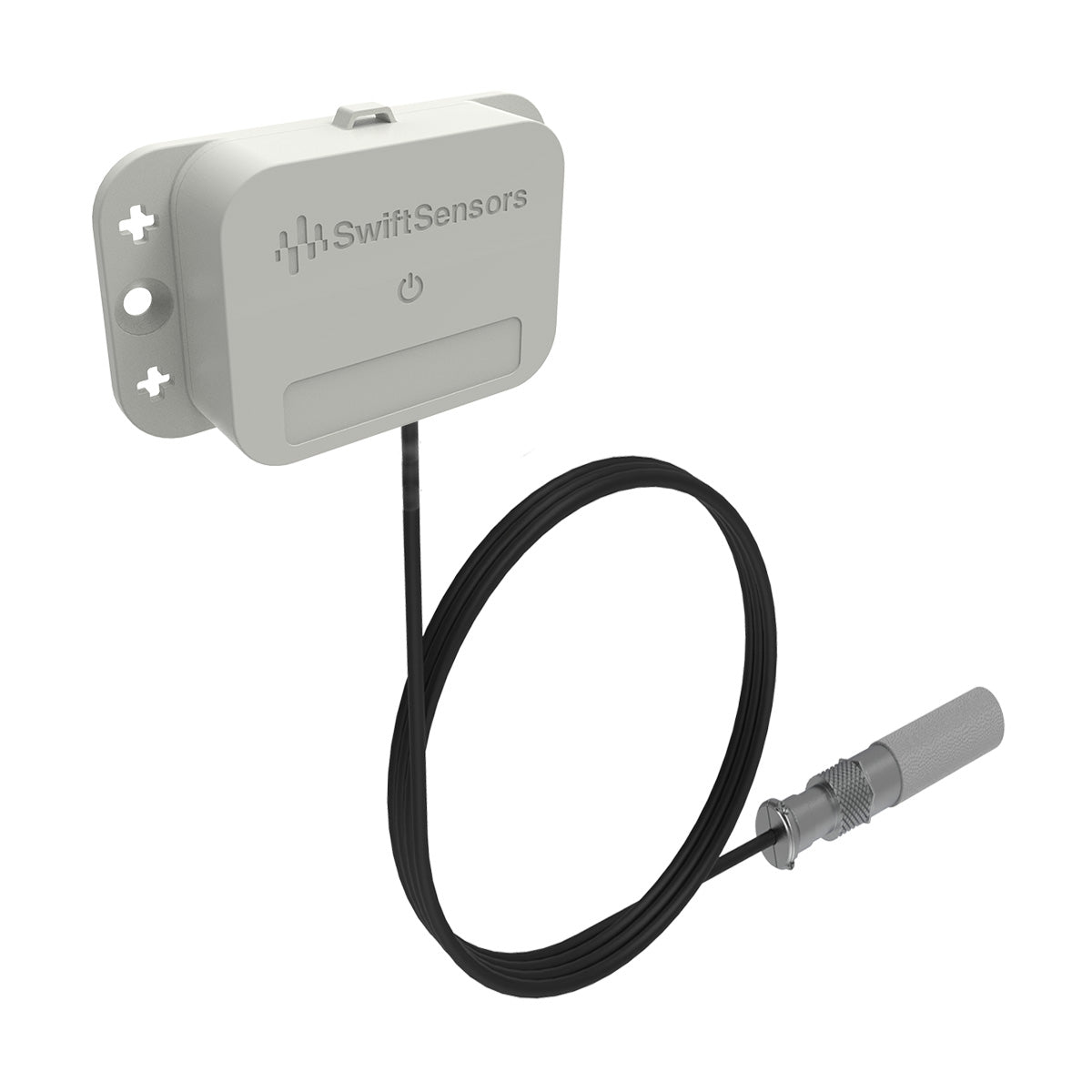

The Swift Sensors SS3-114 places temperature, humidity, and dew point measurement on a remote 3 ft probe lead, ideal for reading ambient conditions inside enclosures, ducts, and spaces where the transmitter must stay outside.
Typical applications
- Enclosure and cabinet monitoring
- Duct and HVAC humidity
- Cleanroom and lab micro-environments
- Incubators and controlled chambers
- Storage and process areas
Technical specifications
| Temperature range | -40 to +125 C (-40 to +257 F) |
|---|---|
| Humidity range | 0-100% RH |
| Measures | Temperature, humidity, dew point |
| Probe | 1 m (3 ft) lead |
| Wireless protocol | BLE5 / Bluetooth 5, 2.4 GHz, 128-bit AES encryption |
| Wireless range | 70-90 m (250-300 ft) line-of-sight; 30-45 m (100-150 ft) non-line-of-sight |
| Battery | 2 x AAA lithium-polymer, replaceable; 6-8 year average life |
| Enclosure rating | IP66 - dust-proof and water-resistant |
| Warranty | 2 years |
How the Swift Sensors wireless system works
This sensor pairs with a Swift Sensors Gateway (sold separately), which securely transmits encrypted readings to the Swift Sensors Cloud over Wi-Fi, Ethernet, Power-over-Ethernet, or cellular using 256-bit AES encryption. View live and historical data from any computer, tablet, or smartphone in the Swift Sensors Console, and set custom thresholds that trigger instant SMS text, email, and phone-call alerts.
- Plug-and-play deployment — no wires to run and no software to install; sensors auto-pair with the gateway in minutes.
- 6–8 year battery life from two replaceable AAA lithium-polymer batteries.
- BLE5 wireless range up to 250–300 ft line-of-sight; each gateway supports up to 150 Series 3 sensors.
- Secure, scalable cloud architecture — from a single sensor to thousands across multiple sites.
- Two-year warranty and satisfaction guarantee. NIST-traceable calibration certificates available on temperature and humidity models.
Completing the system
- Gateway — the SS3-114 reports through a Swift Sensors SG3-1010 gateway; one gateway supports up to 150 sensors within a 500 ft radius, in any mix of types.
- Cloud Monitoring plan — priced by the number of sensors deployed, paid monthly, annually or multi-year, with no contract required. Email support@labsupplies.com with your sensor count for plan pricing.
Starting a new site? The Refrigerator & Freezer Temperature Monitoring Kit ships a gateway with sensors in one order.
