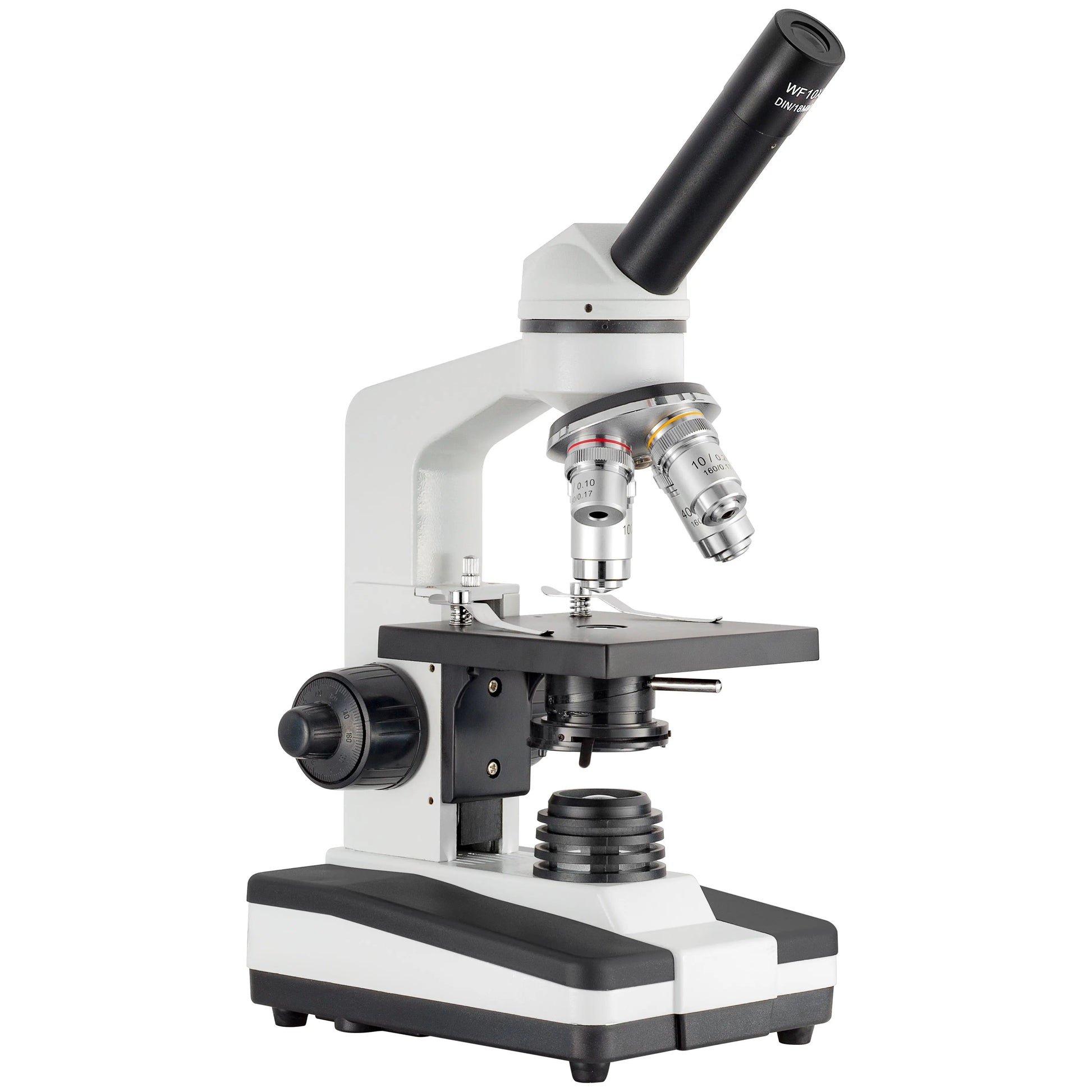

Discover excellent clarity with this professional-grade student microscope. Model EDM-MM4A-DAL3 features LED illumination, four DIN objectives, and an Abbe condenser. The Student PRO delivers laboratory-quality optics in a design optimized for learners. Sharp, high-contrast images support biology, microbiology, and general science education.
Specifications
| Specification | Detail |
|---|---|
| Head Type | Monocular, 360° rotation |
| Eyepiece | 10×/18 widefield with pointer (locked-in) |
| Objectives | DIN 4×, 10×, 40×R, 100× (oil immersion) |
| Stage | Built-in mechanical stage with coaxial controls |
| Condenser | Abbe NA 1.25 with iris diaphragm |
| Illumination | Variable LED, cool operation |
| Focus | Coaxial coarse and fine adjustment |
| Construction | Heavy cast alloy with reagent-resistant finish |
Compare the Student PRO Family
| Model | Objectives | Range | Teaching head |
|---|---|---|---|
| EDM-MM3A-DAL3 | 3 | 40×–400× | No |
| EDM-MM4A-DAL3 (this model) | 4 | 40×–1000× | No |
| EDM-TM3A-DAL3 | 3 | 40×–400× | Yes (dual-view) |
| EDM-TM4A-DAL3 | 4 | 40×–1000× | Yes (dual-view) |
All Student PRO models: monocular, DIN objectives, Abbe condenser, LED.
Applications
Perfect for middle school, high school, and introductory college courses. Excels in homeschool laboratories and maker spaces. The microscope provides teachers with professional features. Students benefit from clear, accurate observations that enhance learning outcomes.
Frequently Asked Questions
What viewing head does the EDM-MM4A-DAL3 have?
The EDM-MM4A-DAL3 has a monocular head.
What is the EDM-MM4A-DAL3 designed for?
The EDM-MM4A-DAL3 is designed for classroom teaching and student labs.
Parts and accessories for the Student PRO Compound Microscope
LW Scientific lists these 9 part numbers for EDM-MM4A-DAL3:
| Part number | Part | Type | Price |
|---|---|---|---|
| EDP-BLBF-7705 | 5 W Fluorescent Bulb for Student Scope | Microscope Bulbs, LED Assemblies & Power | $18.00 |
| EDP-BLB7-LED7 | LED Bulb Assembly for Student Scope | Microscope Bulbs, LED Assemblies & Power | $20.00 |
| EDB-BTR7-LED3 | LED Full Base Tray for Student Scope | Microscope Bulbs, LED Assemblies & Power | $65.00 |
| SNR-FUSE | Microscope Fuse, 0.5 A 250 V | Microscope Bulbs, LED Assemblies & Power | $7.20 |
| MSE-1018-2377 | 10x/18 mm Wide-Field Eyepiece | Microscope Eyepieces | $50.40 |
| EDO-100X-DAOL | 100xR DIN Achromatic Oil Objective | Microscope Objectives | $118.80 |
| R3O-010X-DADR | 10x DIN Achromatic Objective | Microscope Objectives | $58.80 |
| R3O-040X-DADR | 40xR DIN Achromatic Objective | Microscope Objectives | $94.80 |
| R3O-004X-DADR | 4x DIN Achromatic Objective | Microscope Objectives | $45.60 |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Eyepieces, Microscope Objectives.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
