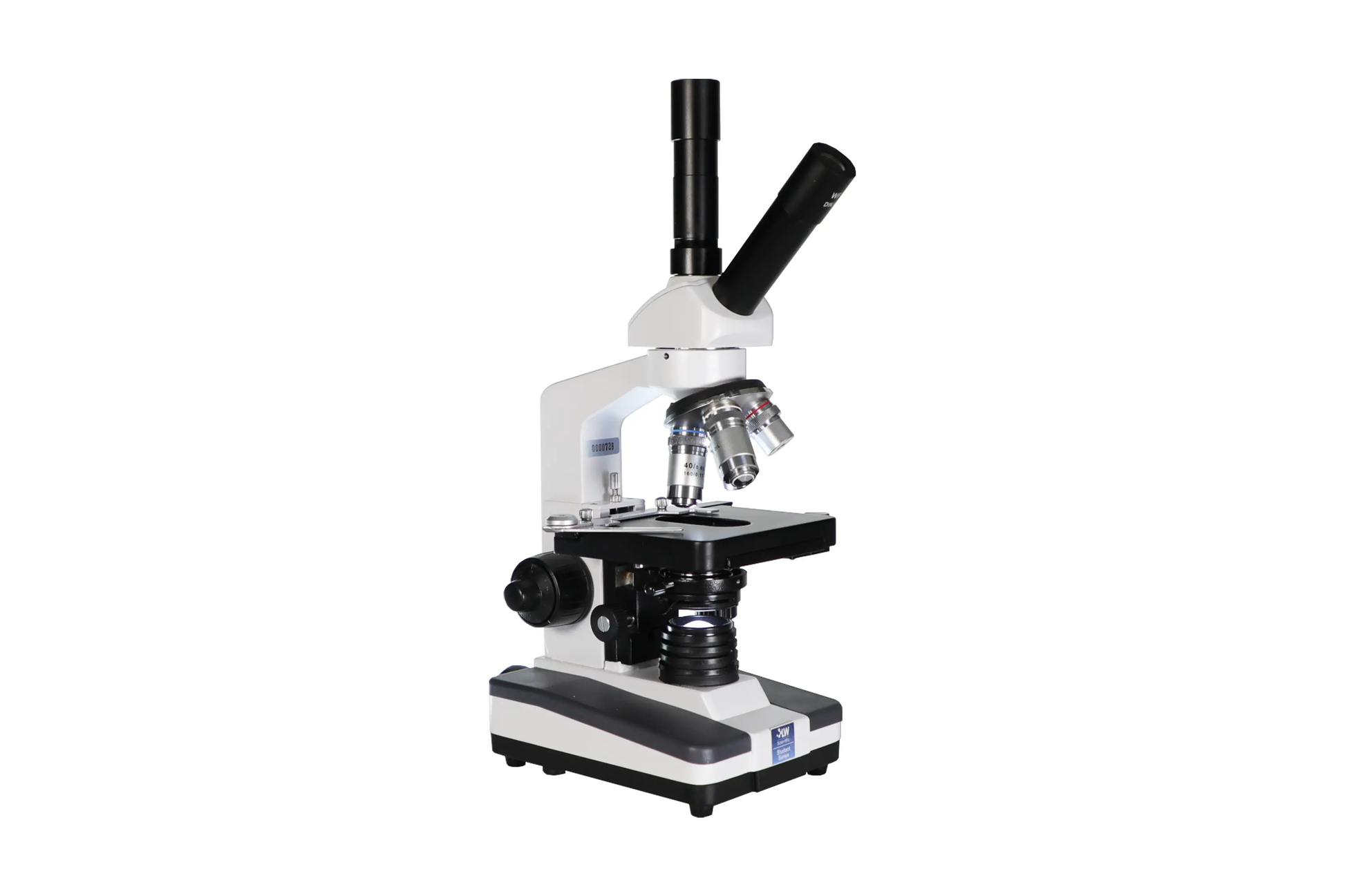

EDM-TM4A-DAL3 Dual Head Teaching Microscope | Student PRO Monocular LED | 4 Objectives | Educational Laboratory Microscope

Dual Head Teaching Microscope for Interactive Classroom Learning

The EDM-TM4A-DAL3 dual head teaching microscope revolutionizes classroom instruction by enabling simultaneous viewing for teacher and student. This Student PRO dual head teaching microscope features monocular LED illumination and four DIN achromatic objectives, making it perfect for high schools, middle schools, technical institutes, and homeschool applications. Guide students through discoveries while observing the same specimen together with this innovative dual head teaching microscope.

Built with professional-grade components, this dual head teaching microscope delivers crisp, clear images for both observers. The energy-efficient LED illumination provides cool, bright lighting that eliminates heat buildup during extended classroom sessions.

Professional Features for Enhanced Learning Teaching Head Microscope LED

Each dual head teaching microscope includes four precision DIN achromatic objectives (4x, 10x, 40x, and 100x oil) mounted on a reverse quadruple nosepiece for convenient slide handling. The objectives are parfocal and parcentered, maintaining focus when switching between magnification levels from 40x to 1000x. Teachers can point out specific cellular features and guide students through proper focusing techniques using this dual head teaching microscope.

The dual viewing configuration features one inclined head and one vertical head, both rotating 360° for comfortable viewing positions. WF10x widefield eyepieces provide clear, high-contrast images with diopter adjustment for individual focus customization.

Advanced Classroom Functionality

Mechanical Stage: Factory-installed double-layer mechanical stage with low-position coaxial controls for precise slide movement
Professional Condenser: N.A. 1.25 Abbe condenser with iris diaphragm for optimal contrast and resolution
LED Illumination: Variable-intensity LED lighting with long bulb life and cool operation
Student-Proof Design: Durable metal construction withstands demanding classroom environments
Ergonomic Controls: Coaxial coarse and fine focusing knobs on both sides
Safety Features: Spring-loaded 40x and 100x objectives prevent slide damage

This dual head teaching microscope transforms traditional microscopy instruction into collaborative learning experiences. Teachers demonstrate techniques while students practice simultaneously, accelerating comprehension and building confidence.

Technical Specifications

Optical System: DIN standard, f=160mm
Viewing Configuration: Dual monocular heads (inclined + vertical)
Eyepieces: WF10x/18mm (one with pointer)
Objectives: DIN achromatic 4x, 10x, 40x (spring), 100x oil (spring)
Magnification Range: 40x, 100x, 400x, 1000x
Nosepiece: Reverse quadruple with ball bearings
Stage: 125mm x 145mm mechanical stage
XY Movement: 76mm x 50mm range
Condenser: N.A. 1.25 Abbe with iris diaphragm
Illumination: Variable LED transmission lighting
Focus: Coaxial coarse and fine adjustment
Head Rotation: 360° both heads
Construction: Cast aluminum alloy stand
Power: 90-240V universal voltage

The EDM-TM4A-DAL3 dual head teaching microscope represents exceptional value for educators seeking professional-quality instruments that facilitate hands-on instruction. Perfect for biology, microbiology, pathology, and general laboratory science courses where collaborative learning enhances student outcomes.
