Oil Bath 1L Hard Transparent Glass Overview

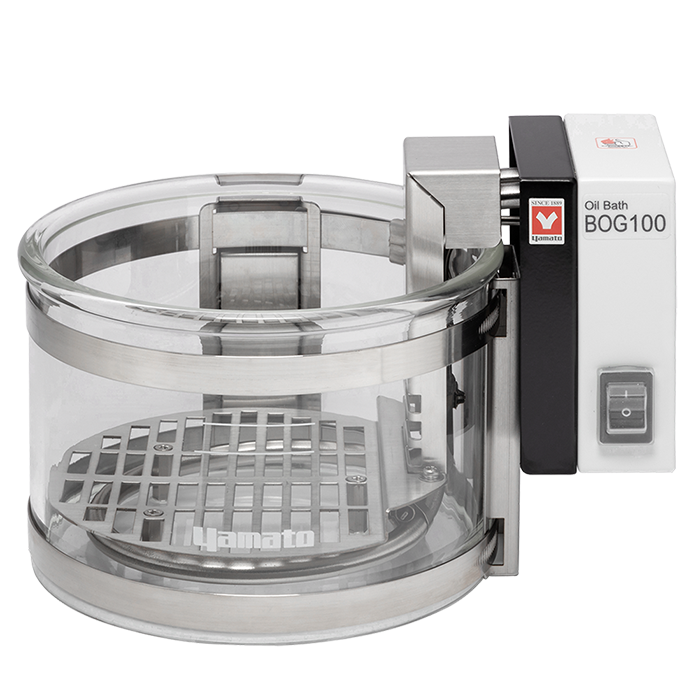

The Oil Bath 1L Hard Transparent Glass (model BOG100) is a benchtop oil bath built by Yamato Scientific for synthetic chemistry and reaction heating. Its hard transparent glass reservoir holds roughly 1 L and supports an operating range of room temperature +5°C to 240°C. LabSupplies.com, an authorized dealer, ships this unit factory-genuine.
A 310 W stainless-steel tube heater drives the bath, while a Pt100Ω sensor and PID control hold ±0.3°C at 200°C with stirring. Hard transparent glass gives full visibility of samples and fluid level. Chromium-free electrogalvanized steel with a baked finish forms the exterior housing.
Two voltage builds cover global benches: BOG100 (115V) and BOG110 (220V). Internal dimensions measure φ140 × 100 mm, and the packaged unit weighs about 12 lbs. Manufactured in Japan, the bath ships under Yamato's ISO 9001:2015 and ISO 14001:2015 quality systems.
Key Features
- Temperature control: PID system with a Pt100Ω sensor, holding ±0.3°C at 200°C with stirring.
- Heating: 310 W stainless-steel tube heater with a 0 to 260°C setting range.
- Bath reservoir: hard transparent glass, ~1 L capacity, internal dimensions φ140 × 100 mm.
- Digital interface: setting and display via ▲▼ keys in 1°C units, plus calibration offset, auto resume, and LED brightness setting.
- BOG100 / BOG110: 115V and 220V builds; the base indent seats a magnetic-stirrer hot plate compatible with MFD800 / MFH800.
How to Choose the Right Oil Bath
Matching an oil bath to your workflow means weighing capacity, temperature reach, control precision, and site power before issuing a PO. Use the criteria below to confirm fit.
- Temperature range: an operating window of room temperature +5°C to 240°C covers most oil-based heating; confirm your highest setpoint stays inside it.
- Control type: PID control with a Pt100Ω sensor delivers ±0.3°C stability, important for temperature-sensitive reactions.
- Voltage: select BOG100 for 115V benches or BOG110 for 220V supply to match your facility power.
- Footprint: internal dimensions of φ140 × 100 mm and a 12 lb unit weight determine bench space and handling.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 1 L |
| Voltage | 115V |
| Material | Glass |
| Temperature Setting Range | 0 to 260°C |
| Operating Temperature Range | Room temperature +5°C to 240°C *1 |
| Temperature Accuracy | ±0.3°C (at 200°C, with stirring) *2 |
| Temperature Control System | PID control |
| Temperature Setting / Display | Digital, ▲▼ keys (1°C units) |
| Sensor | Pt100Ω |
| Heater | Stainless-steel tube heater, 310 W |
| Bath Material | Hard transparent glass |
| Exterior | Chromium-free electrogalvanized steel, baked finish |
| Operation Function | Fixed-temperature operation; calibration offset; auto resume; LED brightness setting |
| Safety Devices | Self-diagnostic (sensor-error detection, automatic overheat prevention); 6.3A fuse with short-circuit and overcurrent protection; independent overheat prevention device; heater guard |
| Internal Dimensions | φ140 × 100 mm |
| Reservoir Capacity | ~1 L |
| Stirrer Integration | Base indent seats a magnetic-stirrer hot plate (compatible with MFD800 / MFH800) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059932603 |
| Shipping Weight | 12 lbs |
| Shipping Dimensions (L × W × H) | 11 × 16 × 11 in |
| Component Size | 1 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
Compare BOG Series Models
| Model | Capacity |
|---|---|
| BOG100 (this model) | 1 L |
| BOG200 | 2.2 L |
All models in this group share: temperature range Room temperature +5°C to 240°C; accuracy ±0.3°C (at 200°C, with stirring); shipping weight 12 lbs.
Ordering Information
| Catalog number | Configuration | GTIN / UPC |
|---|---|---|
| BOG-100 | 115V | 797059932603 |
| BOG-110 | 220V | 797059932610 |
| Manufacturer | Yamato Scientific |
| Manufacturer part numbers | BOG-100, BOG-110 |
| UNSPSC | 41103707 — Oil baths |
| HTS code | 8419.19.0160 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
More in This Series
- Yamato BOS100 Oil Bath 1L Stainless Steel
- Yamato BOG200 Oil Bath 2.2L Hard Transparent Glass
- Yamato BOS200 Oil Bath 2.2L Stainless Steel
- Yamato BO302A Oil Bath Digital 5L
- Yamato BO601 Oil Bath Digital 7L
- Yamato BOA311 Large Capacity Oil Bath 37L With External Transformer
Frequently Asked Questions
What is the temperature range of the BOG100 oil bath?
The BOG100 operates from room temperature +5°C up to 240°C. Its setting range spans 0 to 260°C, with PID control holding ±0.3°C at 200°C when stirring.
What is the difference between BOG100 and BOG110?
Voltage is the only difference. BOG100 is the 115V build and BOG110 is the 220V build; both share the 1 L glass reservoir, PID control, and 310 W heater.
What material is the bath made from?
The reservoir is hard transparent glass for full visibility of samples and fluid level. The exterior is chromium-free electrogalvanized steel with a baked finish.
Can this oil bath be used with a magnetic stirrer?
Yes. The base indent seats a magnetic-stirrer hot plate and is compatible with the MFD800 and MFH800 stirrers for combined heating and stirring.
What is the UNSPSC code for the Yamato BOG100?
The Yamato BOG100 is classified under UNSPSC 41103707 (oil baths).
Is there a spec sheet or brochure for the Yamato BOG100?
Yes. The Yamato BOG / BOS Series Oil Bath brochure (712 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato BOG100 compare with the other BOG Series models?
Yamato builds this BOG Series line in 2 sizes: 1 L (BOG100) and 2.2 L (BOG200). All share temperature range Room temperature +5°C to 240°C and accuracy ±0.3°C (at 200°C, with stirring). The comparison table on this page lists capacity side by side.
How accurate and uniform is the temperature in the Yamato BOG100?
Yamato rates the BOG100 for temperature accuracy at ±0.3°C (at 200°C, with stirring).
What are the shipping dimensions and weight of the Yamato BOG100?
Yamato's shipping data lists the BOG100 at 11 × 16 × 11 in and 12 lb packed.
