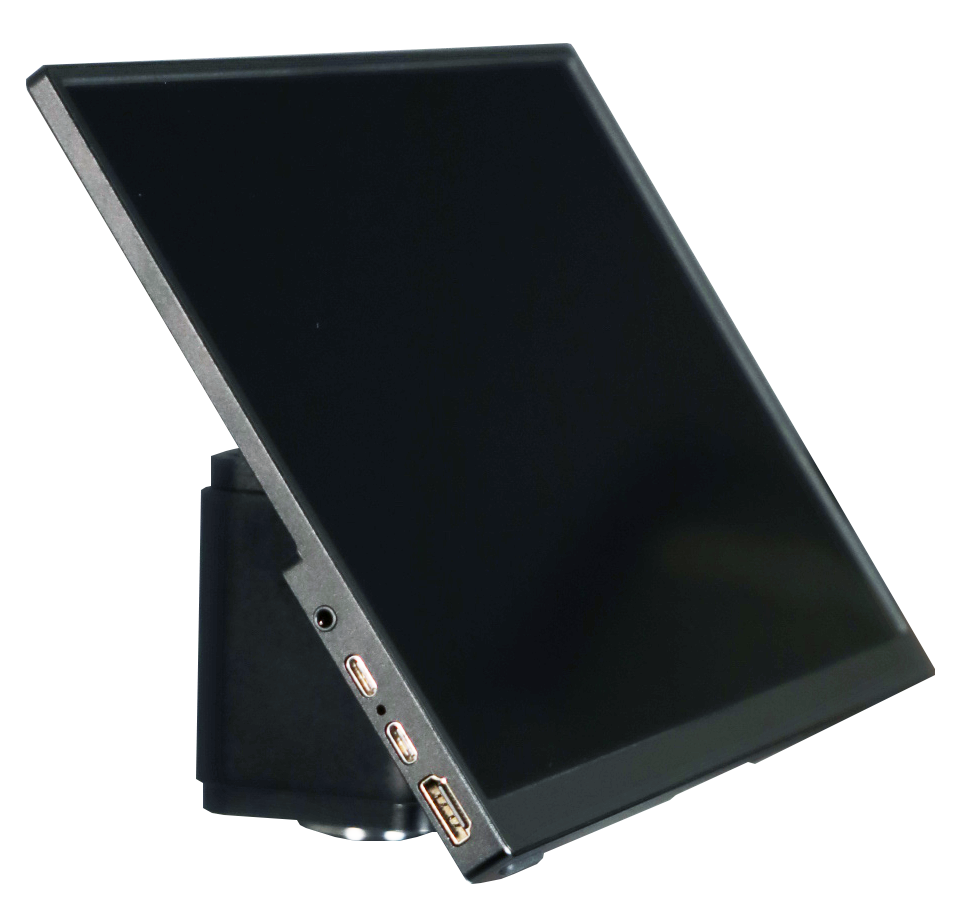

Capture and display stunning 4K resolution with this professional microscope camera monitor. Model BVC-4K16-TVK3 combines an 8MP BioVID camera with a 13.3" HD display for instant viewing. This all-in-one system eliminates the need for separate equipment, providing immediate 4K imaging for presentations, education, and clinical documentation.
Specifications
| Specification | Detail |
|---|---|
| Camera Resolution | 8MP, 3840 × 2160 (4K Ultra HD) |
| Monitor | 13.3" LCD HD display, integrated design |
| Sensor | Sony IMX334(C) CMOS, 1/1.06" format |
| Frame Rate | 30 fps at full 4K resolution |
| Outputs | HDMI, USB 2.0, SD card recording |
| Mounting | Standard C-mount for all trinocular microscopes |
| Power | AC 100-240V universal adapter included |
Compare the BioVID / MegaVID / MiniVID Imaging Family
| Model | Series | Resolution | Output | Monitor |
|---|---|---|---|---|
| BVC-4K16-CMT3 | BioVID 4K | 8MP / 4K | HDMI, USB | Camera only |
| BVC-4K16-TVK3 (this model) | BioVID 4K | 8MP / 4K | HDMI | 13.3" included |
| BVC-1080-CMT3 | BioVID 1080+ | 2MP / 1080p | HDMI, USB | Camera only |
| BVC-1080-TVK3 | BioVID 1080+ | 2MP / 1080p | HDMI | 13.3" included |
| MVC-12MP-WiFi | MegaVID | 12MP / 4K | WiFi, USB, HDMI, LAN | Camera only |
| MVC-U6MP-USB3 | MiniVID | 6.3MP | USB 3.0 | Camera only |
| BVP-SCRN-1163 | BioVID | — (monitor) | HDMI in | 13.3" standalone |
All cameras use a standard C-mount and fit any trinocular microscope.
Applications
Record directly to the included SD card without a computer. Connect via HDMI to external displays or projectors. The system also supports USB connection for advanced software editing and archiving on Windows or Mac computers for professional documentation needs.
Frequently Asked Questions
What resolution is the BVC-4K16-TVK3?
The LW Scientific BioVID 4K Microscope Camera & Monitor Combo BVC-4K16-TVK3 captures at 8MP, 4K.
Does the BVC-4K16-TVK3 need a computer?
No — it includes a built-in HD monitor, so it works as a standalone imaging station without a PC.
What microscopes does the BVC-4K16-TVK3 fit?
It uses a standard C-mount and fits any trinocular microscope.
