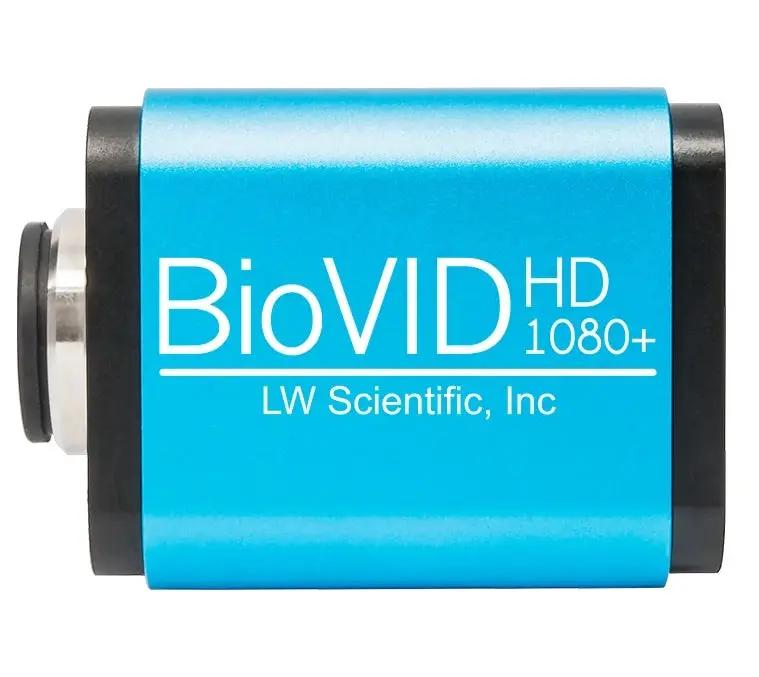

Capture clear Full HD images with this professional HD microscope camera. Model BVC-1080-CMT3 features 2-megapixel resolution at 1920 × 1080. BioVID delivers 60fps video via HDMI for smooth viewing. Perfect for presentations, education, and clinical documentation on any monitor or TV.
Specifications
| Specification | Detail |
|---|---|
| Resolution | 2MP, 1920 × 1080 (Full HD) |
| Sensor | Sony IMX236(C) CMOS, 1/2.8" format |
| Frame Rate | 60 fps via HDMI, 30 fps via USB |
| Outputs | HDMI, USB 2.0, SD card slot |
| Mounting | Standard C-mount for all trinocular microscopes |
| Auto-Exposure | 0.1ms to 999ms range |
| Power | AC 100-240V universal adapter included |
Compare the BioVID / MegaVID / MiniVID Imaging Family
| Model | Series | Resolution | Output | Monitor |
|---|---|---|---|---|
| BVC-4K16-CMT3 | BioVID 4K | 8MP / 4K | HDMI, USB | Camera only |
| BVC-4K16-TVK3 | BioVID 4K | 8MP / 4K | HDMI | 13.3" included |
| BVC-1080-CMT3 (this model) | BioVID 1080+ | 2MP / 1080p | HDMI, USB | Camera only |
| BVC-1080-TVK3 | BioVID 1080+ | 2MP / 1080p | HDMI | 13.3" included |
| MVC-12MP-WiFi | MegaVID | 12MP / 4K | WiFi, USB, HDMI, LAN | Camera only |
| MVC-U6MP-USB3 | MiniVID | 6.3MP | USB 3.0 | Camera only |
| BVP-SCRN-1163 | BioVID | — (monitor) | HDMI in | 13.3" standalone |
All cameras use a standard C-mount and fit any trinocular microscope.
Applications
The camera includes on-screen controls via USB mouse. Adjust exposure, white balance, gain, and color settings in real-time. Advanced imaging software for Windows enables measurement, annotation, image stitching, and extended depth of focus.
Frequently Asked Questions
What resolution is the BVC-1080-CMT3?
The LW Scientific BioVID 1080+ Microscope Camera BVC-1080-CMT3 captures at 2MP.
How does the BVC-1080-CMT3 connect?
It connects by HDMI/USB and uses a standard C-mount.
What microscopes does the BVC-1080-CMT3 fit?
It uses a standard C-mount and fits any trinocular microscope.
