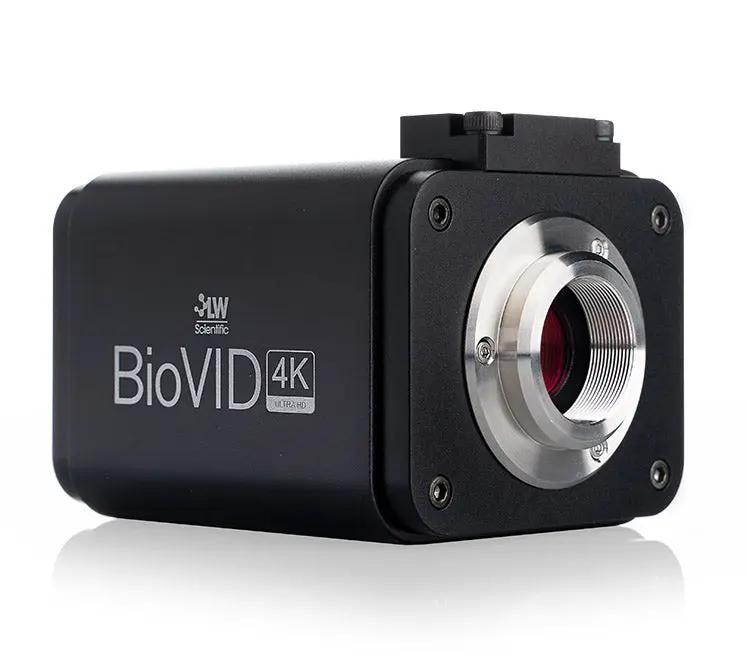

Capture stunning 4K resolution with this professional 4K microscope camera. Model BVC-4K16-CMT3 features an 8-megapixel Sony IMX334 sensor for excellent clarity. BioVID delivers 3840 × 2160 resolution at 30 fps for clear video. Connects to any trinocular C-mount for instant high-definition imaging and video recording.
Specifications
| Specification | Detail |
|---|---|
| Resolution | 8MP, 3840 × 2160 (4K Ultra HD) |
| Sensor | Sony IMX334(C) CMOS, 1/1.06" format |
| Frame Rate | 30 fps at full 4K resolution |
| Outputs | HDMI, USB 2.0, SD card slot |
| Mounting | Standard C-mount connection |
| Auto-Exposure | 0.1ms to 2000ms range |
| Power | AC 100-240V auto-switching adapter |
Compare the BioVID / MegaVID / MiniVID Imaging Family
| Model | Series | Resolution | Output | Monitor |
|---|---|---|---|---|
| BVC-4K16-CMT3 (this model) | BioVID 4K | 8MP / 4K | HDMI, USB | Camera only |
| BVC-4K16-TVK3 | BioVID 4K | 8MP / 4K | HDMI | 13.3" included |
| BVC-1080-CMT3 | BioVID 1080+ | 2MP / 1080p | HDMI, USB | Camera only |
| BVC-1080-TVK3 | BioVID 1080+ | 2MP / 1080p | HDMI | 13.3" included |
| MVC-12MP-WiFi | MegaVID | 12MP / 4K | WiFi, USB, HDMI, LAN | Camera only |
| MVC-U6MP-USB3 | MiniVID | 6.3MP | USB 3.0 | Camera only |
| BVP-SCRN-1163 | BioVID | — (monitor) | HDMI in | 13.3" standalone |
All cameras use a standard C-mount and fit any trinocular microscope.
Applications
The 4K microscope camera includes on-screen controls via USB mouse. Adjust exposure, white balance, gain, and color settings instantly. Built-in measurement tools, crosshairs, and comparison features enhance your imaging workflow without additional software installation requirements.
Frequently Asked Questions
What resolution is the BVC-4K16-CMT3?
The LW Scientific BioVID 4K Microscope Camera BVC-4K16-CMT3 captures at 8MP, 4K.
How does the BVC-4K16-CMT3 connect?
It connects by HDMI/USB and uses a standard C-mount.
What microscopes does the BVC-4K16-CMT3 fit?
It uses a standard C-mount and fits any trinocular microscope.
