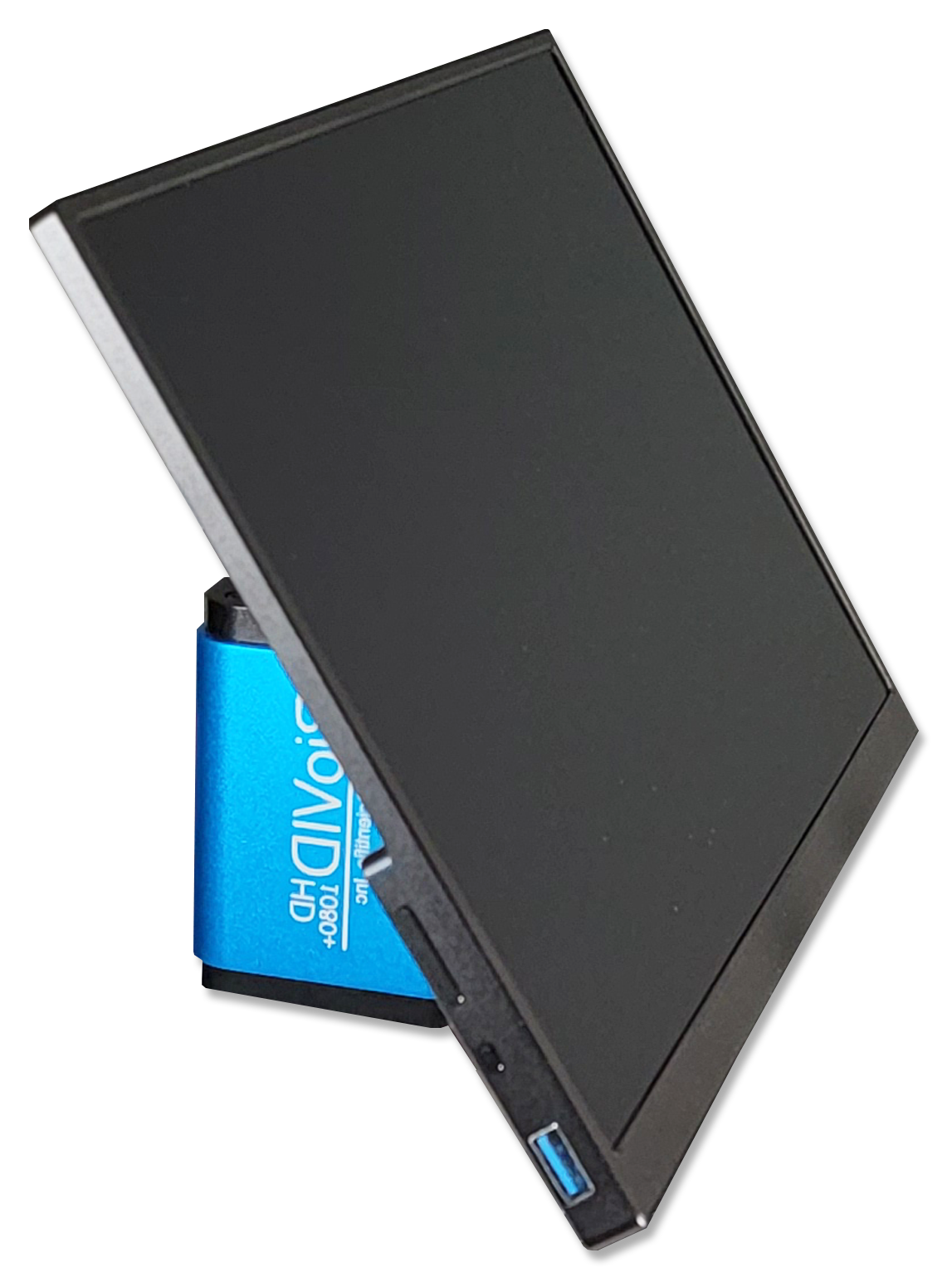

Display stunning Full HD resolution with this professional HD camera monitor. Model BVC-1080-TVK3 combines a 2MP BioVID camera with a 13.3" monitor for instant viewing. This all-in-one HD camera monitor eliminates the need for separate equipment, providing immediate 1080p imaging for presentations, education, and clinical documentation.
Specifications
| Specification | Detail |
|---|---|
| Camera Resolution | 2MP, 1920 × 1080 (Full HD) |
| Monitor | 13.3" LCD HD display, integrated design |
| Sensor | Sony IMX236(C) CMOS, 1/2.8" format |
| Frame Rate | 60 fps via HDMI, 30 fps via USB |
| Outputs | HDMI, USB 2.0, SD card recording |
| Mounting | Standard C-mount for all trinocular microscopes |
| Power | AC 100-240V universal adapter included |
Compare the BioVID / MegaVID / MiniVID Imaging Family
| Model | Series | Resolution | Output | Monitor |
|---|---|---|---|---|
| BVC-4K16-CMT3 | BioVID 4K | 8MP / 4K | HDMI, USB | Camera only |
| BVC-4K16-TVK3 | BioVID 4K | 8MP / 4K | HDMI | 13.3" included |
| BVC-1080-CMT3 | BioVID 1080+ | 2MP / 1080p | HDMI, USB | Camera only |
| BVC-1080-TVK3 (this model) | BioVID 1080+ | 2MP / 1080p | HDMI | 13.3" included |
| MVC-12MP-WiFi | MegaVID | 12MP / 4K | WiFi, USB, HDMI, LAN | Camera only |
| MVC-U6MP-USB3 | MiniVID | 6.3MP | USB 3.0 | Camera only |
| BVP-SCRN-1163 | BioVID | — (monitor) | HDMI in | 13.3" standalone |
All cameras use a standard C-mount and fit any trinocular microscope.
Applications
Record directly to the included SD card without a computer. Connect via HDMI to external displays or projectors. The camera also supports USB connection for advanced software editing and archiving on Windows or Mac computers for professional documentation needs.
Frequently Asked Questions
What resolution is the BVC-1080-TVK3?
The LW Scientific BioVID 1080+ Microscope Camera & Monitor Combo BVC-1080-TVK3 captures at 2MP.
Does the BVC-1080-TVK3 need a computer?
No — it includes a built-in HD monitor, so it works as a standalone imaging station without a PC.
What microscopes does the BVC-1080-TVK3 fit?
It uses a standard C-mount and fits any trinocular microscope.
