2310030209 Rod
$95.00
Why order the LT400BA from LabSupplies.com
Authorized Yamato Scientific dealerGenuine new Yamato equipment and parts, listed by Yamato part number.
1-year Yamato warrantyYamato Scientific America's published warranty, from shipment. Valid only through authorized dealers.
Ships from US inventoryShipped to your lab from US inventory.
Yamato-certified serviceCalibration and preventive maintenance on site or at Yamato's California service center.

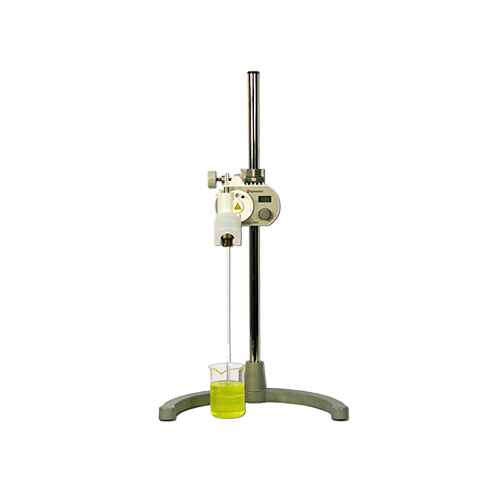

Yamato LT400BA LT-400B Set Main Body, Stand, Rod, Stainless Steel Shaft And 60 mm 4-Blade Propeller Overview
Speed-feedback control maintains the set speed as viscosity changes mid-run, with maximum torque of 0.5 N·m (5.0 kgf·cm). A 3-digit digital display shows set speed alongside an LED torque/overload indicator, while overload stop, a current-limit circuit, and thermal motor protection guard both the drive and your sample. Everything needed to clamp, mount, and start stirring ships in the box.
How to Choose the Right LT Stirrer
Across the Yamato LT series, the model letter sets the balance between speed and torque — higher top speeds trade off maximum torque, so match the model to your sample:
- Sample viscosity: this LT-400B is rated for medium-viscosity samples (0.5 N·m (5.0 kgf·cm) maximum torque).
- Speed range: 15–600 rpm — confirm your process rpm falls inside this band.
Specifications
| Specification | Detail |
|---|---|
| Material | Stainless steel |
| Speed Range | 15–600 rpm |
| Maximum Torque | 0.5 N·m (5.0 kgf·cm) |
| Motor | DC brushless, 30 W |
| Sample Viscosity | Medium |
| Type | Digital overhead laboratory stirrer |
| Speed Control | Speed feedback control — maintains set speed despite viscosity change |
| Display | Digital 3-digit speed display with LED torque/overload indicator |
| Configuration | Complete set — main body with stand, rod, and stainless-steel stirring shaft |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059928958 |
| Shipping Weight | 23 lbs |
| Shipping Dimensions (L × W × H) | 24 × 18 × 18 in |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
| Chuck | ø8mm drill chuck |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| LT-400BA | 797059928958 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | LT-400BA |
| UNSPSC | 41103810 — Overhead stirrers |
| HTS code | 8479.82.0040 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
Parts & Accessories for the LT Series
Genuine Yamato LT-series parts. Fitment is taken from each part's Yamato description.
No parts in this group fit the LT400BA. Switch to All LT series.
More in This Series
- Yamato MG600H Magnetic Stirrer With Hot Plate X 6 (300~1500 rpm) With External Transformer
- Yamato MFD800 Strong Magnetic Stirrer, 50 To 1600 rpm
- Yamato MFH800 Strong Magnetic Stirrer With Hot Plate, 50 To 1600 rpm
- Yamato LR500A Lab Stirrer Digital Main Body (34~340 rpm), Stainless Shaft & 75Mm 4-Blade Propeller
- Yamato LR500B Lab Stirrer Digital Main Body (100~1000 rpm), Stainless Shaft & 75Mm 4-Blade Propeller
- Yamato LR500AA LR-500A Set Main Body, Stand, Rod, Stainless Steel Shaft And 75 mm 4-Blade Propeller
- Yamato LR500BA LR-500B Set Main Body, Stand, Rod, Stainless Steel Shaft And 75 mm 4-Blade Propeller
- Yamato LT400A Laboratory Stirrer Digital Main Body Only 10~300 rpm
- Yamato LT400B Laboratory Stirrer Digital Main Body Only 15~600 rpm
- Yamato LT500A Laboratory Stirrer Digital Main Body Only 15~600 rpm
- Yamato LT400C Laboratory Stirrer Digital Main Body Only 25~1200 rpm
- Yamato LT500B Laboratory Stirrer Digital Main Body Only 25~1200 rpm
- Yamato LT400AA LT-400A Set Main Body, Stand, Rod, Stainless Steel Shaft And 60 mm 4-Blade Propeller
- Yamato LT400CA LT-400C Set Main Body, Stand, Rod, Stainless Steel Shaft And 60 mm 4-Blade Propeller
- Yamato LT500AA LT-500A Set Main Body, Stand, Rod, Stainless Steel Shaft And 60 mm 4-Blade Propeller
- Yamato LT500BA LT-500B Set Main Body, Stand, Rod, Stainless Steel Shaft And 60 mm 4-Blade Propeller
- Yamato YSA0000194 U Stand For LR/LT400/500
Ordering
Authorized dealer, ships from the USA. Serving academic, government, and research laboratories nationwide.
Frequently Asked Questions
What sample viscosity is the LT-400B suited to?
It is rated for medium-viscosity samples, delivering 0.5 N·m (5.0 kgf·cm) of maximum torque across a 15–600 rpm speed range. For markedly higher-viscosity work, step up to a higher-torque LT model.
Does the stirrer hold a constant speed as the sample thickens?
Yes. Speed-feedback control continuously adjusts the motor to maintain the set rpm even as viscosity rises during a run, and the digital display plus LED torque indicator let you monitor loading in real time.
Which replacement parts and accessories are listed for the Yamato LT400BA?
Yamato lists 13 parts for the LT Series: 2310030209, 231384, 231385, 231386, 280078, 280079 and 7 more. Each is linked with its description in the parts table on this page.
What is the UNSPSC code for the Yamato LT400BA?
The Yamato LT400BA is classified under UNSPSC 41103810 (overhead stirrers).
Where is the Yamato LT400BA manufactured?
Yamato Scientific lists Japan as the country of origin for the LT400BA.
Is there a spec sheet or brochure for the Yamato LT400BA?
Yes. The Yamato LT / LR Laboratory Stirrer brochure (376 KB PDF) is linked under Documents & Downloads on this page.
What are the shipping dimensions and weight of the Yamato LT400BA?
Yamato's shipping data lists the LT400BA at 24 × 18 × 18 in and 23 lb packed.
