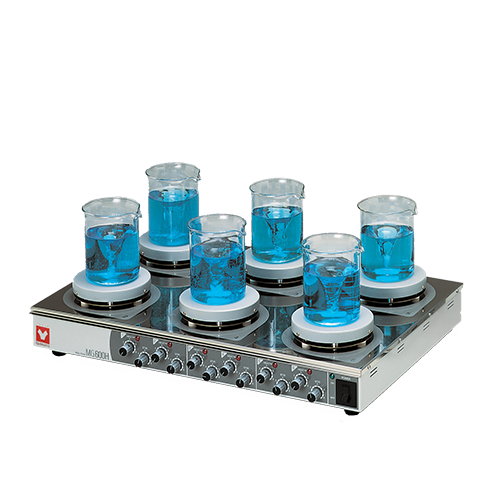

Magnetic Stirrer With Hot Plate X 6 (300~1500 rpm) With External Transformer Overview
The Magnetic Stirrer With Hot Plate X 6 (300~1500 rpm) With External Transformer (Yamato Scientific model MG600H) is a six-position stirrer in the Stirrers category, handling 100–2000 ml per position with a maximum plate temperature of 250°C. Stirring and heating are controlled independently across all six points. Each position runs 300–1500 rpm. LabSupplies.com is an authorized dealer.
Construction centers on six aluminum stirring plates finished with a chemical-resistant ceramic coating, each Ø126 mm. A 230 W heater serves every position, regulated through a triac input control system, while an AC shaded-pole motor drives the magnetic field. Included circuit protection guards against overload. Six 30 mm stirrer bars ship with the unit.
Power is supplied through an external transformer at 115V, 13.5A, 50/60 Hz, with a 220V configuration also available. Footprint measures W606 × D420 × H122 mm, and net weight is roughly 14 kg. Manufactured in Japan, the unit is produced under ISO 9001:2015 and ISO 14001:2015 certified systems.
Key Features
- Six independent positions: rotation and heating adjust individually at each of the six stations.
- Wide stirring range: 300–1500 rpm with a per-position capacity of 100–2000 ml.
- Ceramic-coated hot plates: aluminum plates with chemical-resistant ceramic coating, reaching 250°C maximum.
- Triac temperature control: triac input control paired with a 230 W heater on each position.
- Built-in circuit protector: integrated overload protection for safe extended runs.
- Ready to run: ships with six 30 mm stirrer bars and an external transformer.
How to Choose the Right Stirrer
Selecting a multi-position stirring hot plate comes down to matching throughput, sample volume, and bench power to your workflow. Weigh these factors against your protocol before specifying a unit.
- Position count and capacity: a six-position deck handling 100–2000 ml per station suits labs running parallel preparations or replicate samples.
- Stirring rate: a 300–1500 rpm range covers low-shear mixing through vigorous dissolution across viscosities.
- Temperature range: a 250°C maximum plate temperature determines which heated reactions and dissolutions the unit can support.
- Independent control: separate stirring and heating adjustment per position lets one operator manage differing samples at once.
- Voltage and power: confirm 115V or 220V against your facility supply; this unit draws 13.5A through an external transformer.
- Footprint and weight: a W606 × D420 × H122 mm chassis at roughly 14 kg needs adequate bench depth and clearance.
Specifications
| Specification | Detail |
|---|---|
| Voltage | 115V |
| Type | 6-position magnetic stirrer with hot plate (individual stirring and heating control) |
| Stirring Plate | Ø126 mm × 6 positions, aluminum with ceramic coating |
| Stirring Capacity | 100–2000 ml × 6 positions |
| Stirring Rate | 300–1500 rpm |
| Hot Plate | W230 mm × 6, individual temperature control |
| Maximum Plate Temperature | 250°C |
| Heater | 230 W × 6 |
| Temperature Control System | Triac input control |
| Motor | AC shaded-pole motor |
| Power Supply | 115V, 13.5A, 50/60 Hz |
| External Dimensions | W606 × D420 × H122 mm |
| Net Weight | ~14 kg |
| Included Accessories | 30 mm stirrer bars × 6 |
| Country of Origin | Japan |
| Material | Aluminum with ceramic coating (heating plate) |
| GTIN (Barcode) | 797059931644 |
| Shipping Weight | 70 lbs |
| Dimensions (L × W × H) | 38 × 21 × 12 in |
| Component Size | 2000 ML |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| MG-600H-115V | 115V | EA |
| MG-600H-220V | 220V | EA |
Documentation
More in This Series
- LR-500A Set Main Body, Stand, Rod, Stainless Steel Shaft And 75mm 4-Blade Propeller
- LR-500B Set Main Body, Stand, Rod, Stainless Steel Shaft And 75mm 4-Blade Propeller
- Lab Stirrer Digital Main Body (100~1000 rpm), Stainless Shaft & 75mm 4-Blade Propeller
- Lab Stirrer Digital Main Body (34~340 rpm), Stainless Shaft & 75mm 4-Blade Propeller
- LT-500A Set Main Body, Stand, Rod, Stainless Steel Shaft And 60mm 4-Blade Propeller
- LT-500B Set Main Body, Stand, Rod, Stainless Steel Shaft And 60mm 4-Blade Propeller
View all Laboratory Stirrers →
Why Buy From LabSupplies.com
Order the Yamato MG600H directly from LabSupplies.com and receive a genuine unit backed by manufacturer support. Our lab-equipment specialists answer spec questions before you commit to a configuration.
- Authorized Yamato Scientific dealer: genuine unit with full manufacturer warranty.
- In stock: ready to process, no waitlist.
- Ships from USA inventory: fast domestic fulfillment.
- Dedicated specialists: direct help selecting voltage and confirming compatibility.
Frequently Asked Questions
What is the maximum temperature of the MG600H hot plates?
Each position reaches a maximum plate temperature of 250°C. The six aluminum plates carry a chemical-resistant ceramic coating, and temperature is regulated through a triac input control system with a 230 W heater per position.
How many samples can the MG600H stir at once and at what volume?
The MG600H stirs six samples simultaneously, with each position handling 100–2000 ml. Every station offers independent rotation control across a 300–1500 rpm range, so samples of differing viscosity can run together.
What voltage options are available for the MG600H?
The MG600H is offered in 115V and 220V configurations, both supplied through an external transformer. The 115V version draws 13.5A at 50/60 Hz. Select the voltage that matches your facility power before ordering.
What material are the stirring plates made from?
The stirring plates are aluminum finished with a chemical-resistant ceramic coating. Each plate measures Ø126 mm, and there are six positions across the deck. The coating supports use with corrosive media.
Are stirrer bars included with the MG600H?
Yes, the unit ships with six 30 mm stirrer bars, one for each position. An external transformer is also included, so the stirrer is ready to run on arrival.
What are the dimensions and weight of the MG600H?
External dimensions are W606 × D420 × H122 mm, with a net weight of roughly 14 kg. Confirm adequate bench depth before installation. The unit is manufactured in Japan under ISO 9001:2015 and ISO 14001:2015 certified systems.
