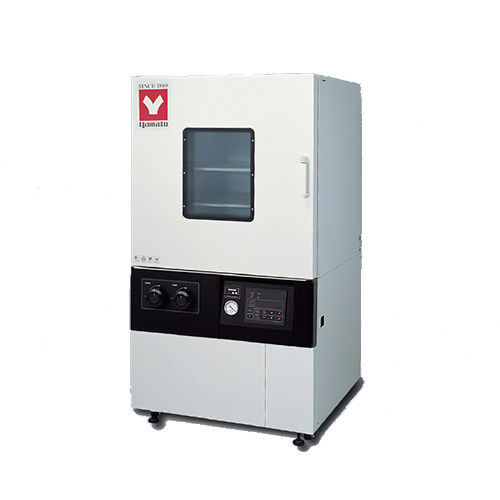

Chamber512 L
Exterior (W × D × H)1020 × 1020 × 1850 mm
Power220V
Key Features
- Improved exhaust system: significantly shortens the time to reach target vacuum, raising working efficiency.
- Programmable operation: dedicated function menu key and ▲▼ keys set parameters, with program operation function.
- Submenu safety controls: configure overheat protector, deviation correction, and related settings; vacuum pump can be installed inside the oven.
How to Choose the Right Vacuum Oven
- Capacity: chamber volume determines batch size and part dimensions; the DP83C offers a 512 L chamber for large loads.
- Temperature range: verify the range covers your drying and degassing setpoints; this model runs 40–200°C.
- Voltage: confirm site power matches the unit; the DP83C requires 220V.
- Footprint and weight: Yamato lists external dimensions (W × D × H) of 1020 × 1020 × 1850 mm (40.2 × 40.2 × 72.8 in); packed for shipping it measures 48 × 46 × 83 in at 1365 lb.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 512 L |
| Voltage | 220V |
| Operating Pressure Range | 101 to 0.1 kPa (760 to 1 Torr) |
| Temperature Accuracy | ±1.0°C (at 200°C) *2 |
| Temperature Control System | 3-segment PID |
| Sensor | K-thermocouple (controller and overheat protector) |
| Heater | 6.5 kW |
| Interior Material | Stainless steel plate |
| Heat Insulation | Glass fiber |
| Observation Window | Toughened glass with resin protection panel |
| Vacuum Gauge | Pointer type, -100 to 0 kPa |
| Program Operation | 3 segments / 30 steps |
| Vacuum Pump Installation Room | Yes (internal) |
| Safety Devices | Self-diagnostic circuit (abnormal temperature |
| Shelves | 2 stainless steel punching plates |
| Country of Origin | China |
| GTIN (Barcode) | 797059926817 |
| Shipping Weight | 1365 lbs |
| External Dimensions (W × D × H) | 1020 × 1020 × 1850 mm (40.2 × 40.2 × 72.8 in) |
| Shipping Dimensions (L × W × H) | 48 × 46 × 83 in |
| Component Size | 512 L |
| Warranty | 1 year (Yamato Scientific America) |
| Service | Calibration and preventive maintenance on site by Yamato-certified technicians or at Yamato's California service center |
| Exterior Material | Cold rolled steel plate with chemical proofing coating |
Compare DP Series Models
| Model | Capacity | Exterior | Shipping weight |
|---|---|---|---|
| DP43C | 91 L | 670 × 669 × 1500 mm (26.4 × 26.3 × 59.1 in) | 597 lbs |
| DP63C | 216 L | 820 × 819 × 1650 mm (32.3 × 32.2 × 65.0 in) | 875 lbs |
| DP83C (this model) | 512 L | 1020 × 1020 × 1850 mm (40.2 × 40.2 × 72.8 in) | 1365 lbs |
| DP104C | 1000 L | 1300 × 1280 × 2110 mm (51.2 × 50.4 × 83.1 in) | 1950 lbs |
Ordering Information
| Catalog number | GTIN / UPC |
|---|---|
| DP-83C | 797059926817 |
| Manufacturer | Yamato Scientific |
| Manufacturer part number | DP-83C |
| UNSPSC | 41104509 — Vacuum ovens |
| HTS code | 8514.19.0000 |
| Export classification (ECCN) | EAR99 |
Documents & Downloads
- Yamato DP83C / DP104C Industrial Vacuum Oven brochure (PDF, 592 KB)
- Yamato Scientific America product page
Parts & Accessories for the DP83C
Genuine Yamato DP-series parts. Fitment is taken from each part's Yamato description.
212193 Shelf
$270.00
MIR-CA301KITF ADP, SDP, DP43C, DP63C To CA301 Stainless Steel Hose Kit (For Standard Unit)
Fits CA301, DP43C, DP63C
$1,145.00
MIR-CA301KITG ADP, SDP, DP43C, DP63C To CA301 Stainless Steel Hose Kit (For Unit With Glass Trap)
Fits CA301, DP43C, DP63C
$1,115.00
No parts in this group fit the DP83C. Switch to All DP series.
More in This Series
- Yamato SDP610 Vacuum Oven Programmable 264L
- Yamato DP104C Large Capacity Vacuum Oven Programmable 1000L 3 Phase
- Yamato DP63C Vacuum Oven Programmable 216L
- Yamato SDP400 Vacuum Oven Programmable 127.4L
- Yamato DP43C Vacuum Oven Programmable 91L
- Yamato SDP300 Benchtop Vacuum Oven Programmable 47.2L
Frequently Asked Questions
What is the chamber capacity and footprint of the DP83C?
The chamber capacity is 512 L. Yamato lists external dimensions (W × D × H) of 1020 × 1020 × 1850 mm (40.2 × 40.2 × 72.8 in); packed for shipping it measures 48 × 46 × 83 in at 1365 lb.
What voltage does the DP83C require?
The DP83C runs on 220V. Confirm that your facility power matches this requirement before installation.
Can the vacuum pump be installed inside the oven?
Yes, the vacuum pump can be installed inside the oven, conserving floor space. Quick connect/disconnect vacuum piping also simplifies pump maintenance.
Which replacement parts and accessories are listed for the Yamato DP83C?
Yamato lists 7 parts for the DP Series: 212192, 212193, MIR-CA301KITF, MIR-CA301KITG, Q110204006, Q110204007 and 1 more. Each is linked with its description in the parts table on this page.
What is the UNSPSC code for the Yamato DP83C?
The Yamato DP83C is classified under UNSPSC 41104509 (vacuum ovens).
Where is the Yamato DP83C manufactured?
Yamato Scientific lists China as the country of origin for the DP83C.
Is there a spec sheet or brochure for the Yamato DP83C?
Yes. The Yamato DP83C / DP104C Industrial Vacuum Oven brochure (592 KB PDF) is linked under Documents & Downloads on this page.
How does the Yamato DP83C compare with the other DP Series models?
Yamato builds this DP Series line in 4 sizes: 91 L (DP43C), 216 L (DP63C), 512 L (DP83C) and 1000 L (DP104C). The comparison table on this page lists capacity, exterior and shipping weight side by side.
How accurate and uniform is the temperature in the Yamato DP83C?
Yamato rates the DP83C for temperature accuracy at ±1.0°C (at 200°C).
