Large Capacity Vacuum Oven Programmable 1000L 3 Phase Overview

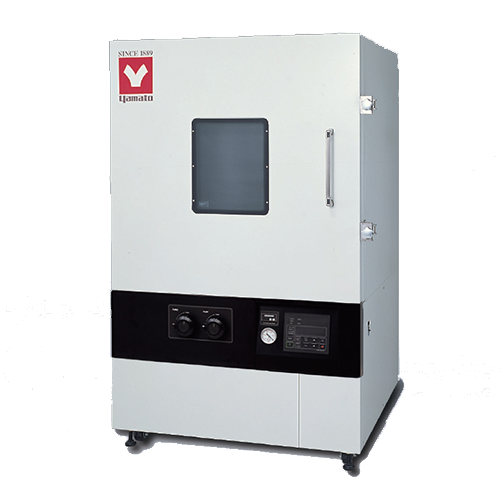

The Large Capacity Vacuum Oven Programmable 1000L 3 Phase (Yamato Scientific DP104C) is a 1000 L vacuum drying oven built for treating large-sized parts and high-volume batches. Operating across a 40–200 °C range, this oven serves labs and production groups that have outgrown bench-scale vacuum drying. LabSupplies.com supplies it as an authorized Yamato Scientific dealer.
Quick connect and disconnect fittings on the vacuum piping simplify pump servicing, while an improved exhaust system shortens pull-down time and raises throughput. A steel plate SPCC powder-coated exterior protects the chamber, and a stainless steel interior resists corrosion. The vacuum pump can be mounted inside the oven to conserve floor space.
Power requirements are 480V 3-phase, matching industrial drying installations. Footprint measures 58 × 55 × 91 in, and shipping weight is 1,950 lb, so plan freight and floor loading accordingly. The unit carries a CE Declaration of Conformity and is produced under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management systems. Stock units ship from USA inventory.
Key Features
- 1000 L capacity: large chamber sized for drying large parts and high-volume batches in a single cycle.
- Programmable control: program operation function with dedicated menu and ▲▼ keys for repeatable, multi-step recipes.
- Fast vacuum pull-down: improved exhaust system shortens the time to reach vacuum, raising working efficiency.
- Quick-connect vacuum piping: tool-light connect and disconnect of vacuum lines for easy pump maintenance.
- Internal pump mounting: the vacuum pump can be installed inside the oven to save floor space.
- Safety submenu: overheat protector and deviation correction adjustable through the submenu key.
How to Choose the Right Vacuum Oven
Vacuum ovens differ on chamber size, thermal range, control sophistication, and site power. Match the unit to your part size, throughput, and facility infrastructure before issuing a PO.
- Capacity: chamber volume must fit your largest part and batch count. A 1000 L chamber suits large-part and high-volume drying that bench ovens cannot handle.
- Temperature range: confirm the process temperature falls within the oven's rated band; this unit operates 40–200 °C.
- Control type: programmable controllers run multi-step recipes unattended, while analog units suit single set-point work. Programmable control improves repeatability across batches.
- Voltage and power: verify available service. This oven requires 480V 3-phase, common in industrial and production environments.
- Footprint and weight: a 58 × 55 × 91 in, 1,950 lb unit needs floor space, freight planning, and adequate floor loading.
- Safety and compliance: overheat protection and recognized certifications (CE, ISO) support facility audits and operator safety.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 1000 L |
| Power | 3 Phase |
| Operating Pressure Range | 101 to 0.1 kPa (760 to 1 Torr) |
| Temperature Accuracy | ±1.0°C (at 200°C) *2 |
| Temperature Control System | 3-segment PID |
| Sensor | K-thermocouple (controller and overheat protector) |
| Heater | 14.4 kW |
| Interior Material | Stainless steel plate |
| Heat Insulation | Glass fiber |
| Observation Window | Toughened glass with resin protection panel |
| Vacuum Gauge | Pointer type, -100 to 0 kPa |
| Program Operation | 3 segments / 30 steps |
| Vacuum Pump Installation Room | Yes (internal) |
| Safety Devices | Self-diagnostic circuit (abnormal temperature |
| Shelves | 4 stainless steel punching plates |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059930739 |
| Shipping Weight | 1950 lbs |
| Dimensions (L × W × H) | 58 × 55 × 91 in |
| Component Size | 1000 L |
*2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| DP-104C | EA | EA |
Documentation
- Product Brochure
- ISO 9001
- ISO 14001
- ISO 45001
- CE Certification
- Yamato Scientific Official Product Page
More in This Series
- Benchtop Vacuum Oven Programmable 10L
- Benchtop Vacuum Oven Programmable 27L
- Benchtop Vacuum Oven Programmable 47.2L
- Vacuum Oven Programmable 127.4L
- Vacuum Oven Programmable 264L
- Vacuum Oven Programmable 91L
- Vacuum Oven Programmable 216L
- Large Capacity Vacuum Oven Programmable 512L
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every DP104C is a genuine unit backed by the manufacturer warranty. Order directly and ship from USA inventory without a quote step.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty support.
- In stock: available to order now, no backorder wait.
- Ships from USA inventory: domestic dispatch on this large-format oven.
- Lab-equipment specialists: dedicated team for specification and configuration questions.
Frequently Asked Questions
What is the temperature range of the DP104C vacuum oven?
The DP104C operates across a 40–200 °C range, covering most large-part vacuum drying and degassing processes.
What is the chamber capacity and overall footprint?
Chamber capacity is 1000 L. The oven measures 58 × 55 × 91 in (L × W × H), so allow adequate floor space and clearance during installation.
What power supply does the DP104C require?
The DP104C requires 480V 3-phase power. Confirm your facility provides matching service before installation.
What materials are used in the oven construction?
The interior is stainless steel and the exterior is steel plate SPCC with powder coating, giving corrosion resistance inside and a durable finish outside.
Does the DP104C support programmable operation?
Yes. A program operation function lets you set multi-step recipes using the menu and ▲▼ keys, with overheat protector and deviation correction adjustable via the submenu.
How much does the DP104C weigh and what certifications does it carry?
Shipping weight is 1,950 lb. The oven carries a CE Declaration of Conformity and is built under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management systems.
