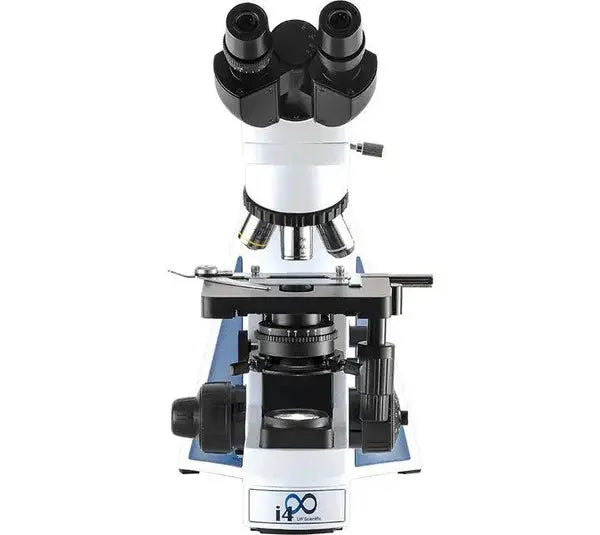

Experience excellent optical performance with the infinity semi plan microscope designed for professional research and clinical diagnostics. The LW Scientific i4M-BN4A-iSL3 i4 Infinity features premium infinity-corrected optics with Semi-Plan objectives, delivering sharp, high-contrast imaging across the entire field of view. This infinity semi plan microscope provides the excellent clarity and resolution traditionally found only on expensive research-grade instruments, making professional-quality imaging accessible to clinical labs, research facilities, and teaching hospitals.
Specifications
| Specification | Detail |
|---|---|
| Head | Binocular |
| Optics | Infinity semi-PLAN |
| Objectives | 4, infinity-corrected |
| Magnification | 40×–1000× |
| Illumination | LED |
Compare the i-4 Infinity Family
| Model | Head | Optics | Notes |
|---|---|---|---|
| i4M-BN4A-iSL3 (this model) | Binocular | Infinity semi-PLAN | |
| i4M-TN4A-iSL3 | Trinocular | Infinity semi-PLAN | 0.5× focusable C-mount |
| i4M-BN4A-iPL3 | Binocular | Infinity PLAN | |
| i4M-TN4A-iPL3 | Trinocular | Infinity PLAN | 0.5× focusable C-mount |
| i4S-T4BV-iSL3 | Trinocular | Infinity S-PLAN | + BioVID 4K camera & 13.3" monitor |
All i-4 Infinity models use infinity-corrected optics, 40×–1000×, and LED illumination.
Applications
This microscope provides precise 40X-1000X magnification enabling detailed cell morphology assessment. The mechanical stage (140mm x 130mm) with coaxial drive controls allows smooth, accurate specimen positioning. The moveable 1.25 NA Abbe condenser with iris diaphragm offers professional illumination control essential for clinical diagnostics and research applications.
Frequently Asked Questions
What viewing head does the i4M-BN4A-iSL3 have?
The i4M-BN4A-iSL3 has a binocular head.
What is the i4M-BN4A-iSL3 designed for?
The i4M-BN4A-iSL3 is designed for clinical, research, and veterinary laboratories.
Parts and accessories for the i-4 Infinity Compound Microscope
LW Scientific lists these 26 part numbers for i4M-BN4A-iSL3:
| Part number | Part | Type |
|---|---|---|
| I4P-ASM7-LED3 | LED Bulb Assembly for i4, 110/220 V | Microscope Bulbs, LED Assemblies & Power |
| I4P-ASM7-LEDP | LED Bulb Assembly for i4, 12 V DC | Microscope Bulbs, LED Assemblies & Power |
| MSP-CSE7-HDLK | Universal Hard Microscope Carry Case with Wheels | Microscope Cases, Covers & Slides |
| R3E-1018-WRET | 10x/18 mm Eyepiece with Reticle, Tapered | Microscope Eyepieces |
| MSE-1018-2377 | 10x/18 mm Wide-Field Eyepiece | Microscope Eyepieces |
| MSE-1020-2377 | 10x/20 mm Super-Wide Eyepiece | Microscope Eyepieces |
| I4H-BSFI-77NE | Binocular Head for i4 Infinity | Microscope Heads & Camera Tubes |
| I4H-TRII-ET0E | Trinocular Head for i4 Infinity with 0.5x C-Mount | Microscope Heads & Camera Tubes |
| I4O-100X-DFOL | 100x Infinity Plan Darkfield Objective | Microscope Objectives |
| MSO-100X-IPDR | 100x Infinity Plan Objective | Microscope Objectives |
| I4O-100X-IPOL | 100x Infinity Plan Oil Objective | Microscope Objectives |
| I4O-100X-ISOL | 100x Infinity Semi-Plan Oil Objective | Microscope Objectives |
| I4O-010X-IPDR | 10x Infinity Plan Objective | Microscope Objectives |
| I4O-010X-ISDR | 10x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-0025-iPDR | 2.5x Infinity Plan Objective | Microscope Objectives |
| I4O-020X-IPDR | 20x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-IPDR | 40x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-ISDR | 40x Infinity Semi-Plan Objective | Microscope Objectives |
| I4O-004X-IPDR | 4x Infinity Plan Objective | Microscope Objectives |
| I4O-004X-ISDR | 4x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-050X-IPOL | 50x Infinity Plan Oil Objective | Microscope Objectives |
| MSO-060X-IPDR | 60x Infinity Plan Objective | Microscope Objectives |
| I4O-SET7-IS77 | Infinity Semi-Plan Objective Set, 4x/10x/40x/100x | Microscope Objectives |
| I4P-PHST-20BF | Infinity Turret Phase Kit for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-CND7-DFOL | Oil Darkfield Condenser for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-POL7-7777 | Simple Polarizer Attachment for i4 | Phase, Darkfield & Polarizing Kits |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Cases, Covers & Slides, Microscope Eyepieces, Microscope Heads & Camera Tubes, Microscope Objectives, Phase, Darkfield & Polarizing Kits.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
