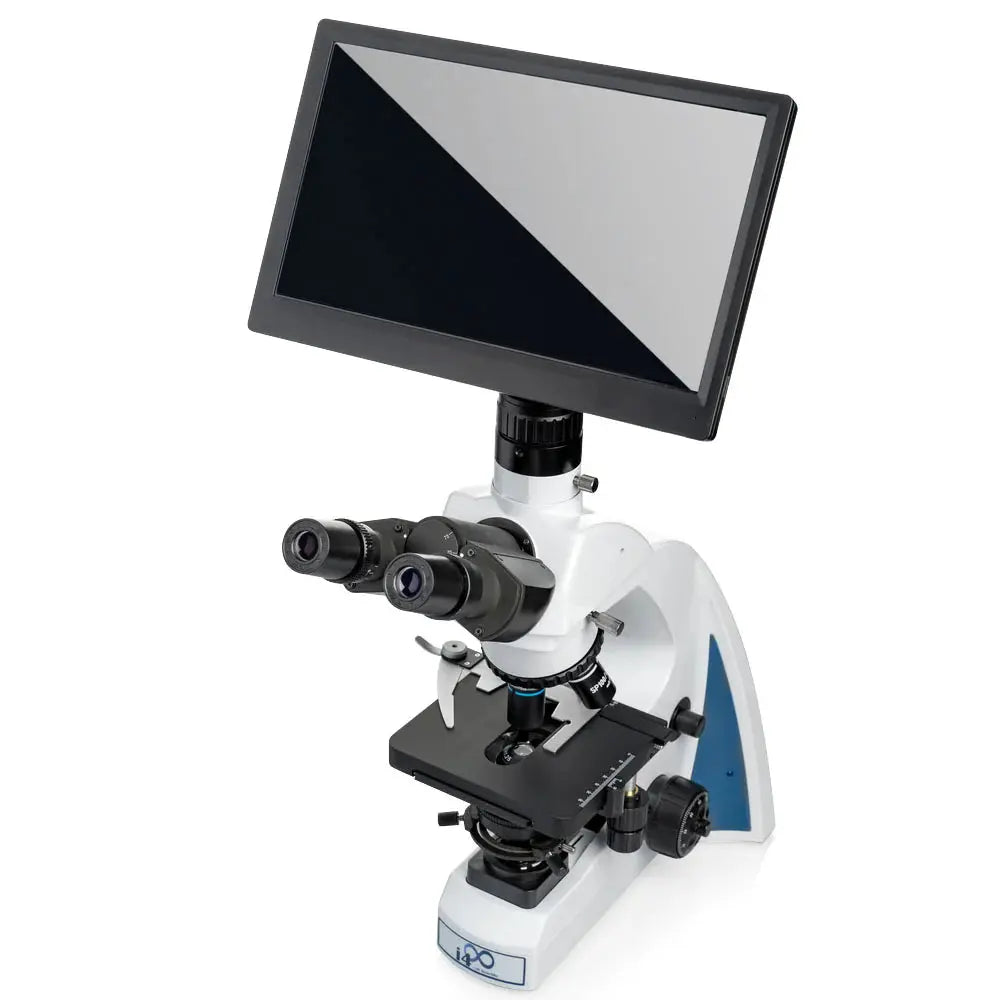

The Infinity S-Plan Trinoc Combo combines advanced S-Plan infinity-corrected optics with a BioVID 4K camera and 13.3″ monitor for smooth imaging workflows. i4S-T4BV-iSL3 delivers crisp live-view capture and high-definition display in one integrated package.
Specifications
| Specification | Detail |
|---|---|
| Optics | Four S-Plan infinity objectives (4×, 10×, 40×, 100×) |
| Imaging | BioVID 4K camera with 3840×2160 resolution |
| Display | 13.3″ Full HD monitor with adjustable tilt |
| Head | Trinocular phototube with C-mount and eyetube |
| Controls | Touch-sensitive intensity and focus adjustment |
| Magnification range | 40×–1000× |
| Camera frame rate | 30 fps at 4K |
| Monitor resolution | 1920×1080 |
| Power | 110–240 VAC auto-switching |
| Dimensions | 14″ W × 12″ D × 18″ H |
Compare the i-4 Infinity Family
| Model | Head | Optics | Notes |
|---|---|---|---|
| i4M-BN4A-iSL3 | Binocular | Infinity semi-PLAN | |
| i4M-TN4A-iSL3 | Trinocular | Infinity semi-PLAN | 0.5× focusable C-mount |
| i4M-BN4A-iPL3 | Binocular | Infinity PLAN | |
| i4M-TN4A-iPL3 | Trinocular | Infinity PLAN | 0.5× focusable C-mount |
| i4S-T4BV-iSL3 (this model) | Trinocular | Infinity S-PLAN | + BioVID 4K camera & 13.3" monitor |
All i-4 Infinity models use infinity-corrected optics, 40×–1000×, and LED illumination.
Applications
The LW Scientific all-in-one design reduces cable clutter and setup time. This combo solution is ideal for live-cell imaging, pathology review, and teaching applications requiring high-resolution display and capture.
Frequently Asked Questions
Is the i4S-T4BV-iSL3 camera-ready?
Yes. The i4S-T4BV-iSL3 has a trinocular camera port, so you can attach a microscope camera for imaging and documentation while viewing through the eyepieces.
What is the i4S-T4BV-iSL3 designed for?
The i4S-T4BV-iSL3 is designed for clinical, research, and veterinary laboratories.
Parts and accessories for the i-4 Infinity S-PLAN Microscope + BioVID 4K Camera Combo
LW Scientific lists these 26 part numbers for i4S-T4BV-iSL3:
| Part number | Part | Type |
|---|---|---|
| I4P-ASM7-LED3 | LED Bulb Assembly for i4, 110/220 V | Microscope Bulbs, LED Assemblies & Power |
| I4P-ASM7-LEDP | LED Bulb Assembly for i4, 12 V DC | Microscope Bulbs, LED Assemblies & Power |
| MSP-CSE7-HDLK | Universal Hard Microscope Carry Case with Wheels | Microscope Cases, Covers & Slides |
| R3E-1018-WRET | 10x/18 mm Eyepiece with Reticle, Tapered | Microscope Eyepieces |
| MSE-1018-2377 | 10x/18 mm Wide-Field Eyepiece | Microscope Eyepieces |
| MSE-1020-2377 | 10x/20 mm Super-Wide Eyepiece | Microscope Eyepieces |
| I4H-BSFI-77NE | Binocular Head for i4 Infinity | Microscope Heads & Camera Tubes |
| I4H-TRII-ET0E | Trinocular Head for i4 Infinity with 0.5x C-Mount | Microscope Heads & Camera Tubes |
| I4O-100X-DFOL | 100x Infinity Plan Darkfield Objective | Microscope Objectives |
| MSO-100X-IPDR | 100x Infinity Plan Objective | Microscope Objectives |
| I4O-100X-IPOL | 100x Infinity Plan Oil Objective | Microscope Objectives |
| I4O-100X-ISOL | 100x Infinity Semi-Plan Oil Objective | Microscope Objectives |
| I4O-010X-IPDR | 10x Infinity Plan Objective | Microscope Objectives |
| I4O-010X-ISDR | 10x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-0025-iPDR | 2.5x Infinity Plan Objective | Microscope Objectives |
| I4O-020X-IPDR | 20x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-IPDR | 40x Infinity Plan Objective | Microscope Objectives |
| I4O-040X-ISDR | 40x Infinity Semi-Plan Objective | Microscope Objectives |
| I4O-004X-IPDR | 4x Infinity Plan Objective | Microscope Objectives |
| I4O-004X-ISDR | 4x Infinity Semi-Plan Objective | Microscope Objectives |
| MSO-050X-IPOL | 50x Infinity Plan Oil Objective | Microscope Objectives |
| MSO-060X-IPDR | 60x Infinity Plan Objective | Microscope Objectives |
| I4O-SET7-IS77 | Infinity Semi-Plan Objective Set, 4x/10x/40x/100x | Microscope Objectives |
| I4P-PHST-20BF | Infinity Turret Phase Kit for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-CND7-DFOL | Oil Darkfield Condenser for i4 | Phase, Darkfield & Polarizing Kits |
| I4P-POL7-7777 | Simple Polarizer Attachment for i4 | Phase, Darkfield & Polarizing Kits |
Browse by type: Microscope Bulbs, LED Assemblies & Power, Microscope Cases, Covers & Slides, Microscope Eyepieces, Microscope Heads & Camera Tubes, Microscope Objectives, Phase, Darkfield & Polarizing Kits.
Every LW Scientific part number is on the LW Scientific catalog page, which filters by the model you own.
