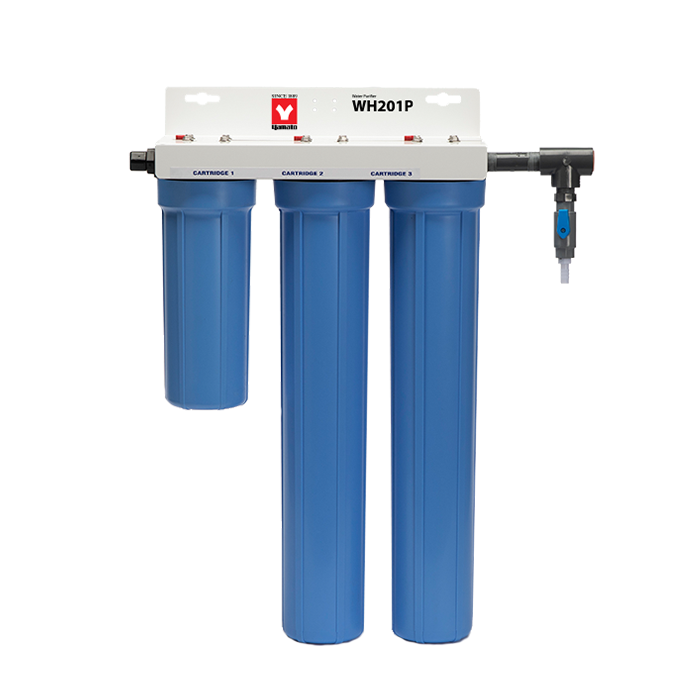

High Purity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light) Overview
The High Purity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light) (model WH201P) from Yamato Scientific is a cartridge-based Water Purification System engineered to deliver Type 2 and Type 3 deionized water at the point of use. LabSupplies.com stocks this unit as an authorized Yamato Scientific dealer.
Construction centers on a 2.5-inch-diameter polypropylene cartridge format. A 10-inch activated carbon stage handles initial filtration, while two 20-inch mixed-bed cartridges drive final deionization. An integrated 200K DI light monitors the system throughout operation, supporting both polishing and feed-water duties.
Footprint measures 24.25 × 24.25 × 12 inches, and the assembled system weighs 24 pounds. Manufactured in the USA, the unit ships as a single each (EA). ISO 9001:2015 certification status is available through customer service on request.
Key Features
- Three-stage cartridge train: a 10" activated carbon prefilter followed by two 20" mixed-bed deionization cartridges.
- 200K DI light: integrated monitor included with the system for at-a-glance status during operation.
- 2.5" cartridge diameter: compact high-purity cartridge format suited to point-of-use installation.
- Polypropylene housing: chemically suitable filter housing material for DI service.
- Type 2 and Type 3 output: produces deionized water for laboratory polishing and feed-water applications.
- Made in USA: manufactured domestically and supplied as a single each (EA).
How to Choose the Right Water Purification System
Selecting a deionization system comes down to matching output quality, cartridge configuration, and physical fit to your bench or feed line. Weigh these axes before committing to a unit.
- Water quality grade: confirm the system meets your target standard. This unit produces Type 2 and Type 3 deionized water.
- Cartridge configuration: staged carbon plus mixed-bed media affects pretreatment and final polishing. Here a 10" carbon stage feeds two 20" mixed-bed cartridges.
- Cartridge diameter: 2.5-inch cartridges set replacement-media sizing and flow characteristics for the assembly.
- Footprint and weight: verify bench or floor clearance against the 24.25 × 24.25 × 12 inch envelope and 24 lb weight.
- Housing material: polypropylene housing should match your chemical and feed-water compatibility requirements.
- Monitoring: an integrated DI light provides operational status; decide whether visual indication meets your QA workflow.
Specifications
| Specification | Detail |
|---|---|
| Type | Cartridge deionization (DI) water system |
| Configuration | High-purity DI cartridge |
| Cartridge Diameter | 2.5" |
| Output Water | Deionized water |
| Application | Point-of-use deionized water; feed-water polishing |
| Material | Polypropylene (filter housing) |
| Country of Origin | United States |
| GTIN (Barcode) | 797059929542 |
| Shipping Weight | 24 lbs |
| Dimensions (L × W × H) | 24.25 × 24.25 × 12 in |
| ISO 9001:2015 | Contact Customer Service |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| WH-201P | EA | EA |
Documentation
More in This Series
- Distilled / Deionized Water Purification System ~1.8L/Hr. 20L Tank With External Transformer
- Distilled / Deionized Water Purification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Waterpurification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Water Purification System ~5L/Hr. 100L Tank Single Phase With External Transformer
- Deionized Water Purification System 0.5~1.0L/Min 115
- Benchtop Or Wall Mount Base System, /60Hz
- Benchtop Or Wall Mount Base System, /50Hz
- Remote Dispense Configuration Base System, /60Hz
- Remote Dispense Configuration Base System, /50Hz
- Benchtop - With Uv Oxidation Lamp Installed, /60Hz
- Benchtop - With Uv Oxidation Lamp Installed, /50Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /60Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /50Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Benchtop - With Ultrafiltration Module, /60Hz
- Benchtop - With Ultrafiltration Module, /50Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /60Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /50Hz
- Benchtop - With Uv And Uf Installed, /60Hz
- Benchtop - With Uv And Uf Installed, /50Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /60Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /50Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /60Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /50Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /60Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /50Hz
- Direct Feed Option (Factory Installed)
- Wall Mount Bracket
- Dispensing Gun Option (Factory Installed)
- High Capacity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
- High Purity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
Why Buy From LabSupplies.com
LabSupplies.com supplies the WH201P as an authorized Yamato Scientific dealer, so every order ships as a genuine unit backed by the manufacturer warranty.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to ship from USA inventory.
- Domestic fulfillment: shipped from US warehousing for predictable lead times.
- Specialist support: dedicated lab-equipment specialists answer configuration and spec questions before you order.
Frequently Asked Questions
What water quality does the WH201P produce?
The WH201P produces Type 2 and Type 3 deionized water. It is designed for point-of-use DI supply and feed-water polishing.
What is the cartridge configuration of this DI system?
The system uses a three-stage 2.5-inch cartridge train: a 10-inch activated carbon prefilter followed by two 20-inch mixed-bed deionization cartridges, with an integrated 200K DI light.
What are the dimensions and weight of the WH201P?
The assembled system measures 24.25 × 24.25 × 12 inches and weighs 24 pounds. It ships as a single each (EA).
What is the filter housing made from?
The filter housing is polypropylene. Confirm chemical and feed-water compatibility against your application requirements.
Does the 200K DI light require electrical power?
The 200K DI light is an integrated monitor supplied with the system. Specific power and voltage details are available upon request — contact our specialists for specification.
Where is the WH201P manufactured?
The WH201P is manufactured in the USA. It ships from LabSupplies.com's USA inventory as an authorized Yamato Scientific dealer.
