Deionized Water Purification System 0.5~1.0L/Min 115 Overview

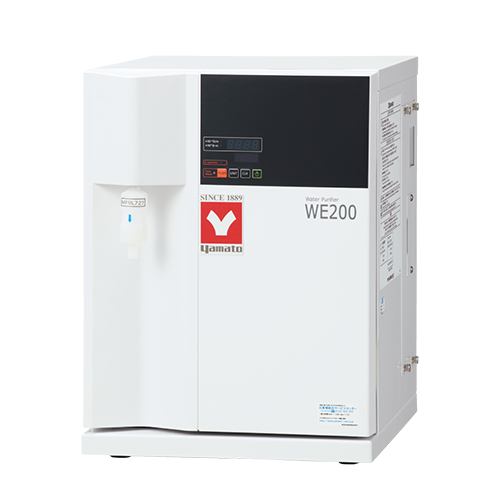

The Deionized Water Purification System 0.5~1.0L/Min 115 (model WE200) from Yamato Scientific is a benchtop water purifier that produces ASTM D1193 Type I deionized water. Its reverse-osmosis membrane cartridge pretreats incoming feed water, extending the life of downstream consumables. Continuous output runs at 0.5–1.0 L/min for steady analytical demand. LabSupplies.com stocks this unit as an authorized Yamato Scientific dealer.
Purification combines a reverse-osmosis membrane with a 2 L CPC-T ion-exchange resin cartridge containing activated charcoal. A 0.1 µm membrane filter handles final filtration before delivery. Casing and installation fixtures use iron and galvanized steel finished in baked melamine resin, while the door is molded ABS resin.
Power draw stays low at single-phase AC100–240V, 50/60 Hz, under 1.3 A. Footprint measures 36 × 36 × 42 inches, with a shipping weight of 112 lbs. Manufactured in Japan, the system is backed by Yamato's ISO 9001:2015 and ISO 14001:2015 certifications.
Key Features
- Type I output water: produces deionized water meeting ASTM D1193 Type I and JIS K0557 A4.
- RO membrane pretreatment: reverse-osmosis cartridge reduces ion load to extend consumable life.
- Ion-exchange cartridge: 2 L CPC-T resin with activated charcoal polishes the water stream.
- Final filtration: 0.1 µm membrane filter conditions water at the point of delivery.
- Continuous delivery: dispenses 0.5–1.0 L/min for uninterrupted draw.
- Universal power input: single-phase AC100–240V, 50/60 Hz, ≤1.3 A.
How to Choose the Right Water Purification System
Selecting a benchtop purifier comes down to the water grade your protocols require and the volume your bench consumes daily. Match these axes to your workflow before specifying a model.
- Water grade: Type I water suits HPLC, ICP, molecular biology, and reagent preparation where trace ions corrupt results.
- Delivery rate: a 0.5–1.0 L/min continuous output covers steady draw without forcing technicians to wait on the system.
- Purification design: RO pretreatment ahead of ion-exchange resin lowers cartridge load and stretches consumable intervals.
- Voltage and power: confirm site power; this unit accepts single-phase AC100–240V, 50/60 Hz at low current.
- Footprint: verify bench clearance against the 36 × 36 × 42 inch envelope and 112 lb weight.
- Final filtration: a 0.1 µm membrane at the outlet matters for cell culture and particle-sensitive applications.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 1.0 L |
| Voltage | 220V |
| Type | Deionized water purification system (RO + DI) |
| Purification Method | Reverse-osmosis membrane cartridge plus ion-exchange resin |
| Output Water | Deionized water — ASTM D1193 Type I / JIS K0557 A4 |
| Delivery Rate | 0.5–1.0 L/min, continuous |
| Ion-Exchange Cartridge | 2 L CPC-T resin with activated charcoal |
| Final Filtration | 0.1 µm membrane filter |
| Power Supply | Single-phase AC100–240V, ≤1.3A, 50/60 Hz |
| Material | Iron and galvanized steel, melamine resin baked finish (external casing/installation fixtures) ABS resin (door) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059929191 |
| Shipping Weight | 112 lbs |
| Dimensions (L × W × H) | 36 × 36 × 42 in |
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| WE-200 | EA | EA |
Documentation
More in This Series
- Distilled / Deionized Water Purification System ~1.8L/Hr. 20L Tank With External Transformer
- Distilled / Deionized Water Purification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Waterpurification System ~1.8L/Hr. 30L Tank With External Transformer
- Distilled / Deionized Water Purification System ~5L/Hr. 100L Tank Single Phase With External Transformer
- Benchtop Or Wall Mount Base System, /60Hz
- Benchtop Or Wall Mount Base System, /50Hz
- Remote Dispense Configuration Base System, /60Hz
- Remote Dispense Configuration Base System, /50Hz
- Benchtop - With Uv Oxidation Lamp Installed, /60Hz
- Benchtop - With Uv Oxidation Lamp Installed, /50Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Benchtop - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /60Hz
- Remote Dispense Configuration - With Uv Oxidation Lamp, /50Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /60Hz
- Remote Dispense - With Uv Oxidation Lamp And Toc Monitor /50Hz
- Benchtop - With Ultrafiltration Module, /60Hz
- Benchtop - With Ultrafiltration Module, /50Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /60Hz
- Remote Dispense Configuration - With Ultrafiltration Module, /50Hz
- Benchtop - With Uv And Uf Installed, /60Hz
- Benchtop - With Uv And Uf Installed, /50Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /60Hz
- Benchtop - With Uv, Uf And Toc Monitor Installed, /50Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /60Hz
- Remote Dispense Configuration - With Uv And Uf Installed, /50Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /60Hz
- Remote Dispense - With Uv, Uf And Toc Monitor Installed, /50Hz
- Direct Feed Option (Factory Installed)
- Wall Mount Bracket
- Dispensing Gun Option (Factory Installed)
- High Purity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System - 2-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
- High Purity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" Mixed Bed, & 200 K Di Light)
- High Capacity Di System- 4-1/2" Diameter (10" Carbon, (2) 20" High Capacity Di, & 20 K Di Light)
Why Buy From LabSupplies.com
LabSupplies.com supplies the genuine Yamato Scientific WE200 with full manufacturer support, shipped from USA inventory and ready for your bench.
- Authorized Yamato Scientific dealer: a genuine unit carrying the manufacturer warranty.
- In stock: available now, no backorder wait.
- Ships from USA inventory: domestic dispatch shortens lead time.
- Lab-equipment specialists: our team answers spec and configuration questions directly.
Frequently Asked Questions
What water quality does the WE200 produce?
The WE200 produces ASTM D1193 Type I and JIS K0557 A4 deionized water. A reverse-osmosis membrane and 2 L CPC-T ion-exchange resin cartridge with activated charcoal drive purification, followed by a 0.1 µm final membrane filter.
What is the delivery rate and capacity?
The system delivers 0.5–1.0 L/min on a continuous basis. Its rated capacity is 1.0 L, supporting steady draw across analytical bench workflows.
What voltage and power does the WE200 require?
The WE200 accepts single-phase AC100–240V at 50/60 Hz and draws no more than 1.3 A. Confirm your bench circuit matches this universal input before installation.
What are the dimensions and weight?
The unit measures 36 × 36 × 42 inches (L × W × H) and weighs 112 lbs for shipping. Verify bench and floor clearance against this footprint.
What materials are used in the construction?
The external casing and installation fixtures use iron and galvanized steel with a baked melamine resin finish. The door is molded ABS resin.
Where is the WE200 made and is it certified?
The WE200 is manufactured in Japan. It is backed by Yamato's ISO 9001:2015 quality and ISO 14001:2015 environmental management certifications.
