Cat® Power Scissor Lift Table Features
Cat® power scissor lift tables raise dies, jigs, molds, sheet metal and pallet loads to a comfortable working height at the push of a button, cutting the bending and lifting that drives operator strain. Each table is built from heavy-duty steel with a chip-resistant powder coat, and runs on a 2 HP electric-hydraulic power unit on standard 110 V single-phase power, operated from a hand pendant or a foot pedal. A wall bracket stores the hand control.
Choose the deck and capacity below. Cat rates the line to ANSI MH29.1 with a 5-year limited warranty.
Model Comparison
| Model | Platform | Capacity | Lowered | Raised | Lift time (unloaded) | Duty | Weight |
|---|---|---|---|---|---|---|---|

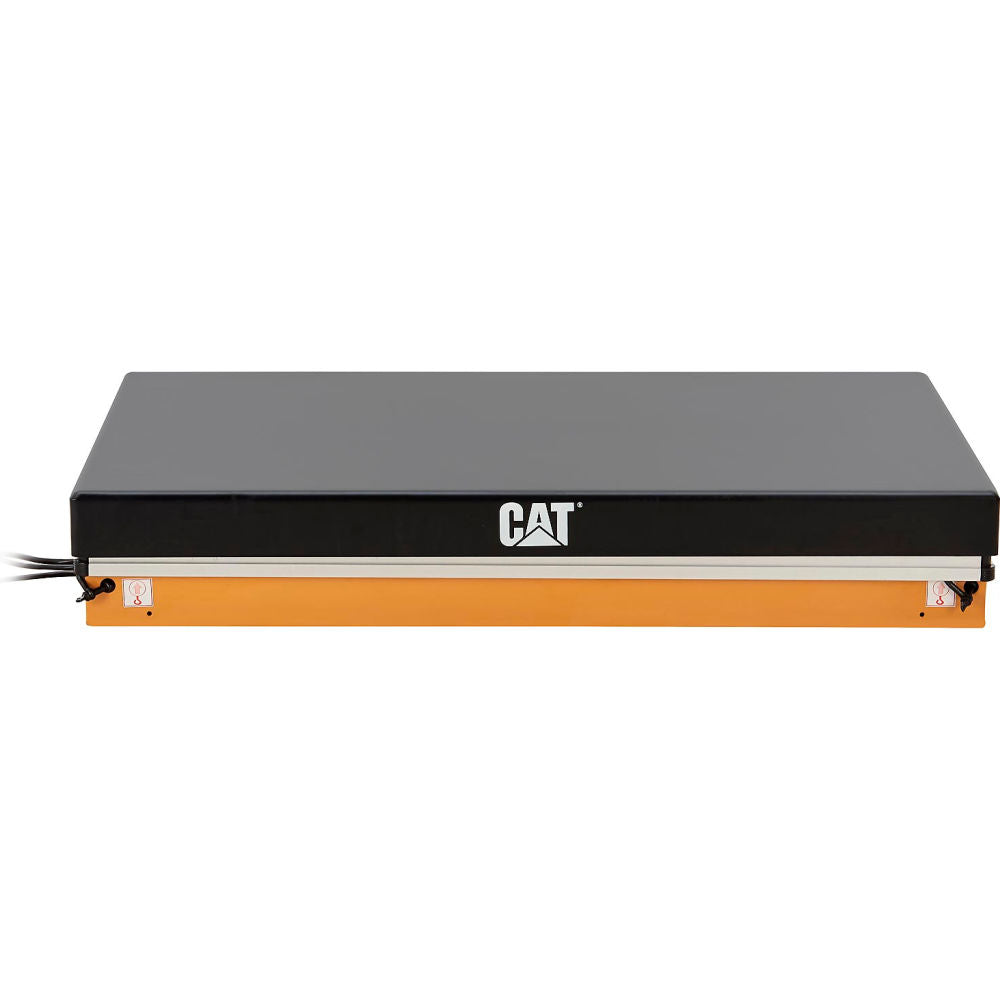

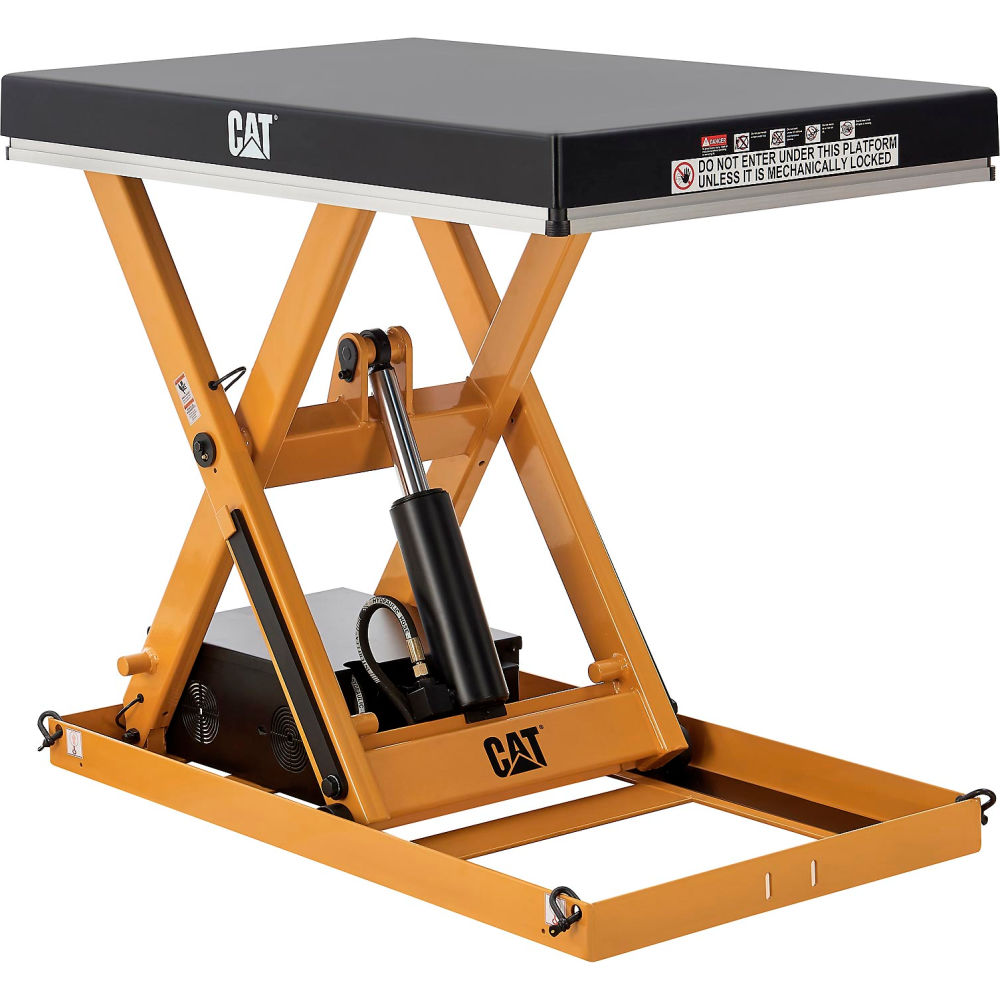

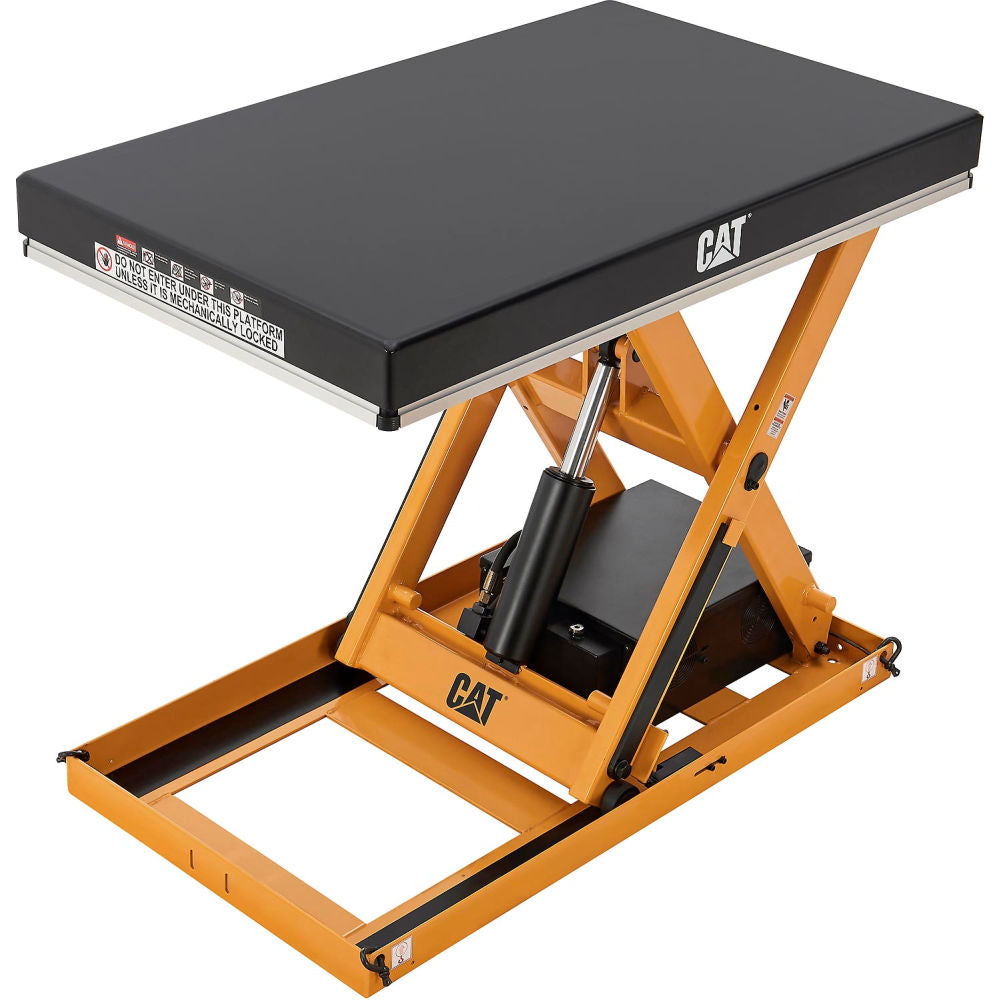

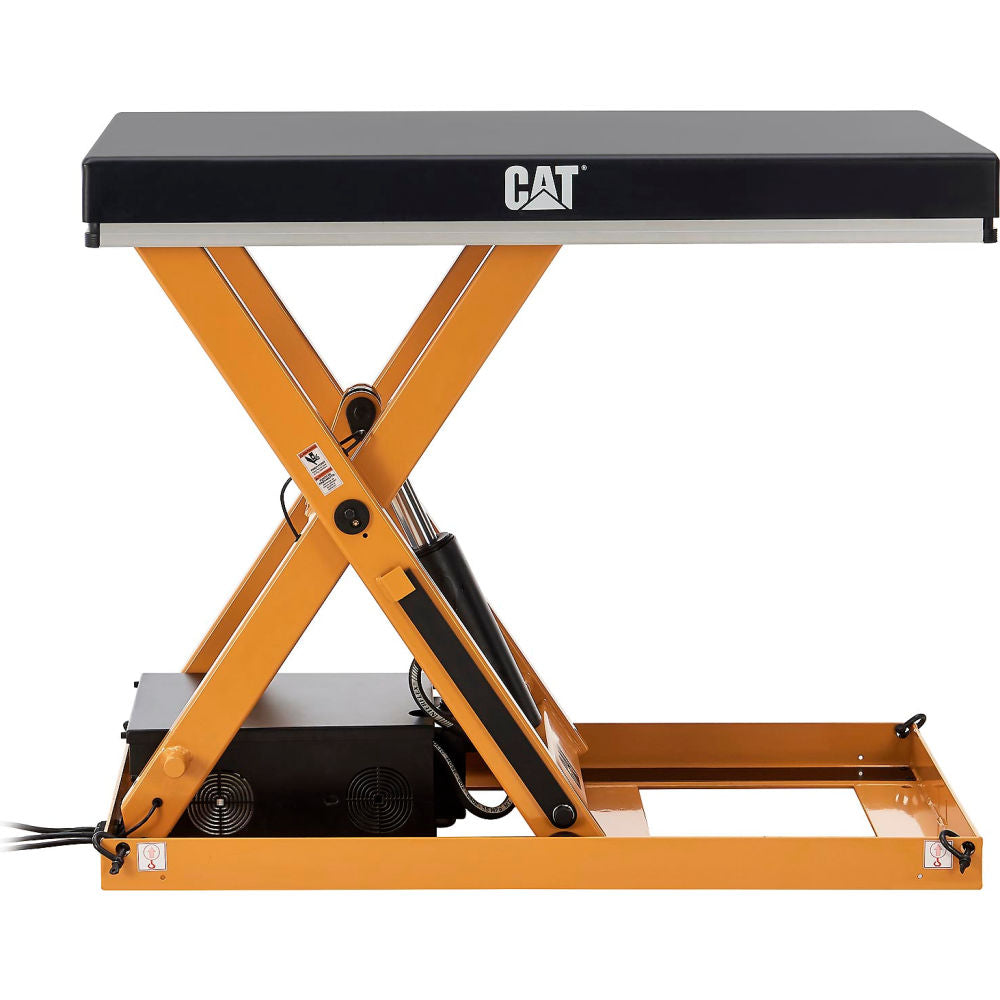

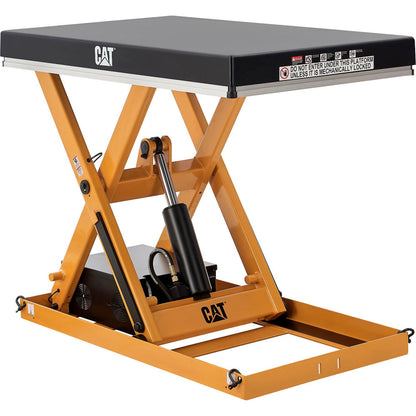

| 641682 | 49 x 30 in | 2,500 lb | 8 in | 39 in | 18 s | Medium | 409 lb |

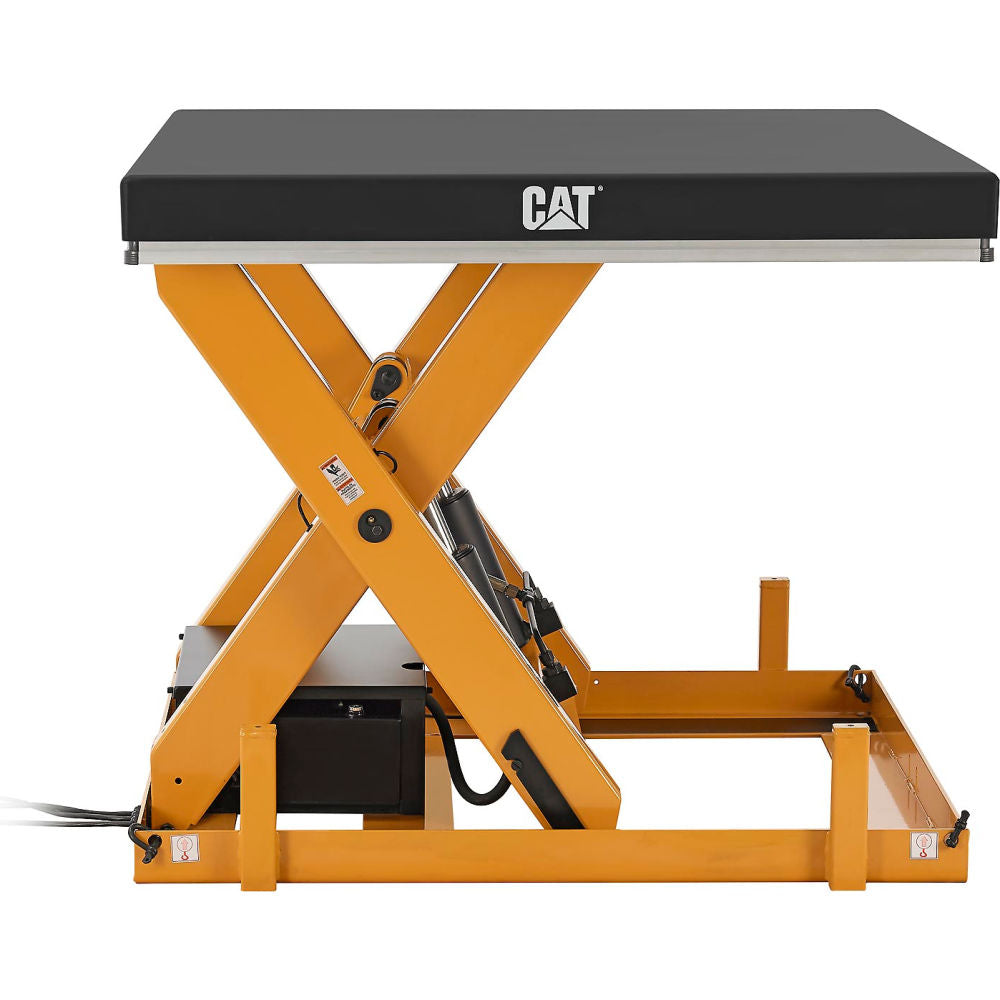

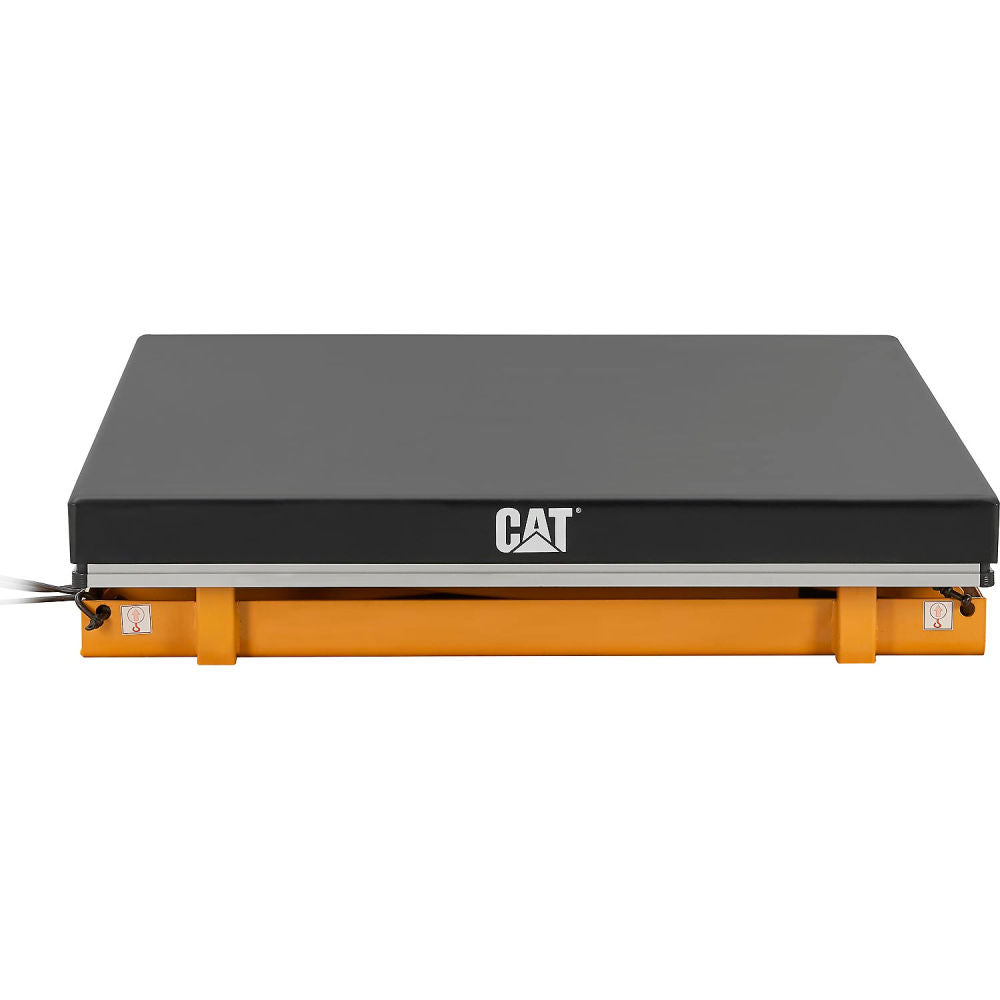

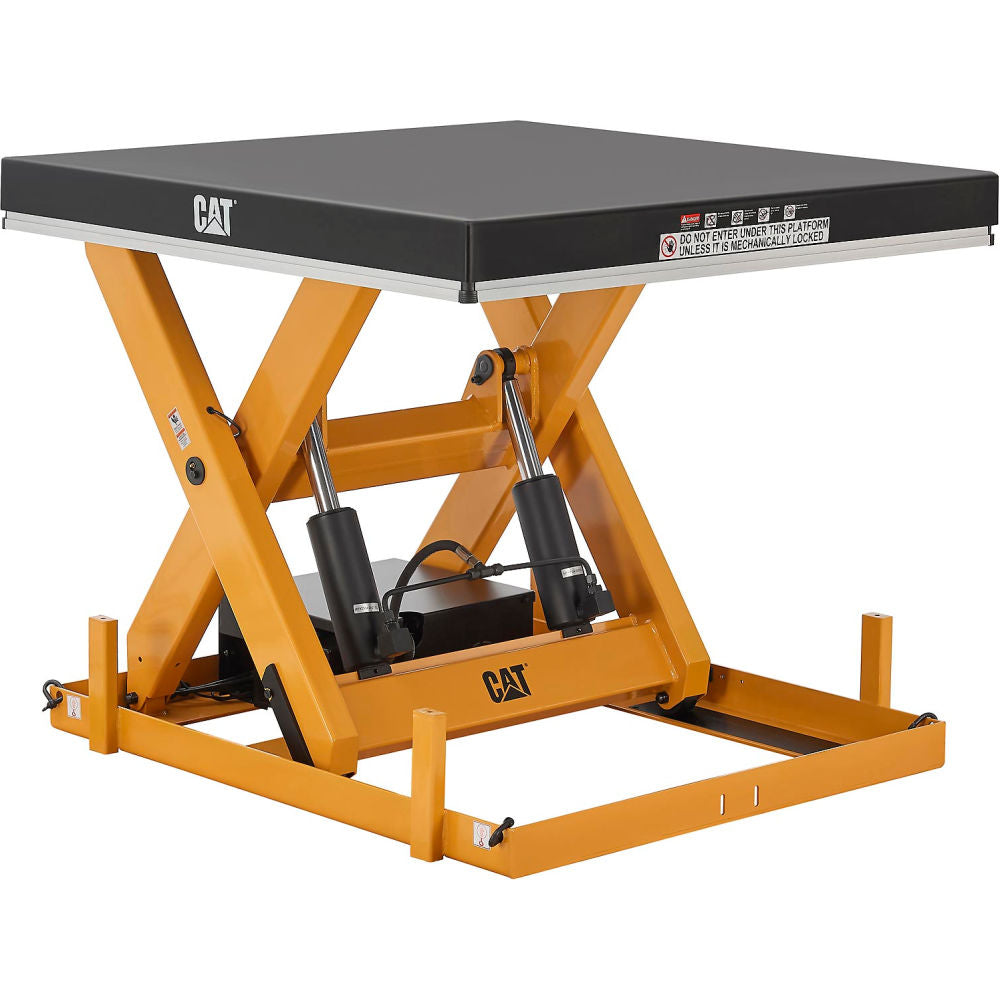

| 641683 | 48 x 48 in | 5,000 lb | 9-1/2 in | 40 in | 35 s | Heavy | 664 lb |

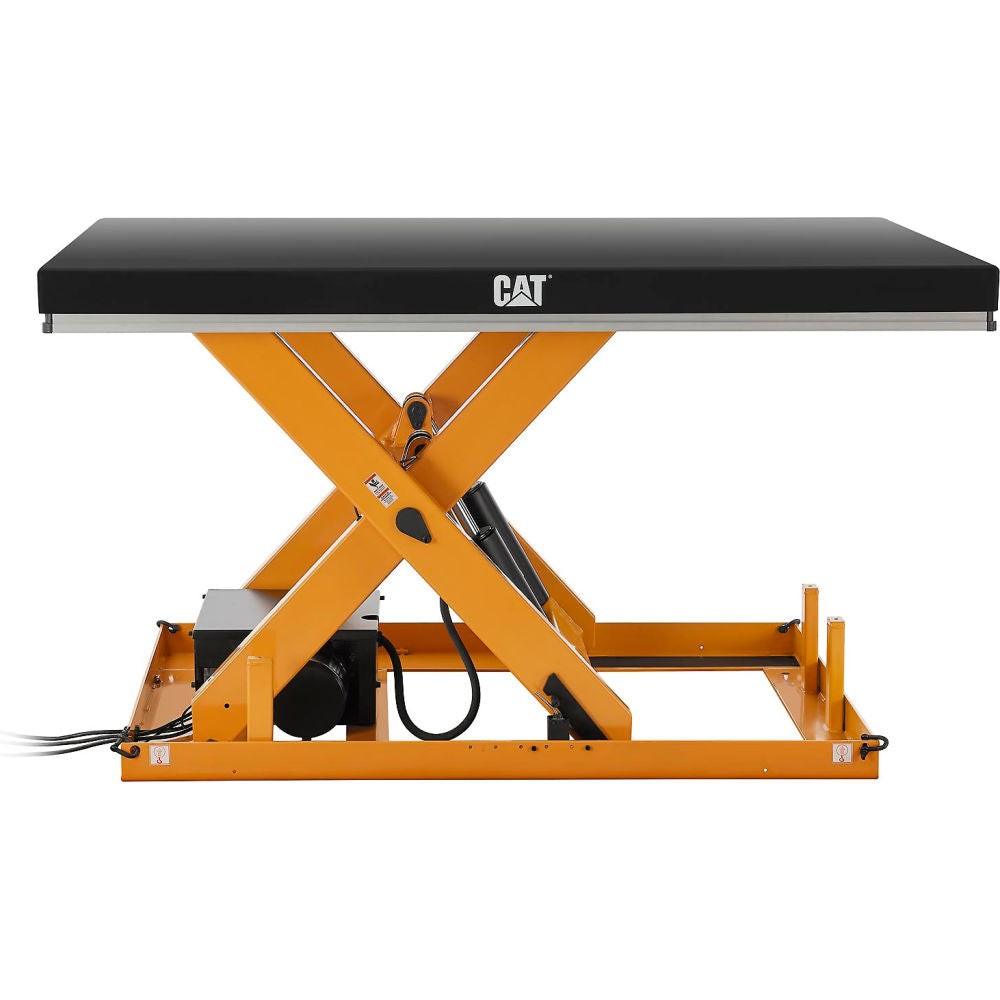

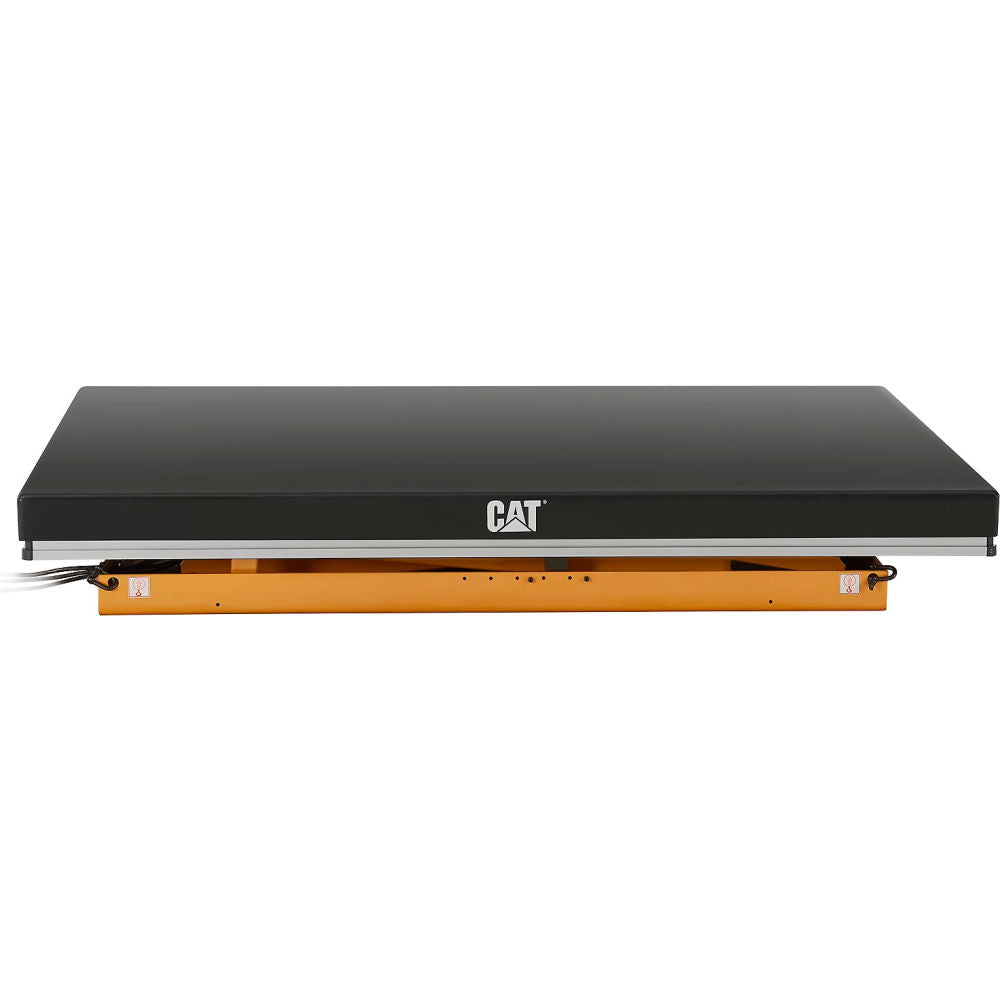

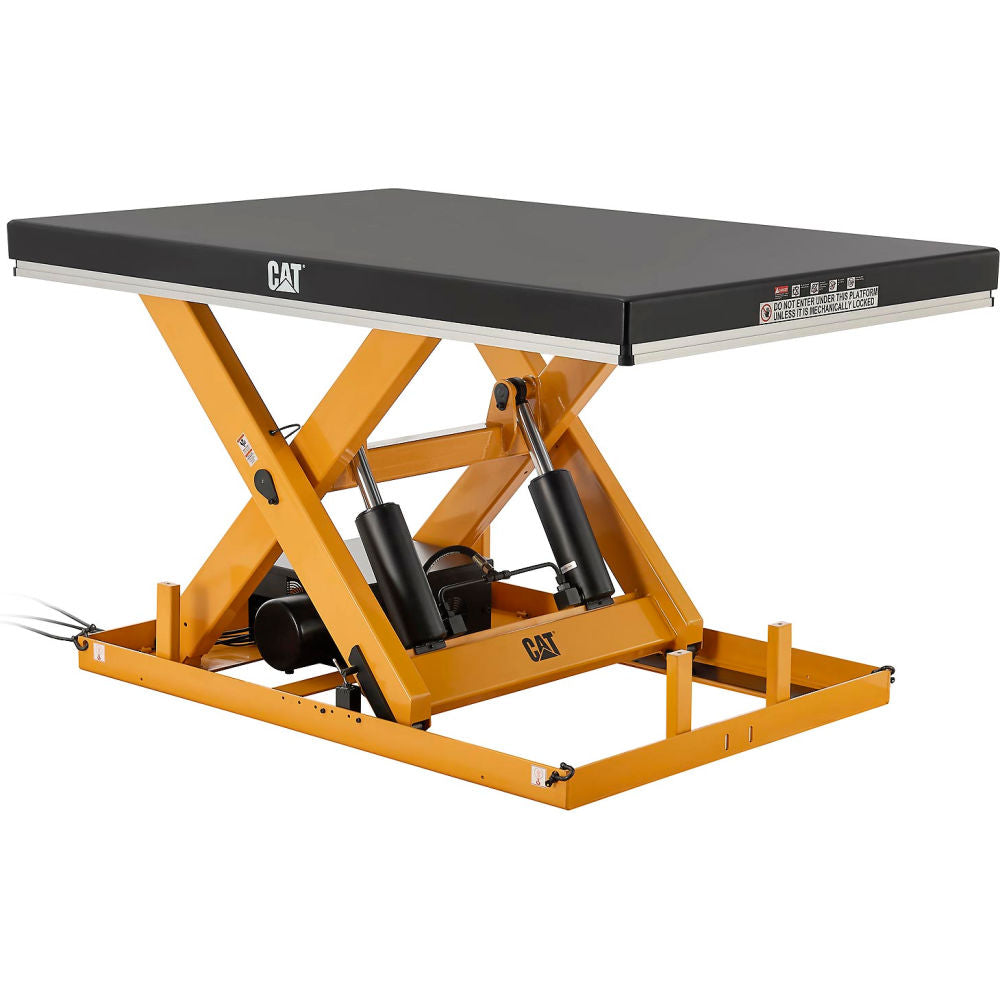

| 641684 | 72 x 48 in | 5,500 lb | 9-1/2 in | 40 in | 42 s | Heavy | 783 lb |
Common Specifications
| Specification | Detail |
|---|---|
| Brand | Cat® |
| Type | Single scissor, electric-hydraulic |
| Motor | 2 HP |
| Power | 110 V, single phase |

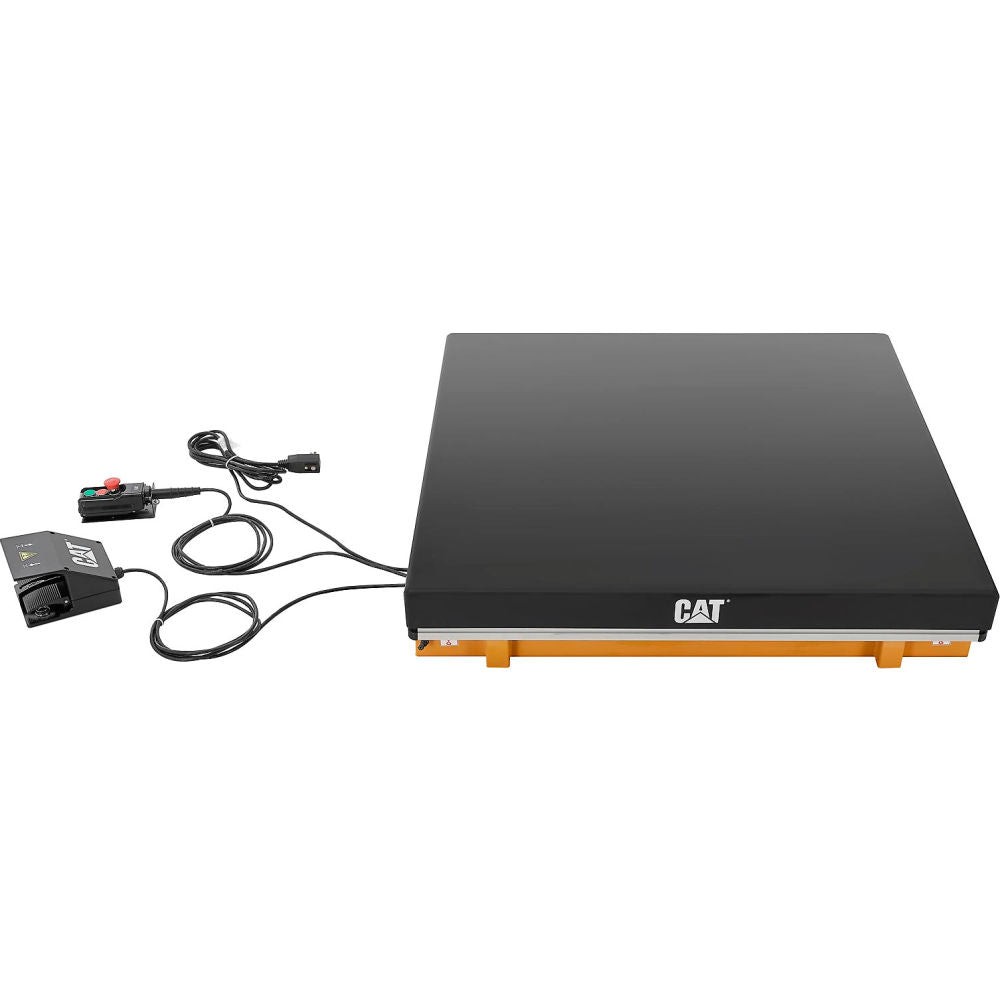

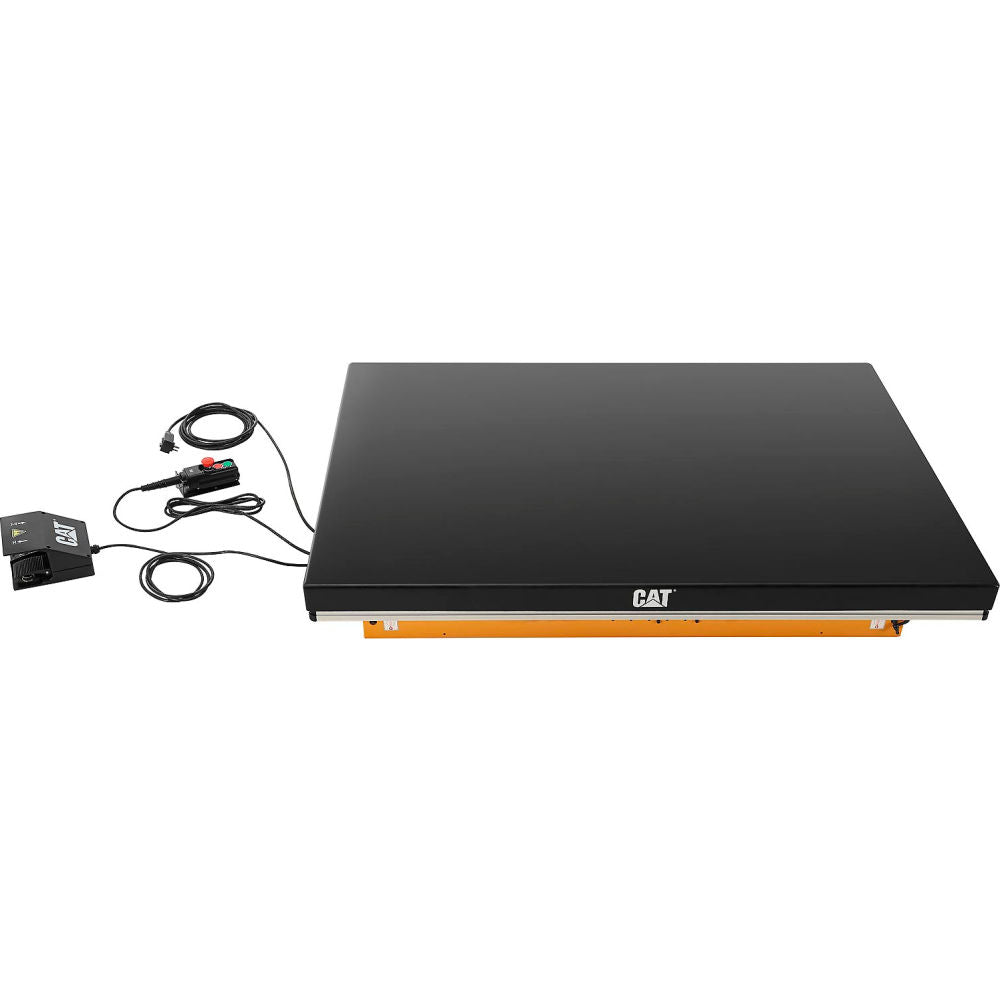

| Controls | Hand pendant (push-button) and foot pedal |
| Safety | Emergency stop, locking maintenance bar, safety sensors |
| Finish | Chip-resistant powder coat, yellow/black |
| Assembly | Ships assembled |
| Standard | ANSI MH29.1 |
| Warranty | 5-year limited |
Need more height? The Cat® 641685 power double scissor lift table raises 5,000 lb to 70 inches. For portable positioning, see the Cat® mobile heavy duty scissor lift table.
Frequently Asked Questions
Which Cat power scissor lift table fits my load?
Match platform to the load footprint and capacity to the heaviest evenly distributed load: the 641682 lifts 2,500 lb on a 49 x 30 inch deck from 8 to 39 inches; the 641683 lifts 5,000 lb on a 48 x 48 inch deck for pallet loads; the 641684 lifts 5,500 lb on a 72 x 48 inch deck for long panels and sheet stock. The 641683 and 641684 both lower to 9-1/2 inches and rise to 40 inches.
What power do these lift tables need?
All three are electric-hydraulic with a 2 HP motor on 110 V single-phase power, controlled by a hand pendant and a foot pedal.
What safety features are built in?
An emergency stop button, a locking maintenance bar that holds the platform up during service, and safety sensors that stop the table lowering if it contacts an object. Cat rates them to ANSI MH29.1 and backs them with a 5-year limited warranty.
