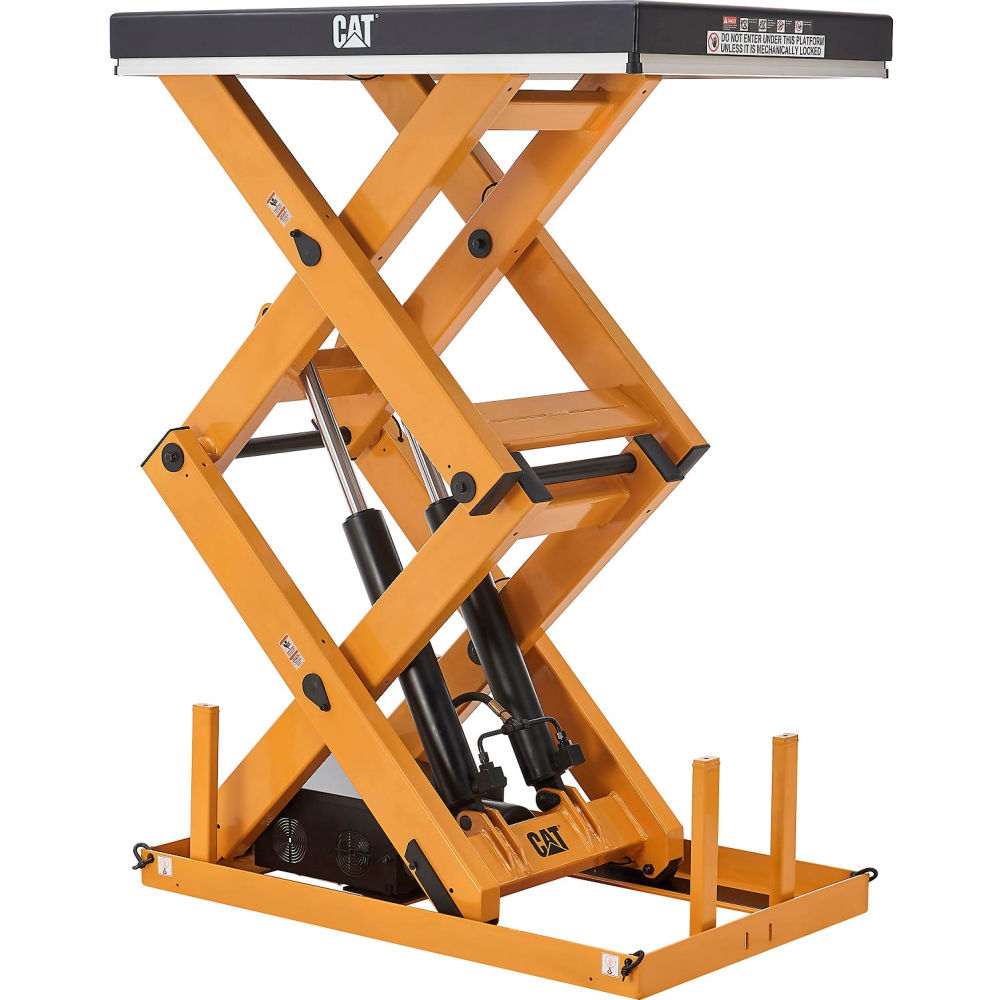

Cat® 641685 Power Double Scissor Lift Table Features

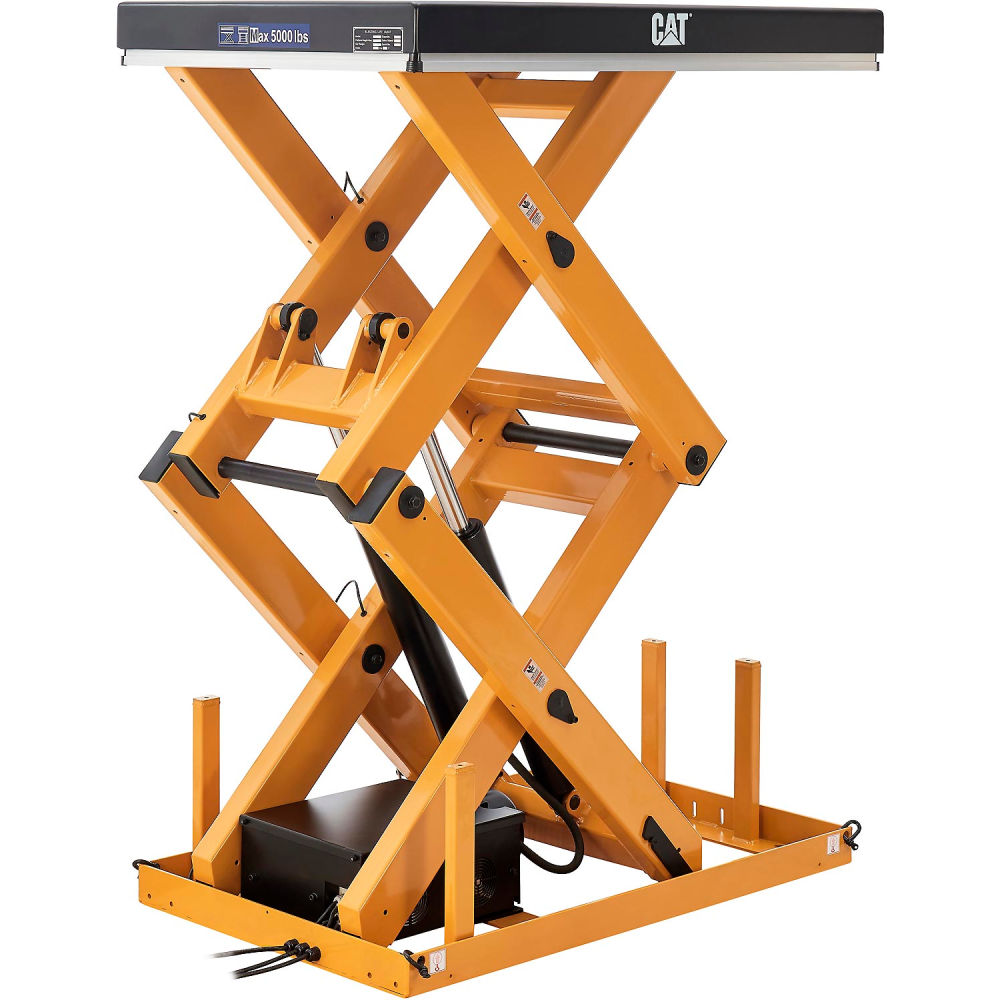

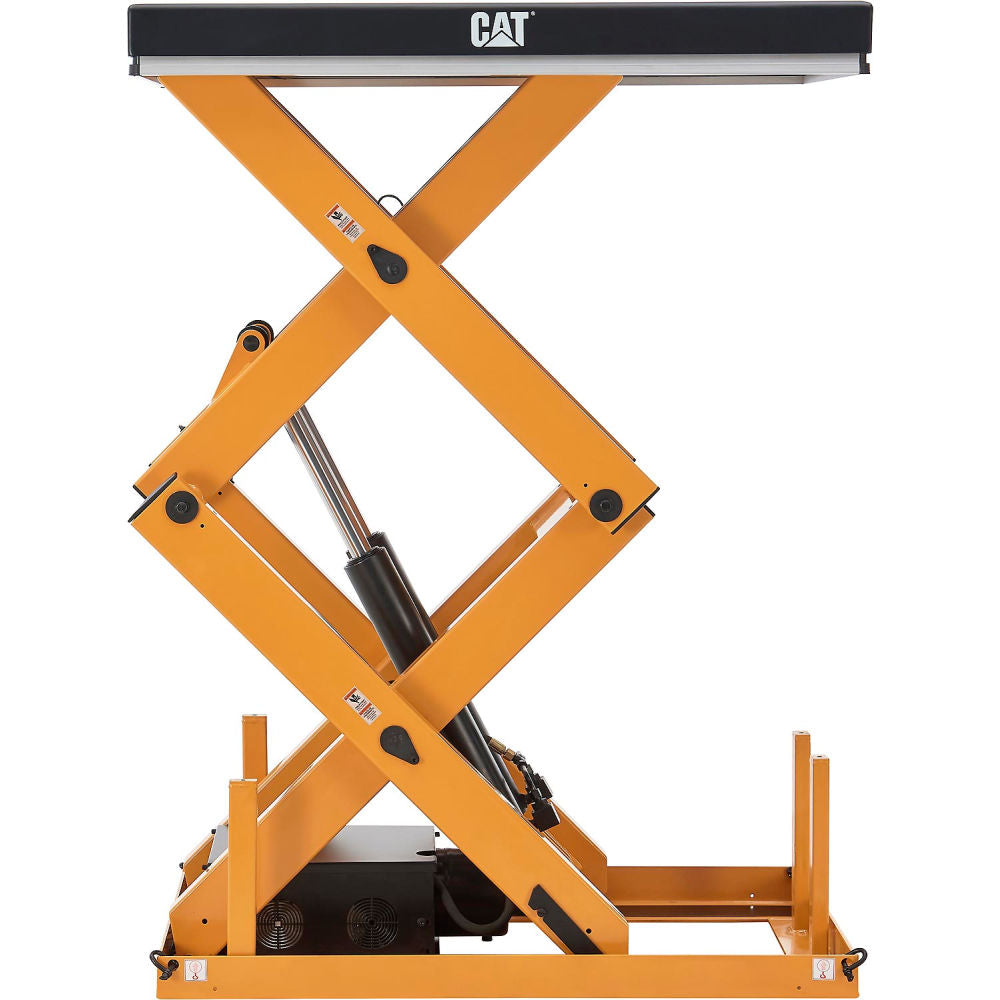

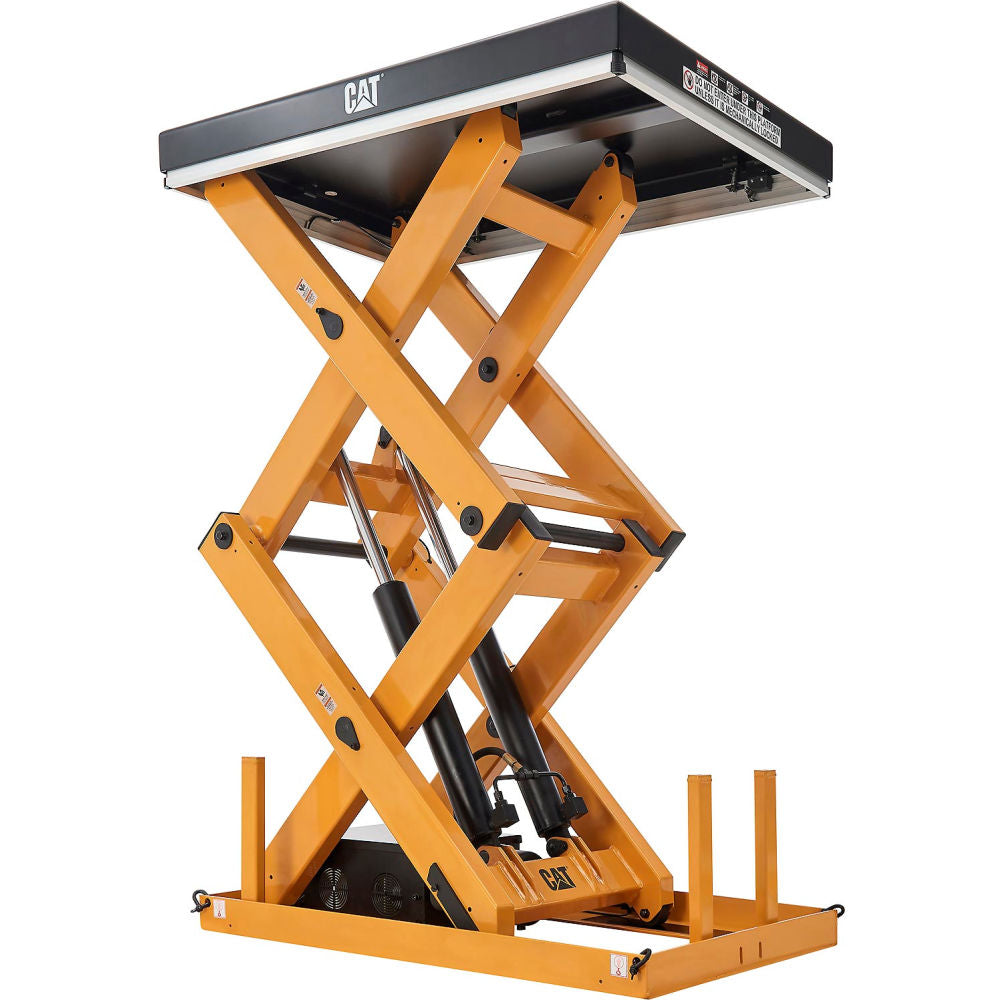

The Cat® 641685 uses a double scissor mechanism to raise up to 5,000 lb from 16 inches to 70 inches, for handling heavy dies, molds, tools, sheet metal and large panels at elevated working heights. Heavy-duty steel construction with a chip-resistant powder coat, a 2 HP electric-hydraulic power unit on 110 V single-phase power, and both hand pendant and foot pedal controls.
Safety features include an emergency stop, a locking maintenance bar and safety sensors that stop lowering on contact. ANSI MH29.1; 5-year limited warranty.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Cat® |
| Model | 641685 |
| Type | Double scissor, electric-hydraulic |
| Capacity | 5,000 lb |
| Platform | 51 x 33 in |

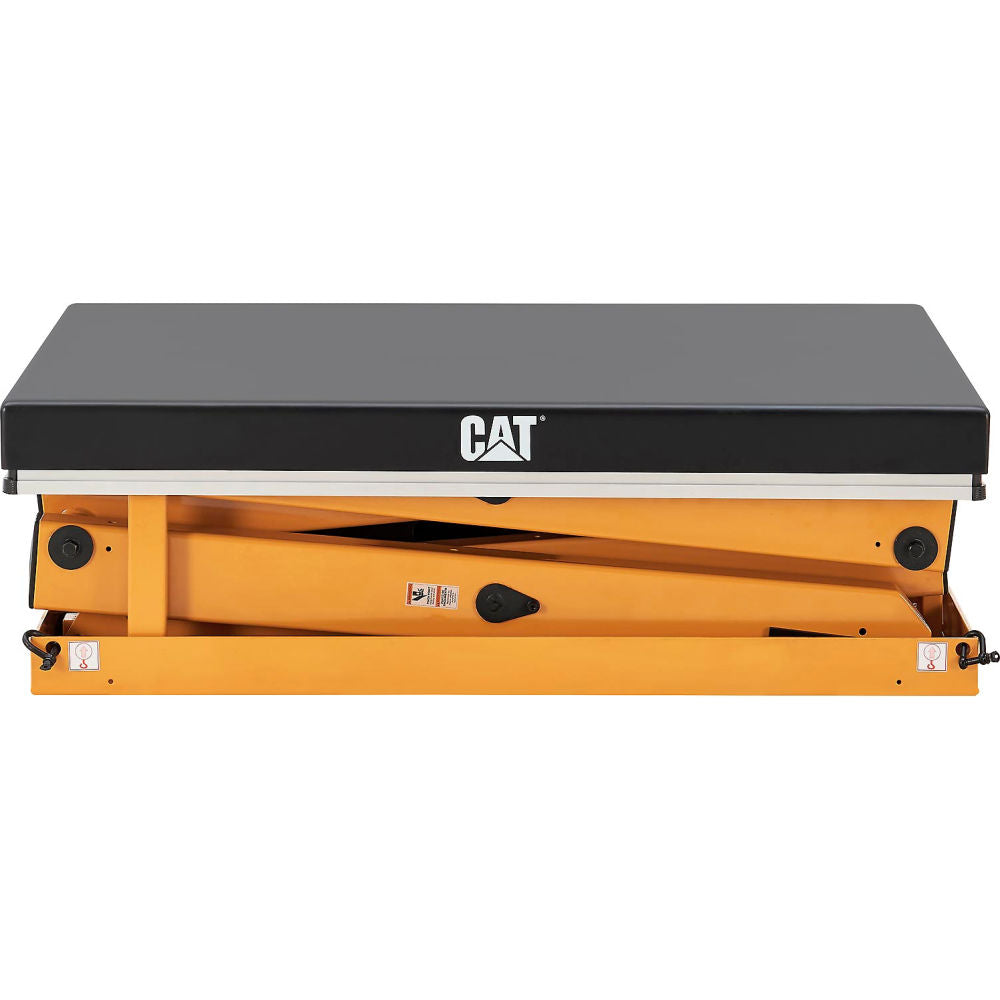

| Lowered height | 16 in |
| Raised height | 70 in |
| Lift time (unloaded) | 63 s |
| Motor | 2 HP, 110 V, single phase |

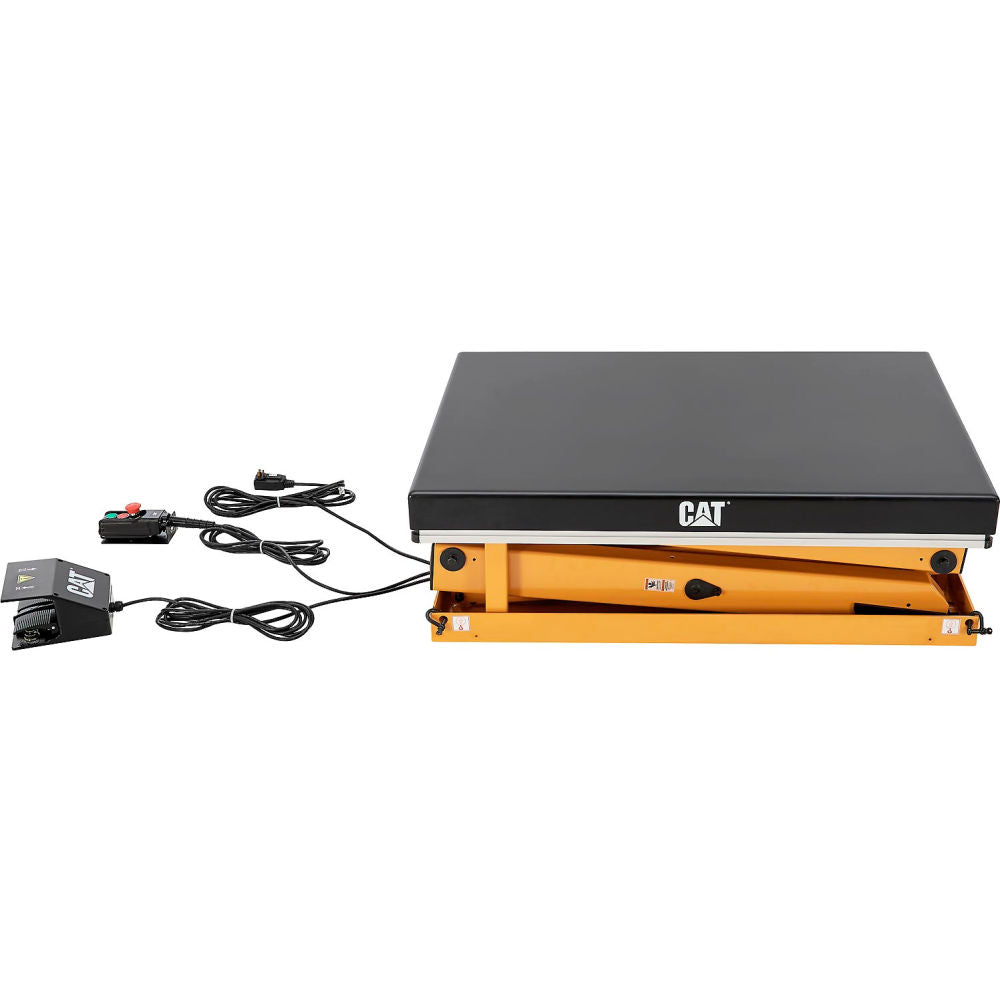

| Controls | Hand pendant and foot pedal |
| Weight | 772 lb |
| Standard | ANSI MH29.1 |
| Warranty | 5-year limited |
For lower working heights with larger decks, see the Cat® 641682–641684 power scissor lift tables.
Frequently Asked Questions
How high does the Cat 641685 double scissor lift table raise?
From 16 inches lowered to 70 inches raised, carrying up to 5,000 lb evenly distributed on a 51 x 33 inch platform. Unloaded lift time is 63 seconds.
What power and controls does the 641685 use?
A 2 HP electric-hydraulic unit on 110 V single-phase power, operated from a hand pendant or foot pedal, with an emergency stop, locking maintenance bar and safety sensors.
