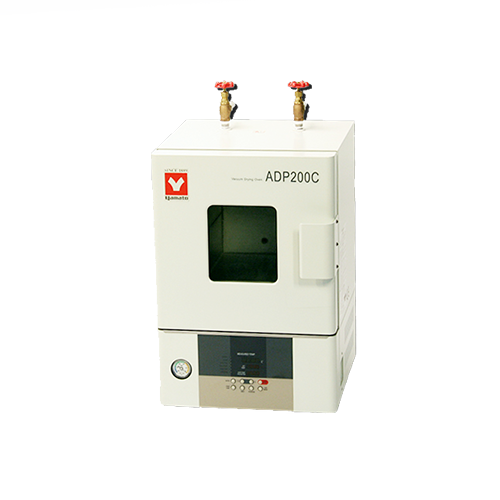

Benchtop Vacuum Oven Programmable 10L Overview
The Benchtop Vacuum Oven Programmable 10L (ADP200C) from Yamato Scientific is a compact vacuum drying oven built for controlled, low-pressure heating across an operating range of 40 to 240°C. LabSupplies.com, an authorized dealer, supplies this 10 L unit for labs that need repeatable drying without oxidation or thermal stress on sensitive samples.
A stainless steel interior chamber resists corrosion and simplifies cleaning, while the exterior uses steel plate SPCC with powder coating for a durable finish. Each heating circuit carries an independent overheating prevention device, and a silicon rubber door seal blocks air leakage to hold vacuum integrity during cycles.
Offered in 115V (ADP200C) and 220V (ADP210C) configurations, the oven measures 36 × 36 × 38 inches and weighs 145 lbs. Manufacturing follows ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 management systems. Units ship from USA inventory.
Key Features
- Digital PID control: supports fixed temperature, quick auto-stop, auto-stop, auto-start, and program operation modes.
- Wide temperature range: operates from 40 to 240°C for diverse drying and degassing tasks.
- Independent safety circuits: each circuit includes its own overheating prevention device, plus self-diagnostic functions.
- Sealed chamber: silicon rubber door seal prevents air leakage and helps maintain vacuum.
- Customizable ports: available with N₂ gas inlet and communication ports for integration and inert-atmosphere work.
- Calibration off-set: built-in offset function and easy-maintenance design support accurate, low-effort operation.
How to Choose the Right Vacuum Oven
Selecting a vacuum oven comes down to matching chamber size, thermal range, and control sophistication to your workflow while confirming the unit fits your bench and power supply. Use these criteria to narrow the decision.
- Capacity: a 10 L chamber suits small-batch drying and degassing; size the chamber to your typical load volume and sample geometry.
- Temperature range: confirm the process temperature falls within the oven's window; this model covers 40 to 240°C.
- Control type: programmable PID with multiple operation modes enables unattended, repeatable cycles versus simple fixed-temperature units.
- Voltage: choose 115V (ADP200C) or 220V (ADP210C) to match your facility's available circuit.
- Footprint and weight: verify bench clearance for the 36 × 36 × 38 in unit and support for its 145 lb weight.
- Safety features: independent overheating prevention and self-diagnostics protect samples and personnel during long runs.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 10 L |
| Voltage | 115V |
| Operating Pressure Range | 101 to 0.1 kPa (760 to 1 Torr) |
| Temperature Accuracy | ±1.5°C (at 240°C) *2 |
| Temperature Control System | PID control by microprocessor |
| Sensor | K-thermocouple |
| Heater | Mica heater, 0.68 kW |
| Interior Material | Stainless steel |
| Heat Insulation | Rock wool |
| Observation Window | Tempered glass (12 mm) with polycarbonate resin plate |
| Vacuum Gauge | Bourdon tube type, 0 to 0.1 MPa |
| Max. Temperature Reaching Time | Approx. 70 min |
| Safety Devices | Self-diagnostic functions (heater |
| Shelves | 2 aluminum perforated shelf plates (≈15 kg load each) |
| Material | Steel plate SPCC powder coating (exterior) Stainless steel (interior) |
| Country of Origin | China |
| GTIN (Barcode) | 797059926756 |
| Shipping Weight | 145 lbs |
| Dimensions (L × W × H) | 36 × 36 × 38 in |
| Component Size | 10 L |
*2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| ADP-200C | 115V | EA |
| ADP-210C | 220V | EA |
Documentation
More in This Series
- Benchtop Vacuum Oven Programmable 27L
- Benchtop Vacuum Oven Programmable 47.2L
- Vacuum Oven Programmable 127.4L
- Vacuum Oven Programmable 264L
- Vacuum Oven Programmable 91L
- Vacuum Oven Programmable 216L
- Large Capacity Vacuum Oven Programmable 512L
- Large Capacity Vacuum Oven Programmable 1000L 3 Phase
Why Buy From LabSupplies.com
LabSupplies.com is an authorized Yamato Scientific dealer, so every vacuum oven arrives as a genuine factory unit backed by the manufacturer warranty. Our team supports procurement with direct answers on specifications and configuration.
- Authorized Yamato Scientific dealer: genuine equipment with full manufacturer warranty.
- In stock: ready to order and ships from USA inventory.
- Lab-equipment specialists: dedicated support for spec, voltage, and port-configuration questions.
- Quality-certified manufacturing: built under ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 systems.
Frequently Asked Questions
What is the operating temperature range of the ADP200C vacuum oven?
The ADP200C operates from 40 to 240°C. This range supports vacuum drying, degassing, and moisture removal for heat-sensitive samples that require low-oxygen conditions.
What is the chamber capacity and overall footprint?
The chamber holds 10 L. The complete unit measures 36 × 36 × 38 inches and weighs 145 lbs, so confirm bench clearance and support before installation.
What is the difference between the ADP200C and ADP210C?
Voltage is the only difference. The ADP200C runs on 115V and the ADP210C runs on 220V; both share the same 10 L chamber, 40 to 240°C range, and programmable PID control.
What materials are used in the chamber construction?
The interior chamber is stainless steel for corrosion resistance and easy cleaning. The exterior is steel plate SPCC with powder coating for a durable finish.
Does the oven support programmable operation?
Yes. The digital PID controller supports fixed temperature, quick auto-stop, auto-stop, auto-start, and full program operation, enabling repeatable unattended cycles.
Can the oven be configured for inert-atmosphere work?
Yes. The unit can be customized with an N₂ gas inlet and communication ports, allowing nitrogen purging and integration with monitoring or data systems.
