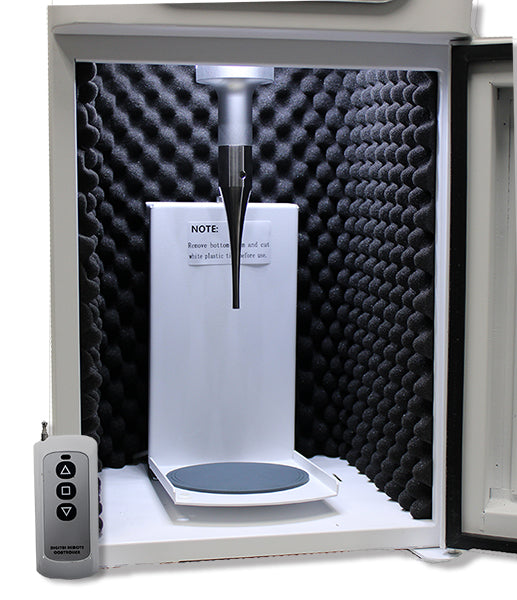

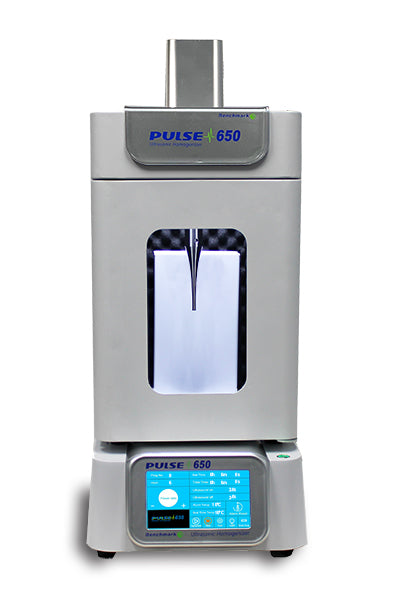

The Pulse 650 DP0650 delivers 6.5 to 650 W of continuously adjustable ultrasonic power at 20–25 kHz for sample volumes from 0.1 mL to 500 mL, depending on the horn fitted. It is supplied with a 6 mm titanium horn and a soundproof enclosure, and other horn sizes are offered separately. Pulse on and off times run 0.1 to 99.9 seconds, and 20 programs are stored on the 7 in color touch screen. A UV-C sterilization function is built in.
Key features
- 6.5–650 W adjustable output at 20–25 kHz
- Processes 0.1–500 mL with the appropriate horn
- 6 mm titanium horn and soundproof box included
- 7 in color touch screen holds 20 programs
- UV-C sterilization function
- Alarms: no load, overload, over-temperature, end of run
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | DP0650 / DP0650-E |
| Power | 6.5–650 W, continuously adjustable |
| Frequency | 20–25 kHz |
| Pulse On/Off Time | 0.1–99.9 s |
| Timer | 1 s–99 hr 59 min 59 s |
| Duty Cycle | 0.1–99.9% |
| Sample Volume | 0.1–500 mL (horn dependent) |
| Program Memory | 20 programs |
| Display | 7 in color touch screen |
| Horn | 6 mm titanium (other sizes available) |
| Alarms | No load, overload, end of run, over temperature |
| Sterilization | UV-C |
| Controller Dimensions (W × D × H) | 13.4 × 16.5 × 6.6 in (34 × 42.7 × 16.8 cm) |
| Controller Weight | 24.2 lb (11 kg) |
| Electrical | 120 V (DP0650); 230 V (DP0650-E); 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| DP0650 | 120V, US plug |
| DP0650-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| DP0150-2 … | Benchmark Scientific Pulse Ultrasonic Homogenizer Horn DP0150 Series |
