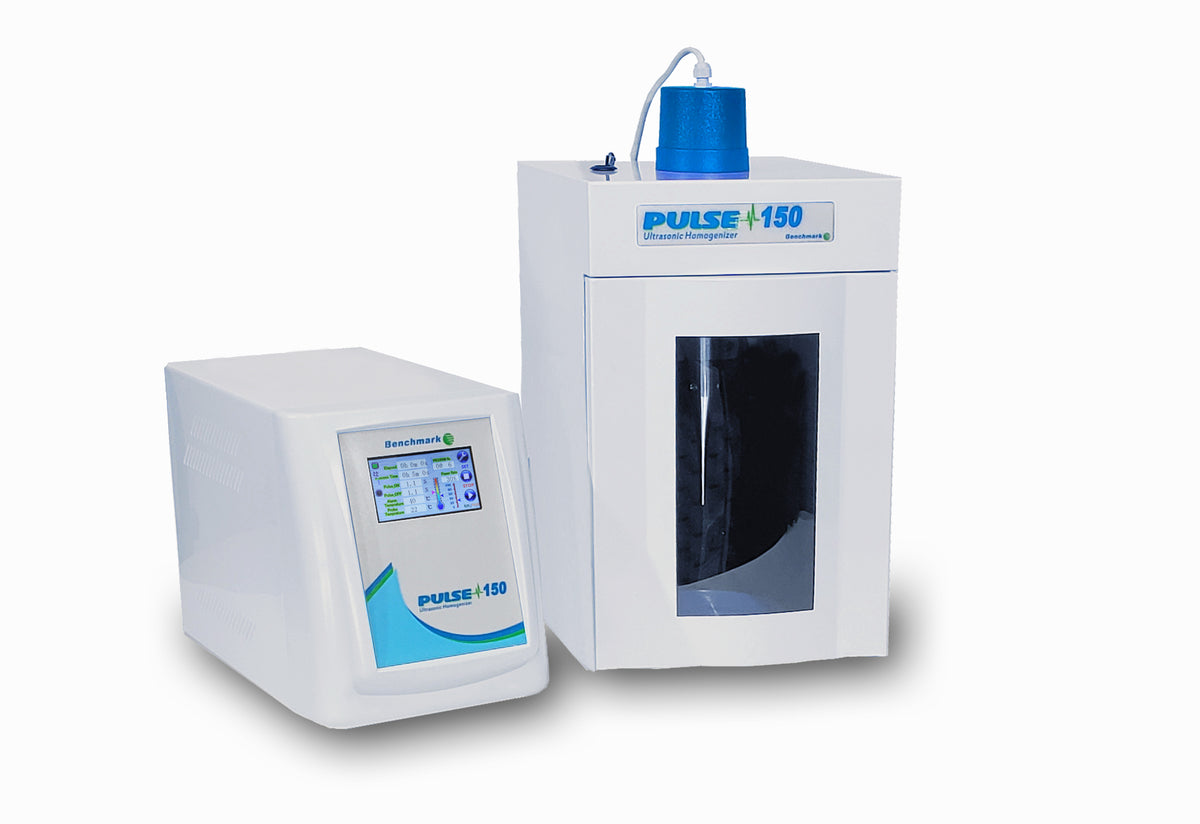

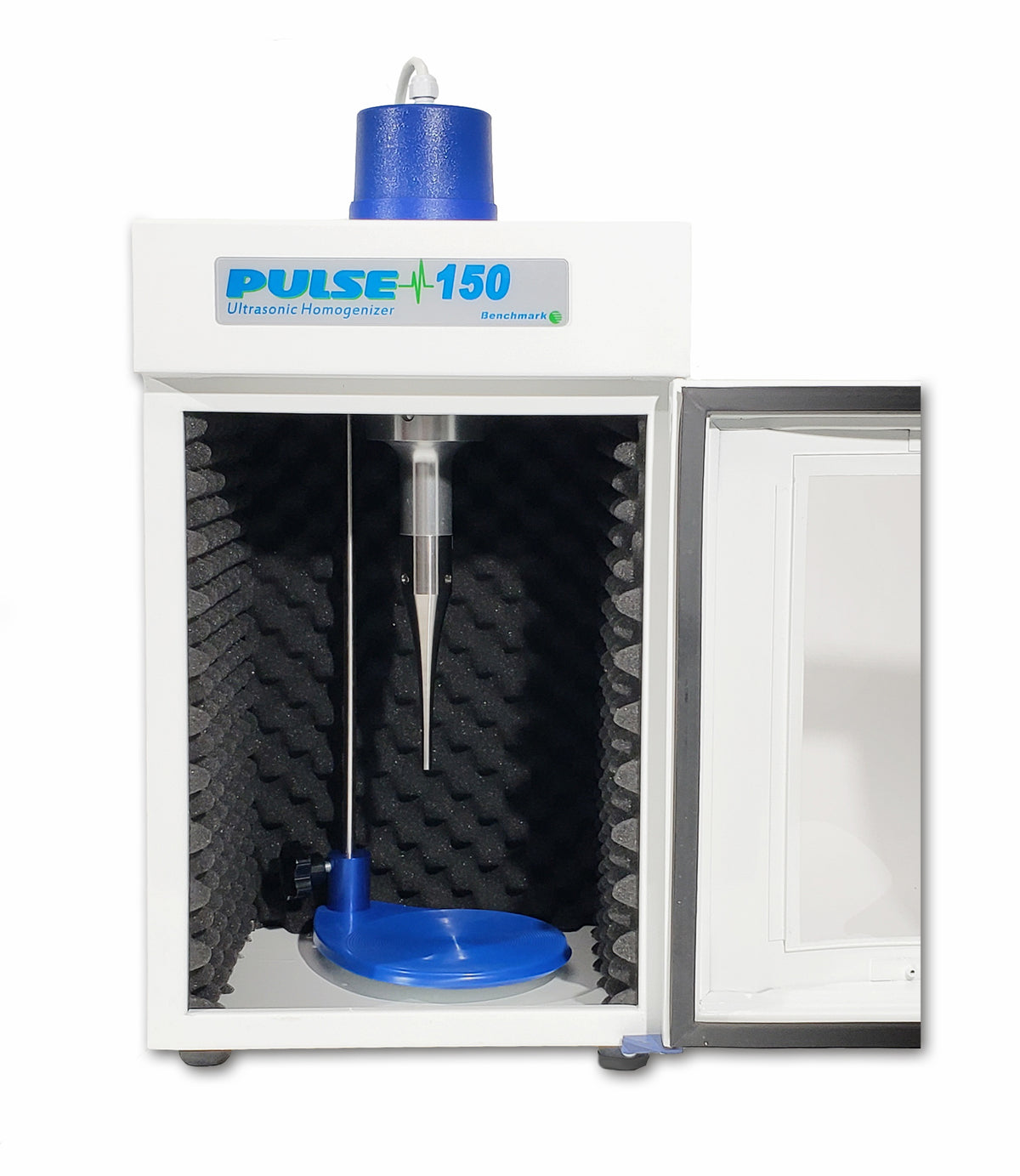

The Pulse 150 DP0150 is an ultrasonic homogenizer for breaking cells in suspension, shearing DNA and preparing ChIP samples. Output is continuously adjustable from 1.5 to 150 W at 20–25 kHz, handling 0.1 mL to 150 mL with the right horn. The package includes the controller, transducer, temperature probe, a 6 mm titanium horn for 10 mL to 100 mL, horn wrenches and a soundproof enclosure with sample platform. Pulse timing, duty cycle and power are set on a 4.3 in touch screen, with 20 programs in memory.
Key features
- 1.5–150 W continuously adjustable, 20–25 kHz
- Pulse on/off 0.1–99.9 s; duty cycle 0.1–99.9%
- 6 mm titanium horn included; 2, 4 and 8 mm horns optional
- 20 stored programs on a 4.3 in color touch screen
- Alarms for no load, overload, over-temperature and end of run
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | DP0150 / DP0150-E |
| Power | 1.5–150 W, continuously adjustable |
| Frequency | 20–25 kHz |
| Pulse On/Off Time | 0.1–99.9 s |
| Timer | 1 s–99 hr 59 min 59 s |
| Duty Cycle | 0.1–99.9% |
| Sample Volume | 0.1–150 mL (horn dependent) |
| Program Memory | 20 programs |
| Display | 4.3 in color touch screen |
| Horn | 6 mm titanium (2, 4 and 8 mm available) |
| Alarms | No load, overload, end of run, over temperature |
| Controller Dimensions (W × D × H) | 12 × 18.5 × 16.9 in (30.5 × 47 × 43 cm) |
| Controller Weight | 35.3 lb (16 kg) |
| Soundproof Enclosure (W × D × H) | 13.8 × 13.8 × 21.7 in (35 × 35 × 55 cm) |
| Soundproof Enclosure Weight | 22 lb (10 kg) |
| Electrical | 120 V (DP0150); 230 V (DP0150-E); 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| DP0150 | 120V, US plug |
| DP0150-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| DP0150-2 … | Benchmark Scientific Pulse Ultrasonic Homogenizer Horn DP0150 Series |
