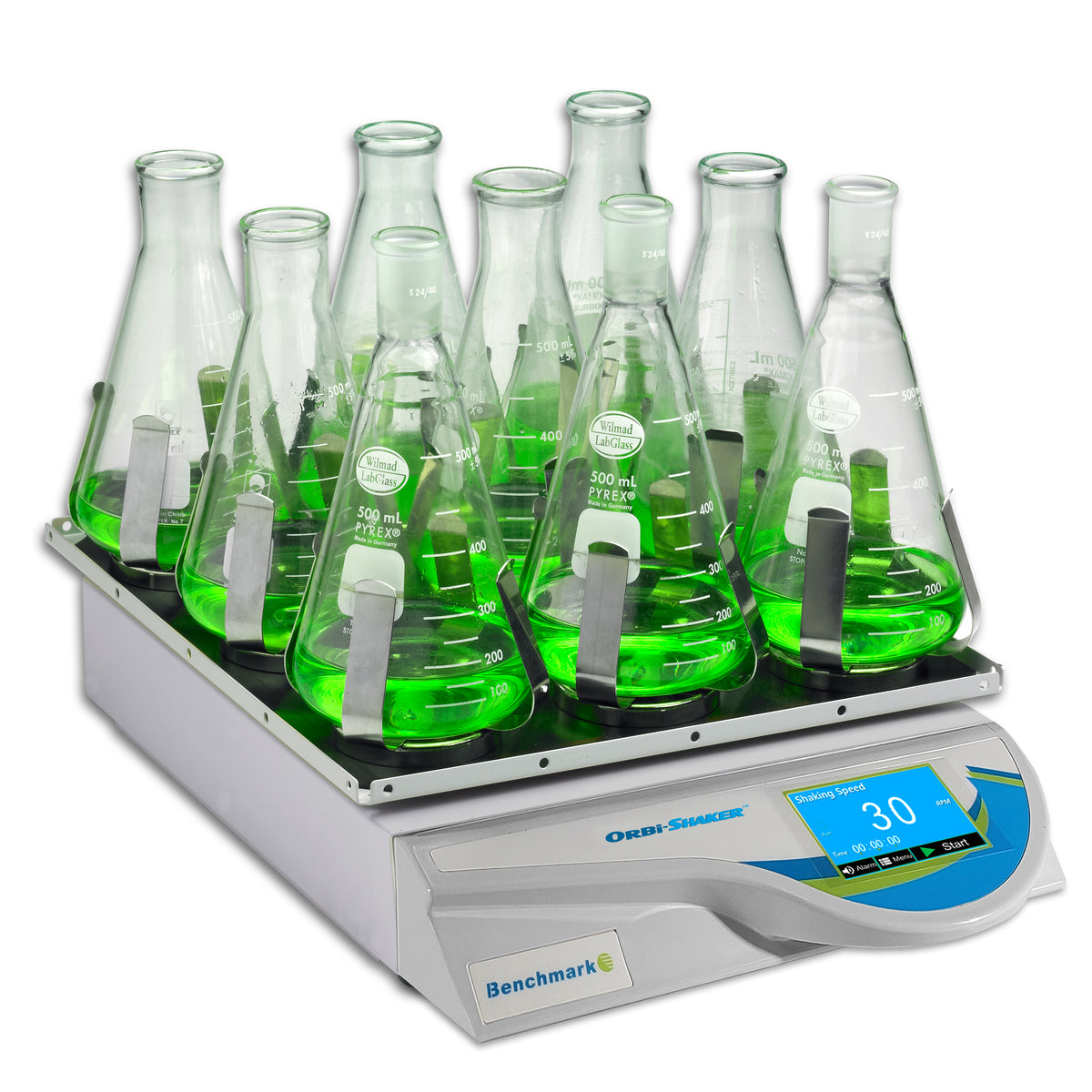

The Orbi-Shaker is a mid-size benchtop orbital shaker that moves loads up to 14 lb (6.4 kg), or five 1 L flasks, at up to 300 rpm. Speed is set from 30 rpm in 1 rpm increments on a touch-screen display, with a timer from 1 min to 99 hr or continuous. The included 13 × 12 in platform has a non-slip rubber surface for tissue culture flasks, Petri dishes and staining trays. For Erlenmeyer flasks and tube racks, the optional MAGic Clamp platform attaches clamps magnetically.
Key features
- 14 lb (6.4 kg) or five 1 L flask capacity
- 30–300 rpm with 1 rpm resolution on a 19 mm orbit

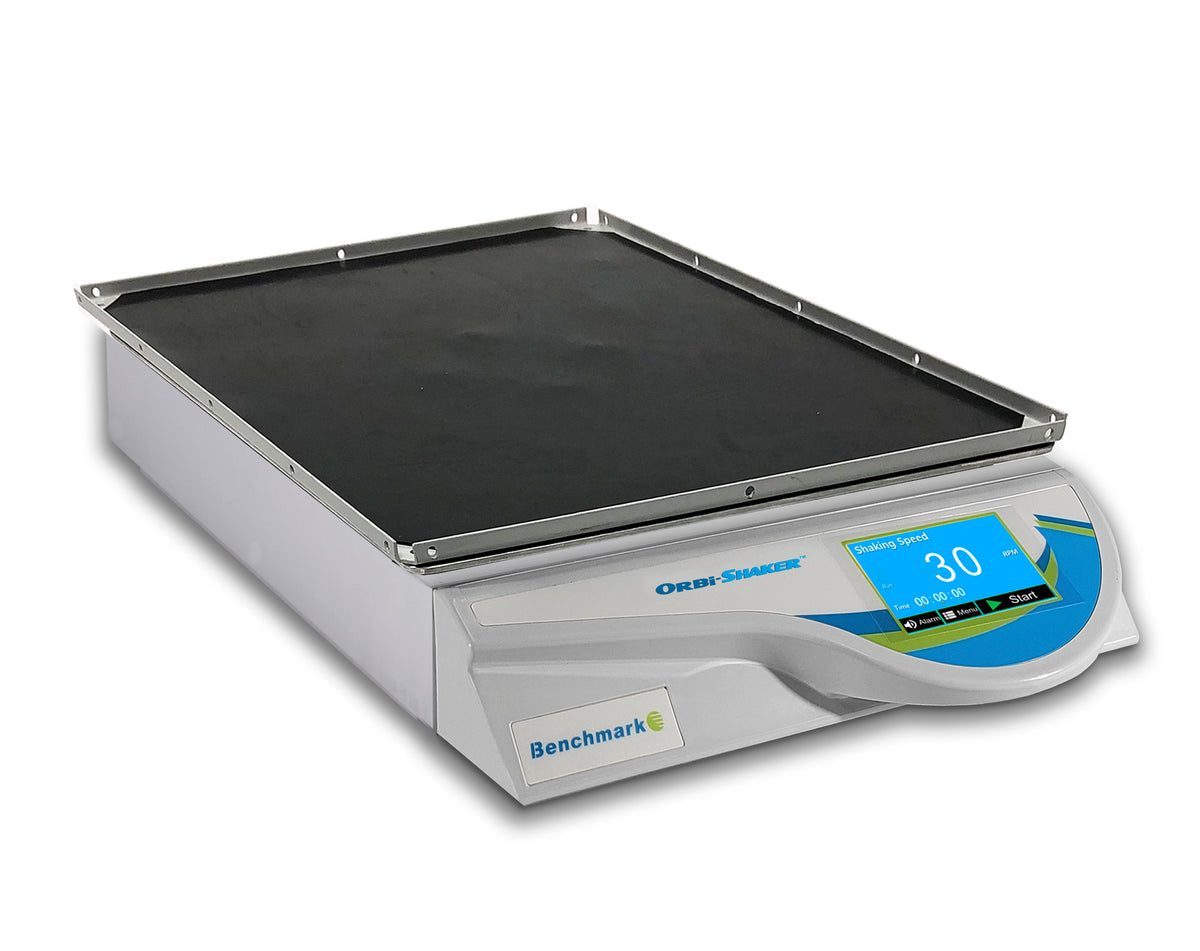

- 13 × 12 in non-slip rubber mat platform included
- Timer from 1 min to 99 hr, or continuous
- Rated for 4°C to 65°C ambient; low 3 in profile
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BT3001 / BT3001-E |
| Speed Range | 30–300 rpm |
| Speed Increment | 1 rpm |
| Orbit | 19 mm |
| Timer | 1 min–99 hr or continuous |
| Platform Size | 13 × 12 in (33 × 30 cm) |
| Load Capacity | 5 × 1 L or 14 lb (6.4 kg) |
| Ambient Operating Temperature | 4–65 °C |
| Dimensions | 11 × 16.2 × 3 in (28 × 41 × 7.5 cm) |
| Weight | 25 lb (11.5 kg) |
| Electrical | 115 V (BT3001); 230 V (BT3001-E); 50–60 Hz; 50 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BT3001 | 115V, US plug |
| BT3001-E | 230V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| BT3000-MR | Benchmark Scientific MAGic Clamp Universal Platform (LG) BT3000-MR |
| H1000-MR-25 … | Benchmark Scientific MAGic Clamp Magnetic Flask Clamp H1000-MR Series |
| H1000-MR-CMB | Benchmark Scientific MAGic Clamp COMBO H1000-MR-CMB |
| H1000-MR-MP | Benchmark Scientific MAGic Clamp Microplate Clamp H1000-MR-MP |
| H1000-MR-T500H … | Benchmark Scientific MAGic Clamp Tube Rack H1000-MR Series |
| H1000-P-500 … | Benchmark Scientific Dedicated Flask Platform H1000-P Series |
| H1000-P-MP | Benchmark Scientific Dedicated Microplate Platform H1000-P-MP |
| H1000-P-SP | Benchmark Scientific Universal Spring Platform H1000-P-SP |
Questions about the Orbi-Shaker Orbital Shaker BT3001
What speed range and motion does the Orbi-Shaker Orbital Shaker BT3001 have?
The Orbi-Shaker Orbital Shaker BT3001 runs at 30–300 rpm on a 19 mm orbit, on a 13 × 12 in (33 × 30 cm) platform.
What accessories are available for the Orbi-Shaker Orbital Shaker BT3001?
Benchmark Scientific lists BT3000-MR (MAGic Clamp Universal Platform (LG)), H1000-MR-25 (MAGic Clamp Magnetic Flask Clamp), H1000-MR-CMB (MAGic Clamp COMBO), H1000-MR-MP (MAGic Clamp Microplate Clamp), H1000-MR-T500H (MAGic Clamp Tube Rack) and H1000-P-500 (Dedicated Flask Platform) for the Orbi-Shaker Orbital Shaker BT3001. The full list is in the accessories table on this page.
Is the Orbi-Shaker Orbital Shaker BT3001 available with a European plug?
Yes. BT3001-E is the European-plug version of BT3001: BT3001 is 115V with a US plug and BT3001-E is 230V with a European plug.
