MAGic Clamp racks hold tubes and conical bottles on a platform. Horizontal racks take 2 × 50 mL, 4 × 15 mL or 12 × 1.5/2.0 mL tubes. Other racks hold 15 × 50 mL or 32 × 15 mL (2 per platform), 30 × 15 mL plus 20 × 50 mL (1 per platform), 72 × 14 mm culture tubes, or 4 × 500/600 mL conical bottles (1 per platform). A tilted holder, H1000-MR-TSR, carries the 15 mL and 50 mL tube racks.
Key features
- Horizontal: 2 × 50 mL, 4 × 15 mL or 12 × 1.5/2.0 mL
- 15 × 50 mL or 32 × 15 mL racks, up to 2 per platform
- Combination 30 × 15 mL and 20 × 50 mL, 1 per platform
- 4 × 500 or 600 mL conical bottles, 1 per platform
- 72 × 14 mm culture tube rack
- Tilted holder for 15 mL and 50 mL racks (H1000-MR-TSR)
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Tube Size | 1.5 mL to 50 mL; 500/600 mL bottles |
Ordering information
| Catalog number | Rack |
|---|---|

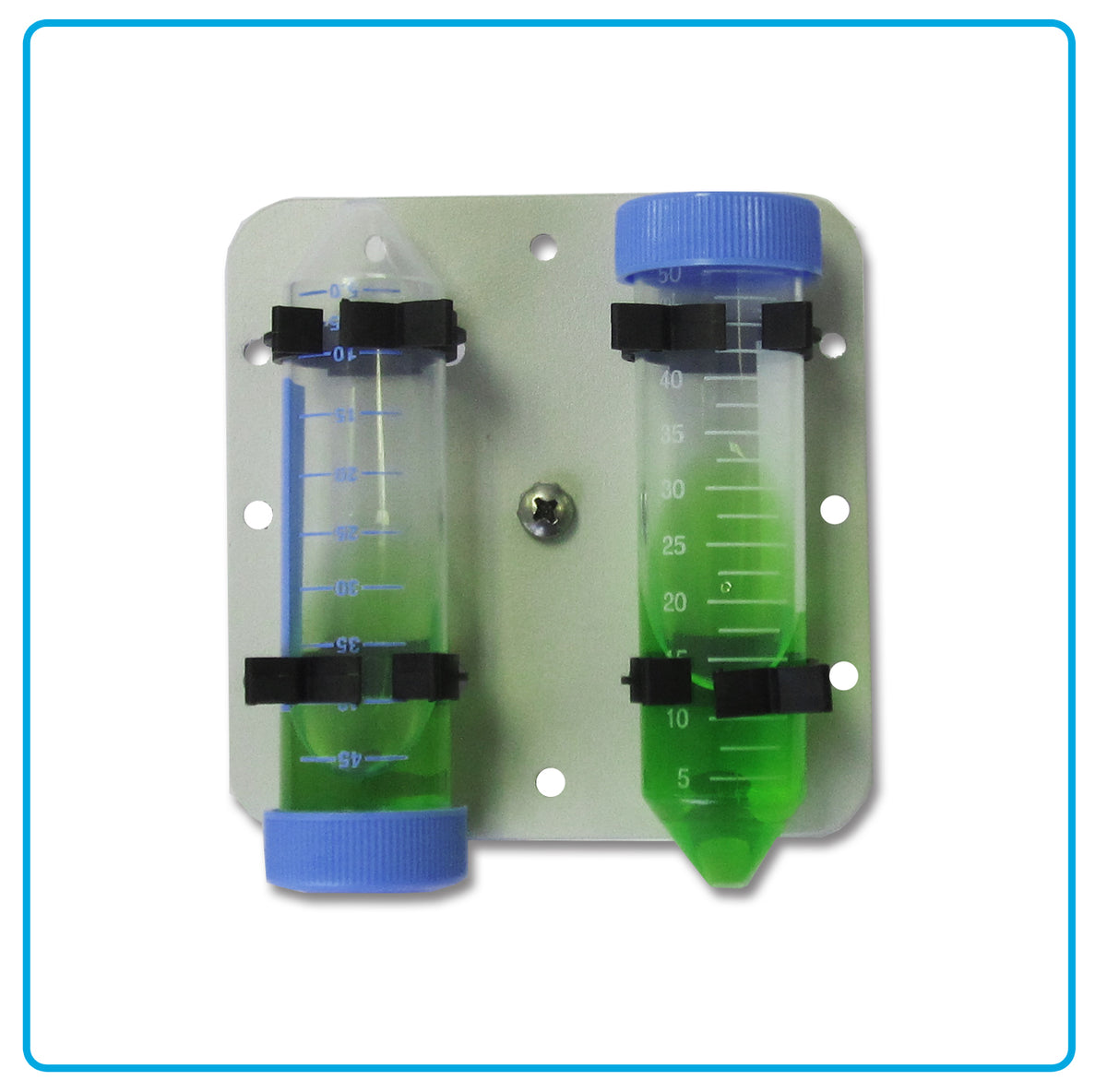

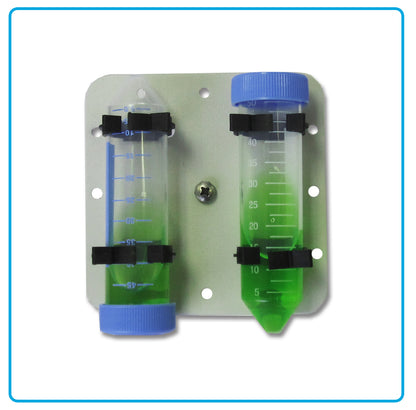

| H1000-MR-T500H | 2 × 50 mL tubes, horizontal |

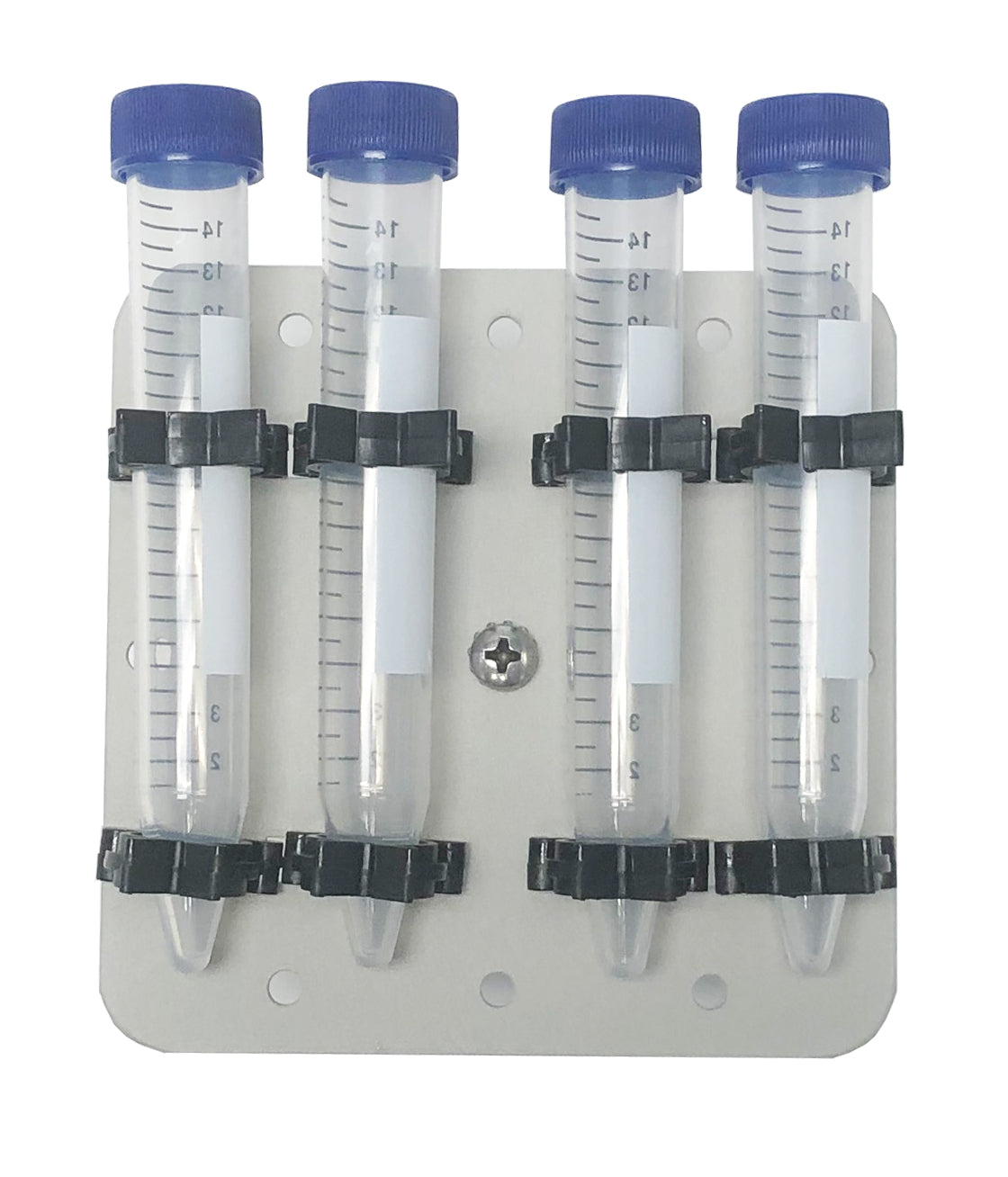

| H1000-MR-T150H | 4 × 15 mL tubes, horizontal |

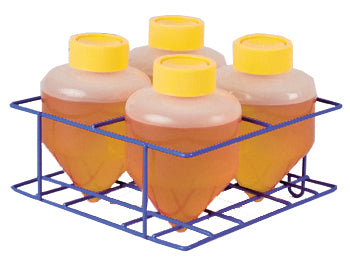

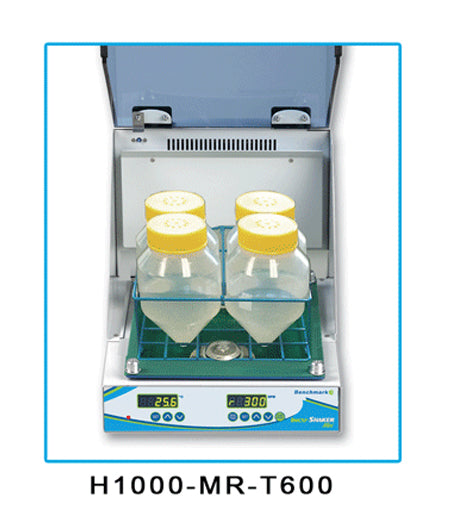

| H1000-MR-T600 | 4 × 500 mL or 600 mL conical bottles (1 per platform max) |
| H1000-MR-T15H | 12 × 1.5/2.0 mL tubes, horizontal |
| H1000-MR-T50 | 15 × 50 mL, tubes (2 per platform max) |
| H1000-MR-TSR | MAGic Clamp tilted holder for 15 mL and 50 mL tube racks (2 per platform max) |
| H1000-MR-1550 | 30 × 15 mL & 20 × 50 mL tubes (1 per platform max) |
| H1000-MR-T15 | 32 × 15 mL, tubes (2 per platform max) |
| H1000-MR-T14 | 72 × 14 mm culture tubes |
