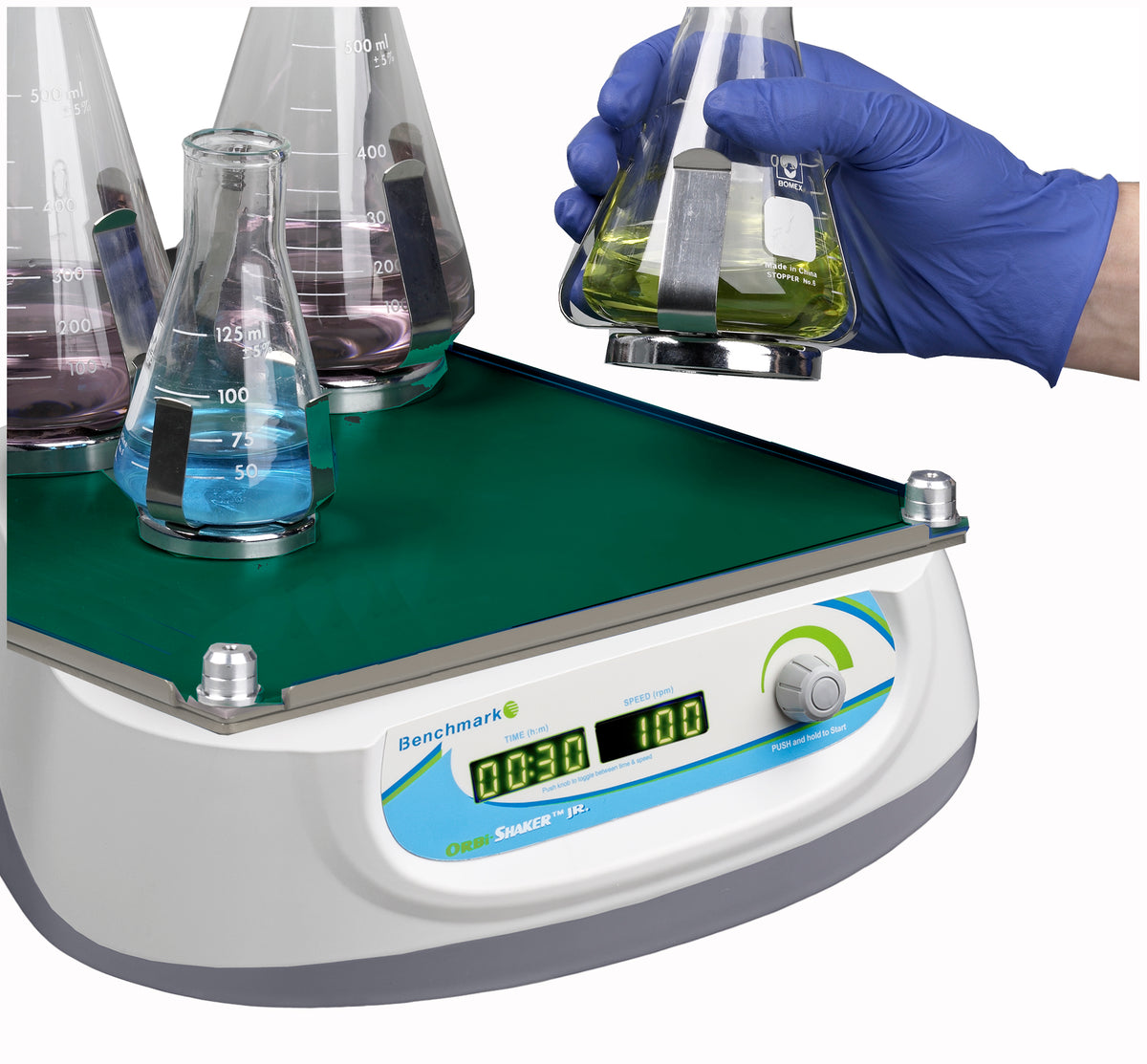

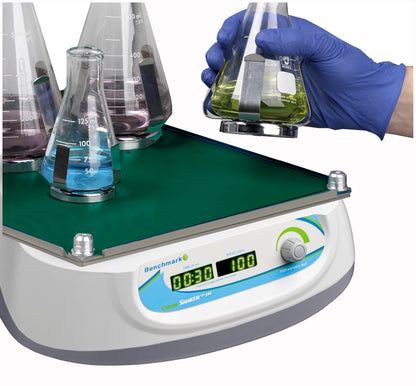

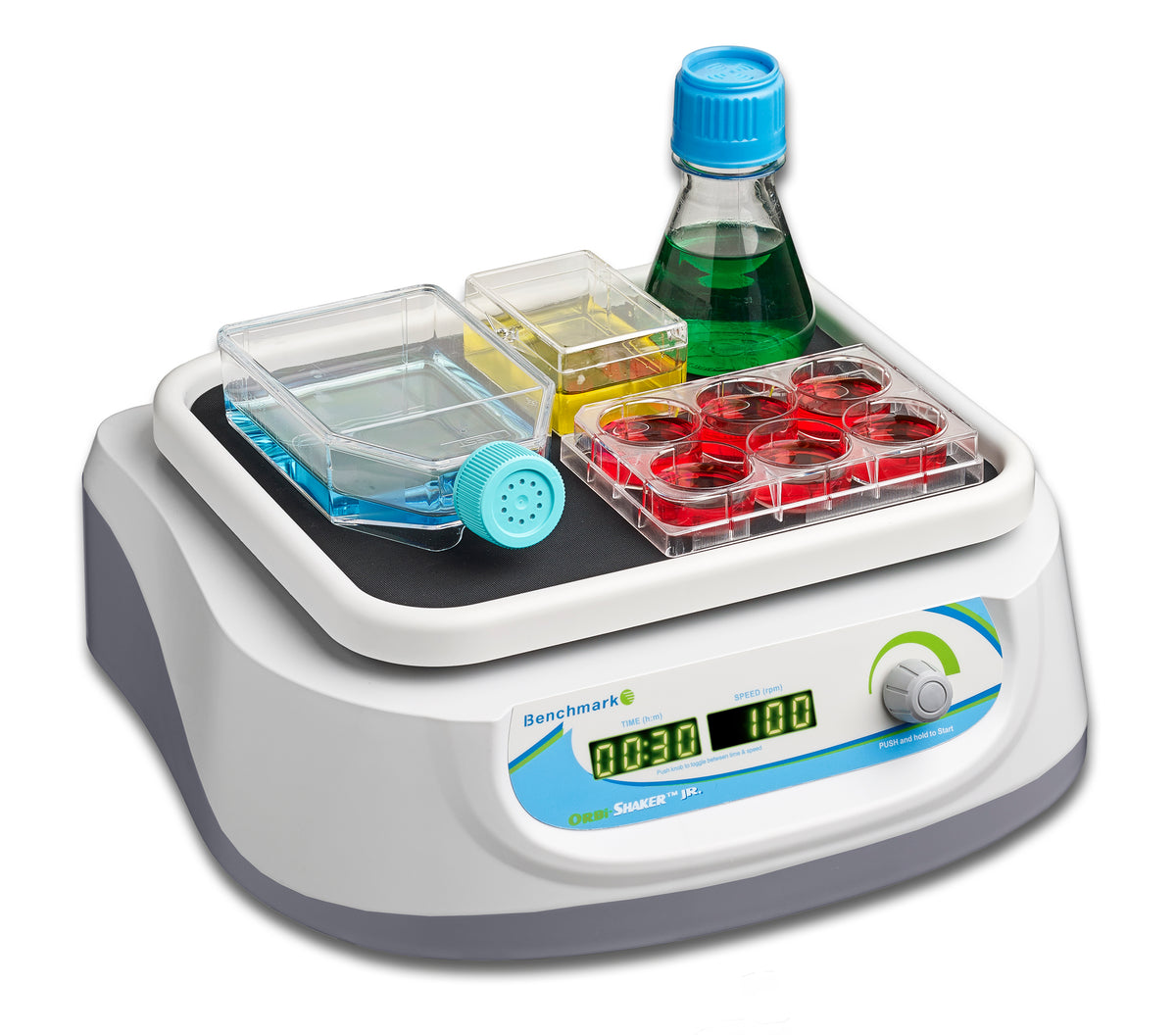

Orbi-Shaker Jr is a compact orbital shaker for low- to medium-capacity work, with digital speed control from 50 to 300 rpm in 10 rpm steps. A 19 mm horizontal circular orbit provides aeration and mixing. The included 9.5 × 8 in rubber-mat platform holds up to four 1 L flasks or 9 lb (4 kg). A timer runs from 1 min to 99 hr or continuously, and universal 100–240V input applies to both plug versions.
Key features
- Digital speed 50–300 rpm in 10 rpm increments
- 19 mm orbit for aeration and mixing
- Holds four 1 L flasks or 9 lb (4 kg)
- Timer 1 min–99 hr, or continuous run

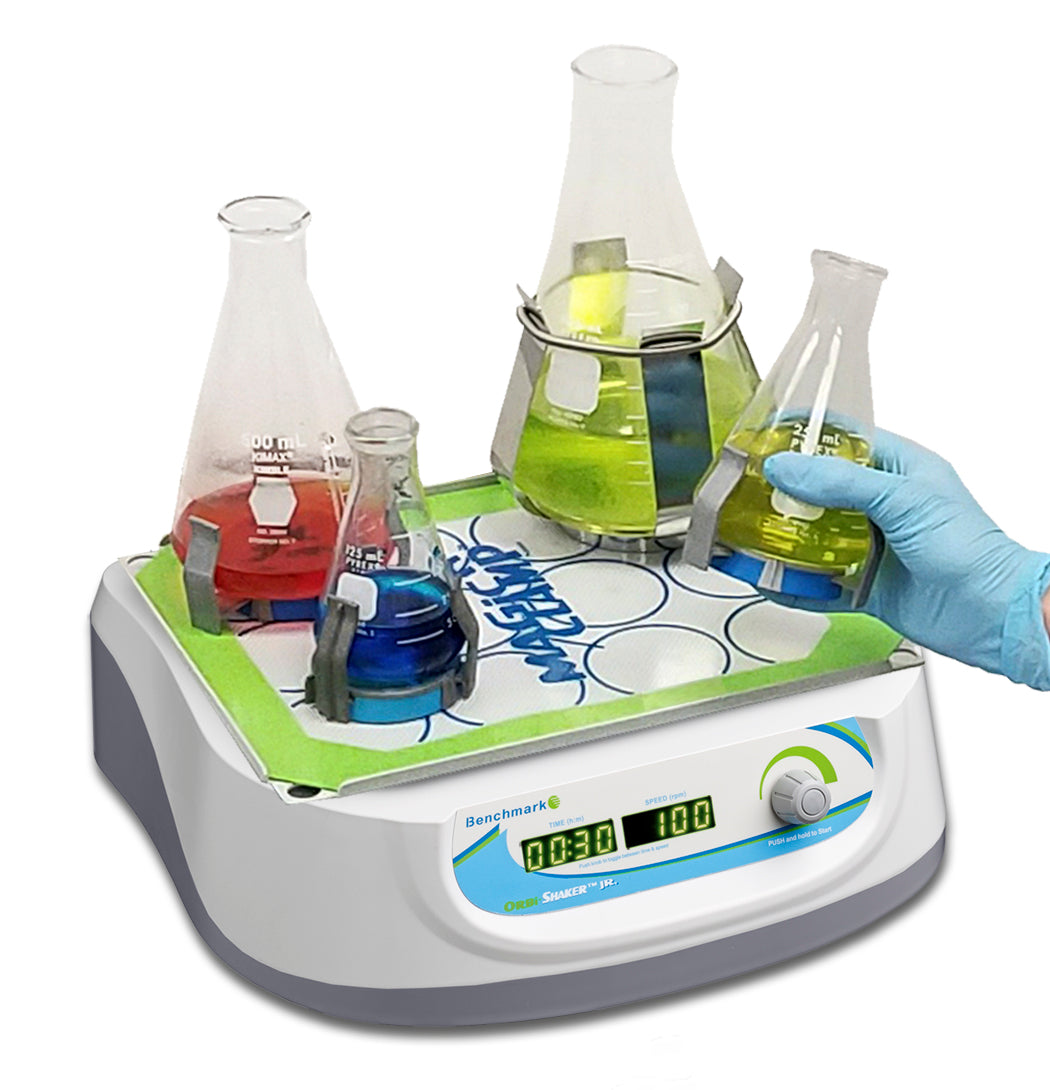

- Accepts MAGic Clamp accessories for tool-free flask clamp changes
- Universal 100–240V input; 13.1 × 11.7 × 4.7 in footprint
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BT302 / BT302-E |
| Speed Range | 50–300 rpm |
| Speed Increment | 10 rpm |
| Orbit | 19 mm |
| Timer | 1 min–99 hr or continuous |
| Platform Size | 9.5 × 8 in (24 × 20 cm) |
| Load Capacity | 4 × 1 L or 9 lb (4 kg) |
| Ambient Operating Temperature | 4–65 °C |
| Dimensions | 13.1 × 11.7 × 4.7 in (33.3 × 29.8 × 12 cm) |
| Weight | 12 lb (5.5 kg) |
| Electrical | 100–240 V, 50–60 Hz |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BT302 | 100–240V, US plug |
| BT302-E | 100–240V, European plug |
Accessories listed for this model
| Catalog number | Part |
|---|---|
| H1000-MR | Benchmark Scientific MAGic Clamp Universal Platform H1000-MR |
| H1000-MR-25 … | Benchmark Scientific MAGic Clamp Magnetic Flask Clamp H1000-MR Series |
| H1000-MR-CMB | Benchmark Scientific MAGic Clamp COMBO H1000-MR-CMB |
| H1000-MR-MP | Benchmark Scientific MAGic Clamp Microplate Clamp H1000-MR-MP |
| H1000-MR-T500H … | Benchmark Scientific MAGic Clamp Tube Rack H1000-MR Series |
Questions about the Orbi-Shaker Jr Orbital Shaker BT302
What speed range and motion does the Orbi-Shaker Jr Orbital Shaker BT302 have?
The Orbi-Shaker Jr Orbital Shaker BT302 runs at 50–300 rpm on a 19 mm orbit, on a 9.5 × 8 in (24 × 20 cm) platform.
What accessories are available for the Orbi-Shaker Jr Orbital Shaker BT302?
Benchmark Scientific lists H1000-MR (MAGic Clamp Universal Platform), H1000-MR-25 (MAGic Clamp Magnetic Flask Clamp), H1000-MR-CMB (MAGic Clamp COMBO), H1000-MR-MP (MAGic Clamp Microplate Clamp) and H1000-MR-T500H (MAGic Clamp Tube Rack) for the Orbi-Shaker Jr Orbital Shaker BT302.
Is the Orbi-Shaker Jr Orbital Shaker BT302 available with a European plug?
Yes. BT302-E is the European-plug version of BT302; both run on 100–240V, so only the plug differs.
