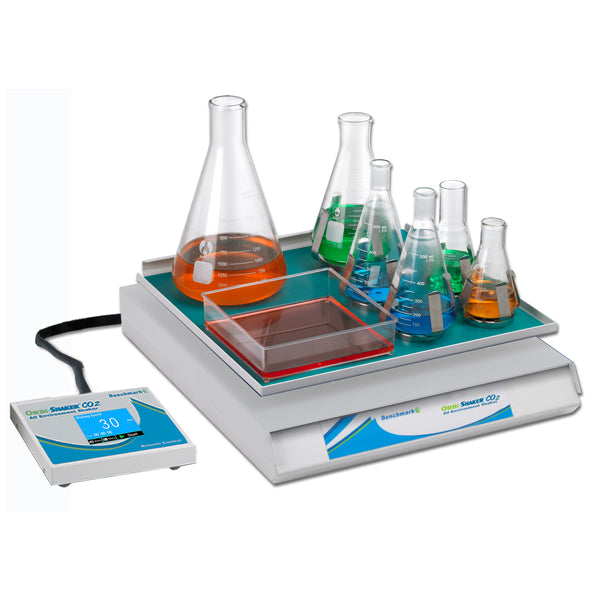

The Orbi-Shaker CO2 XL is the large-platform version of Benchmark's in-incubator shaker, with a 16 × 16.5 in platform that takes five 2 L or nine 1 L flasks. It is built for the warmth and up to 100% humidity of a CO2 incubator, and its controls sit on a separate remote module outside the chamber so speed and time can change without opening the door. Speed runs 30–300 rpm on a 19 mm orbit, and the timer spans 1 min to 99 hr or continuous.
Key features
- 16 × 16.5 in platform for five 2 L or nine 1 L flasks
- Remote module stays outside the incubator; flat 1 mm cable
- Withstands humidity up to 100%
- 30–300 rpm on a 19 mm orbit, set in 1 rpm steps
- Non-slip rubber mat platform included; MAGic Clamp optional
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | BT4011 / BT4011-E |
| Speed Range | 30–300 rpm |
| Speed Increment | 1 rpm |
| Orbit | 19 mm |
| Timer | 1 min–99 hr or continuous |
| Platform Size | 16 × 16.5 in (40 × 42.5 cm) |
| Flask Capacity | 5 × 2 L or 9 × 1 L |
| Operating Humidity | Up to 100% |
| Dimensions | 17 × 18 × 5 in (43 × 45.75 × 12.7 cm) |
| Weight | 50 lb (23 kg) |
| Cord Length | 60.5 in (154 cm) |
| Electrical | 115 V (BT4011); 230 V (BT4011-E); 50–60 Hz; 50 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| BT4011 | 115V, US plug |
| BT4011-E | 230V, European plug |
