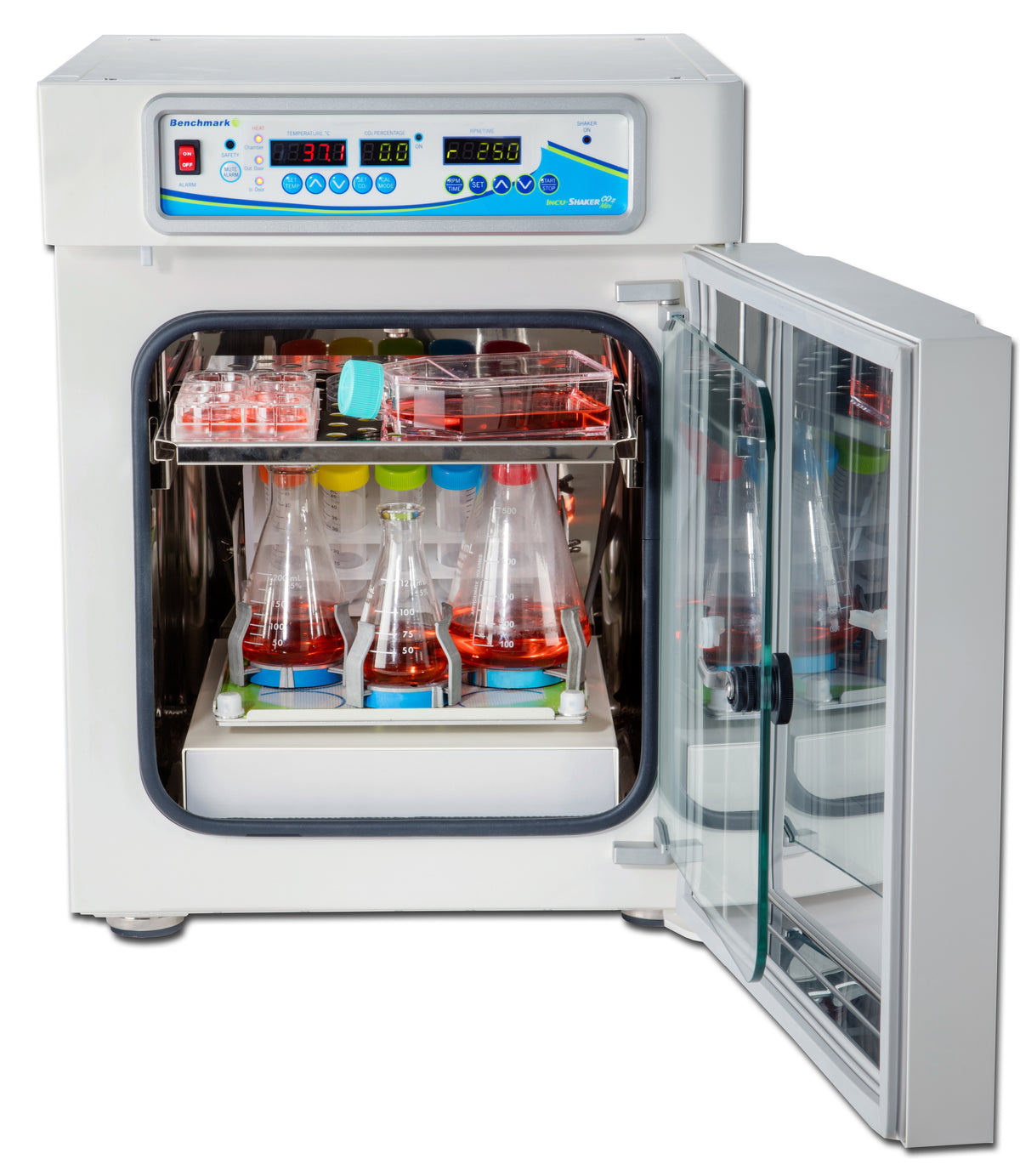

The Incu-Shaker CO2 Mini pairs a CO2-controlled incubation chamber with a built-in orbital shaker for growing non-adherent cells in suspension. CO2 is set from 0 to 20% in 0.1% steps and read by a dual-beam IR sensor with ±0.1% accuracy. Six-side heating covers ambient +5°C to 60°C with ±0.5°C uniformity inside a 316 stainless steel chamber. The beltless drive shakes at 30–300 rpm on a 19 mm orbit.
Key features
- CO2 0–20% in 0.1% steps; dual-beam IR sensor, ±0.1% accuracy
- Six-side heating, ambient +5°C to 60°C, ±0.5°C uniformity
- Chamber of 316 stainless steel
- 30–300 rpm on a 19 mm orbit; internal fan can be disabled
- 9.5 × 11.5 in rubber mat platform; MAGic Clamp H1000-MR optional
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | H3501 / H3501-E |
| Temperature Range | Ambient +5 °C to 60 °C |
| Temperature Increment | 0.1 °C |
| Temperature Uniformity | ±0.5 °C |
| Speed Range | 30–300 rpm |
| Speed Increment | 1 rpm |
| Orbit | 19 mm (3/4 in) |
| CO₂ Range | 0–20% |
| CO₂ Increment | 0.1% |
| CO₂ Accuracy | ±0.1% |
| CO₂ Sensor | Dual-beam IR |
| Timer | 1 min–48 hr or continuous |
| Platform Size | 9.5 × 11.5 in |
| Chamber Dimensions | 13.2 × 10.25 × 15.4 in (33.5 × 26 × 39.2 cm) |
| Chamber Material | 316 stainless steel |
| Dimensions | 16.5 × 18.3 × 21.8 in (42 × 46.5 × 55.3 cm) |
| Electrical | 115 V (H3501); 230 V (H3501-E); 50–60 Hz; 350 W |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| H3501 | 115V, US plug |
| H3501-E | 230V, European plug |
