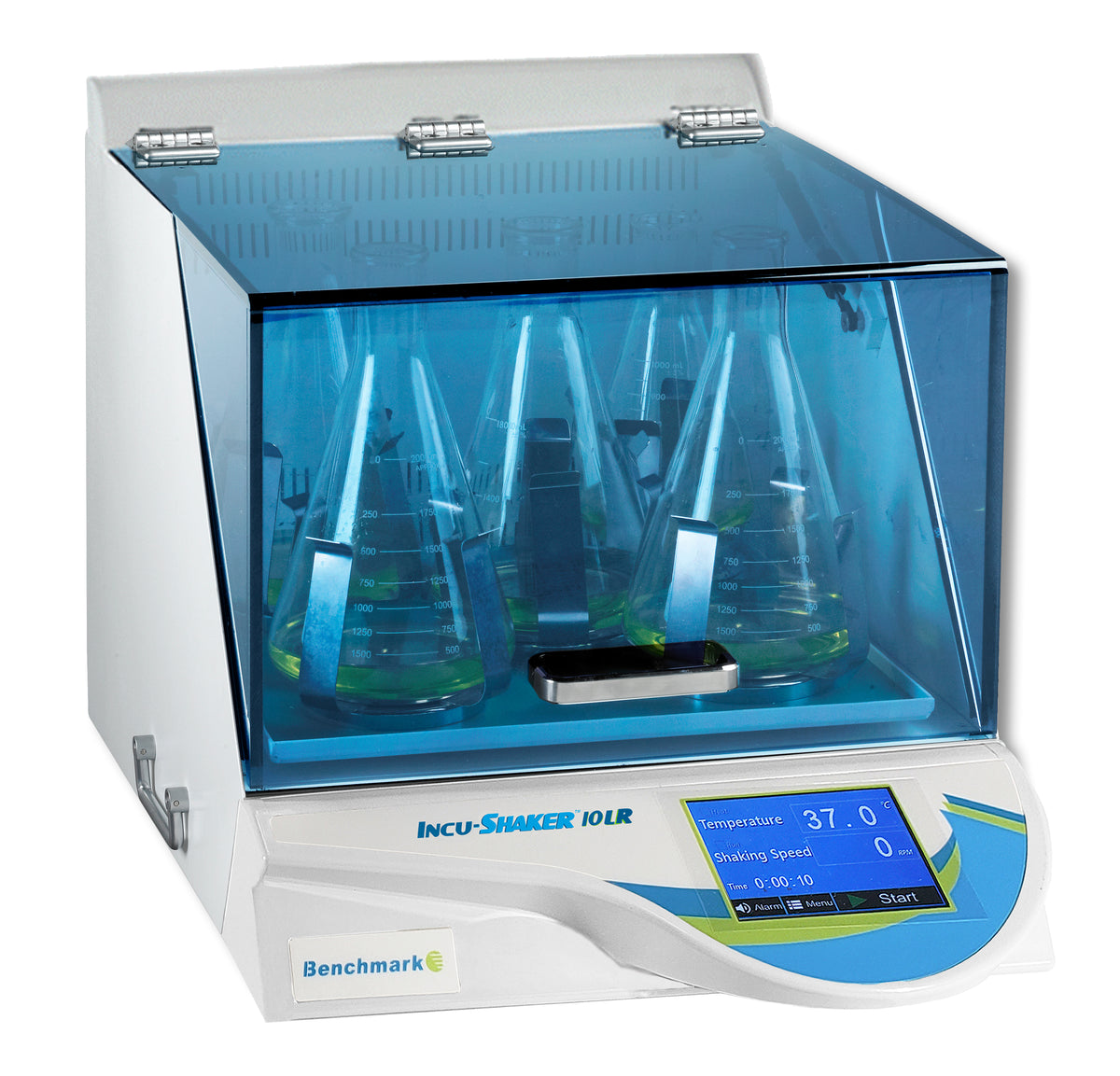

The Incu-Shaker 10LR adds refrigeration to the 10L design, extending the setpoint range from 12°C below ambient up to 60°C. Accuracy is ±0.1°C, adjustable in 0.1°C steps. A 17.8 × 17.8 in rubber mat platform carries up to five 2 L flasks, and the brushless induction drive shakes at 30–300 rpm on a 19 mm orbit. The unit draws 1.2 kW, measures 20 × 31 × 22 in, and weighs 170 lb.
Key features
- Refrigerated: ambient −12°C to 60°C
- ±0.1°C accuracy with 0.1°C setpoints
- Five 2 L flasks on a 17.8 × 17.8 in platform
- 30–300 rpm on a 19 mm orbit, 1 rpm steps
- Optional shelf for Petri dishes and microplates
Specifications
| Brand | Benchmark Scientific |
|---|---|
| Catalog number | H2012 / H2012-E |
| Speed Range | 30–300 rpm |
| Speed Increment | 1 rpm |
| Orbit | 19 mm (3/4 in) |
| Temperature Range | Ambient −12 °C to 60 °C |
| Temperature Increment | 0.1 °C |
| Temperature Accuracy | ±0.1 °C |
| Platform Size | 17.8 × 17.8 in (45 × 45 cm) |
| Flask Capacity | Up to 5 × 2 L |
| Dimensions (W × D × H) | 20 × 31 × 22 in (51 × 79 × 56 cm) |
| Height with Lid Open | 38 in (96.5 cm) |
| Weight | 170 lb (77 kg) |
| Timer | 1 min–48 hr or continuous |
| Electrical | 115 V (H2012); 230 V (H2012-E); 50–60 Hz; 1.2 kW |
| Warranty | 2 years |
Ordering information
| Catalog number | Power |
|---|---|
| H2012 | 115V, US plug |
| H2012-E | 230V, European plug |
