ULT Freezer Buying Guide: Chest vs Upright, Siting and Power

An ultra-low temperature freezer is the most consequential single purchase most labs make, and the specification that decides it is rarely capacity. At LabSupplies.com, the questions that actually determine whether a −80 °C freezer works out are how often you open it, what the room can supply electrically, and where the rejected heat goes. Get those three right and the cubic footage takes care of itself.

What is inside a ULT freezer is usually worth more than the freezer. That reframes the whole decision: you are not buying cold storage, you are buying the probability that a decade of samples survives the next power failure.

Chest, Upright or Undercounter

This is the first fork, and access frequency decides it — not volume.

Chest freezers hold their temperature far better when opened, because cold air is dense and stays in the cabinet rather than spilling out of a vertical door. That makes them the right choice for archival collections pulled occasionally. The cost is ergonomic: retrieving one box from the bottom of a deep chest means lifting the racks above it, and floor area per cubic foot is higher.

Upright freezers put every rack at arm's height behind a front door and use less floor space per cubic foot. They suit working inventory accessed daily. The trade is a larger cold-air spill on every opening and, consequently, more compressor work.

Undercounter units — the ULF101UN at 2 cu.ft. and ULF201UN at 3 cu.ft. — put deep-cold storage at the point of use in a bench run. They cost more per cubic foot than a comparable chest unit; you are paying for the placement, which is often worth it for a working aliquot store next to the bench that uses it.

Capacity and Rack Count

Rack capacity translates volume into something you can actually plan against. The chest range scales like this:

Model	Capacity	Interior	Racks	Weight

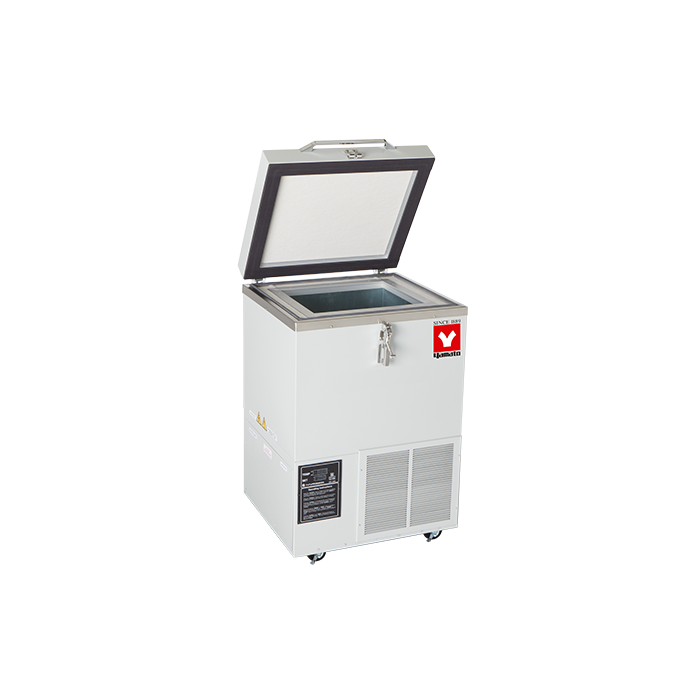

ULF001C	2 cu.ft.	56 L	6	335 lb
ULF101C	3 cu.ft.	83 L	8	500 lb
ULF201C	5 cu.ft.	142 L	15	525 lb

The chest range continues above this through the ULF301C at 9 cu.ft., the ULF401C at 12 cu.ft. and on to 22 cu.ft., with uprights from 13 to 31 cu.ft. Rack counts and dimensions for each are on the individual model pages.

Note the weight column. A 5 cu.ft. chest unit is 525 lb empty, before racks and samples. Floor loading and the route from loading dock to lab are real constraints on upper floors — worth checking before the order, not after delivery.

−85 °C or −80 °C: Check the Model

Most of the Yamato ULF range is rated −40 °C to −85 °C. The largest units are not. The 21 cu.ft. ULF701C, the 27 cu.ft. ULF901C, and the 28 and 31 cu.ft. uprights are rated −40 °C to −80 °C. For the great majority of protocols, which specify −80 °C, this is immaterial. If yours specifies colder, confirm the individual model rating rather than assuming the series figure — it changes at the top of the range.

The cooling itself is cascade refrigeration: two hermetic compressors running CFC-free R-508B and CFC- and HCFC-free R-404A. Condensing is air-cooled through two heavy-duty fans, which means no liquid coolant line and a simpler installation.

Power and Heat: The Two Site Constraints

Electrical. The ULF units are ordered for a specific supply — 115 V, 208 V or 230 V at 60 Hz single-phase, or 220 V at 50/60 Hz. This is a model selection, not a field-configurable switch, so confirm the circuit before ordering. Given two compressors and their startup current, a dedicated circuit is the sane choice.

Heat rejection. An air-cooled ULT freezer is, from the room's point of view, a heater. Everything it draws leaves as warm air through the condenser. Put three of them in a small room without cooling and ambient temperature climbs, which makes every unit work harder and shortens compressor life. Plan the room's ventilation with the purchase and respect the clearance around the condenser.

Alarms and Failure Planning

Every ULF unit ships with a battery-operated alarm that fires audibly and visually on mechanical or electrical failure, with configurable over- and under-temperature set points, a silencing switch and a battery test switch. Two features matter more than the alarm itself:

• The remote alarm relay. An alarm sounding in an empty building at 2 a.m. protects nothing. The relay lets the alert reach facilities monitoring or an on-call phone.
• Automatic power-failure recovery. A timer system restarts the unit once power returns, rather than leaving it off until someone notices.

A ½ in access port takes an external probe for independent monitoring, and CO₂ and LN₂ back-up systems, chart recorders, racks and cold-safety gloves are available as accessories. For an irreplaceable collection, a back-up system is cheap insurance against the one failure mode alarms cannot fix.

The range is built in the USA and UL Listed, with a 14-gauge zinc-coated galvanized steel chamber inside a 16-gauge steel exterior. A Platinum tier (model codes ending CP and UP) is offered across most capacities at a higher price point; check the individual model page for how a given Platinum unit differs from its standard counterpart.

Selecting the Right ULT Freezer

If your priority is…	Choose
Archival storage, opened rarely	Chest — best temperature stability on opening
Working inventory, opened daily	Upright — fastest access to a named rack
Deep cold at the point of use	Undercounter — fits a bench run
Floor space is the binding constraint	Upright — more capacity per square foot
Protocol colder than −80 °C	Any −85 °C-rated model; verify at the top of the range
Irreplaceable samples	Add remote alarm monitoring and a CO₂ or LN₂ back-up

Compare every configuration in the ultra-low temperature freezers collection. If your protocol tops out around −40 °C, the low-temperature freezer range covers that requirement at lower cost and lower power draw.

Frequently Asked Questions

Should I buy a chest or an upright ultra-low freezer?

Chest units hold temperature better during door openings because cold air sinks and stays in the cabinet, which suits archival storage accessed occasionally. Upright units give faster access to a specific rack and use less floor area per cubic foot, which suits working inventory pulled daily. Access frequency, not capacity, is the deciding factor.

How cold do ultra-low freezers actually go?

Most of the Yamato ULF range runs −40 °C to −85 °C. The largest models in the series — the 21 to 31 cu.ft. units — are rated −40 °C to −80 °C rather than −85 °C. If your protocol specifies −80 °C you have the full range to choose from; if it specifies colder, check the individual model rating before ordering.

What electrical supply does a −80 °C freezer need?

The Yamato ULF units are offered for 115 V, 208 V or 230 V at 60 Hz single-phase, plus 220 V at 50/60 Hz single-phase. Voltage is chosen at order time, not switchable afterwards, so confirm the circuit and breaker rating at the install location first. A dedicated circuit is strongly advisable given the startup load of two compressors.

How much heat does an ultra-low freezer put into the room?

Enough to matter. These units are air-cooled by two heavy-duty fans, so every watt they draw ends up as heat in the room. Several ULT freezers in one small unventilated space will raise ambient temperature, which in turn makes the compressors work harder. Plan the room's cooling alongside the purchase, and leave the manufacturer's clearance around the condenser.

What happens to my samples during a power failure?

The Yamato ULF units include an automatic timer system that restarts the freezer once power returns, and a battery-operated alarm that signals audibly and visually on mechanical or electrical failure. A relay supports remote alarm hook-up so the alert reaches facilities monitoring rather than an empty lab. For irreplaceable collections, CO₂ and LN₂ back-up systems are available as accessories.

Where are Yamato ULF freezers made?

The ULF series is built in the USA and UL Listed. Cabinet construction is a 14-gauge zinc-coated galvanized steel chamber inside a 16-gauge steel exterior with a powder-coated cool gray finish.

Setting up a new lab? Our LaunchLab program gives you 15% off everything for 12 months, including cold storage. See if you qualify →

Ready to spec a ULT freezer? Shop ultra-low temperature freezers at LabSupplies.com — authorized Yamato Scientific dealer, shipping from US inventory. Browse the collection →

As an authorized Yamato Scientific dealer, we can work through capacity, voltage, siting and back-up options with you before you commit to a unit this consequential. Reach out at support@labsupplies.com.
