Freezer Boxes: Cardboard vs Polypropylene vs Polycarbonate
Freezer boxes fall into three material families, and the right one depends almost entirely on how cold your samples go and how many freeze-thaw cycles the box will see. Cardboard is the low-cost choice for -20°C and routine -80°C use. Corrugated polypropylene survives repeated -80°C cycling and wipes down after spills. Polycarbonate is the only family rated for liquid nitrogen vapor phase at -196°C.
Below is a straight material-by-material comparison, plus how to match box height to your existing rack so you don't lose freezer capacity.
The three material families
Cardboard
Coated cardboard boxes are the workhorse of -20°C and -80°C storage. They ship flat, cost the least per position, and are easy to write on directly. The tradeoff is moisture: cardboard absorbs condensation over repeated openings, and a box that has been frosted and thawed several times will soften, swell, and eventually bind inside a rack. Treat them as consumable rather than permanent infrastructure.
Cardboard is a poor choice for liquid nitrogen. Boxes stored in LN2 vapor phase pick up moisture that can freeze the lid shut, and any box that contacts liquid phase is unusable.
Corrugated polypropylene
Corrugated PP is the middle option and the one most labs should default to for working -80°C inventories. It resists moisture completely, tolerates repeated freeze-thaw without deforming, and can be decontaminated with standard disinfectants. Many designs ship flat-pack and assemble without tools, so you get plastic durability without paying for shipping air.
PP film boxes are a variant worth knowing: a rigid frame with a waterproof film construction, rated to -80°C, that costs less than solid polycarbonate while still being wipeable.

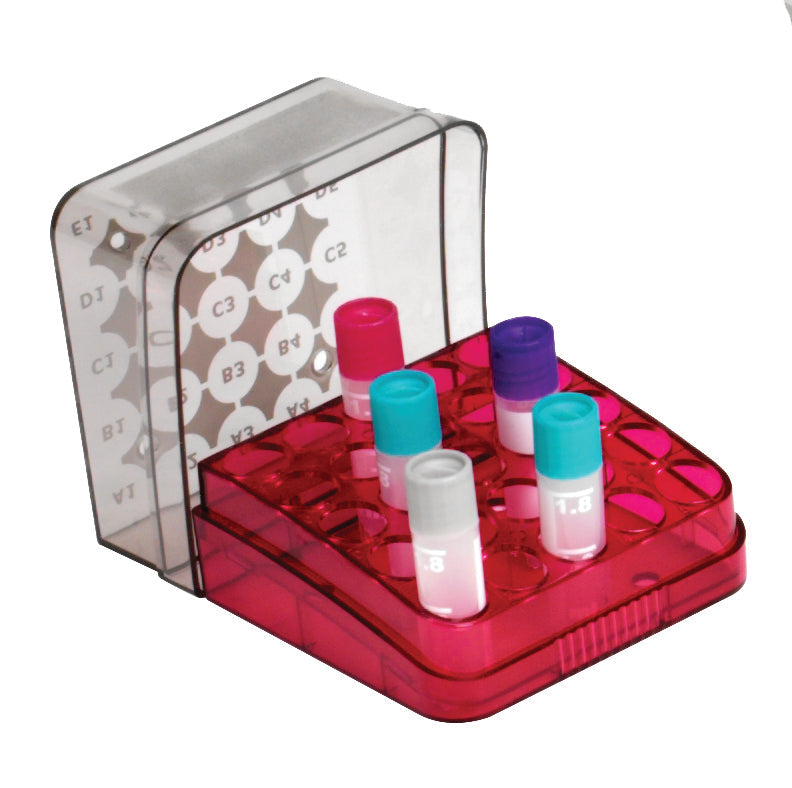

Polycarbonate
Polycarbonate is the only family you should put in liquid nitrogen vapor phase. It holds dimensional stability down to -196°C, is autoclavable, and lasts for years of cycling. It is the highest cost per position and the heaviest, so reserve it for irreplaceable archival material rather than routine working stock.
Comparison at a glance
| Property | Cardboard | Corrugated PP | Polycarbonate |
|---|---|---|---|
| Typical rating | -20°C to -80°C | -80°C | -196°C (vapor phase) |
| Moisture resistance | Poor | Excellent | Excellent |
| Reusable | Limited | Yes | Yes, many cycles |
| Autoclavable | No | No | Yes |
| Ships flat | Yes | Usually | No |
| Relative cost | Lowest | Middle | Highest |
Match the box to the tube, not the other way round
Well count is set by tube diameter, not by preference. Standard grids are 81-place (9×9) for 1.5–2 mL microtubes and cryovials, 100-place (10×10) for 0.5 mL tubes, 25-place for 5 mL tubes, and 36-place for 15 mL conicals. Dropping a 2 mL vial into a 100-place grid means it will not seat; running 0.5 mL tubes in an 81-place grid wastes roughly a fifth of your freezer volume.
If your tube format changed but your boxes did not, replacement cryogenic box dividers are far cheaper than replacing whole boxes. Dividers are available in 49, 64, 81, and 100-well configurations, and there are separate divider sets for 15 mL and 50 mL conicals.
Box height determines rack capacity
Freezer boxes come in 2-inch and 3-inch heights, and racks are built for one or the other. A 2-inch box in a 3-inch rack slot leaves an inch of dead air on every shelf, which across a full upright freezer is a meaningful loss of capacity. Before ordering boxes, confirm which height your racks were specified for — we stock 2-inch upright racks, 3-inch upright racks, and chest freezer racks in stainless steel.
Building out cold storage from scratch? Browse the full freezer boxes and racks collection to spec boxes, dividers, and racks together as one system.
Labeling and inventory that survives the freezer
Whatever material you choose, the box is only as useful as its label. Ordinary adhesive labels lift at -80°C and inks smear on thaw. The NCI's biospecimen guidance stresses that container and label integrity across the storage lifecycle is a core determinant of specimen quality, not an administrative detail (NCI Best Practices for Biospecimen Resources). Cryo-rated labels and a written box map beat handwriting on a lid that will frost over.
Biosafety practice for storing infectious or potentially infectious material is set out in the CDC and NIH Biosafety in Microbiological and Biomedical Laboratories (BMBL) manual, which should govern secondary containment and labeling for any regulated agent going into your freezer.
Related guides
- Lab Storage & Safety Guide: Compliance & Best Practices — the pillar guide this post sits under
- Cryogenic Vial Selection: Materials, Seals & Storage
- Tube Racks: Universal, Floating & Stackable Options
- Lab Labeling Systems: Surviving Autoclaves, Freezers & Chemicals
Frequently asked questions
Can cardboard freezer boxes go in liquid nitrogen?
No. Cardboard absorbs moisture that freezes the lid shut in vapor phase and disintegrates in liquid phase. Use polycarbonate for any liquid nitrogen storage.
What is the difference between corrugated polypropylene and PP film boxes?
Both are waterproof and rated to -80°C. Corrugated PP is a solid fluted plastic sheet and is more rigid; PP film uses a lighter waterproof film construction over a frame and typically costs less. Either works for routine -80°C storage.
How many wells should my freezer box have?
Match the grid to your tube diameter: 100-place for 0.5 mL tubes, 81-place for 1.5–2 mL microtubes and cryovials, 25-place for 5 mL tubes, and 36-place for 15 mL conicals.
Are freezer boxes autoclavable?
Polycarbonate boxes are autoclavable. Cardboard and polypropylene boxes are not — PP softens well below autoclave temperature.
Do I need 2-inch or 3-inch boxes?
It is determined by your rack, not your samples. Check the rack specification first; mixing heights leaves unusable dead space on every shelf.
Get the right boxes the first time
If you are unsure which material or grid fits your tubes and racks, our team can spec it against your freezer model. Shop freezer boxes, dividers and racks or contact us with your tube format and rack dimensions.
By the LabSupplies.com Technical Team
