Mixing & Stirring Equipment: Magnetic Stirrers, Vortexers & Shakers

At LabSupplies.com, mixing and stirring equipment is one of the most frequently under-specified categories in lab purchasing — not because the choices are complex, but because researchers default to the equipment they used in a previous lab without evaluating whether it is the right tool for the current application. A magnetic stirrer used for a viscous polymer solution stalls mid-experiment. A high-speed vortexer applied to a shear-sensitive protein sample destroys activity. An orbital shaker selected without verifying incubator compatibility runs unreliably at 37°C. This guide covers every mixing and stirring equipment category — magnetic stirrers, hot plate stirrers, vortex mixers, orbital shakers, rocker platforms, and shaking incubators — with application-specific selection criteria for each.

The Mixing Equipment Decision Framework

Before selecting any mixing or stirring device, three application parameters determine which equipment category is correct:

• Volume and vessel type — the mixing device must be appropriate for the volume being mixed and the vessel format in use (microcentrifuge tube, conical tube, flask, bottle, beaker, microplate)
• Mixing intensity required — vigorous vortexing, gentle rocking, continuous stirring, and periodic inversion are functionally different operations; using a higher-intensity device than the application requires damages shear-sensitive samples
• Environmental requirements — whether mixing must occur at controlled temperature, inside a CO₂ incubator, under sterile conditions, or at refrigerator temperature determines which device formats are compatible

Magnetic Stirrers and Hot Plate Stirrers

Magnetic stirrers are the most universally used mixing devices in the laboratory. A rotating magnetic field beneath the plate drives a PTFE-coated magnetic stir bar placed inside the vessel, providing continuous, unattended stirring without any mechanical connection to the vessel. They are the correct tool for buffer preparation, reagent dissolving, titration, continuous reaction monitoring, and any application requiring sustained stirring of low-to-moderate viscosity liquids in beakers, flasks, or bottles.

Analog vs. digital magnetic stirrers:
Analog stirrers use a dial control with no closed-loop feedback — the actual RPM varies with the viscosity and load of the solution being stirred. Digital stirrers incorporate a tachometer feedback system that actively maintains the set RPM regardless of changes in solution viscosity or load. For any protocol where mixing speed is a controlled variable, or for GLP documentation requiring recorded process parameters, digital stirrers are strongly preferred over analog units.

Hot plate stirrers:
Hot plate stirrers combine a magnetic stirrer with a heated ceramic or aluminum plate surface, allowing simultaneous heating and stirring. They are essential for applications requiring dissolution at elevated temperature, heated buffer preparation, and reflux setups. Key specifications to verify when selecting a hot plate stirrer:

• Maximum temperature — standard hot plate stirrers reach 300–370°C surface temperature; verify the required temperature range for the application
• Temperature accuracy and stability — digital models with closed-loop temperature feedback maintain set temperature within ±1–2°C; analog models may drift significantly
• External temperature probe compatibility — for precise solution temperature control, select a hot plate stirrer with an external Pt1000 or Pt100 probe input so temperature is measured in the solution rather than at the plate surface
• Plate material — ceramic-coated plates are chemically resistant and easy to clean; aluminum plates heat more uniformly but require chemical-resistant coating for acid and solvent use

Stir bar selection:
The stir bar is the most overlooked component in magnetic stirring. The correct stir bar length is approximately one-third to one-half the internal diameter of the vessel base. A stir bar that is too short for the vessel creates a localized mixing vortex without turning over the full volume; a bar that is too long hits the vessel walls and stalls. All standard lab stir bars use a PTFE coating for chemical resistance. Specialty stir bar formats include:

• Octagonal stir bars — general purpose; good mixing action across a wide speed range
• Egg-shaped stir bars — better for round-bottom flasks; self-centers in the vessel
• Cross-shaped (Spinwing) stir bars — reduced dead volume at the vessel bottom; used in small-volume or microreactor applications
• Micro stir bars — 5–10 mm; for microcentrifuge tube and small-volume vial stirring

Vortex Mixers

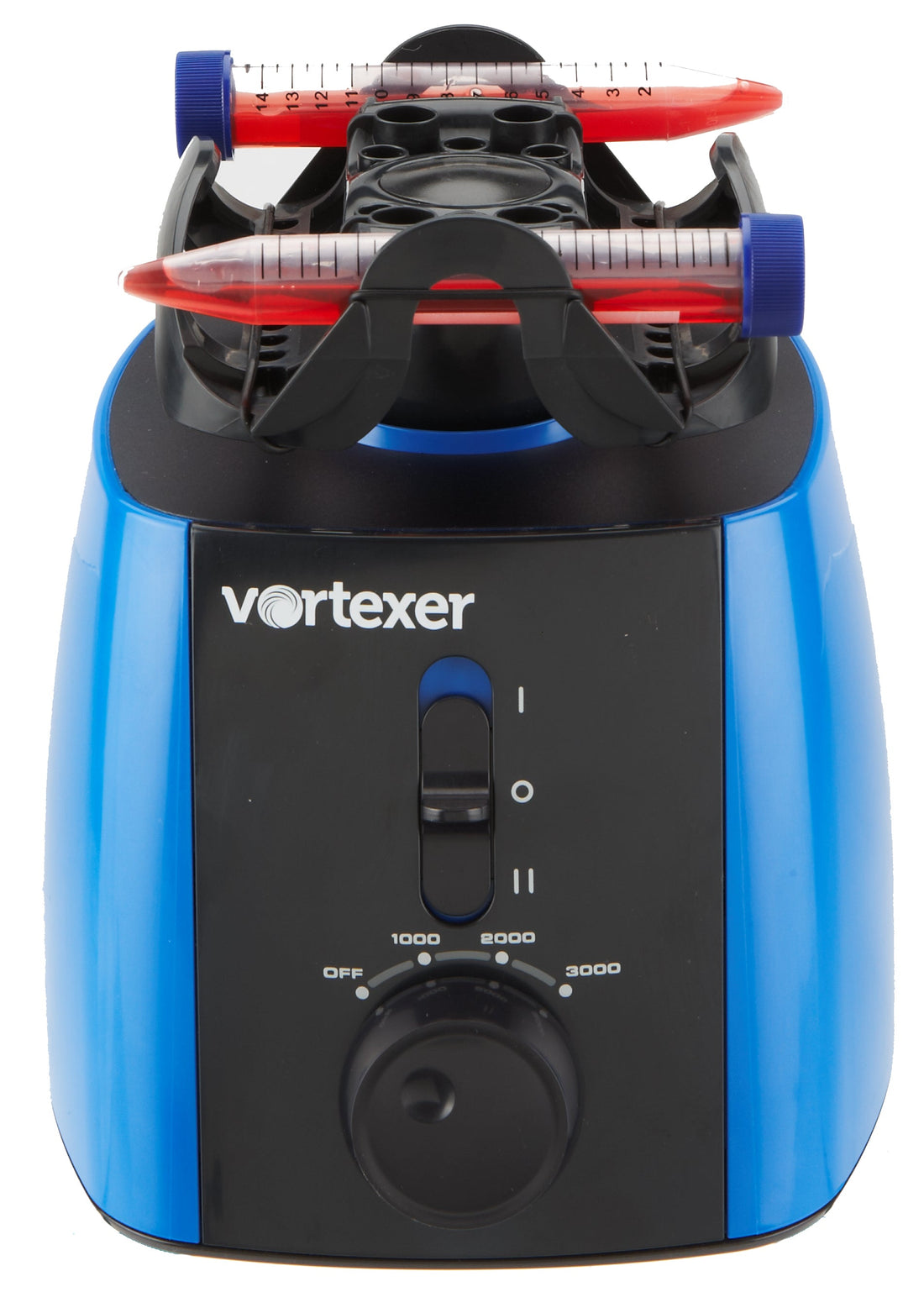

A vortex mixer — also called a vortexer — generates vigorous circular mixing by driving an eccentric cup attachment at high speed (typically 1,000–3,200 RPM), creating a vortex within the tube or vessel pressed against the cup. Vortexers are the correct tool for rapid resuspension of cell pellets, mixing of small-volume reagent tubes, homogenizing precipitates, and any application requiring brief, high-intensity mixing of tube-format samples.

Continuous vs. touch-mode operation:
Most vortex mixers operate in two modes: continuous mode, where the cup spins continuously at the set speed, and touch mode, where the cup only activates when downward pressure is applied to the cup. Touch mode allows one-handed tube-by-tube vortexing without changing the speed setting between tubes — the standard mode for routine tube mixing. Continuous mode is used when multiple tubes are held simultaneously in a multi-tube attachment or when an automated hands-free application requires sustained vortexing.

Multi-tube vortexers and platform attachments:
Standard vortexers accept a single tube cup. Multi-tube vortex adapters and platform attachments allow simultaneous vortexing of 6, 12, 24, or more tubes in a single run. For workflows requiring batch processing of many samples — cell pellet washes, extraction steps, bead-based assays — a vortexer with a multi-tube platform attachment significantly increases throughput compared to sequential single-tube vortexing.

When not to use a vortexer:
Vortexing generates high shear forces that can denature proteins, lyse cells, shear DNA, and disrupt antibody-antigen complexes. Never vortex: intact cell suspensions for culture work, genomic DNA samples, antibody stocks, enzyme solutions where activity must be preserved, or any sample where shear sensitivity has not been evaluated. Use a rocker or end-over-end rotator for gentle mixing of these sample types.

Orbital Shakers

Orbital shakers move the platform in a horizontal circular motion, generating consistent mixing across all vessels on the platform without the tipping or wave action of a rocker. They are the standard mixing device for cell culture in Erlenmeyer flasks, large-volume buffer mixing in bottles, protein expression cultures, and any application requiring sustained, consistent agitation of multiple vessels simultaneously.

Key orbital shaker specifications:

Specification	What It Determines	Typical Range
Speed range (RPM)	Mixing intensity and aeration rate	25–500 RPM depending on model
Orbit diameter	Mixing aggressiveness at a given RPM; larger orbit = more aeration at lower RPM	19 mm, 25 mm, 50 mm common
Platform capacity	Maximum load in kg and maximum vessel size/number	2–30 kg; varies by model
Incubator compatibility	Whether the unit can operate inside a CO₂ incubator at 37°C and elevated humidity	Stackable incubator models available
Timer and control	Timed run capability; digital vs. analog speed control	Analog dial to digital with display and timer

Cell culture orbital shakers:
For bacterial and yeast cultures, orbital shakers typically run at 150–250 RPM with a 19–25 mm orbit diameter. Higher RPM and larger orbit diameter increases dissolved oxygen transfer, which is critical for aerobic culture growth rate. For mammalian cell suspension cultures, speed should be reduced to 50–150 RPM to minimize shear stress on cells. Incubator-compatible orbital shakers must be rated for
