Handheld Refractometers: Brix, Salinity and Why ATC Matters
A handheld refractometer turns two or three drops of sample into a concentration reading in seconds, and at LabSupplies.com the buying decision comes down to three things: the scale (Brix, salinity or a specialty scale), the range on that scale, and whether the instrument needs automatic temperature compensation. Get the scale and range right and ATC usually decides itself.
What a Refractometer Measures: Refractive Index
Every refractometer measures refractive index: how much light bends as it passes from the prism into the sample. The scale you look at is a conversion of that index into the unit your process uses. On a Brix scale, 1° Brix corresponds to 1% sucrose by weight. On a salinity scale, the conversion is built for sodium chloride. Measure a solution that is not what the scale assumes — fruit juice with acids, or brine with other dissolved salts — and the number is an apparent value, consistent and useful for trending, but not a true composition. That is the right way to think about any refractometer reading outside its calibration liquid.
Choosing the Scale and the Range
The VEE GEE 43000 Series covers the common scales with narrow and wide ranges. A narrower range spreads the same scale over more of the field of view, which makes it easier to read precisely, so choose the narrowest range that brackets everything you expect to measure.
| Application | Scale and range | Part number |
|---|---|---|
| Juices, beverages, wort, cutting fluids | Brix 0 to 32% (ATC) | 43002 (BTX-1) |
| Low-sugar samples, dilute solutions | Brix 0 to 10% | 43009 (BX-10) |
| Syrups, jams, concentrates | Brix 28 to 62% / 58 to 92% | 43003 (BX-2) / 43005 (BX-3) |
| Brine, food salting | NaCl 0 to 10% / 0 to 28% | 43033 (SX-1) / 43035 (SX-2) |

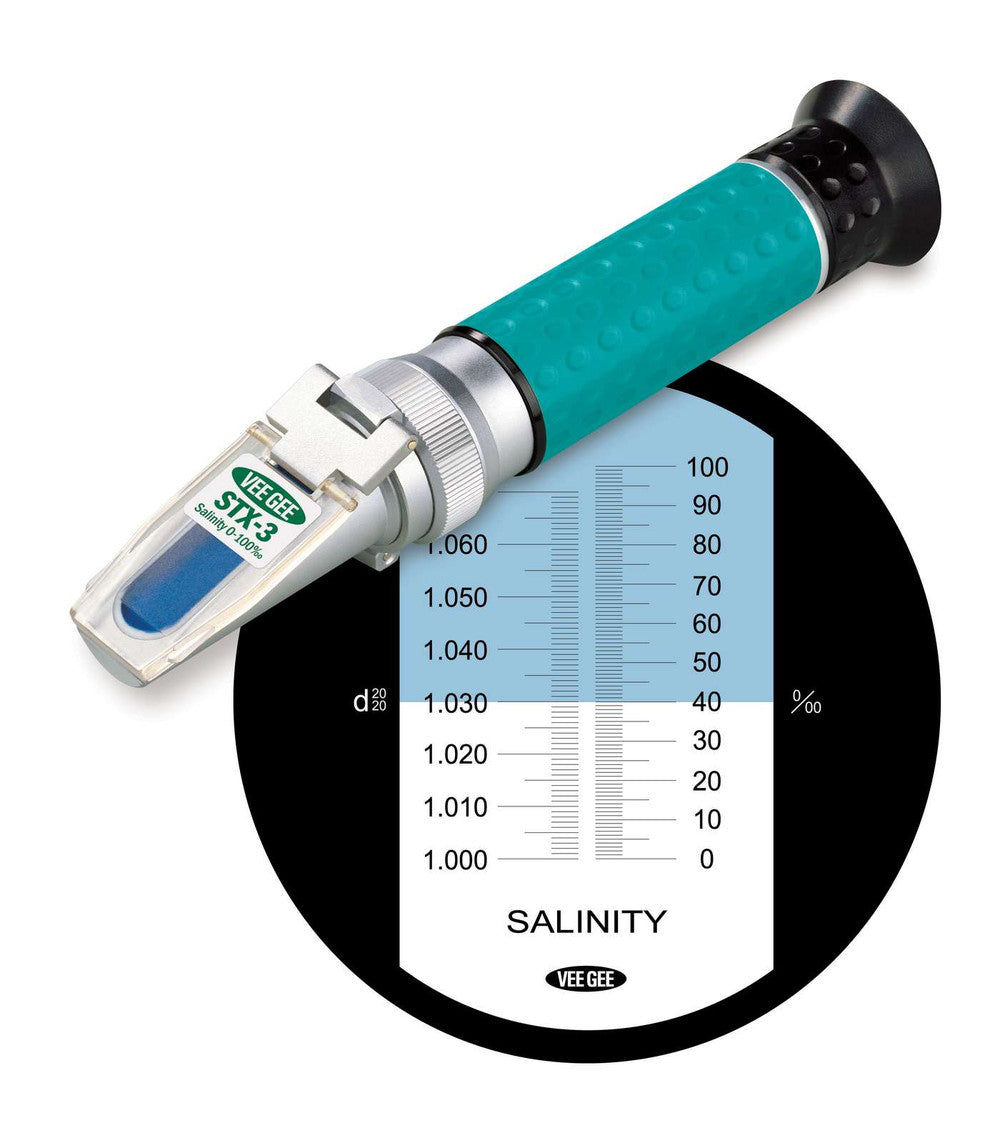

| Seawater, aquaculture | Salinity 0 to 100 ppt (ATC) | 43036 (STX-3) |
| Honey moisture | 58 to 92% Brix / 13 to 27% water (ATC) | 43006 (HMX-1) |
| Brewing wort as gravity | Brix 0 to 32% and SG 1.000 to 1.130 (ATC) | 43004 |
| Diesel exhaust fluid | Urea 0 to 60% | 43071 (URX-60) |
The Brix and salt models are grouped on the 43000 Series Brix and NaCl refractometer listing; the honey, seawater and refractive-index models sit on the specialty handheld refractometer listing (43006, 43036, 43055); and the brewing model is the 43004 Brix / specific gravity refractometer. Automotive and fleet users have the coolant and battery acid models (43062, 43064).
Why ATC Matters
Refractive index changes with temperature, so the same sample reads differently warm and cold. Refractometer scales are referenced to 20°C. You have two ways to deal with that:
- ATC models (the "T" in BTX-1, BTX-20, STX-3) correct the reading back to 20°C automatically within their compensation range. They are the right choice for field work, production floors and any sample that is not at room temperature when you test it.
- Non-ATC models read correctly when the sample and prism are at 20°C, or when you apply a temperature correction. In a temperature-controlled lab where samples equilibrate on the bench, they work well, and VEE GEE's patented Zero-Ring lets you re-zero them without a tool.
Two habits protect accuracy on either type. Hold the refractometer by its rubber grip rather than the metal body, because hand heat moves the prism temperature. And give the sample 30 seconds on the prism before reading, so sample and prism reach the same temperature.
Calibration You Can Document
Zero the instrument with distilled water at 20°C — water should read 0 on a Brix scale. That confirms the bottom of the scale only. For work where the top of the range matters, such as syrup or honey, a high-point check is worth adding: the 45000-OS025 refractometer standard is certified at 60.0% Brix (1.4420 nD at 20°C), oil-based so it does not evaporate on the prism, and supplied with a letter of NIST traceability for audit files.
The daylight plate — the hinged cover that spreads the sample — wears and scratches with use, and a damaged plate traps bubbles and blurs the boundary line. Model-specific replacement daylight plate kits (43000-DLBTX1, 43000-DLSX1 and others) restore it without replacing the instrument.
When to Step Up to Digital or Benchtop
An optical refractometer relies on the operator reading a light-dark boundary, and two operators can read the same sample slightly differently. When several people test the same product, or results feed a release decision, a digital instrument removes that variable. The MDX digital Brix refractometers (48101 for 0 to 50%, 48102 for 0 to 90%) read in under three seconds with ATC and an IP65/67 rating for wash-down areas. Salinity, honey and wine, multi-sugar and DEF versions follow the same design.
For refractive index itself rather than a converted scale — oils, solvents, raw-material identity checks — the C10 benchtop Abbe refractometer reads 1.300 to 1.700 nD. Clinical labs measuring urine specific gravity and serum protein use a dedicated clinical scale such as the LW Scientific CTL-REFM-PRSG.
When several sites or lines run the same test, buy the same model and range for all of them, so a reading means the same thing everywhere and spare daylight plates fit every unit. The complete range is in refractometers, with the VEE GEE line under Heathrow Scientific refractometers.
Frequently Asked Questions
What does Brix mean on a refractometer?
One degree Brix corresponds to one percent sucrose by weight in solution. A Brix refractometer measures refractive index and converts it to that scale. On samples that contain acids, salts or other dissolved solids, the reading is an apparent Brix value that is consistent for trending but is not a pure sucrose concentration.
Do I need a refractometer with ATC?
If samples or the instrument will not be at 20°C when you test, yes. Automatic temperature compensation corrects readings back to the 20°C reference. Non-ATC models are accurate when sample and prism are at 20°C or when you apply a correction, which suits temperature-controlled labs where samples equilibrate first.
How do I calibrate a handheld refractometer?
Place distilled water on the prism at 20°C and adjust the zero so the boundary sits at 0 on a Brix scale. That checks the bottom of the scale. For high-range work, add a check with a certified standard such as a 60% Brix oil-based standard, which confirms accuracy where your samples read.
Which Brix range should I choose?
Choose the narrowest range that brackets every sample you expect to measure. A 0 to 32% Brix model covers most juices, beverages and wort. Dilute samples read more precisely on 0 to 10%, while syrups, concentrates and honey need 28 to 62% or 58 to 92%.
When is a digital refractometer worth it over a handheld optical one?
When more than one person tests the same product, or the result decides whether a batch is released. A digital refractometer removes the operator's judgement of the light-dark boundary, displays temperature alongside the reading and, on rated models, tolerates wash-down areas.
Setting up a new lab? Our LaunchLab program gives you 15% off everything for 12 months, refractometers and standards included. See if you qualify →
Matching a refractometer to your product? Compare Brix, salinity, specialty and digital models side by side. Browse refractometers →
Send your sample type and the readings you expect to support@labsupplies.com and we will match the scale, range and part number.
