Alumina vs Diamond Polishing: Choosing the Final Step and Buying Suspension in Bulk
The final polishing step is where a metallographic sample either shows its microstructure or shows your preparation, and at LabSupplies.com the alumina versus diamond question comes down to one property: how much harder the hard phases are than the matrix around them. That single fact decides the abrasive, and it decides it more reliably than sample category, budget or habit.
The Decision: Hardness Contrast, Not Sample Type
Alumina is hard, but it is not as hard as a carbide. On a sample where matrix and second phase polish at similar rates, that does not matter and alumina gives an excellent finish for much less money. On a sample with carbides, nitrides, ceramic inclusions or a hard coating, alumina removes the softer matrix faster than the hard particles, and those particles end up standing proud of the surface. That height difference is relief, and it is the defect that makes a specimen impossible to focus in one plane.
| Situation | Choose | Why |
|---|---|---|
| Routine carbon and low-alloy steels | Alumina | Little hardness contrast; alumina finishes cleanly and costs less per sample |
| Tool steels, carbide-bearing alloys | Diamond, then alumina finish | Diamond keeps carbides level with the matrix |
| Ceramics, hard coatings, composites | Diamond | Alumina is too soft to cut the hard constituent at a comparable rate |
| Soft non-ferrous — aluminium, copper | Fine alumina | Diamond can embed in a soft matrix; finer alumina is the safer finish |
Alpha and Gamma Alumina Are Not the Same Thing
Two crystalline forms, two jobs. Alpha alumina is the harder, more aggressive form, supplied at 1.0 micron for intermediate work and 0.3 micron as the common final step. Gamma alumina is softer and finer, supplied at 0.05 micron for the finest finish and for softer materials.

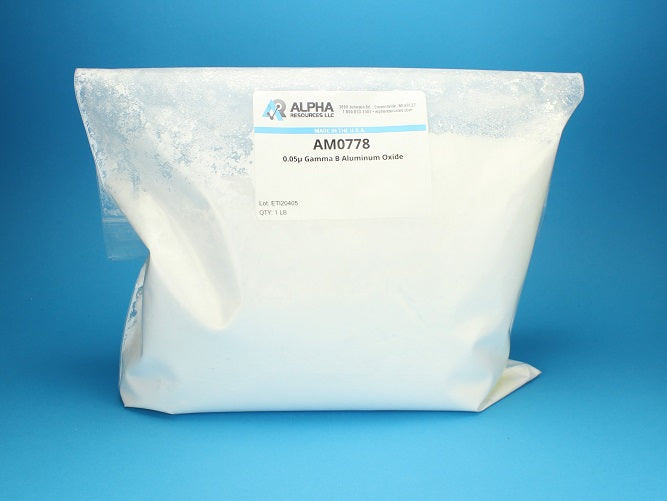

We stock both as powders and as ready-made suspensions. For powders, Alpha C aluminum oxide at 1.0 micron in a 1 lb container (AM0786) covers intermediate polishing, and Gamma B at 0.05 micron (AM0778) is the fine finish. Suspensions save the mixing step: 0.3 micron alpha alumina suspension in 6 oz (AM0827) and 0.1 micron (AM0833) are the working sizes.
Diamond: Slurry or Film
Diamond comes in two delivery formats and they suit different work. Slurries charge a cloth and are the general-purpose choice — an oil-based 30 micron monocrystalline slurry (AMD353) for coarse diamond work, and a finer 1 micron E-Diamond slurry (AMD309) for the intermediate step. Lapping films carry diamond fixed to a backing, which keeps the abrasive in one plane and makes them the flatter option for edge retention and for very hard, brittle materials — stocked from 3 micron (AM1805) down to 0.5 micron (AM1807) in 8 inch PSA.
A caution that catches people out on soft metals: diamond can embed in a soft matrix and then appear as inclusions that are not there. On aluminium, copper and similar, a fine alumina finish is usually the safer call.
The Cloth Is Half the Result
Abrasive and cloth work as a pair, and choosing one without the other is how labs end up blaming the suspension. A napped cloth holds more suspension and gives a brighter finish, but the nap lets the abrasive ride over hard particles and it is the classic route to relief. A low-nap or hard-woven cloth keeps the abrasive in-plane and holds flatness, at the cost of some brightness.
- White Satin PSA cloth, 8 in (AMR0336) — low-nap, for flatness-critical final work.
- Napped Alpha Cloth, 12 in plain back (AM0539) — carries suspension well for a bright final polish.
- Green felt PSA, 12 in (AMR1002) — for fine alumina finishing.
Keep polishing cloths strictly separated by abrasive and by grade. A cloth that has seen 30 micron diamond will put 30 micron scratches into a 0.05 micron finish, and that contamination is the single most common cause of a "suspension problem" that turns out not to be one.
Bottles or Gallons: When Bulk Is the Right Call
Suspensions are stocked in 6 oz bottles and in gallons, and powders in 1 lb and 5 lb. The rule is simple, and it is about sequencing rather than volume:
| Stage you are at | Buy | Reason |
|---|---|---|
| Validating a method | 6 oz bottles, 1 lb powder | You may change abrasive or particle size; small formats keep that cheap |
| Method fixed, throughput steady | Gallon suspension (AM0834), 5 lb powder (AM0787) | Consumption is predictable; bulk is the sensible reorder unit |
| Running two methods | Bulk the shared step, bottles the specialised one | Only the common step has predictable volume |
Gallons are also available in the finer grade — 0.1 micron alumina suspension by the gallon (AM0835) — but the same caution applies: commit to bulk after the method is settled, not before. Suspensions also need sensible storage; keep them from freezing and re-disperse before use, because a settled suspension does not polish the way the label says it will.
The full range is in metallographic abrasives and polishing, alongside mounting and sample prep consumables.
Frequently Asked Questions
When should I use diamond instead of alumina for polishing?
Use diamond when the sample contains phases much harder than its matrix — carbides, nitrides, ceramics, hard coatings and many composites. Alumina is softer than those phases, so it removes the matrix faster than the hard particles and leaves them standing in relief. Diamond cuts hard and soft constituents at more similar rates, which is what keeps the surface flat.
What is relief, and how do I know I have it?
Relief is height difference across the polished face where constituents polished at different rates — hard particles standing proud, or soft phases and mounting resin recessed. Under the microscope it shows as an inability to focus the matrix and a second phase in the same plane, and as shadowing or bright halos at phase boundaries. It is a preparation artefact, not microstructure.
What alumina particle size should the final step use?
Final polishing commonly finishes at 0.3 micron alpha alumina, with 0.05 micron gamma alumina used where the method needs a finer finish or the sample is soft. Coarser 1.0 micron alumina is an intermediate step, not a finish. Match the step to what the previous stage left rather than jumping straight to the finest grade.
What is the difference between alpha and gamma alumina?
They are different crystalline forms. Alpha alumina is the harder, more aggressive form used at 1.0 and 0.3 micron for intermediate and final polishing. Gamma alumina is softer and finer, supplied at 0.05 micron for a final finish on softer materials or where the method specifies the finest possible surface.
When does buying suspension by the gallon make sense?
Once the method is fixed and the consumption rate is measured. Bottles are the right format while you are still validating which abrasive and particle size the work needs, because a gallon of the suspension you decide against is a far more expensive mistake than a few small bottles. After the method is settled and throughput is steady, the gallon is the sensible reorder unit.
Setting up a new lab? Our LaunchLab program gives you 15% off everything for 12 months, polishing consumables included. See if you qualify →
Ready to move a settled method to bulk? Compare bottle and gallon formats across the range. Browse the collection →
Tell us your sample material and where relief is showing up at support@labsupplies.com and we will help you match abrasive, particle size and cloth before you commit to a format.
