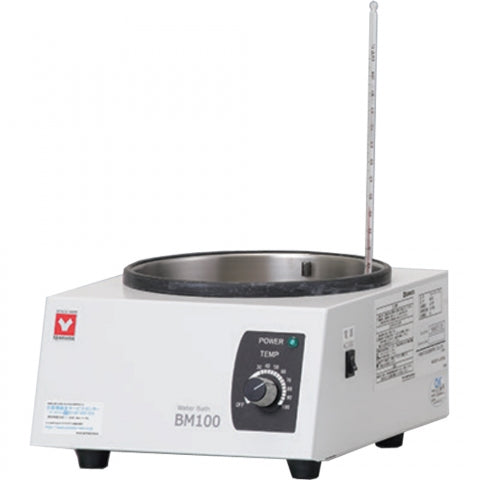

Water Bath Analog 4L Overview
The Water Bath Analog 4L (model BM100) is a compact benchtop water bath from Yamato Scientific, sold by LabSupplies.com as an authorized dealer. Engineered with a 4 L tank and an operating range of ambient +5 to 95°C, this unit handles routine sample warming and incubation. Analog control keeps daily operation straightforward for technicians.
Construction pairs a chrome-free electrogalvanized carbon steel exterior, finished in a chemical-proof baked-on coating, with an aluminum alloy protective reservoir cover and resin plates. A 500W SUS316 pipe heater drives temperature, while a liquid-expansion sensor and ON/OFF control regulate it to ±2°C at 60°C. Internal tank dimensions measure I.D. 200 × D120 mm.
Model BM100 runs on 115V; BM110 covers 220V installations. Each ships at roughly 10 lbs with a 15 × 11 × 8 in footprint that fits crowded benches. Manufactured in Japan, the bath comes from Yamato's ISO 9001:2015 and ISO 14001:2015 certified production. Safety devices include a bath protection cover, 7A overcurrent fuse, and thermal fuse.
Key Features
- Analog control: simple ON/OFF temperature regulation with glass thermometer indication for direct readout.
- 4 L protected tank: I.D. 200 × D120 mm reservoir with a protection cover that guards against contact burns.
- 500W SUS316 heater: stainless pipe heater paired with a liquid-expansion sensor holds ±2°C at 60°C.
- Included bar thermometer: 10–110°C thermometer with immersion line verifies actual bath temperature.
- Layered safety: bath protection cover, 7A overcurrent fuse, and thermal fuse protect operator and unit.
- Voltage options: BM100 for 115V circuits, BM110 for 220V installations.
How to Choose the Right Water Bath
A water bath should match the volume, temperature window, and bench power of your workflow. Use these axes to confirm the right configuration before ordering.
- Capacity: the 4 L tank suits small batches of tubes and flasks; size the reservoir to your typical sample load and vessel count.
- Temperature range: ambient +5 to 95°C covers thawing, incubation, and warming protocols below boiling.
- Control type: analog ON/OFF control favors routine, set-and-hold tasks over programmable ramping.
- Voltage: select BM100 for 115V or BM110 for 220V to match your facility's circuit.
- Footprint: a 15 × 11 × 8 in profile fits tight benches; verify clearance and drainage access.
- Safety: the protection cover and dual fuses matter for unattended or shared-bench use.
Specifications
| Specification | Detail |
|---|---|
| Capacity | 4 L |
| Voltage | 115V |
| Temperature Accuracy | ±2°C (at 60°C) *2 |
| Temperature Control System | ON/OFF control |
| Temperature Setting / Display | Analog setting (glass thermometer indication) |
| Heater | SUS316 pipe heater, 500W |
| Sensor | Liquid expansion type |
| Safety Devices | Bath protection cover; overcurrent protection (7A fuse); thermal fuse |
| Internal Tank Dimensions | I.D. 200 × D120 mm |
| Included Accessories | Bar thermometer (10–110°C) with immersion line |
| Operating Temperature Range | ambient +5 to 95°C *1 |
| Material | Chrome-free electrogalvanized carbon steel sheet metal, finished in chemical-proof, baked-on coating (exterior) Aluminum alloy (protective reservoir cover) Resin (plates) |
| Country of Origin | Japan |
| GTIN (Barcode) | 797059928569 |
| Shipping Weight | 10 lbs |
| Dimensions (L × W × H) | 15 × 11 × 8 in |
| Component Size | 4 L |
*1 No-load operation of bath only; maximum temperature varies with circumstances and operating conditions. *2 Measured under ambient temperature 23°C ±5°C, humidity 65%RH ±20%, per Yamato Scientific test conditions.
Available Sizes and Configurations
| SKU | Configuration | Pack |
|---|---|---|
| BM-100 | 115V | EA |
| BM-110 | 220V | EA |
Documentation
More in This Series
Why Buy From LabSupplies.com
LabSupplies.com supplies the genuine Yamato Scientific BM100 and BM110 with manufacturer backing and fast fulfillment. Order directly online and skip the back-and-forth of a sourcing request.
- Authorized Yamato Scientific dealer — genuine unit with full manufacturer warranty.
- In stock and ready to ship from USA inventory.
- Dedicated lab-equipment specialists available for spec and configuration questions.
- Both 115V and 220V models available for direct purchase.
Frequently Asked Questions
What is the temperature range of the BM100 water bath?
The BM100 operates from ambient +5 to 95°C. An included 10–110°C bar thermometer with immersion line lets you verify the actual bath temperature.
How accurate is the temperature control?
Temperature accuracy is ±2°C at 60°C. The bath uses a liquid-expansion sensor with ON/OFF control and analog setting indicated by a glass thermometer.
What is the tank capacity and internal size?
The tank holds 4 L. Internal dimensions measure I.D. 200 × D120 mm, and the overall unit footprint is approximately 15 × 11 × 8 inches.
Does the BM100 run on a standard 115V circuit?
Yes, the BM100 is the 115V model. For 220V installations, order the BM110, which shares the same 4 L tank and analog control system.
What heater and safety features does this bath include?
It uses a 500W SUS316 pipe heater. Safety devices include a bath protection cover that prevents contact burns, a 7A overcurrent fuse, and a thermal fuse.
What materials are used in construction?
The exterior is chrome-free electrogalvanized carbon steel with a chemical-proof baked-on coating. The protective reservoir cover is aluminum alloy, and the plates are resin.
