VEE GEE Scientific USB Digital Microscope Camera 2MP 5MP 12MP - 1220CM/1300/1400 Series

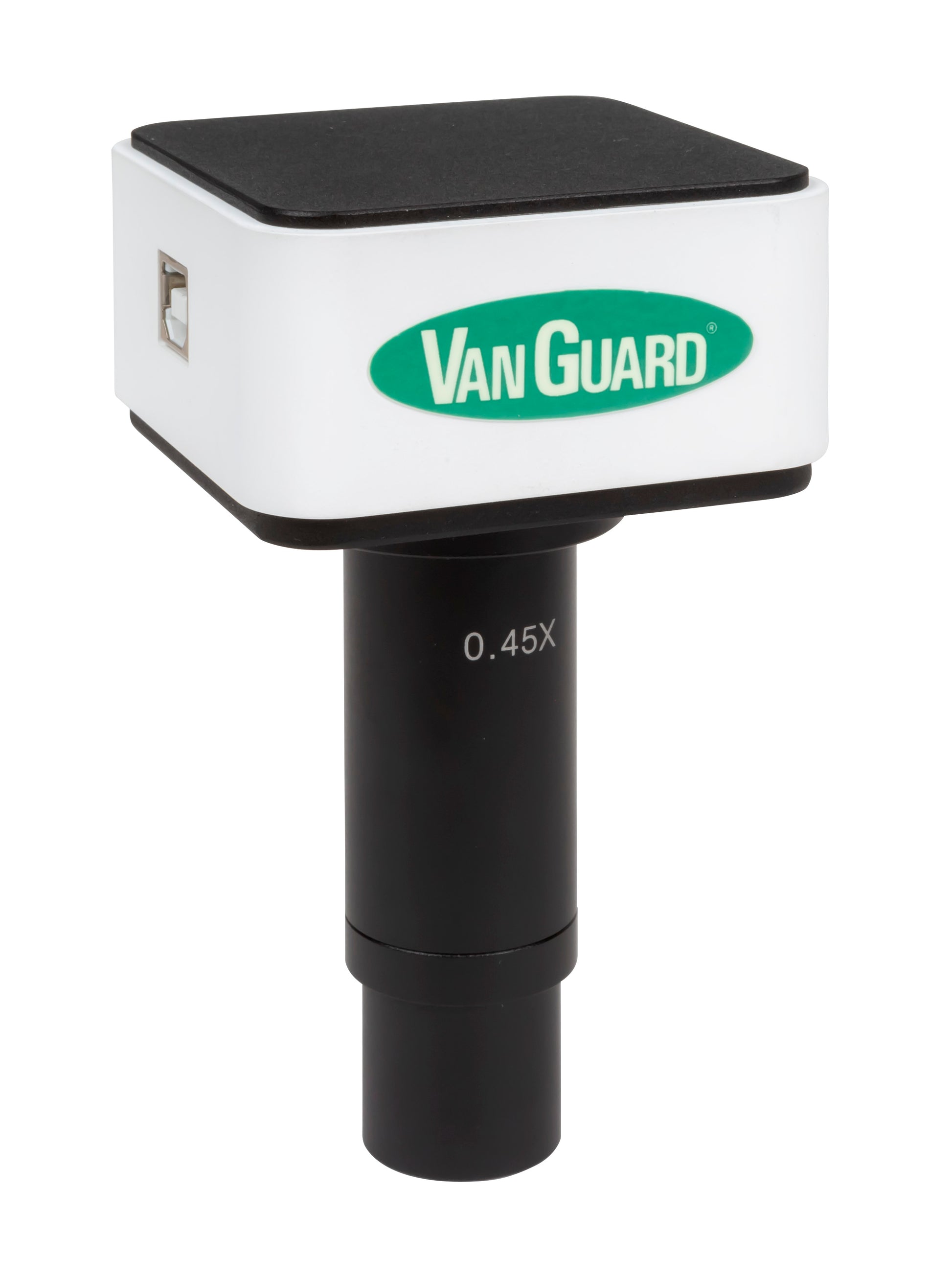

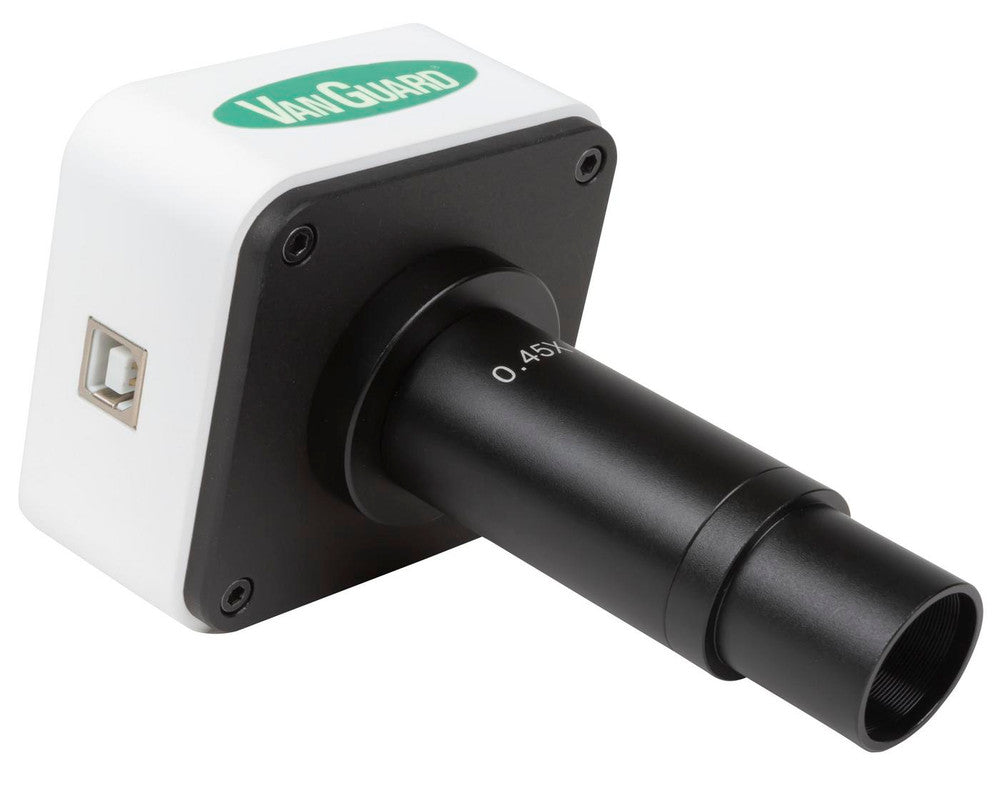

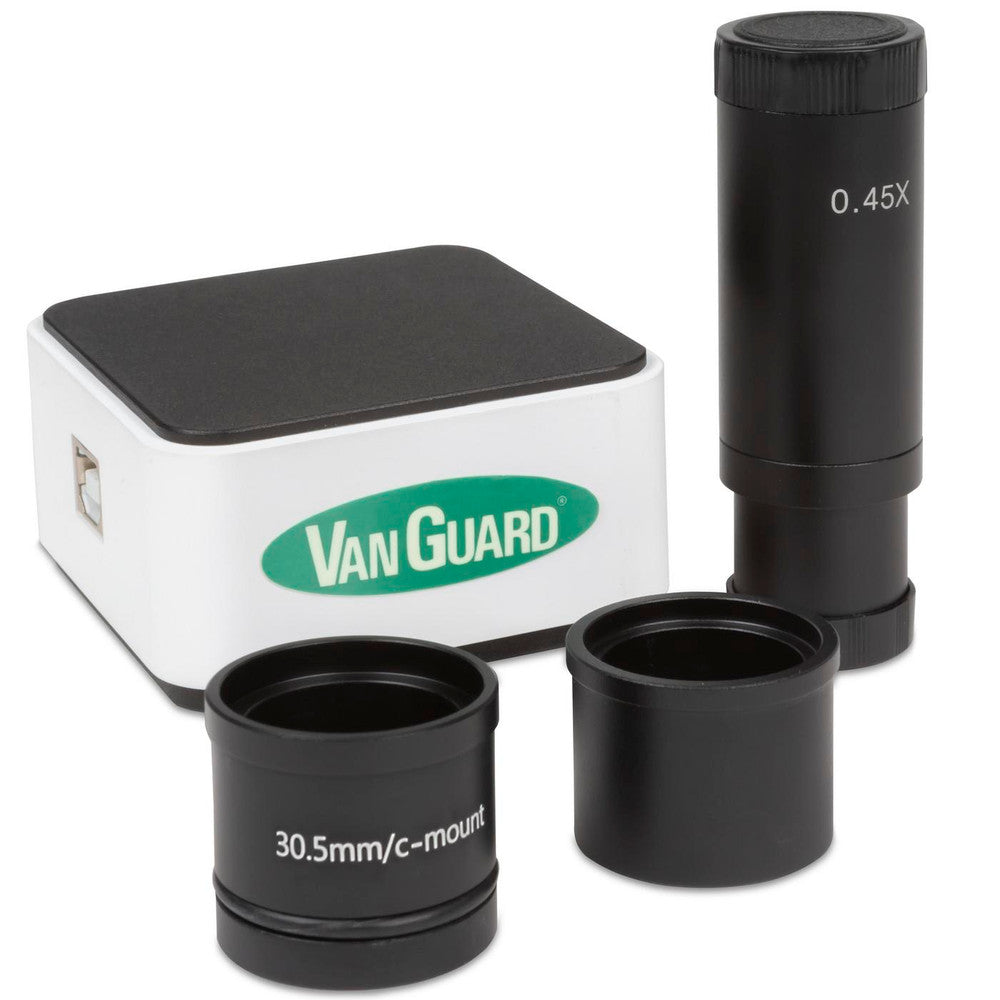

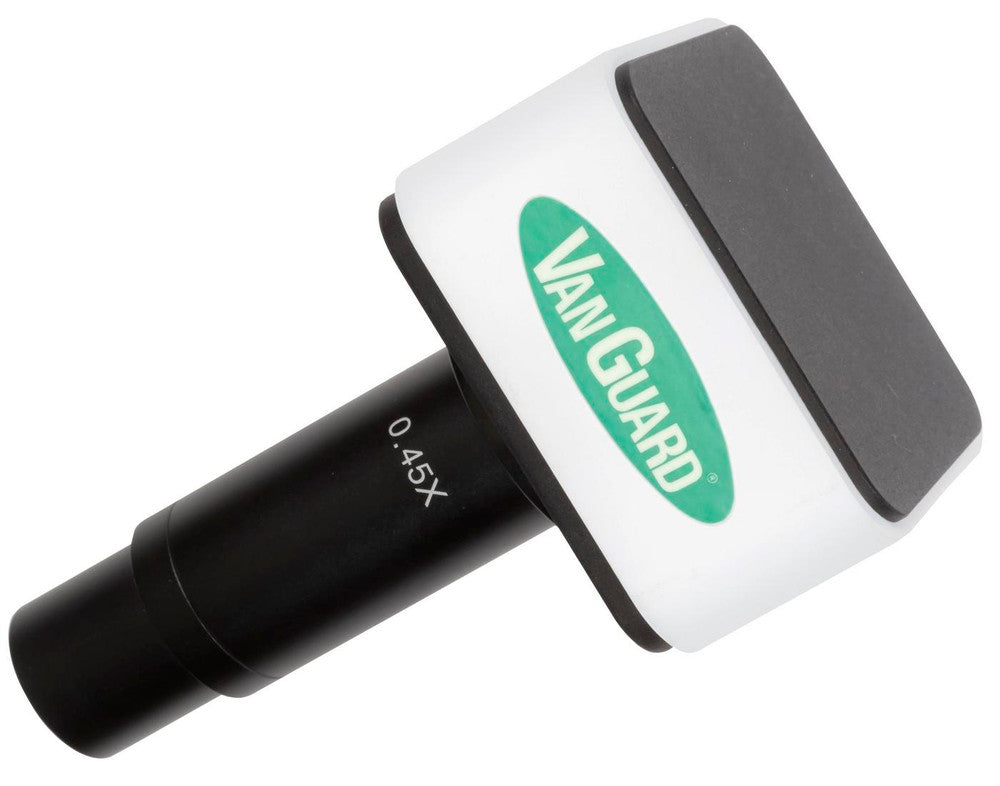

Adding a digital camera to a compound microscope transforms it from a viewing instrument to a documentation platform — specimens can be photographed, measurements made on screen, and images shared with colleagues or incorporated into reports without removing the camera to view through the eyepieces (on trinocular instruments). The VEE GEE Scientific 1300-CDPC Series USB Digital Microscope Cameras are designed for use with the Vanguard 1220CM, 1300 Series, and 1400 Series microscopes — available in 2 MP, 5 MP, and 12 MP resolutions to match documentation requirements and budget.

Single-cable operation: the USB connection carries video signal, camera power, and full software control through one cable — no separate power supply, no extra cables on the bench. Imaging software includes still capture, video recording, exposure and white balance control, measurement tools, and annotation capability. All three models share the same 68 × 68 × 46 mm camera body.

Features and Benefits

• Single USB Cable — Power, Video, and Control: One USB 2.0 cable from camera to computer handles power delivery, live video feed, and full software control — no separate power adapter, no secondary data cable.

• Available in 2 MP, 5 MP, and 12 MP: 2 MP (1920×1080, 30fps) for routine documentation and teaching; 5 MP (2560×1920, 22fps) for detailed imaging and publication; 12 MP (4000×3000, 15fps) for maximum resolution archival imaging and fine measurement work.

• Still and Video Capture Modes: All three models support both still image capture (JPEG/TIFF) and video recording — document dynamic specimens, cell division, and motility alongside static imaging.

• Automatic and Manual Exposure Control: Auto-exposure handles routine use; manual exposure mode enables consistent documentation across repeated specimens under varying staining intensities.

• Compatible with 1220CM, 1300 Series, 1400 Series: All three 1300-CDPC cameras are compatible with the full Vanguard compound microscope line — one camera family covers the entire 1200/1300/1400 instrument range.

• Measurement and Annotation Software Included: Calibrated measurement tools allow length, area, and angle measurement directly on captured images. Annotation capability for labeling and reporting.

Specifications

Laboratory Applications

• Clinical and veterinary documentation — photographing urinalysis sediment, blood smears, cytology, and histopathology slides for case records and remote consultation

• Research image capture — publication-quality brightfield and phase contrast photomicrography using the 5 MP or 12 MP models with calibrated measurement tools

• Teaching and demonstration — live camera feed from a trinocular microscope to a monitor or projector for group instruction without students crowding the eyepiece

• Industrial quality control imaging — documenting material defects, particle analysis, and surface features at known magnification with measurement annotation

Frequently Asked Questions

Which resolution should I choose?
1300-CDPC-2 (2 MP, $483) is appropriate for routine documentation, case records, and teaching where pixel-level detail is not critical. 1300-CDPC-5 (5 MP, $475) offers the best balance of resolution and frame rate for most research and clinical imaging applications. 1300-CDPC-12 (12 MP, $560) is for archival imaging and fine measurement work where maximum pixel resolution is the priority — note the lower 15fps frame rate. Note: the 5 MP model ($475) is priced below the 2 MP model ($483) — verify pricing before ordering.

Does the camera work with a binocular microscope?
The 1300-CDPC cameras connect to a dedicated camera port, not a standard eyepiece tube. The 1220CM (binocular) has a built-in camera port and is compatible. For the 1300 and 1400 Series binocular models (1321BRi, 1323PHI, 1423PHI), a camera port is typically not present — the trinocular models (1331BRi, 1333PHI) have the third optical port required. If you have a binocular 1300/1400 Series instrument and need camera capability, contact VEE GEE Scientific before ordering to confirm whether a camera port adapter is available for your specific model.

What operating system does the imaging software support?
Imaging software compatibility includes Windows operating systems. Contact VEE GEE Scientific or LabSupplies.com for current Mac OS and Linux compatibility information.

Quality Assurance

VEE GEE Scientific 1300-CDPC USB digital cameras are manufactured with factory-calibrated CMOS sensors and verified USB 2.0 data integrity. Imaging software is included and tested for compatibility with the full Vanguard compound microscope line. 1-year warranty.

Academic and Institutional Pricing

LabSupplies.com offers tiered quantity pricing for educational institutions, veterinary clinics, and research organizations. As an authorized VEE GEE Scientific dealer, we ship directly from USA inventory.
