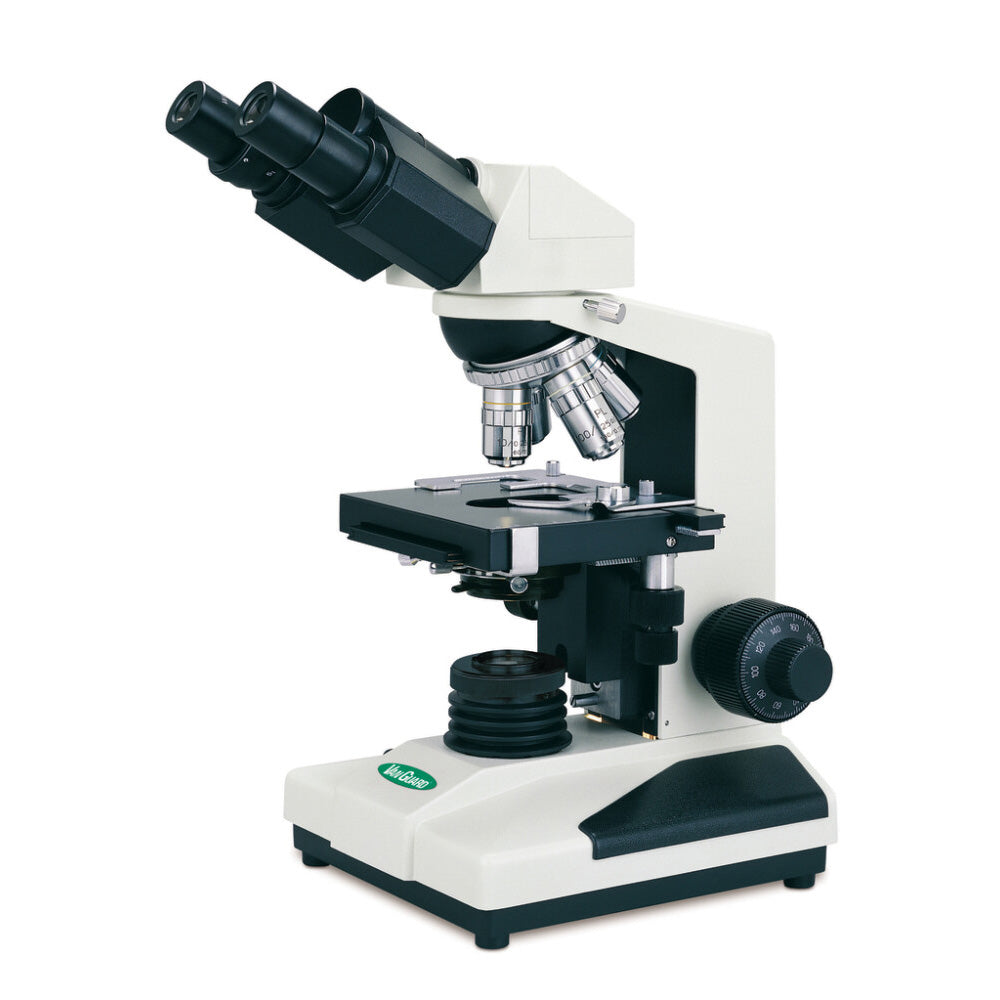

VEE GEE Scientific Vanguard 1200 Brightfield Compound Microscope - Binocular, Koehler

Entry-level compound microscopes often compromise on illumination — fixed-intensity lamps, no field diaphragm, no Koehler illumination capability. The VEE GEE Scientific Vanguard 1200 Series Brightfield Microscope (1220CM) is configured for clinical and educational use from the ground up: 20W variable quartz halogen illumination with a field diaphragm enables full Koehler illumination setup, producing an evenly illuminated, glare-free field that reduces eye fatigue during extended viewing sessions.

10X WideField eyepieces deliver a broad field of view compared to standard 10X eyepieces. The four-objective nosepiece (4X, 10X, 40X, 100X achromatic objectives) covers the full range of clinical and educational brightfield applications from tissue scanning through oil-immersion cytology. Backed by a 5-year warranty — significantly longer than the 1-year warranty common at this price point.

Features and Benefits

• 5-Year Warranty: VEE GEE Scientific backs the 1200 Series with a 5-year warranty — 5× the coverage of most comparably priced microscopes. Indicates confidence in build quality and provides meaningful cost protection for clinic and institutional buyers.

• 20W Variable Quartz Halogen with Field Diaphragm: The variable intensity control allows brightness adjustment for different specimen densities and staining levels. The field diaphragm enables Koehler illumination — the standard method for achieving optimal contrast and resolution in brightfield microscopy.

• 10X WideField Eyepieces: WideField eyepieces provide a larger apparent field of view than standard eyepieces at the same magnification — reduces the need to reposition the slide when scanning.

• 4-Objective Nosepiece (4X/10X/40X/100X): Covers tissue scanning (4X), cellular detail (10X), high magnification (40X), and oil-immersion cytology (100X) — the four-objective configuration used in clinical and veterinary diagnostic protocols.

• Binocular Head: Interpupillary distance adjustable binocular head — compatible with a range of operators without optical degradation.

• Camera-Ready: Compatible with VEE GEE 1300-CDPC series USB digital cameras (sold separately) for image capture and documentation.

Specifications

Laboratory Applications

• Medical and veterinary clinic diagnostics — urinalysis, blood differential, fecal exam, and cytology workflows requiring a reliable 4-objective brightfield instrument

• University and college teaching labs — undergraduate biology, microbiology, histology, and parasitology courses requiring a durable, capable student instrument

• Industrial quality control — inspection of fibers, particles, coatings, and materials at up to 1000X

• Reference laboratory use where a backup or secondary brightfield microscope is needed alongside a primary digital instrument

Frequently Asked Questions

What is the difference between the 1200 and 1300 Series?
The 1200 Series (1220CM) uses achromatic objectives — corrected for chromatic aberration at the center of the field. The 1300 Series (1321BRi, 1331BRi) uses plan achromatic objectives, which are additionally corrected for field curvature, producing a flat, sharp image across the entire field of view. For teaching and general clinical use, achromatic objectives are fully adequate. For publication-quality imaging or high-resolution photomicrography, plan achromatic optics are preferred.

What digital camera is compatible with the 1220CM?
The 1300-CDPC-2 (2 MP), 1300-CDPC-5 (5 MP), and 1300-CDPC-12 (12 MP) USB digital cameras are all compatible with the 1220CM. All three connect via USB and include software for image capture and measurement.

Can I perform phase contrast microscopy with the 1220CM?
No — the 1220CM is a brightfield-only instrument. For phase contrast and darkfield capabilities, the Vanguard 1300 PHI series (1323PHI binocular, 1333PHI trinocular) or 1400 PHI series (1423PHI) are required.

Does the 1220CM require immersion oil for the 100X objective?
Yes — the 100X objective is an oil-immersion objective. Type A immersion oil (not included) is required for 100X use. The 40X objective is a dry objective and does not require oil.

Quality Assurance

VEE GEE Scientific Vanguard 1200 Series microscopes are manufactured to clinical and educational specifications with factory-aligned optics and illumination systems. Each instrument is inspected before shipment. The 5-year warranty covers manufacturing defects in optics, mechanical components, and illumination systems.
