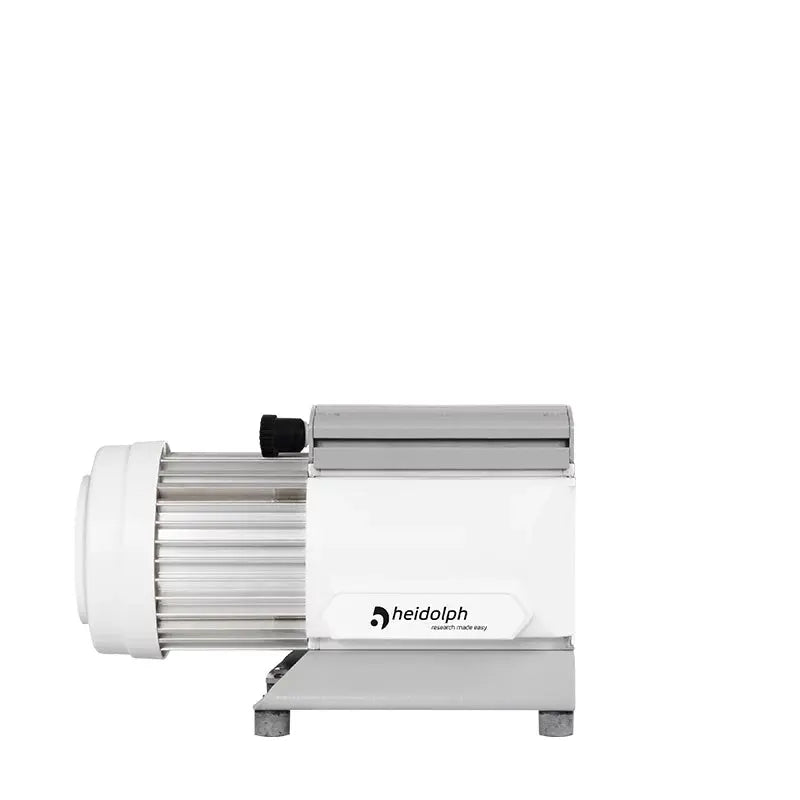

Heidolph Hei-VAC Valve Tec 115V - Professional Laboratory Diaphragm Vacuum Pump

The Heidolph Hei-VAC Valve Tec is a two-stage valve-regulated diaphragm vacuum pump designed for efficient solvent evaporation. It offers a suction capacity of 0.75 m³/h and achieves an ultimate vacuum of 12 mbar, making it ideal for solvents with low to medium boiling points. This vacuum pump is compatible with Hei-VAP Expert Control and Ultimate Control rotary evaporators, ensuring seamless integration.

Heidolph Hei-VAC Valve Tec Vacuum Pump Features

Key features include:

• Two-stage diaphragm pump for improved vacuum stability

• Vacuum control via valve operated or manual vacuum controllers

• Suction capacity: 0.75 m³/h

• Ultimate vacuum without gas ballast: 12 mbar

• Power input: 80 W

• Dimensions: 338 x 183 x 143 mm (W×H×D)

• Weight: 6.5 kg

• Operating temperature: +10 to +40°C

• Protection class: IP 40

• Hose nozzle inlet DN 8 mm; outlet DN 8-10 mm

• Suitable for solvents with low/medium boiling points

• Can be combined with optional condenser (not included)

This reliable vacuum pump incorporates thermal motor protection with a manual reset, enhancing safety during operation. Its compact design enables easy installation in lab setups. Optimize rotary evaporation with the Heidolph Hei-VAC Valve Tec vacuum pump trusted by labs worldwide.
