Technical Narrative

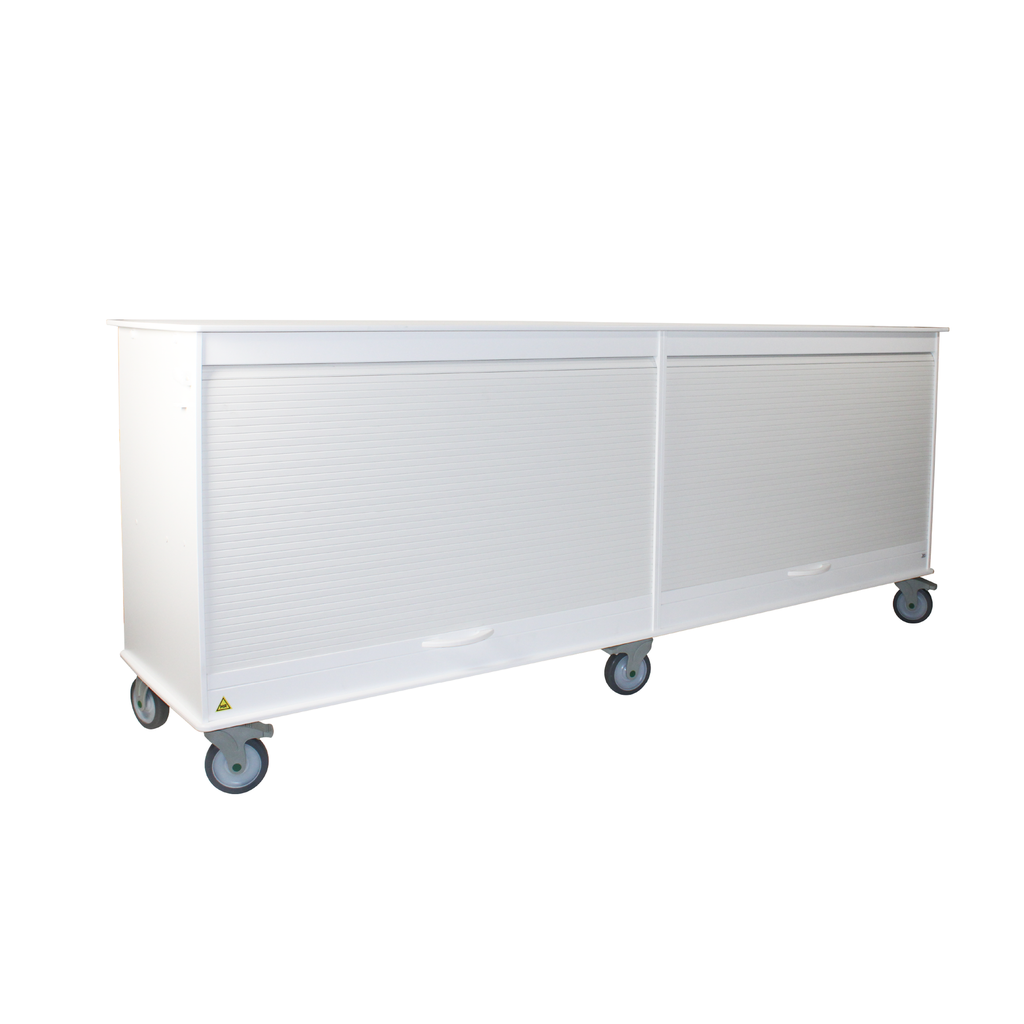

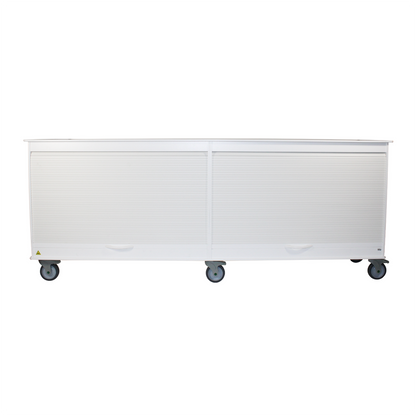

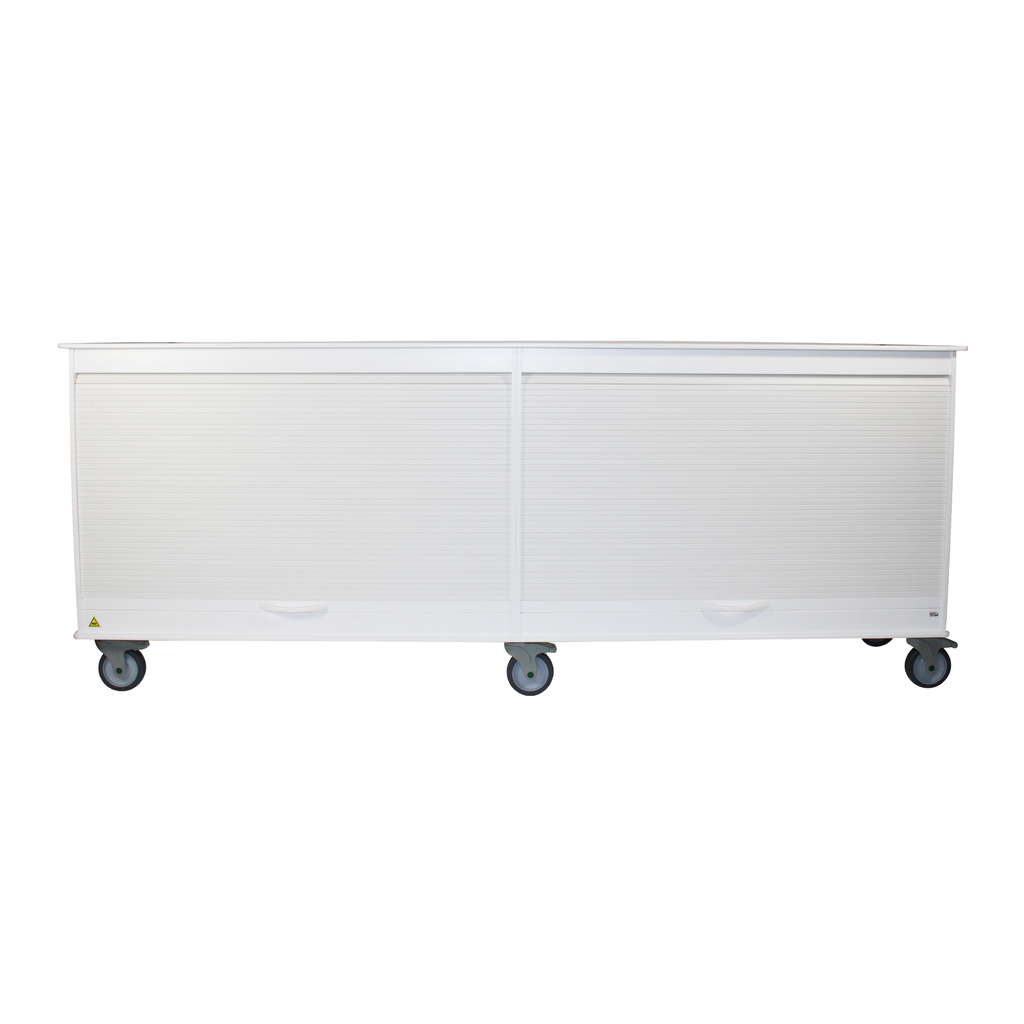

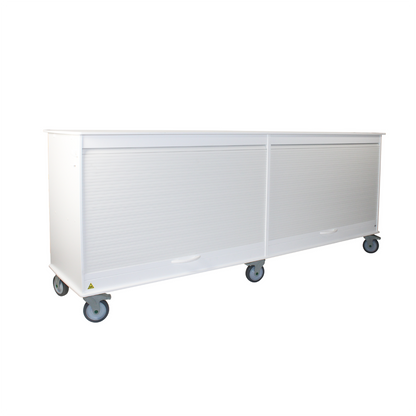

The TrippNT 50734 MRI Belize Lab Island Cart is the highest-specification product in the TrippNT catalog — the intersection of the triple-wide Belize island format and the non-ferrous MRI-conditional material specification — engineered for MRI suites and interventional MRI environments that require a full 94″ mobile workstation island with the same Zone III/IV non-ferrous compliance as the 50729 narrow cart. Where the standard Belize (50593) uses Hafele zinc-plated steel cam locks (ferrous, excluded from MRI zones), the MRI Belize replaces every ferrous component with non-ferrous equivalents: an HDPE hasp lock system on each of the two tambour doors, non-ferrous casters throughout (3 locking + 3 swivel 5-inch), and ½″ HDPE body construction. The result is a 94″ W full-span mobile island providing a continuous flat-top work surface with two independent secured storage bays, each with a pull-out shelf and a bottom shelf, deployable in MRI Zone II, Zone III, or in Zone IV positions where site-specific MRI safety assessment approves.
At 94″ W x 38″ H x 23⅞″ D and 300 lb, this is the largest single unit in the TrippNT catalog. Ships LTL (max 1 per pallet). Requires ≥96″ clear doorway for room entry. Backed by TrippNT’s 100% Lifetime Guarantee. Contact TrippNT at 1-800-874-7768 for lead time and delivery coordination for this flagship unit.
Technical Specifications
| Specification | Value |
|---|---|
| MRI Classification | MRI-Conditional — non-ferrous construction throughout |
| Material | ½″ White HDPE body, PVC tambour doors |
| Color/Finish | White |
| Casters | 3 Locking + 3 Swivel 5-inch Non-Ferrous |
| Door Style | 2 Independent PVC Tambour Doors with HDPE hasp locks (no ferrous) |
| Lock Type | HDPE Hasp Lock (non-ferrous) |

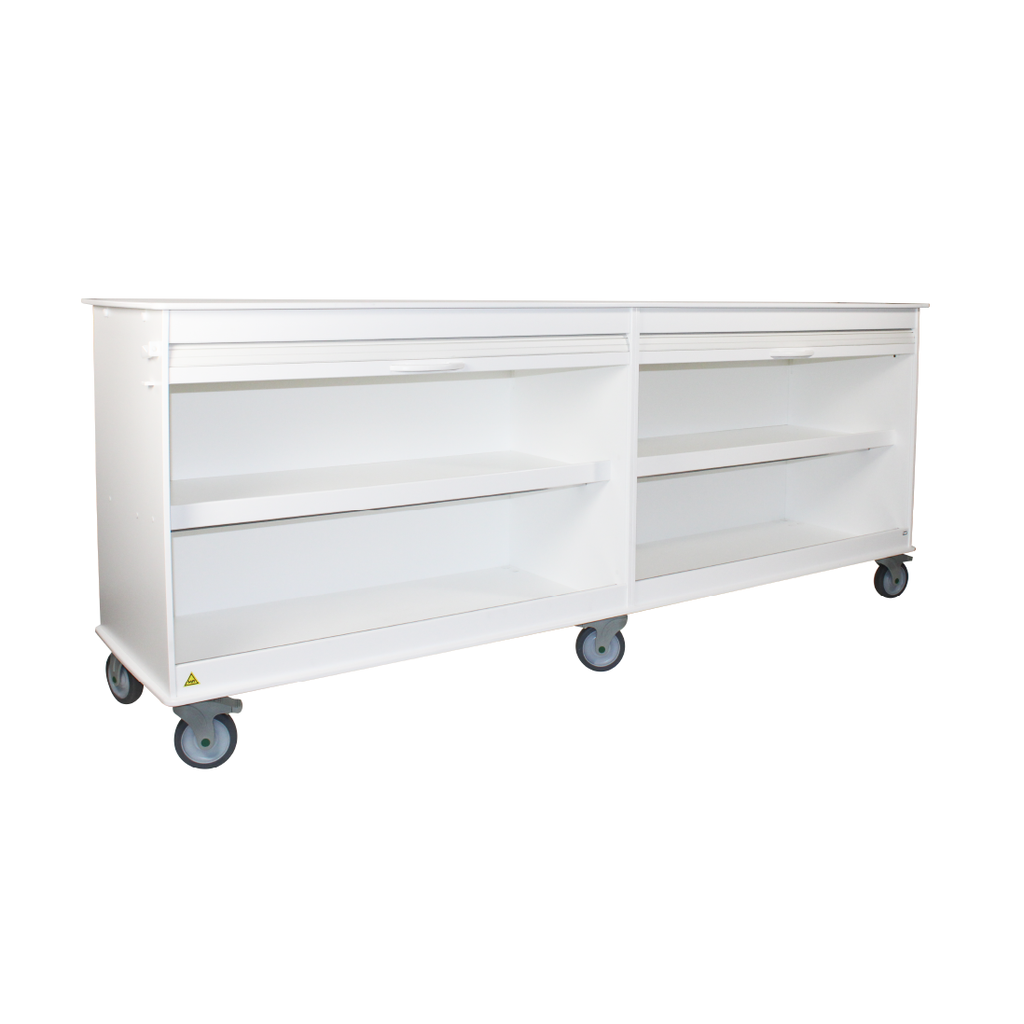

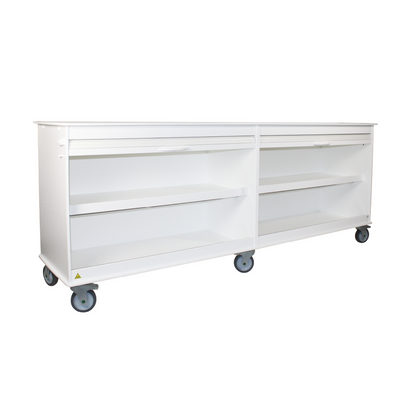

| Interior Storage | 2 Pull-Out Shelves + 2 Bottom Shelves (1 per bay) |
| Top Style | Continuous flat work surface, 94″ wide, accessible from 3 sides |

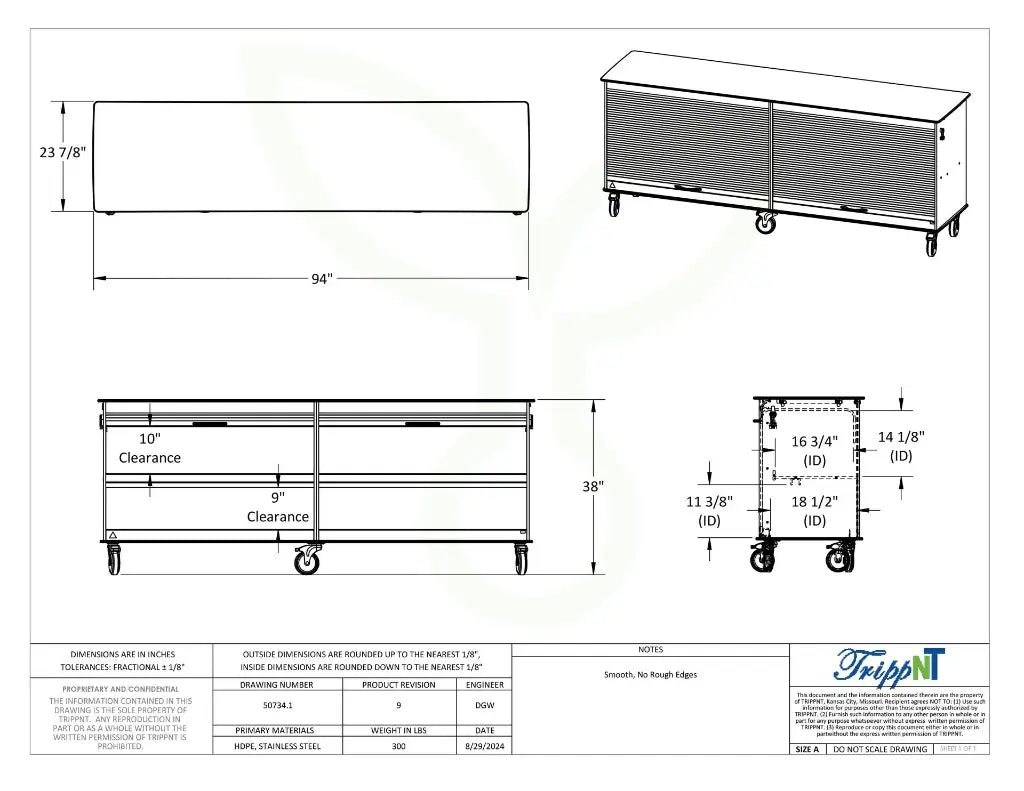

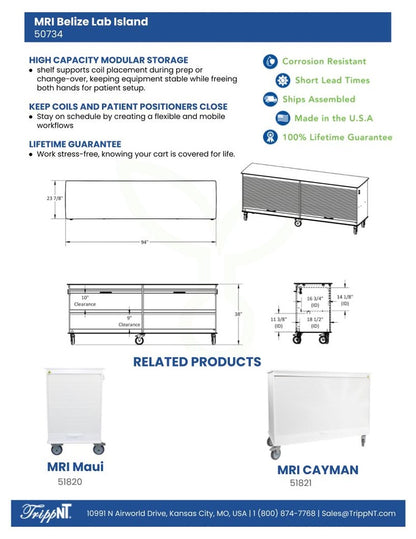

| Product Dimensions (W x H x D) | 94″ x 38″ x 23⅞″ |
| Product Weight | 300 lb |
| Minimum Doorway for Entry | ≥96″ clear span |
| Shipping Method | LTL Freight (max 1 per pallet) |
| UPC | 692878564793 |
| HTS Code | 9403.70 |
| Country of Origin | United States — Kansas City, MO |
Laboratory and Clinical Applications
The 50734 is deployed exclusively in MRI-conditional environments requiring a full-span mobile island workstation, including large-bore and wide-bore MRI suite central supply islands, interventional MRI suite procedure prep stations, hospital radiology department MRI control-room-adjacent supply islands, research MRI facility central-island workstations, cardiac MRI suite central prep islands, multi-modal imaging suite MRI-compatible central workstations, university hospital MRI research center islands, veterinary MRI suite central supply stations, and any MRI-zone environment where the full functional equivalent of a standard Belize island (94″ triple-wide span, two independent locking storage bays) is required with non-ferrous MRI-conditional construction. The 50734 specifically enables MRI-suite environments to have mobile lab island capability equivalent to their non-MRI counterparts without the safety compromises of a standard ferrous-component island.
Product Documentation
Made in the U.S.A. & Lifetime Guarantee
Proudly manufactured in the United States by TrippNT. This MRI lab island cart is backed by a 100% Lifetime Guarantee, ensuring it is a permanent asset for your facility. Contact TrippNT at 1-800-874-7768 for institutional pricing, lead time, and delivery coordination. LTL freight included in quote.
Frequently Asked Questions
How does the MRI Belize 50734 differ from the standard Belize 50593 — and what additional validation steps are required before deploying the 50734 in an active MRI Zone IV?
The functional format is identical: both are 94-inch triple-wide islands with two independent locking tambour doors, pull-out and bottom shelves, and flat-top work surfaces. The critical difference is the lock hardware: the standard 50593 uses Hafele zinc-plated steel cam locks (ferrous, Zone III/IV excluded); the 50734 substitutes HDPE hasp locks and non-ferrous casters to eliminate all ferrous components. Before deploying any cart in Zone IV, the MRI safety officer must conduct a site-specific ASTM F2052 / ASTM F2213 assessment verifying that no ferrous components are present and that the cart’s behavior at the specific scanner’s field strength is consistent with the conditional designation. Contact TrippNT at 1-800-874-7768 to obtain component-level material certifications to support your MRI safety officer’s assessment.
What is the minimum clear-span doorway required to move the 94-inch MRI Belize into an MRI suite, and can it navigate standard MRI suite double doors?
The 94″ width requires a minimum 96″ clear-span opening for entry. Standard hospital double doors (typically 72–84″ clear combined) are not wide enough. MRI suite main access doors, scanner room equipment doors, or specially configured wide-opening equipment passages of at least 96″ clear span are required. Contact your facilities manager and the TrippNT sales team before purchasing to confirm your MRI suite has an adequate access route. Delivery and installation planning for the 50734 requires early coordination with the facilities team; TrippNT can provide dimensional clearance drawings on request.
